Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#129445) — 133 parça

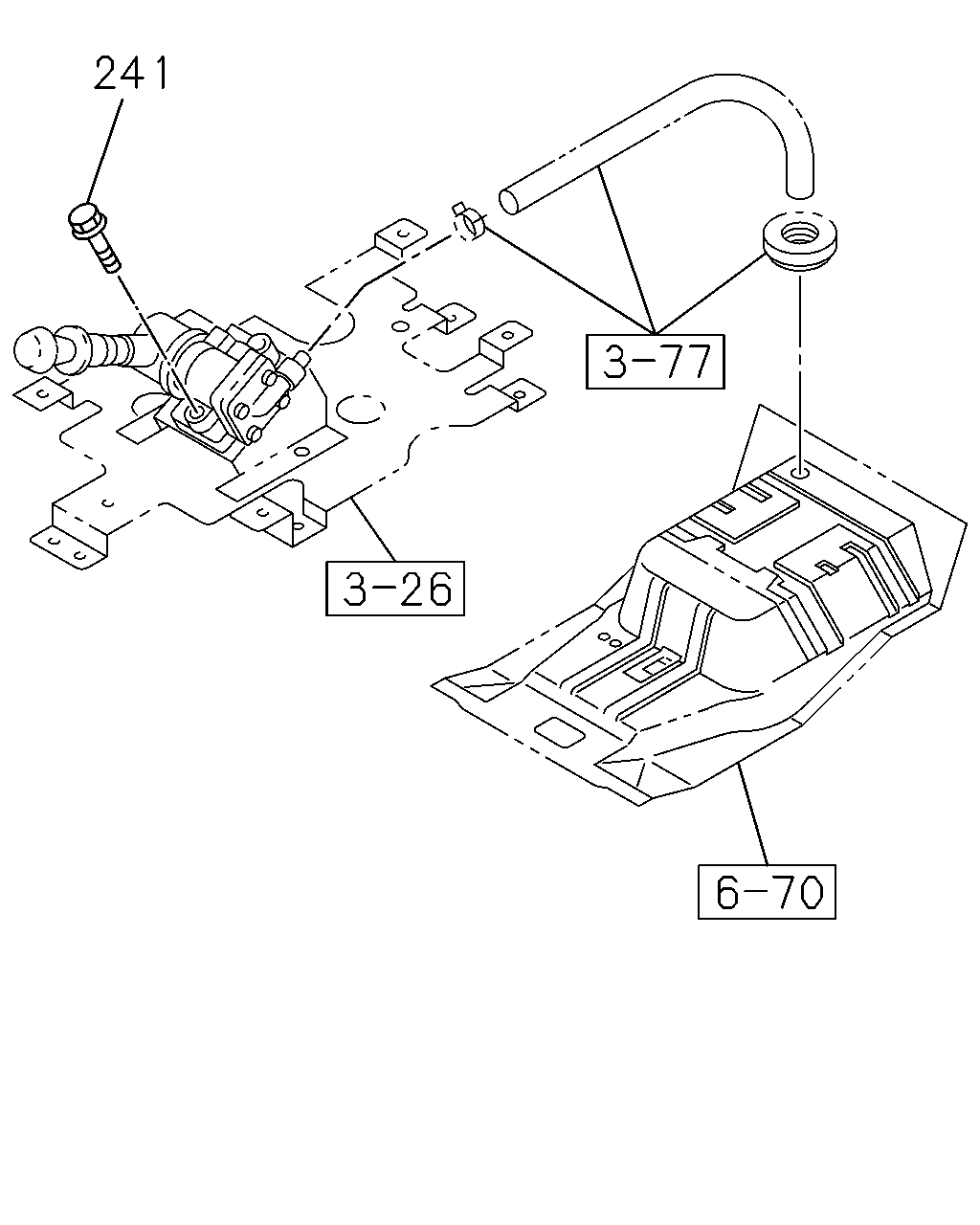

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	1403-

30 31 1 203 203 34 10 8 3 8 7 6 124 8 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	8-98018-785-3	01	1	1403-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1403-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48320-031-1	01	1	1403-
3	VALVE; CHECK,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-48320-031-1	02	1	1403-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1403-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1403-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1403-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1403-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1403-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1403-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1403-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1403-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1403-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1403-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1403-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1403-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1403-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1403-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1403-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1403-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	1403-
10	PLUG; AIR TANK ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) PT3/8	9-09204-517-0	01	1	1403-
10	PLUG; AIR TANK ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) PT3/8	9-09204-517-0	01	1	1403-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) PT3/8	9-09204-517-0	01	1	1403-
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-894-1	01	1	1403-
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1403-
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	1403-
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-893-1	02	1	1403-
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	1403-
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	04	1	1403-

81 83 217 217 271 81 271 217 145 153 151 151 178 177 175 35 140 152 139 145 145 125 125 145 178 138 86 240 239 238 237 180 37 223 223 223 223 223 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

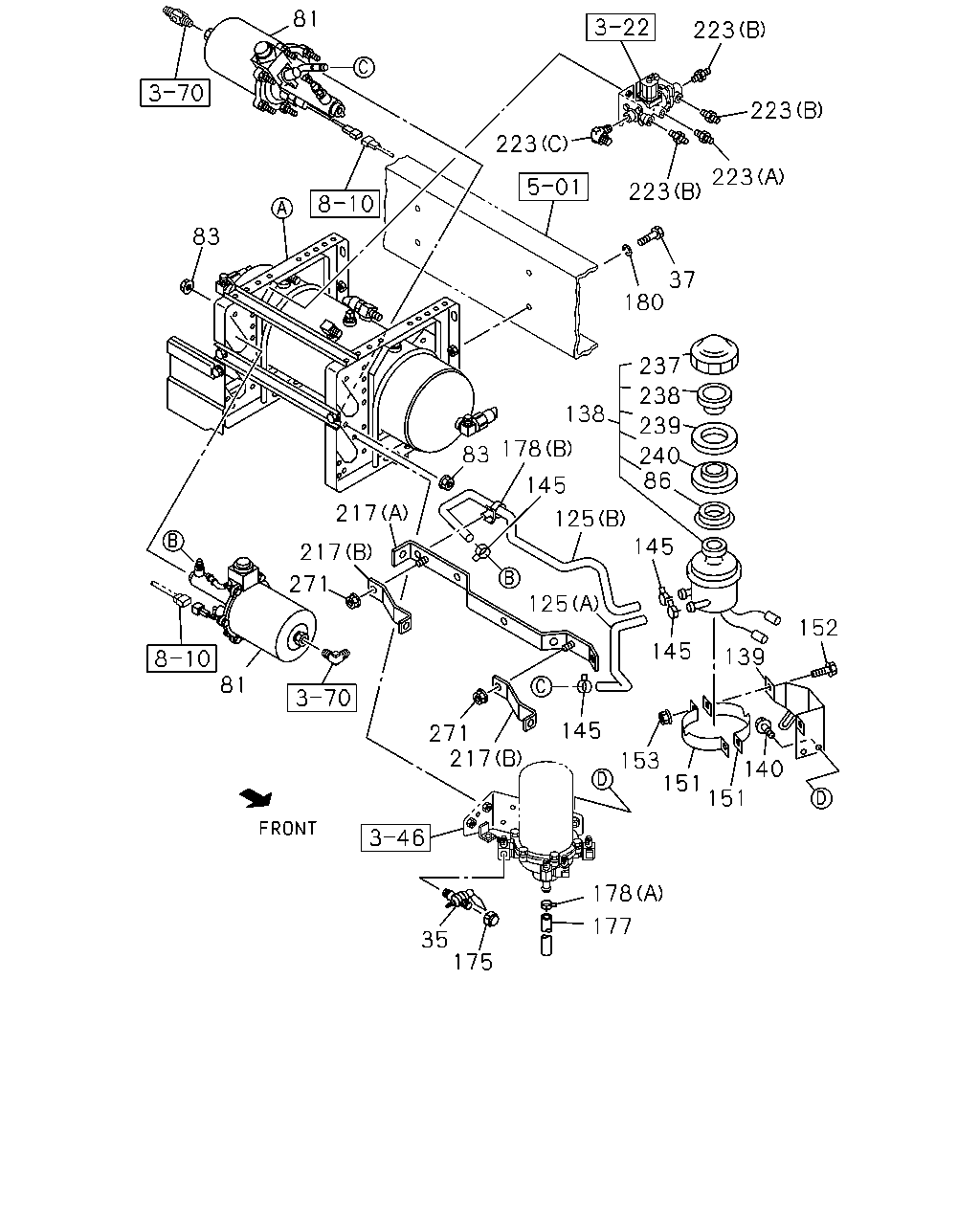

35	COCK; AIR,AIR TANK ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> TIRE INFLATOR DEVICE<SG4> THROTTLE CONTROL SYSTEM(6XH)	1-09680-099-0	01	1	1403-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. THROTTLE CONTROL SYSTEM(6XH)	1-09680-099-0	01	1	1403-
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	04	1	1403-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-826-0	02	1	1403-
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	09	1	1403-
86	SEAL; DUST	1-47529-019-0	01	1	1403-
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98051-217-0	01	1	1403-
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98051-218-1	01	1	1403-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1403-
139	BRACKET; OIL TANK	8-98051-105-0	01	1	1403-
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1403-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1403-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1403-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1403-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1403-
175	CAP; AIR COCK ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> TIRE INFLATOR DEVICE<SG4> THROTTLE CONTROL SYSTEM(6XH)	9-48319-102-0	01	1	1403-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. THROTTLE CONTROL SYSTEM(6XH)	9-48319-102-0	01	1	1403-
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1403-
178	CLIP; HOSE (B) ID=13-18 L=14.5	1-09709-290-0	08	1	1403-
178	CLIP; HOSE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) ID=21	8-94242-034-0	02	1	1403-
178	CLIP; HOSE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=21	8-94242-034-0	02	1	1403-
178	CLIP; HOSE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21	8-94242-034-0	01	1	1403-
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) ID=21	8-94242-034-0	01	1	1403-
178	CLIP; HOSE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) ID=21	8-94242-034-0	01	1	1403-
180	WASHER; LK ID=12.5 OD=32	0-91614-712-0	04	1	1403-
217	BRACKET; RUBBER HOSE (A)	8-98082-871-0	01	1	1403-
217	BRACKET; RUBBER HOSE (B)	8-98085-273-1	02	1	1403-
223	UNION H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1403-
223	UNION ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1403-
223	UNION H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	1403-
223	UNION ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	1403-
223	UNION H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1403-
223	UNION ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1403-
237	CAP; OIL TANK	1-47525-030-0	01	1	1403-
238	PLATE; BAFFLE	1-47529-022-0	01	1	1403-
239	FILTER; DUST	1-47529-017-0	01	1	1403-
240	HOLDER; FILTER	1-47529-018-0	01	1	1403-
271	NUT; BRKT,HOSE M8 FLANGE	0-91180-108-0	02	1	1403-

24 126 24 8 126 126 126 126 1 9 3 8 417 106 172 64 134 58 58 46 46 43 64 43 28 64 43 39 126 282 213 126 10 9 8 126 3 9 126 9 213 39 6 28 368 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

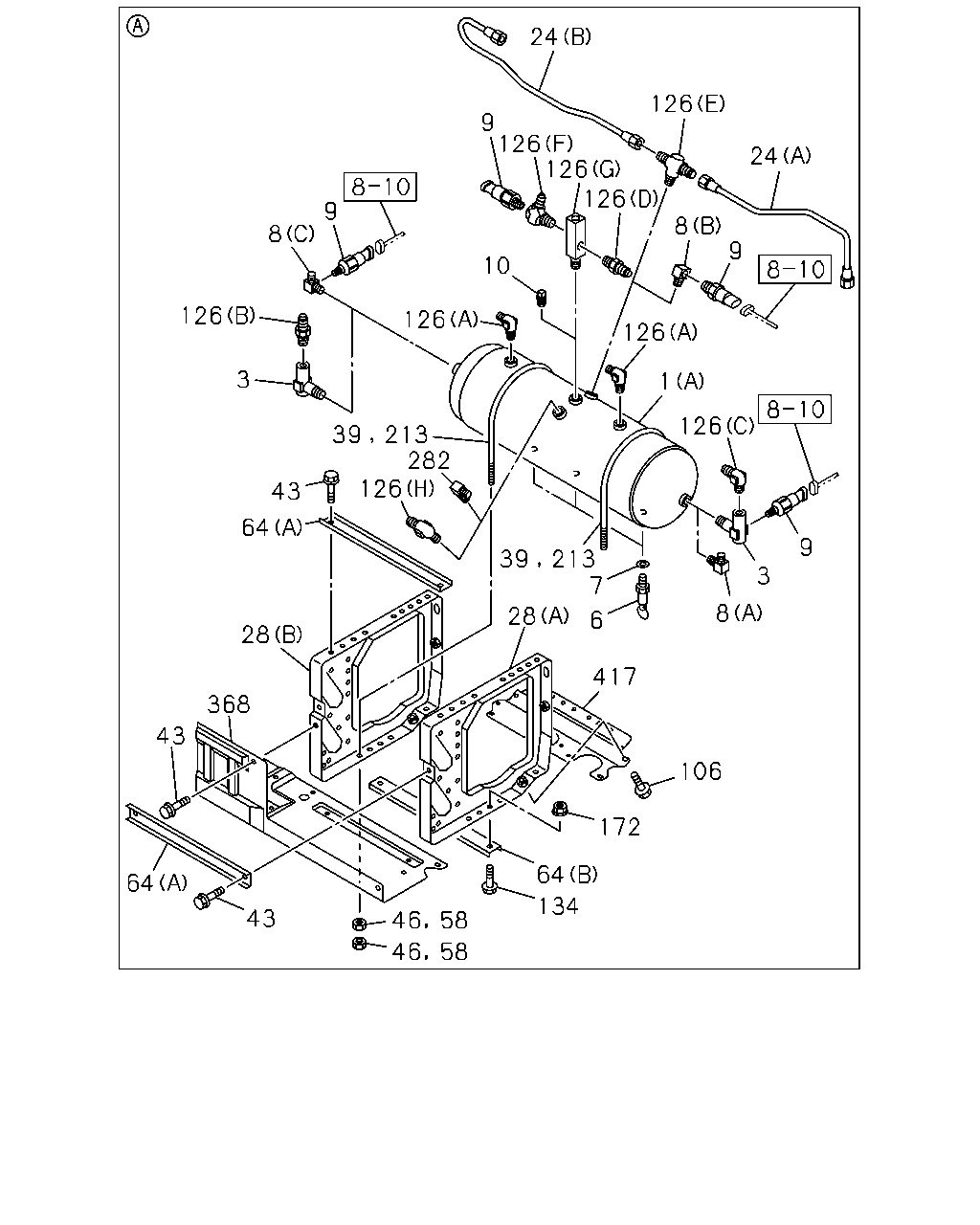

1	TANK ASM; AIR (A)	8-98018-785-3	01	1	1403-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1403-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48320-031-1	01	1	1403-
3	VALVE; CHECK,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-48320-031-1	02	1	1403-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1403-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1403-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1403-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1403-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1403-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1403-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1403-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1403-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1403-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1403-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1403-
8	CONNECTOR; AIR TANK ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1403-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1403-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1403-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1403-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1403-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5	8-97609-249-0	03	1	1403-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5	8-97609-249-0	03	1	1403-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5	8-97609-249-0	03	1	1403-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5	8-97609-249-0	01	1	1403-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	1403-
10	PLUG; AIR TANK ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) PT3/8	9-09204-517-0	01	1	1403-
10	PLUG; AIR TANK ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) PT3/8	9-09204-517-0	01	1	1403-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) PT3/8	9-09204-517-0	01	1	1403-
24	PIPE ASM; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A)	8-98178-465-0	01	1	1403-
24	PIPE ASM; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (B)	8-98178-466-0	01	1	1403-
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	1403-
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	1403-
39	U-BOLT; AIR TANK ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH)	8-98022-041-0	02	1	1403-
39	U-BOLT; AIR TANK ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98022-041-0	02	1	1403-
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	8-98022-041-0	02	1	1403-
43	BOLT; STAY,AIR TANK,MAIN ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M8X16 FLANGE	0-28050-816-0	06	1	1403-
43	BOLT; STAY,AIR TANK,MAIN ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) M8X16 FLANGE	0-28050-816-0	06	1	1403-
43	BOLT; STAY,AIR TANK,MAIN REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) M8X16 FLANGE	0-28050-816-0	06	1	1403-
43	BOLT; STAY,AIR TANK,MAIN EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) M8X16 FLANGE	0-28050-816-0	10	1	1403-
46	NUT; U-BOLT ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M8	0-91110-508-0	08	1	1403-
46	NUT; U-BOLT ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) M8	0-91110-508-0	08	1	1403-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) M8	0-91110-508-0	08	1	1403-
58	NUT; BAND,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) M8	0-91110-508-0	08	1	1403-
64	STAY; AIR TANK,MAIN (A)	8-98044-510-3	02	1	1403-
64	STAY; AIR TANK,MAIN (B)	8-98044-511-2	01	1	1403-
106	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	1403-
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1403-
126	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1403-
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (B) M20	0-92121-812-0	01	1	1403-
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (C) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1403-
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1403-
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (E) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1403-
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (H) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1403-
126	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (G)	8-98190-623-0	01	1	1403-
134	BOLT; COVER FIX ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M8X16 FLANGE	0-28050-816-0	04	1	1403-
134	BOLT; COVER FIX ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) M8X16 FLANGE	0-28050-816-0	04	1	1403-
134	BOLT; COVER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) M8X16 FLANGE	0-28050-816-0	04	1	1403-
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91180-108-0	02	1	1403-
213	BOLT; U AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	8-98022-041-0	02	1	1403-
282	UNION; 2 WAY ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1403-
282	UNION; 2 WAY ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1403-
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1403-
368	COVER; AIR TANK	8-98061-625-3	01	1	1403-
417	COVER; HARNESS	8-98111-401-0	01	1	1403-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
