3-11 — PARKING BRAKE CONTROL (#129444) — 69 parça

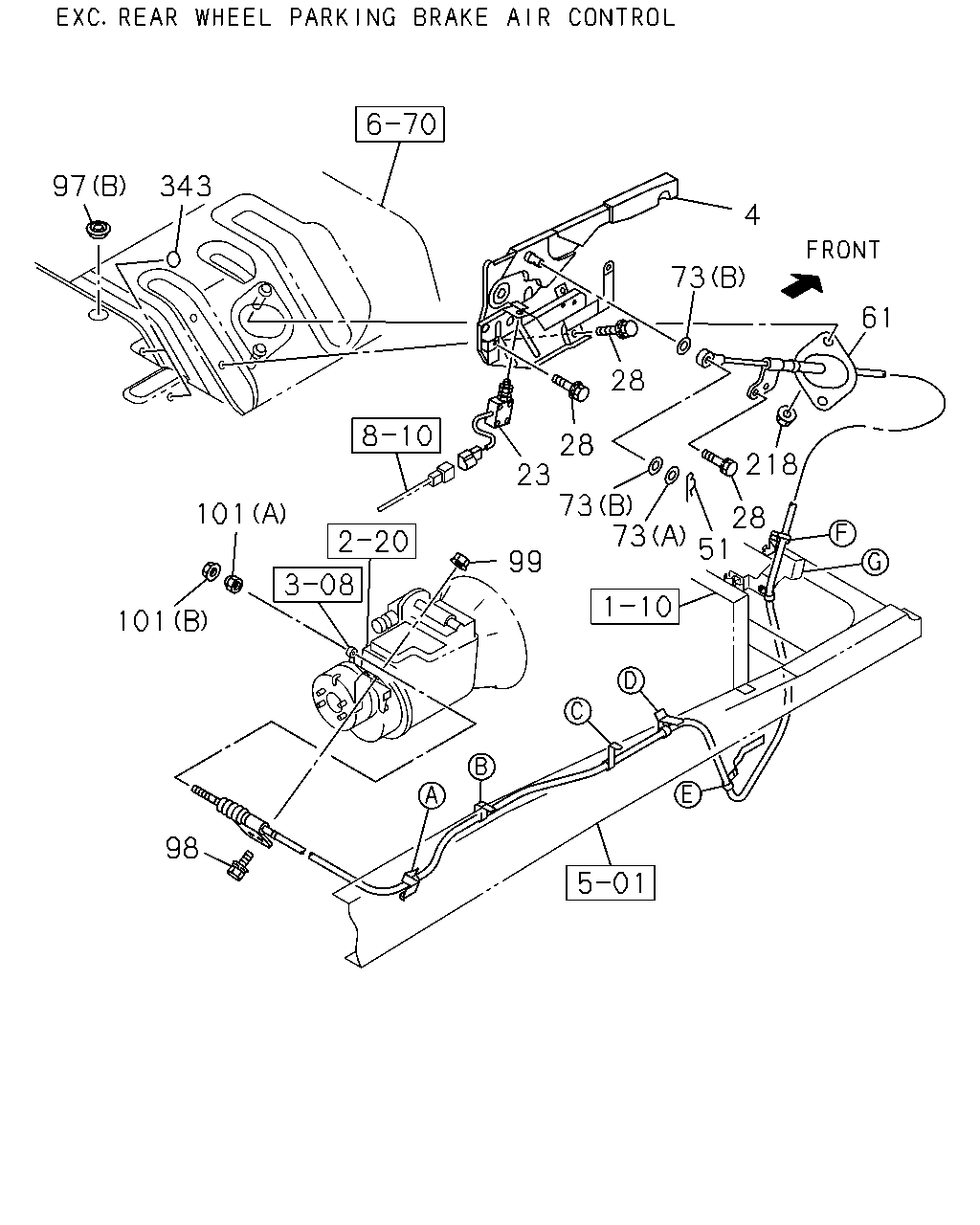

343 101 99 73 23 28 28 73 4 61 218 51 28 73 98 101 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-548-0	01	1	1403-
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	1403-
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1403-
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	1403-
61	CABLE; PARKING BRK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4253	8-98171-946-2	01	1	1403-
61	CABLE; PARKING BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4283	8-98226-425-1	01	1	1403-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30	0-91610-516-0	01	1	1403-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19	8-94206-429-1	02	1	1403-
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	1403-
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	1403-
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	01	1	1403-
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	1403-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	1403-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	1-46259-007-0	01	1	1403-
218	NUT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1403-
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	05	1	1403-

97 236 235 336 228 228 336 228 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	1403-
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	1403-
228	BOLT; CLIP RAD MTG (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1403-
228	BOLT; CLIP RAD MTG GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE	0-28050-816-0	01	1	1403-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	03	1	1403-
228	BOLT; CLIP RAD MTG REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X25 FLANGE	0-28650-825-0	02	1	1403-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	1403-
235	BRACKET; CONT CABLE TO FRAME (B)	8-98126-426-0	01	1	1403-
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98100-152-0	01	1	1403-
236	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE	0-28650-825-0	01	1	1403-
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1403-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98139-517-0	01	1	1403-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98077-918-1	01	1	1403-
336	BRACKET; RADIATOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98065-276-0	01	1	1403-
336	BRACKET; RADIATOR GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98065-276-0	01	1	1403-
336	BRACKET; RADIATOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98251-969-0	01	1	1403-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98251-969-0	01	1	1403-

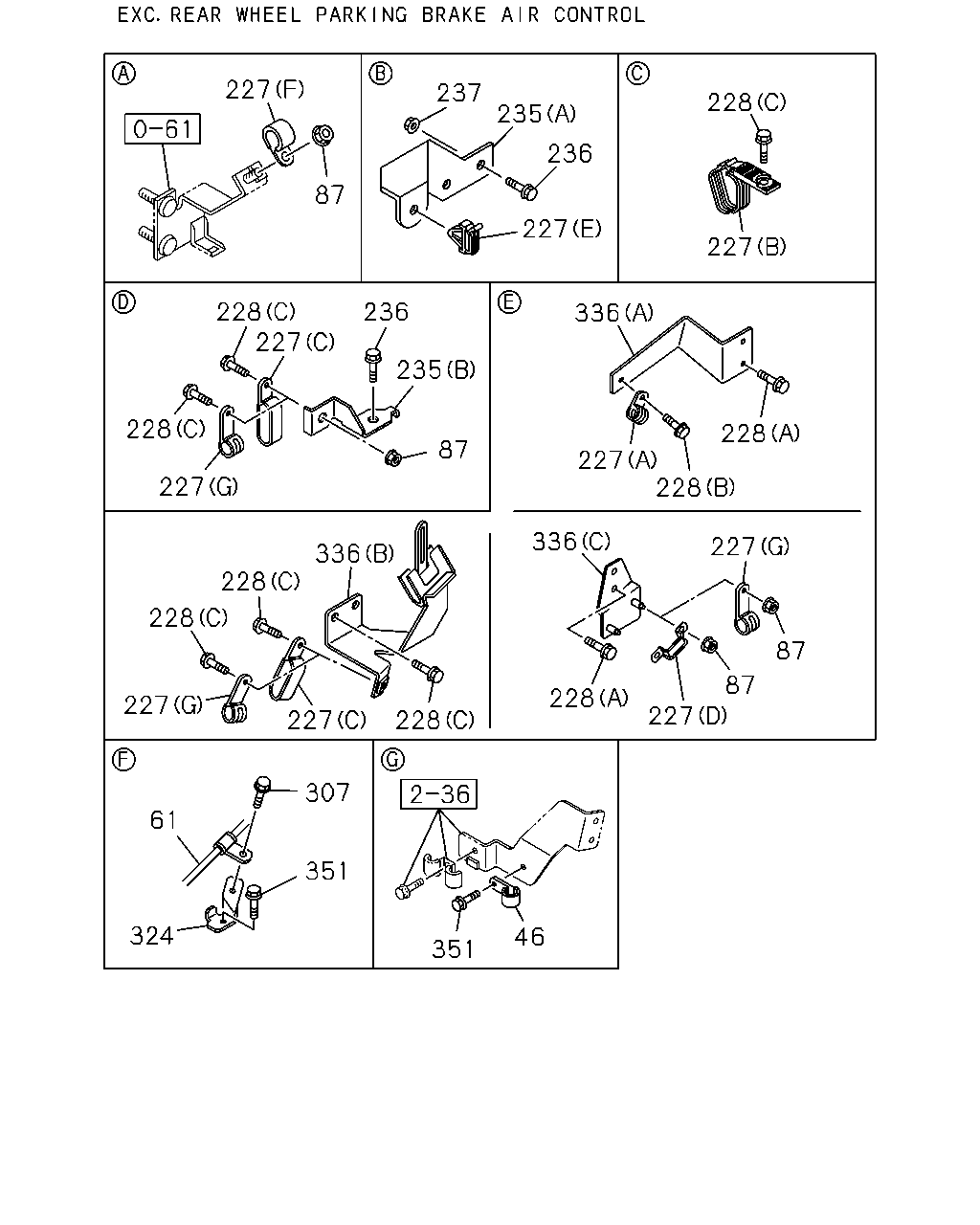

237 235 236 227 228 227 87 227 228 236 227 235 87 227 228 336 228 228 227 227 228 228 227 87 227 227 228 228 336 336 307 351 324 61 46 351 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	01	1	1403-
61	CABLE; PARKING BRK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4253	8-98171-946-2	01	1	1403-
61	CABLE; PARKING BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4283	8-98226-425-1	01	1	1403-
87	NUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1403-
87	NUT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	04	1	1403-
87	NUT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	1403-
227	CLIP; RAD GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=26 L=26	1-09701-236-0	01	1	1403-
227	CLIP; RAD GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	1403-
227	CLIP; RAD GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=13 L=20	0-95235-235-0	01	1	1403-
227	CLIP; RAD GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) ID=14.5 L=40	1-09701-014-0	01	1	1403-
227	CLIP; RAD GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32	8-97389-264-0	02	1	1403-
227	CLIP; RAD GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98080-966-0	01	1	1403-
227	CLIP; RAD GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) ID=14.5 L=40	1-09701-014-0	03	1	1403-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=16 L=20	0-95235-535-0	01	1	1403-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5	5-09709-020-0	01	1	1403-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1403-1504
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 & 10 & 10 L=43.5	8-98292-921-0	01	1	1505-
228	BOLT; CLIP RAD MTG (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1403-
228	BOLT; CLIP RAD MTG GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE	0-28050-816-0	01	1	1403-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	03	1	1403-
228	BOLT; CLIP RAD MTG REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X25 FLANGE	0-28650-825-0	02	1	1403-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	1403-
235	BRACKET; CONT CABLE TO FRAME (B)	8-98126-426-0	01	1	1403-
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98100-152-0	01	1	1403-
236	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE	0-28650-825-0	01	1	1403-
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1403-
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1403-
307	BOLT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	01	1	1403-
324	BRACKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-482-1	01	1	1403-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98139-517-0	01	1	1403-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98077-918-1	01	1	1403-
336	BRACKET; RADIATOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98065-276-0	01	1	1403-
336	BRACKET; RADIATOR GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98065-276-0	01	1	1403-
336	BRACKET; RADIATOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98251-969-0	01	1	1403-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98251-969-0	01	1	1403-
351	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	03	1	1403-
