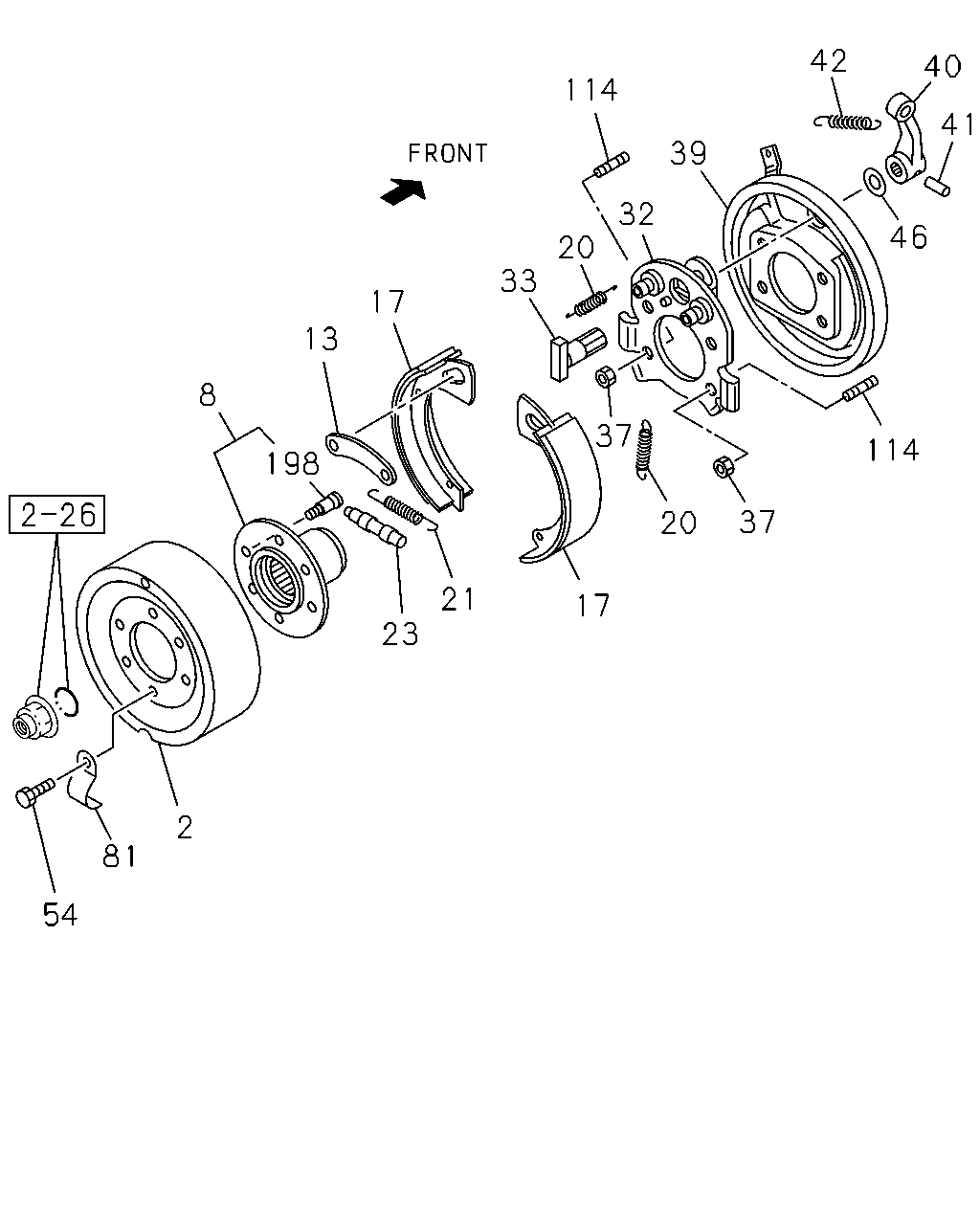

3-08 — PARKING BRAKE (#129442) — 21 parça

54 81 2 23 8 13 17 33 20 32 39 114 42 40 41 46 114 37 20 17 21 37 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DRUM; PARKING BRK	1-46211-020-1	01	1	1403-
8	FLANGE; PARKING BRK	8-98171-007-0	01	1	1403-
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-003-0	01	1	1403-
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-029-0	02	1	1403-
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-567-1	02	1	1403-
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-268-0	01	1	1403-
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46240-008-0	01	1	1403-
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-023-0	01	1	1403-
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-070-0	01	1	1403-
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	04	1	1403-
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-115-0	01	1	1403-
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-057-0	01	1	1403-
41	PIN; KNOCK,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09878-594-0	01	1	1403-
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-592-0	01	1	1403-
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-367-0	01	1	1403-
54	BOLT; COVER M8X20 W/LK WASHER	0-50740-820-0	02	1	1403-
81	COVER; CHECK HOLE,PARKING BRK	1-46219-018-0	02	1	1403-
114	STUD; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22.5 L=42.5	8-97365-445-0	04	1	1403-
198	BOLT; KNURL M14X43 KNURL	8-98014-003-0	04	1	1403-

197 130 130

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	130	BOLT; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28151-025-0	03	1	1403-
	197	BRACKET; CENTER BRAKE CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98170-963-2	01	1	1403-
