Isuzu WW
▶
TRUCKS
▶
FRR
▶
11553 - FRR RHD EURO5 SPACECAB
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

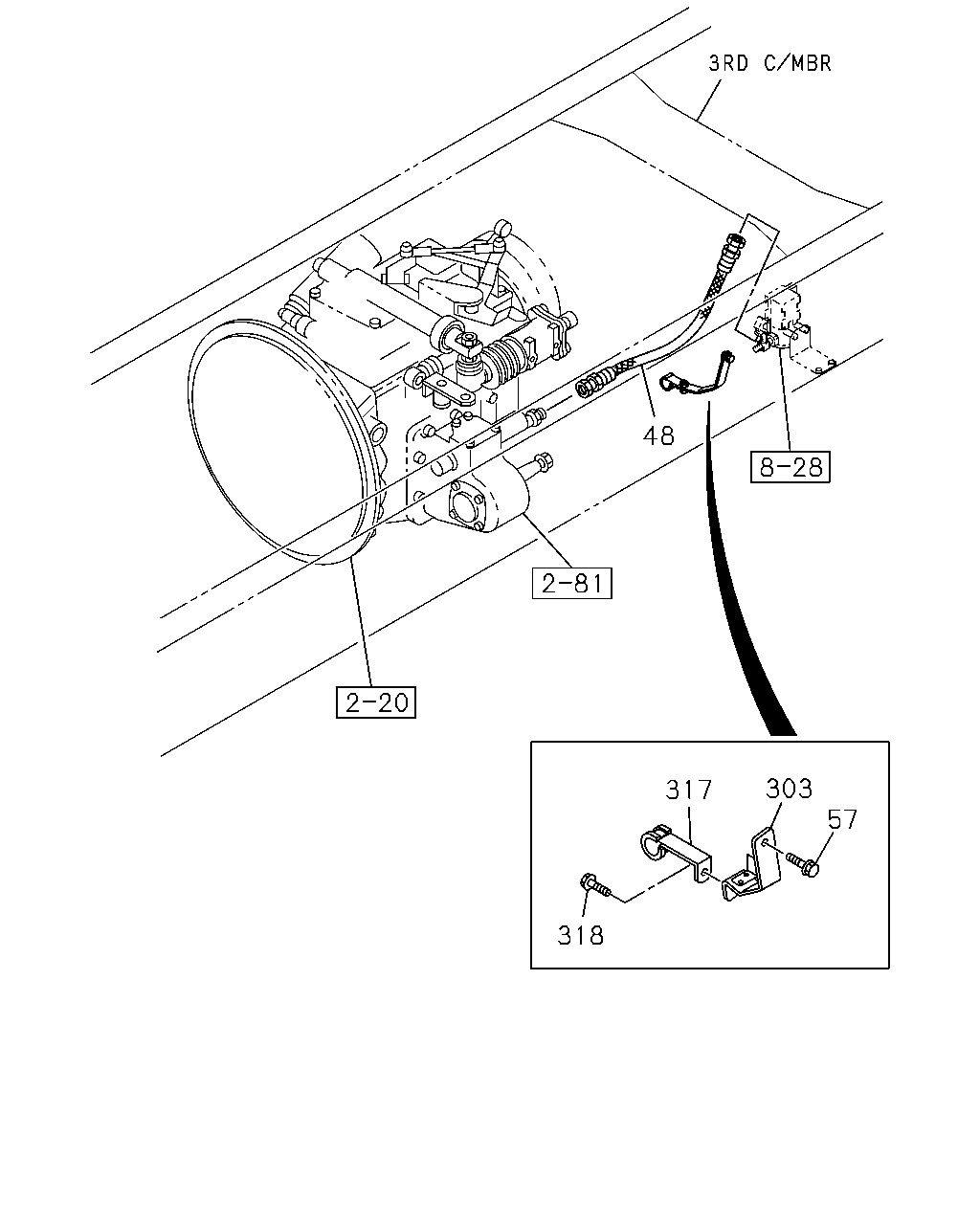

2-85 — POWER TAKE OFF CONTROL
(#129439) — 9 parça
◀
[285A] PTO LEVER (2 parça)
[285A] HOSE (7 parça)
▶
3
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1403-
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
1403-
318
317
303
57
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=580
1-09363-613-1
01
1
1403-
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=540
1-09363-612-1
01
1
1403-
57
BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE
0-28651-025-0
01
1
1403-
303
BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98136-975-0
01
1
1403-
303
BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98136-974-0
01
1
1403-
317
CLIP; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30
1-09701-215-1
01
1
1403-
318
BOLT; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE
0-28650-820-0
01
1
1403-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
