2-53 — TRANSMISSION OIL COOLER SYSTEM (#129437) — 51 parça

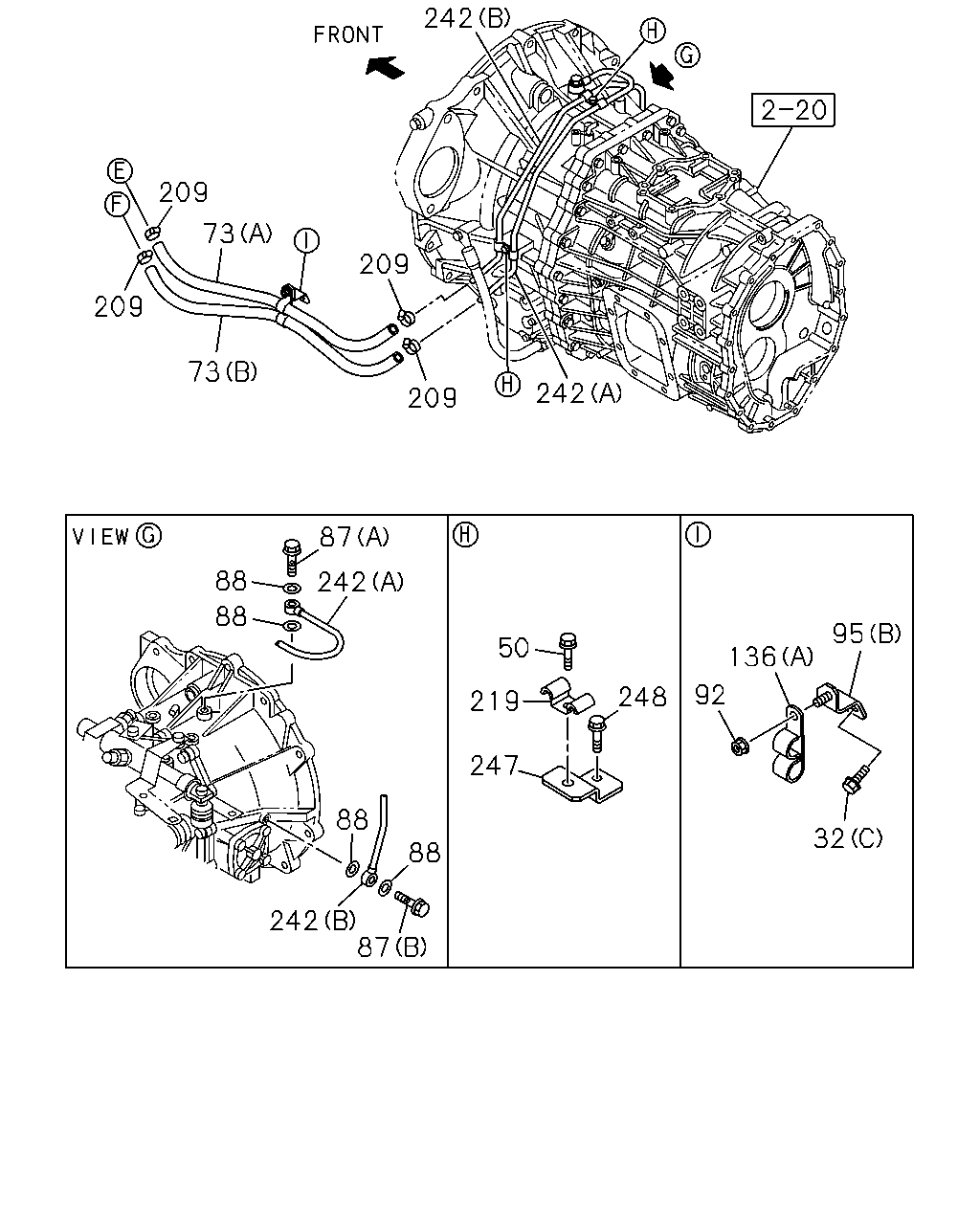

242 242 209 209 73 209 95 136 32 92 248 247 219 50 242 87 88 88 88 88 87 242 73 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X20 FLANGE	0-28650-820-0	01	1	1403-
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1403-
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1403-
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1403-
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1403-
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98081-839-0	01	1	1403-
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98081-848-0	01	1	1403-
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1403-
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	1403-
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1403-
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1403-
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1403-
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-564-0	01	1	1403-
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98065-902-0	01	1	1403-
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C)	8-98065-886-0	01	1	1403-1405
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-98281-712-0	01	1	1406-
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1403-
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1403-
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	04	1	1403-
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	04	1	1403-
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1403-
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98020-545-0	01	1	1403-1507
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-633-0	01	1	1508-
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98020-546-0	01	1	1403-1507
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-634-0	01	1	1508-
247	RETAINER; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-876-0	01	1	1403-
248	BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1403-

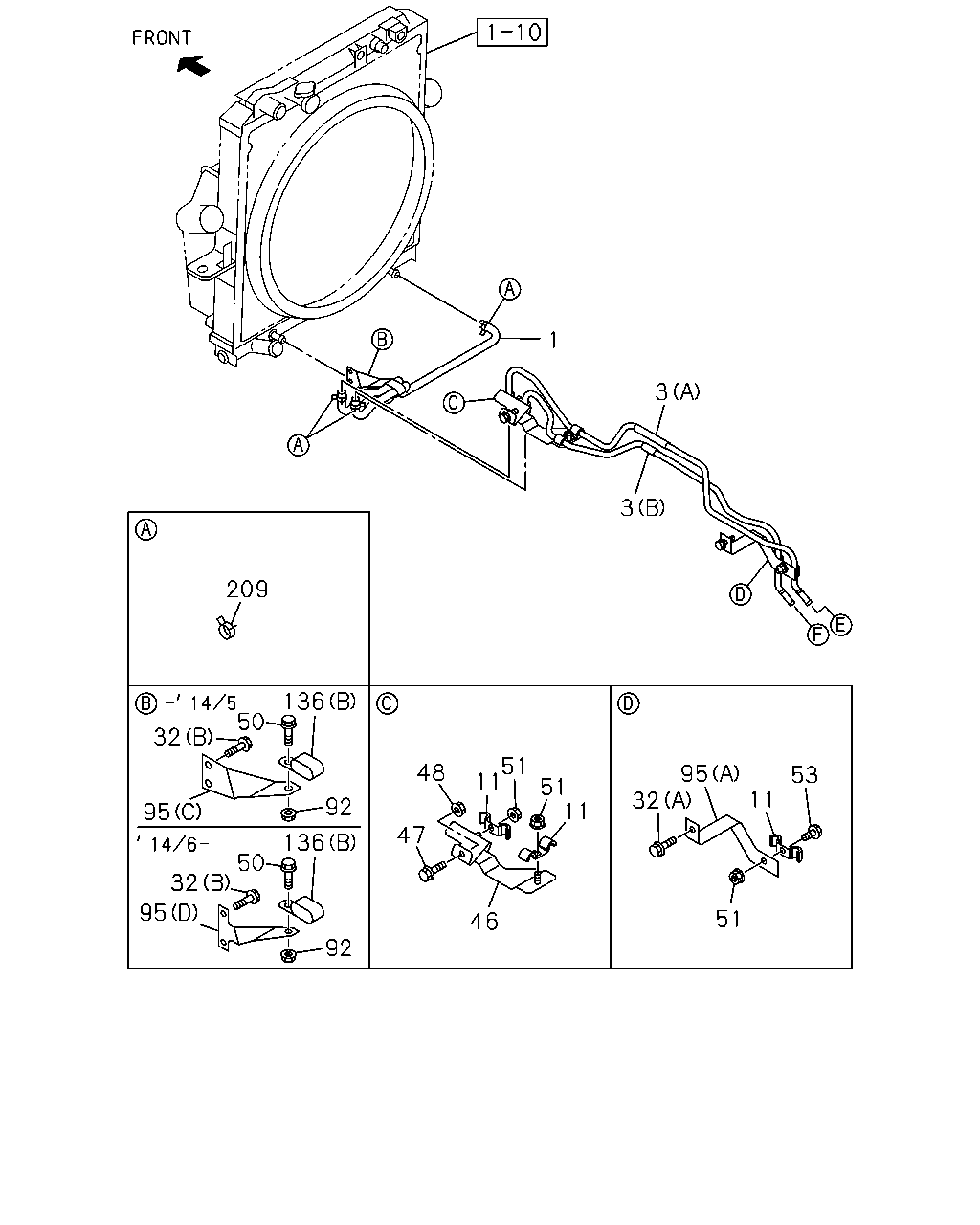

1 3 3 209 32 50 136 95 136 92 50 92 32 95 48 47 46 11 51 51 11 32 95 53 11 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98045-681-0	01	1	1403-
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=987	8-98235-094-0	01	1	1403-
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=881	8-98235-095-0	01	1	1403-
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1403-
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X20 FLANGE	0-28650-820-0	01	1	1403-
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1403-
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1403-
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98125-906-0	01	1	1403-
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	01	1	1403-
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1403-
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1403-
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1403-
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	1403-
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1403-
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1403-
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1403-
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-564-0	01	1	1403-
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98065-902-0	01	1	1403-
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C)	8-98065-886-0	01	1	1403-1405
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-98281-712-0	01	1	1406-
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1403-
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1403-
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	04	1	1403-
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	04	1	1403-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
