◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11553 - FRR RHD EURO5 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39 - POWER ASSISTOR ▶
2-39 — POWER ASSISTOR (#129435) — 27 parça

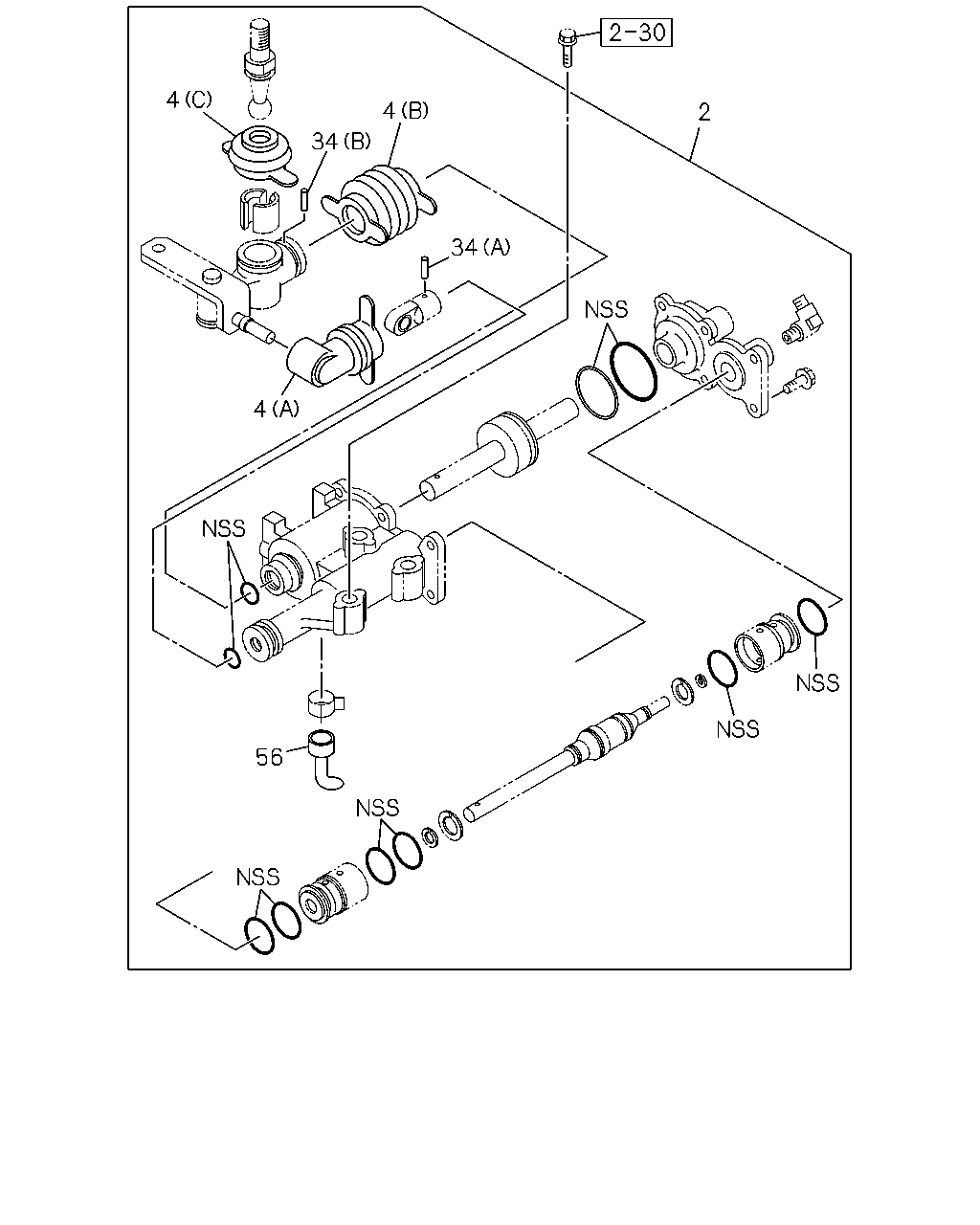

çizim 379987
4 4 34 34 56 2 4
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97388-035-0 01 1 1403-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33739-843-0 01 1 1403-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-33739-844-0 01 1 1403-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		1-33739-847-0 01 1 1403-
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-33739-885-0 01 1 1403-
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33739-974-0 01 1 1403-
56 HOSE; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33739-848-0 01 1 1403-

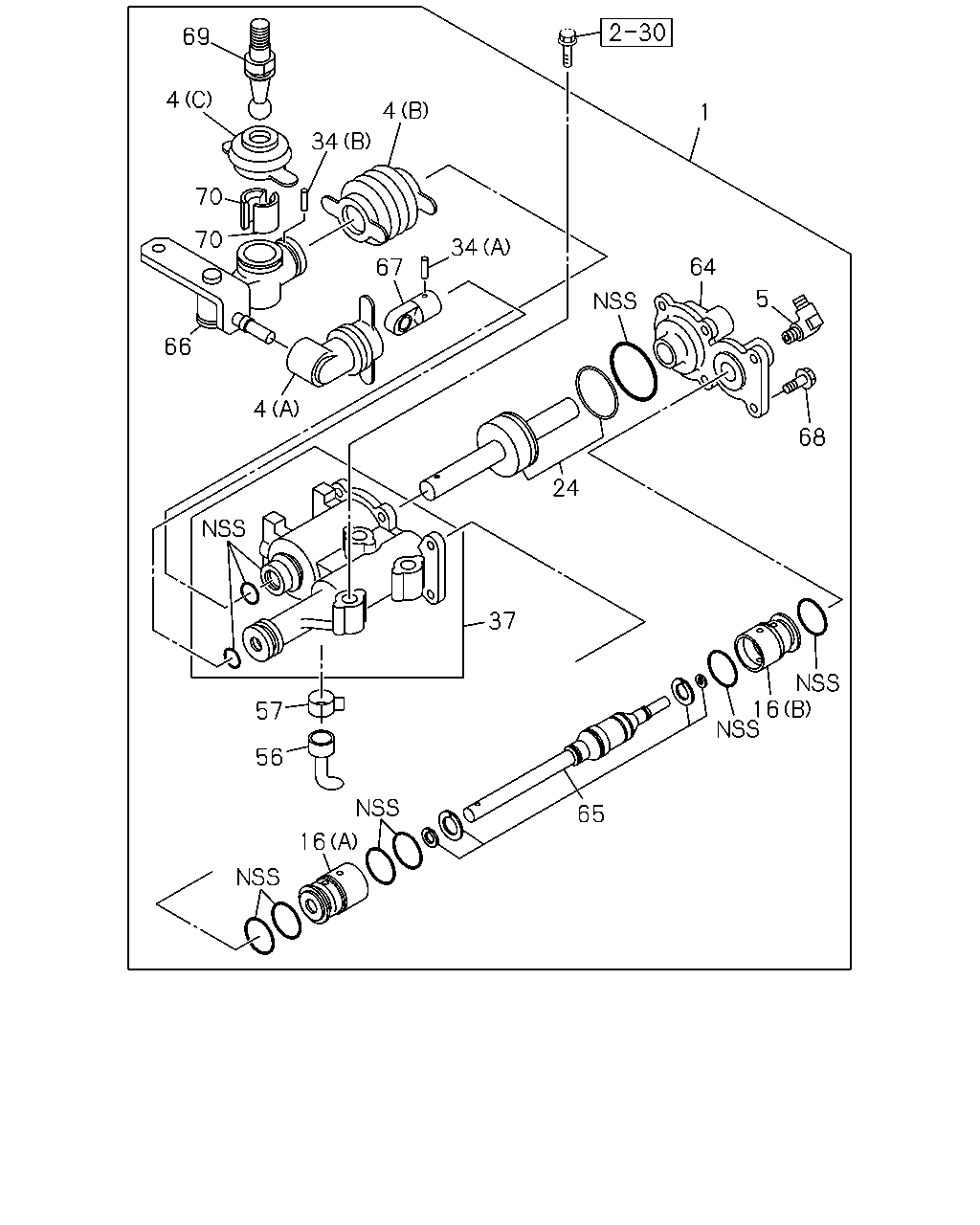

çizim 380593
69 4 34 70 70 66 4 67 34 4 57 56 16 37 24 64 65 16 68 5 1
BalonParca AdiParca NoAdetTipApplied Date
1 ASSISTOR ASM; POWER,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98044-183-1 01 1 1403-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33739-843-0 01 1 1403-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-33739-844-0 01 1 1403-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		1-33739-847-0 01 1 1403-
5 CONNECTOR; CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98047-175-0 01 1 1403-
16 SEAT; VALVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97388-032-0 01 1 1403-
16 SEAT; VALVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97388-033-0 01 1 1403-
24 PISTON
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98065-242-0 01 1 1403-
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-33739-885-0 01 1 1403-
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33739-974-0 01 1 1403-
37 HOUSING; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97388-027-0 01 1 1403-
56 HOSE; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33739-848-0 01 1 1403-
57 CLAMP; HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33739-849-0 01 1 1403-
64 COVER; HOUSING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98025-483-0 01 1 1403-
65 VALVE; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97388-029-0 01 1 1403-
66 JOINT ASM; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97388-137-0 01 1 1403-
67 JOINT; BALL,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33739-973-0 01 1 1403-
68 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE 		1-33739-842-0 06 1 1403-
69 STUD; BALL,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33739-846-0 01 1 1403-
70 SEAT; BALL STUD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33659-118-0 02 1 1403-
