◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11553 - FRR RHD EURO5 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#129432) — 39 parça

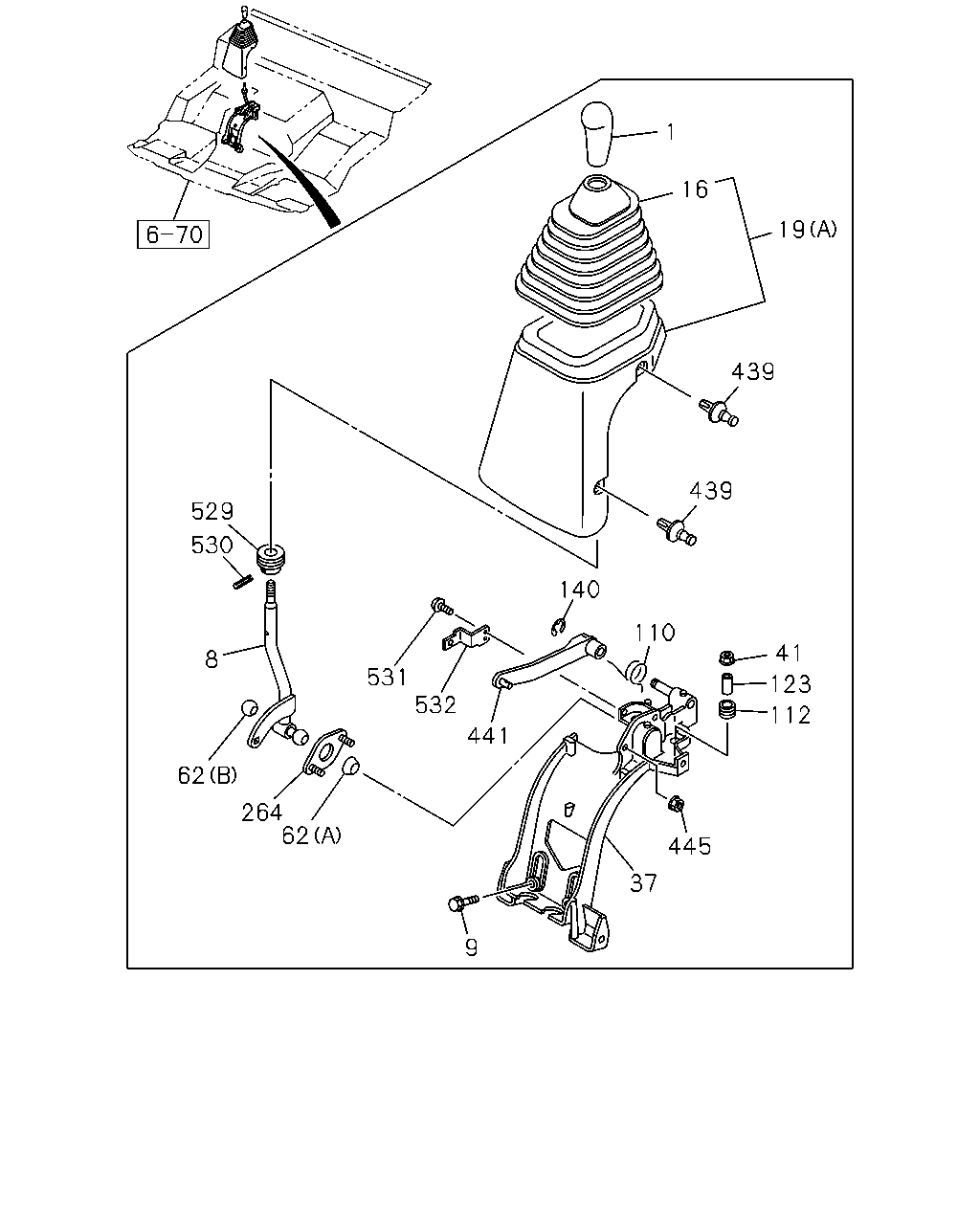

çizim 380510
1 16 19 439 439 140 529 530 8 62 264 62 531 532 441 110 37 41 123 112 445 9
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33611-068-1 01 1 1403-
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1403-
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97429-026-0 01 1 1403-1408
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97465-737-1 01 1 1409-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1403-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1403-
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-79998-751-4 01 1 1403-
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97407-953-0 01 1 1403-
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) GRAY 		8-97407-501-0 01 1 1403-
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-281-0 01 1 1403-
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1403-
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 06 1 1403-
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33619-427-0 01 1 1403-
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97049-147-0 01 1 1403-
110 SPRING; RETURN,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-586-0 01 1 1403-
112 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97091-426-0 04 1 1403-
123 COLLAR; DIST,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97091-427-0 04 1 1403-
140 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 1403-
264 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-430-0 01 1 1403-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1403-
441 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1403-
445 NUT; PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE 		0-91180-106-0 02 1 1403-
529 RING; BOOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-504-0 01 1 1403-
530 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-505-0 01 1 1403-
531 SCREW; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M5X10 W/PL WASHER 		9-03900-510-0 01 1 1403-
532 STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-284-0 01 1 1403-

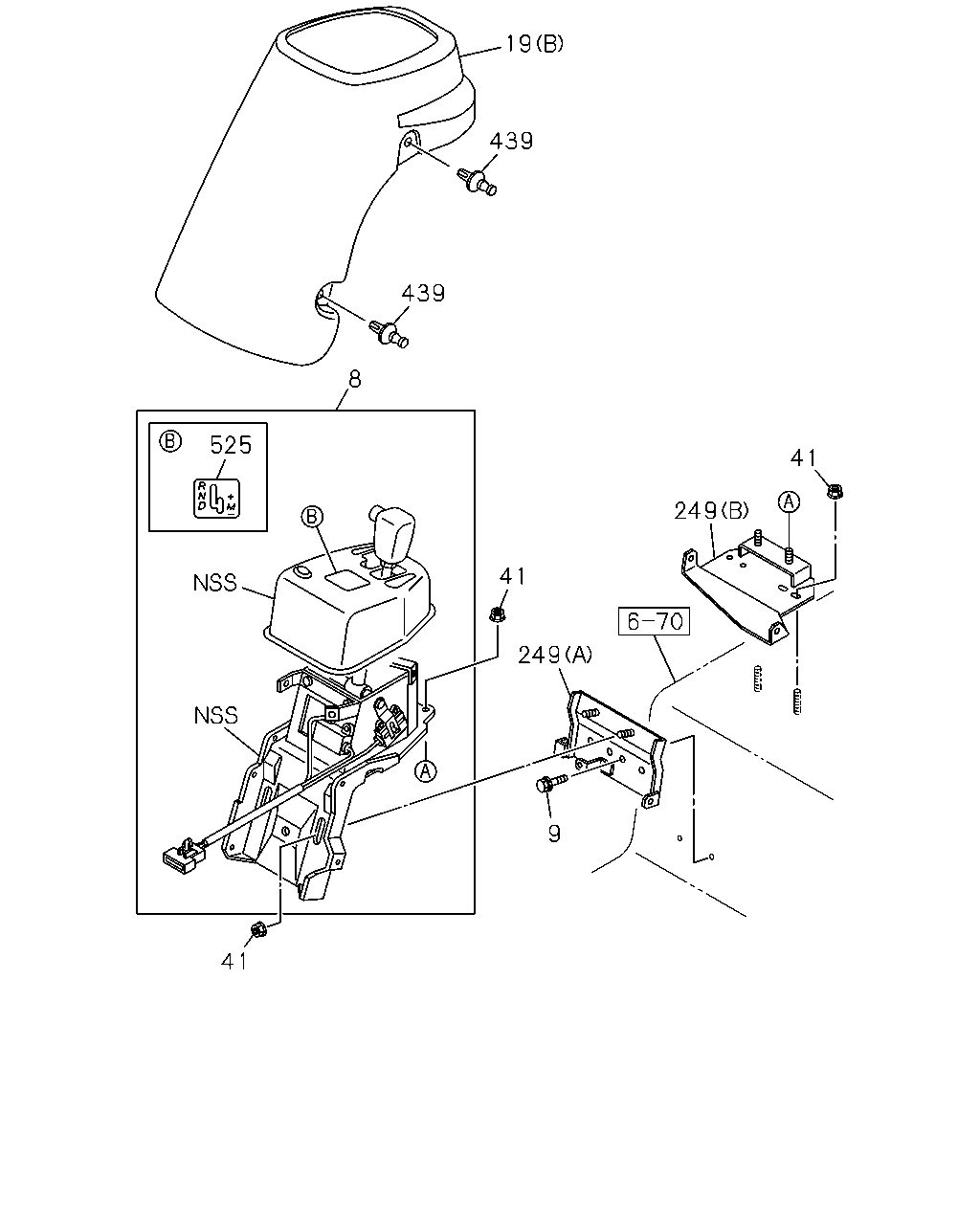

çizim 381323
19 439 439 8 525 41 41 249 249 41 9
BalonParca AdiParca NoAdetTipApplied Date
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1403-
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97429-026-0 01 1 1403-1408
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97465-737-1 01 1 1409-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1403-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1403-
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97407-953-0 01 1 1403-
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) GRAY 		8-97407-501-0 01 1 1403-
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1403-
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 06 1 1403-
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98016-951-3 01 1 1403-
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98016-952-3 01 1 1403-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1403-
525 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-480-1 01 1 1403-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
