2-30 — GEAR SHIFTER AND QUADRANT BOX (#129431) — 185 parça

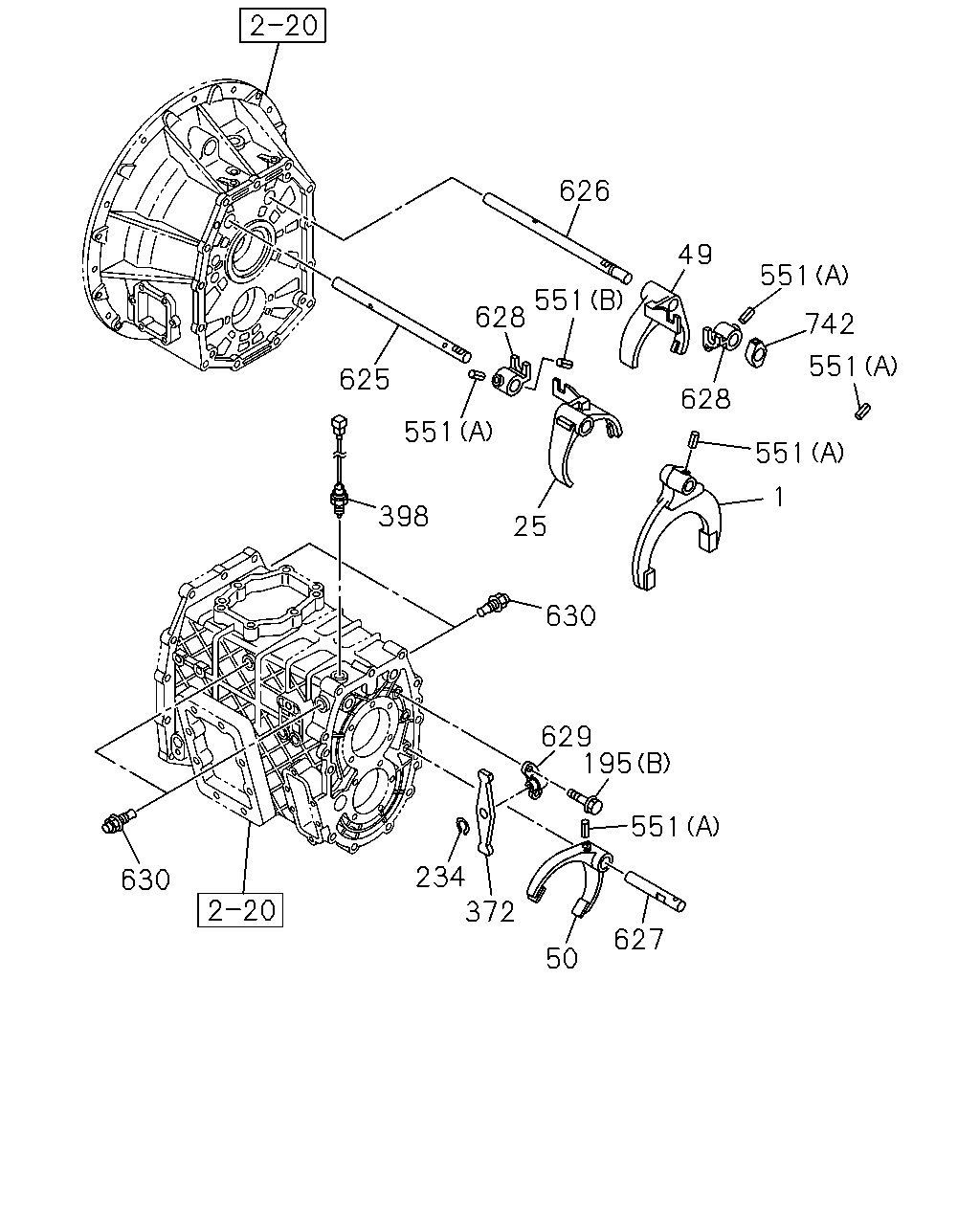

çizim 380500
626 551 628 49 628 551 551 742 1 551 25 551 625 398 630 629 195 551 627 50 372 234 630
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-351-1 01 1 1403-
1 ARM; SHIFT,1ST & REV
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-319-2 01 1 1403-
25 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 1403-
49 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 1403-
50 ARM; SHIFT,6TH 8-97241-324-1 01 1 1403-
195 BOLT
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1403-
195 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M10X20 FLANGE 		0-28751-020-0 02 1 1403-
195 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1403-
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1403-
372 LEVER; RELAY,6TH 8-97241-342-0 01 1 1403-
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1403-
530 SHAFT; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-996-0 01 1 1403-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1403-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1403-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1403-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 1403-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5 		8-97184-905-0 03 1 1403-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97379-991-0 01 1 1403-
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-735-0 01 1 1403-
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98107-548-0 01 1 1403-
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97383-754-0 01 1 1403-1509
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98331-690-0 01 1 1510-
627 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1403-
628 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1403-
629 BRIDGE; LEVER 8-97241-345-1 01 1 1403-
630 DETENT ASM 8-98019-536-0 04 1 1403-
742 COLLAR; ROD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98331-722-0 01 1 1510-

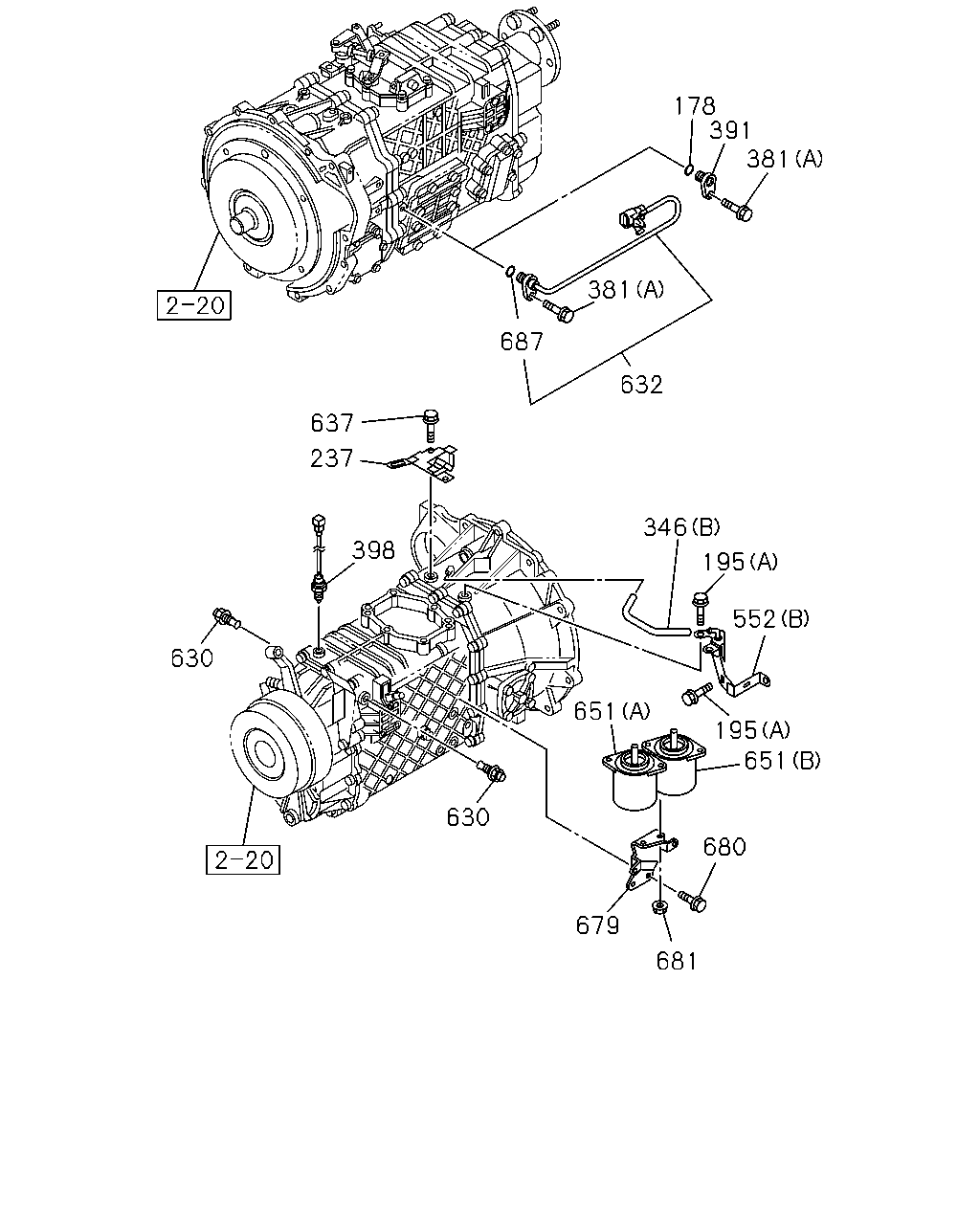

çizim 380501
178 391 381 381 687 632 346 195 552 195 651 651 680 681 679 630 630 398 637 237
BalonParca AdiParca NoAdetTipApplied Date
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09567-113-0 01 1 1403-
195 BOLT
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1403-
195 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M10X20 FLANGE 		0-28751-020-0 02 1 1403-
195 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1403-
237 BRACKET; CABLE,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98044-554-0 01 1 1403-
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98132-721-0 01 1 1403-
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97309-855-0 01 1 1403-
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 1403-
381 BOLT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1403-
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE 		1-33739-842-0 04 1 1403-
391 PLUG; SW HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97300-273-1 01 1 1403-
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1403-
530 SHAFT; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-996-0 01 1 1403-
552 BRACKET
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98132-718-0 01 1 1403-
552 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97385-018-2 01 1 1403-
630 DETENT ASM 8-98019-536-0 04 1 1403-
632 SENSOR; TRANS,REV
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97315-604-1 01 1 1403-
637 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 01 1 1403-
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98048-497-1 01 1 1403-
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98048-498-1 01 1 1403-
679 BRACKET; HEAT PROTECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-499-0 01 1 1403-
680 BOLT; FLANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE 		0-28761-020-0 02 1 1403-
681 NUT; FLANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 1403-
687 GASKET; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09567-113-0 01 1 1403-

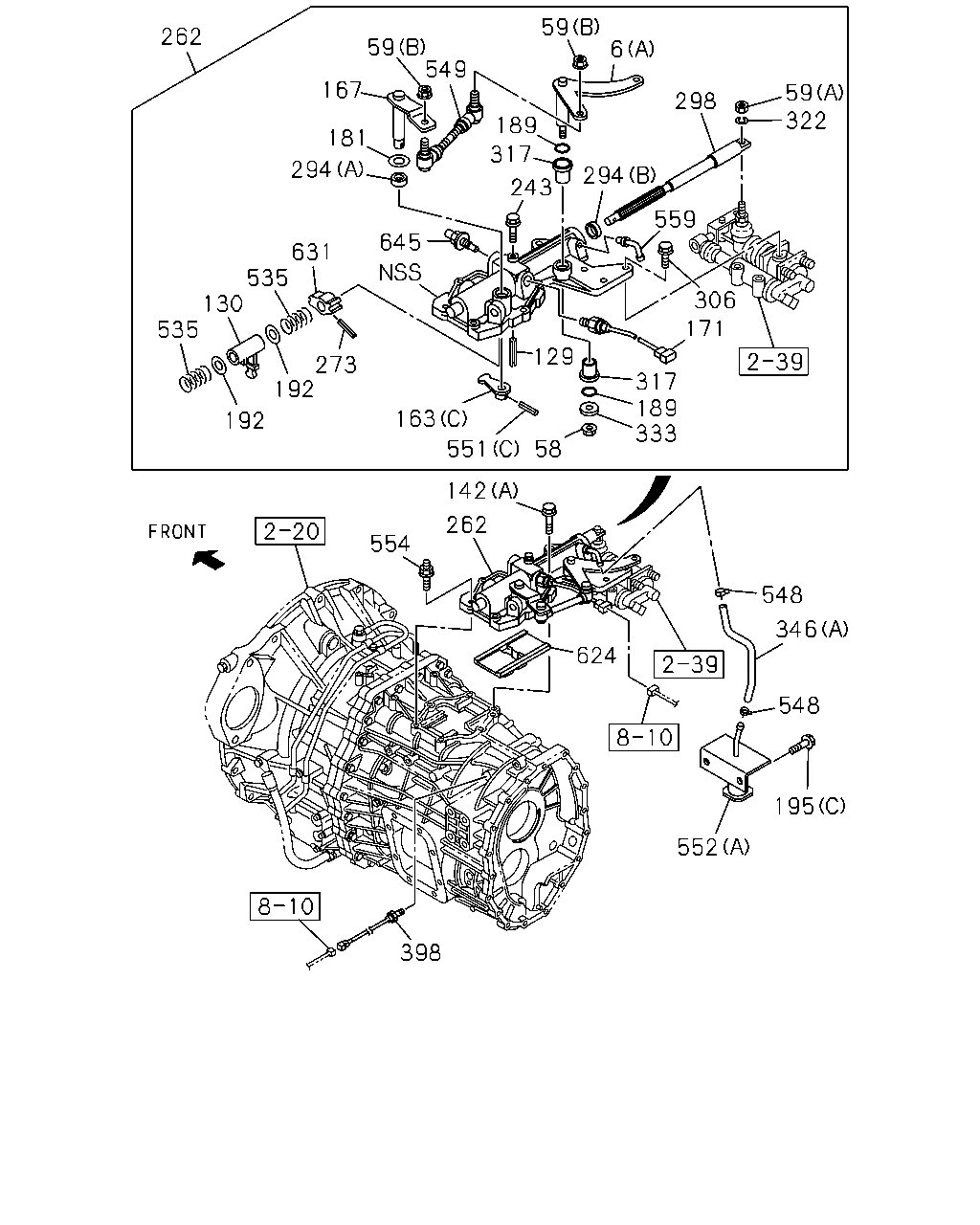

çizim 381254
262 59 167 181 294 631 535 130 535 192 192 273 163 551 58 129 317 189 333 171 306 59 322 298 6 59 189 317 243 294 559 645 142 262 554 398 552 195 548 346 548 624 549
BalonParca AdiParca NoAdetTipApplied Date
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98014-157-1 01 1 1403-
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 1403-
58 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 01 1 1403-
59 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		0-91110-512-0 01 1 1403-
59 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		0-91180-108-0 02 1 1403-
129 PIN; SPR,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4 		1-09748-031-0 01 1 1403-
130 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 1403-
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE 		8-97365-376-0 04 1 1403-
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE 		8-98020-384-0 03 1 1403-
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE 		8-98020-385-0 03 1 1403-
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97305-663-0 01 1 1403-
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-979-0 01 1 1403-
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-990-0 01 1 1403-
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-489-0 01 1 1403-
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 1403-
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1403-1509
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510-
181 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 1403-
189 GASKET; SELECT LEVER,CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09623-594-0 02 1 1403-
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 02 1 1403-
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-09503-280-0 01 1 1403-
195 BOLT
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1403-
195 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M10X20 FLANGE 		0-28751-020-0 02 1 1403-
195 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1403-
243 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE 		1-33739-842-0 01 1 1403-
243 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE 		1-33739-842-0 11 1 1403-
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-997-1 01 1 1403-1507
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-482-1 01 1 1508-
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98241-122-1 01 1 1403-1411
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98296-530-0 01 1 1412-1509
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98331-686-0 01 1 1510-
273 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25 		8-97103-142-0 01 1 1403-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-662-0 01 1 1403-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97363-225-0 01 1 1403-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 1403-
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98097-117-0 01 1 1403-1507
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-343-0 01 1 1508-
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 1403-
306 BOLT; SHIFT ASSISTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X50 FLANGE 		0-28051-050-0 03 1 1403-
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 1403-
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 1403-
322 WASHER; LK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98031-750-0 01 1 1403-
333 WASHER; PL,LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5 		0-91610-710-0 01 1 1403-
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98132-721-0 01 1 1403-
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97309-855-0 01 1 1403-
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 1403-
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1403-
530 SHAFT; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-996-0 01 1 1403-
535 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97385-713-0 02 1 1403-
548 CLIP; HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8 		8-94107-762-0 02 1 1403-
548 CLIP; HOSE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97031-674-0 01 1 1403-
549 ROD; LINK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-095-0 01 1 1403-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1403-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1403-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1403-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 1403-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5 		8-97184-905-0 03 1 1403-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97379-991-0 01 1 1403-
552 BRACKET
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98132-718-0 01 1 1403-
552 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97385-018-2 01 1 1403-
554 STUD; CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 1403-
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 1403-
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 1403-
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1403-
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98014-158-0 01 1 1403-
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 1403-
645 DETENT ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98019-536-0 01 1 1403-

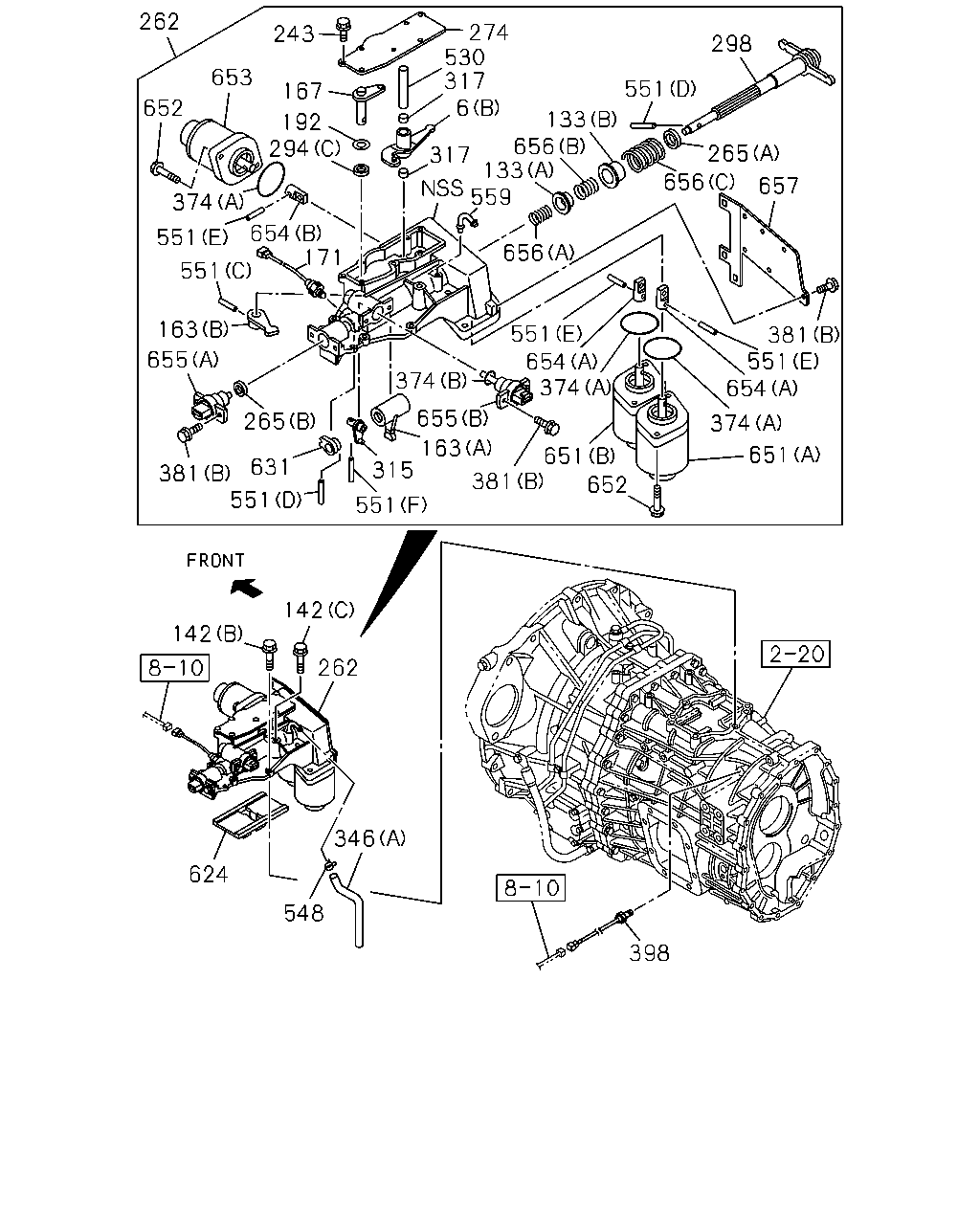

çizim 381619
262 243 653 652 167 192 194 374 551 551 163 655 381 265 631 551 551 315 163 655 374 551 654 374 651 652 381 274 30 317 6 317 298 551 133 656 133 559 656 265 657 656 381 551 654 374 651 398 548 346 624 142 142 262 654 171
BalonParca AdiParca NoAdetTipApplied Date
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98014-157-1 01 1 1403-
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 1403-
133 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-988-0 01 1 1403-
133 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-989-0 01 1 1403-
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE 		8-97365-376-0 04 1 1403-
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE 		8-98020-384-0 03 1 1403-
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE 		8-98020-385-0 03 1 1403-
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97305-663-0 01 1 1403-
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-979-0 01 1 1403-
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-990-0 01 1 1403-
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-489-0 01 1 1403-
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 1403-
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1403-1509
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510-
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 02 1 1403-
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-09503-280-0 01 1 1403-
243 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE 		1-33739-842-0 01 1 1403-
243 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE 		1-33739-842-0 11 1 1403-
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-997-1 01 1 1403-1507
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-482-1 01 1 1508-
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98241-122-1 01 1 1403-1411
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98296-530-0 01 1 1412-1509
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98331-686-0 01 1 1510-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97363-225-0 01 1 1403-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-981-0 01 1 1403-
274 COVER; SHAFT,QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-711-0 01 1 1403-
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98097-117-0 01 1 1403-1507
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-343-0 01 1 1508-
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 1403-
315 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-998-0 01 1 1403-1411
315 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98296-526-0 01 1 1412-
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 1403-
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 1403-
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98132-721-0 01 1 1403-
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97309-855-0 01 1 1403-
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 1403-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-571-0 03 1 1403-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97349-573-0 01 1 1403-
381 BOLT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1403-
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE 		1-33739-842-0 04 1 1403-
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1403-
530 SHAFT; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-996-0 01 1 1403-
548 CLIP; HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8 		8-94107-762-0 02 1 1403-
548 CLIP; HOSE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97031-674-0 01 1 1403-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1403-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1403-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1403-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 1403-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5 		8-97184-905-0 03 1 1403-
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97379-991-0 01 1 1403-
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 1403-
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 1403-
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1403-
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98014-158-0 01 1 1403-
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 1403-
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98048-497-1 01 1 1403-
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98048-498-1 01 1 1403-
652 BOLT; SORENOID
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X25 FLANGE 		0-28151-025-0 06 1 1403-
653 SOLENOID ASM; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98002-761-0 01 1 1403-
654 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-473-0 02 1 1403-
654 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97380-419-0 01 1 1403-
655 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98107-823-0 01 1 1403-
655 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98107-824-0 01 1 1403-
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-985-0 01 1 1403-
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-986-0 01 1 1403-
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-987-0 01 1 1403-
657 PLATE; SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-712-0 01 1 1403-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
