◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11553 - FRR RHD EURO5 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#129430) — 120 parça

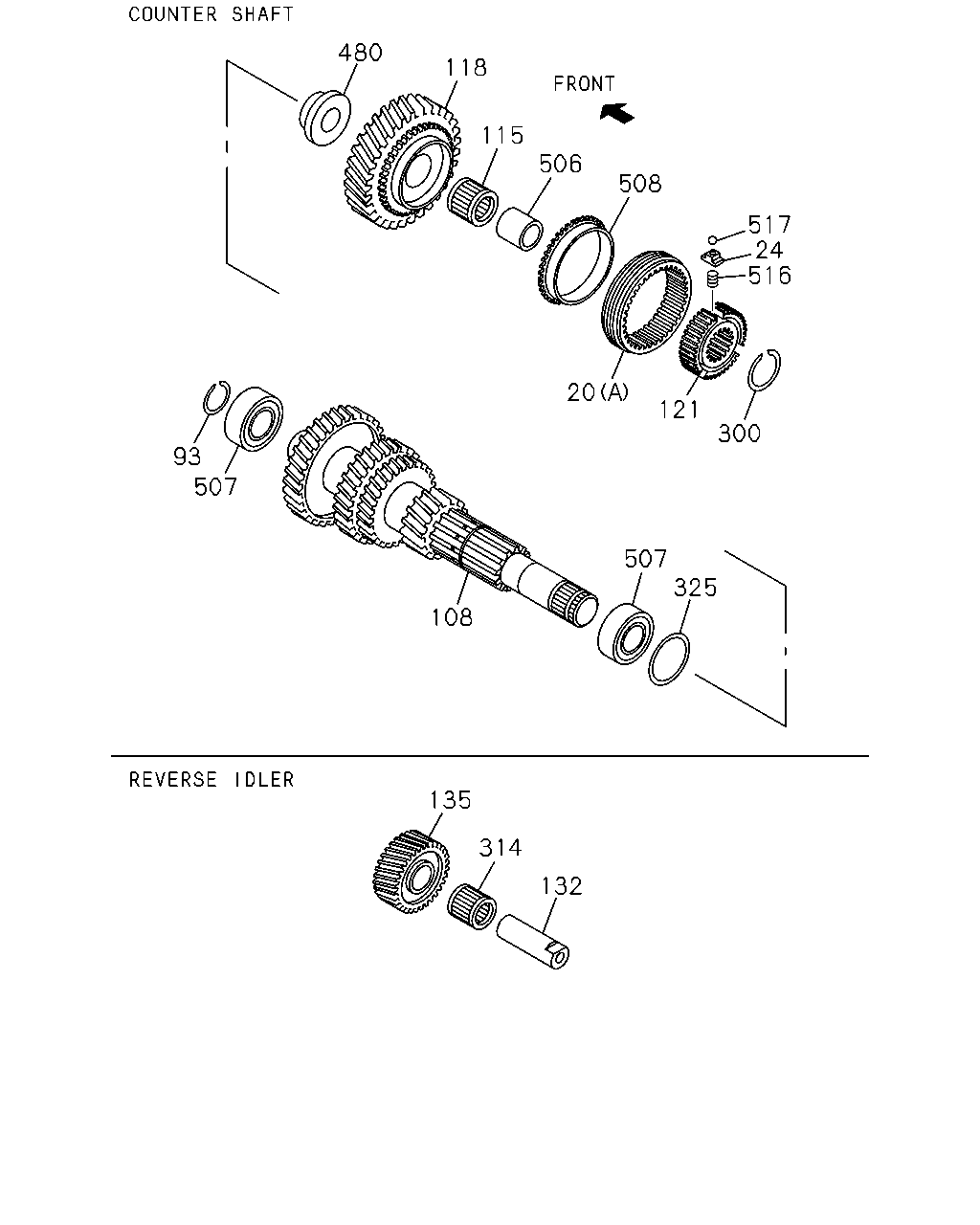

çizim 380477
480 118 115 506 508 517 24 516 121 300 20 507 325 108 507 93 135 314 132
BalonParca AdiParca NoAdetTipApplied Date
20 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1403-
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=54 		8-97241-295-2 01 1 1403-
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1403-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1403-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 1403-
108 SHAFT; COUNTER
Z=46-37-28-21 		8-98249-484-0 01 1 1403-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1411-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 1403-
118 GEAR; 6TH,COUNTER
Z=46 		8-97241-245-0 01 1 1403-
121 HUB; CLU,6TH 8-97241-301-2 01 1 1403-
132 SHAFT; REV 8-97252-655-0 01 1 1403-
135 GEAR; REV IDLER
Z=26 		8-97241-292-2 01 1 1403-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.7 		8-97288-618-0 01 1 1403-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.8 		8-97288-619-0 01 1 1403-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.9 		8-97288-620-0 01 1 1403-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.6 		8-97365-616-0 01 1 1403-
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 1403-
480 WASHER; THRUST,6TH 8-97253-122-1 01 1 1403-
506 COLLAR; 6TH,COUNTER 8-97253-120-1 01 1 1403-
507 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 1403-
508 RING; BLOCK,6TH
Z=45 		8-97241-306-1 01 1 1403-
516 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 1403-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1403-

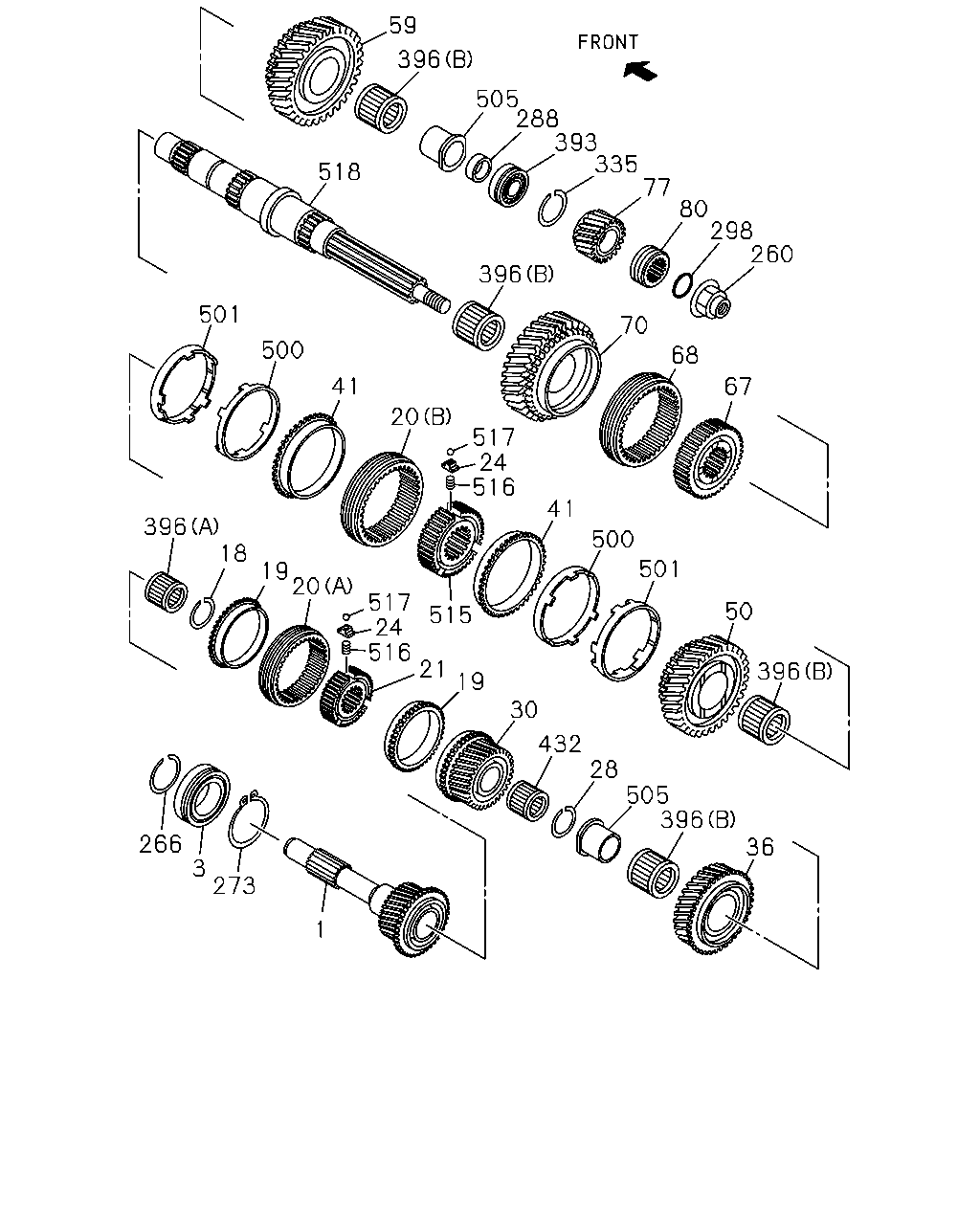

çizim 381517
59 396 505 288 393 335 77 80 298 260 67 68 70 396 518 500 501 41 20 517 24 516 41 500 501 50 396 396 36 505 28 432 30 19 21 515 516 24 517 20 19 18 396 266 273 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=25 		8-97371-089-0 01 1 1403-
1 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=25 		8-97371-091-0 01 1 1403-
3 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 1403-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1403-
19 RING; BLOCK,4TH & 5TH
Z=45 		8-97241-306-1 02 1 1403-
20 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1403-
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=54 		8-97241-295-2 01 1 1403-
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1403-
21 HUB; CLU,4TH & 5TH 8-97241-299-3 01 1 1403-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1403-
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1403-
30 GEAR; 4TH,MAINSHAFT
Z=29 		8-97241-228-0 01 1 1403-
36 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-233-1 01 1 1403-
41 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 1403-
50 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 1403-
59 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97254-182-0 01 1 1403-
59 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45 		8-97241-243-0 01 1 1403-
67 HUB; CLU,1ST TO REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-184-1 01 1 1403-
68 SLEEVE; 1ST TO REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33262-175-1 01 1 1403-
70 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97254-889-0 01 1 1403-
70 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45 		8-97241-241-0 01 1 1403-
77 GEAR; 6TH,MAINSHAFT
Z=18 		8-97241-264-0 01 1 1403-
80 GEAR; SPD DRIVE
Z=4 		8-97253-555-0 01 1 1403-
260 NUT; MAINSHAFT END
M27 H=25 		8-97360-410-0 01 1 1403-
266 RING; SNAP,BRG INNER 8-97286-915-0 01 1 1403-
273 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 1403-
288 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 1403-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 		1-09623-379-0 01 1 1403-
335 RING; SNAP,BEARING 8-97254-720-0 01 1 1403-
393 BEARING; MAINSHAFT END 8-97253-104-0 01 1 1403-
396 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 1403-
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1403-
432 BEARING; NEEDLE,4TH
NSK 		8-97253-111-0 01 1 1403-
500 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 1403-
501 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 1403-
505 COLLAR; 3RD & REV 8-97253-119-2 02 1 1403-
515 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 1403-
515 HUB; CLU,1ST & REV,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97239-155-2 01 1 1403-
516 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 1403-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1403-
518 SHAFT; MAIN,5TH & 6TH SPEED
Z=26-42-23 		8-97253-115-3 01 1 1403-

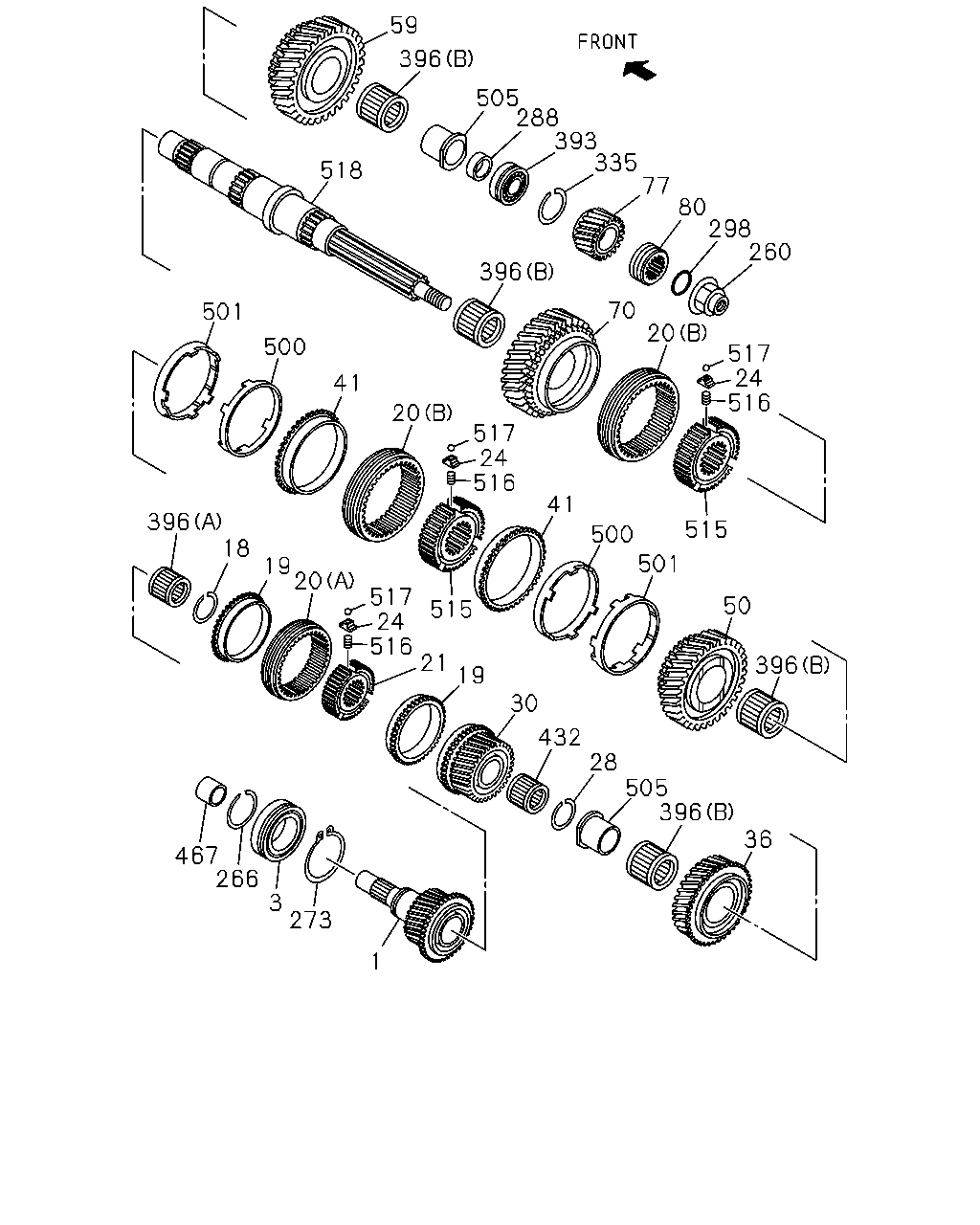

çizim 381763
59 396 505 288 393 335 77 80 298 260 70 20 517 515 50 396 501 500 41 516 24 517 20 41 500 501 396 18 19 20 517 24 516 515 21 19 30 432 28 505 396 36 1 273 3 266 467 518 396 24 516
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=25 		8-97371-089-0 01 1 1403-
1 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=25 		8-97371-091-0 01 1 1403-
3 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 1403-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1403-
19 RING; BLOCK,4TH & 5TH
Z=45 		8-97241-306-1 02 1 1403-
20 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1403-
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=54 		8-97241-295-2 01 1 1403-
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1403-
21 HUB; CLU,4TH & 5TH 8-97241-299-3 01 1 1403-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1403-
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1403-
30 GEAR; 4TH,MAINSHAFT
Z=29 		8-97241-228-0 01 1 1403-
36 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-233-1 01 1 1403-
41 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 1403-
50 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 1403-
59 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97254-182-0 01 1 1403-
59 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45 		8-97241-243-0 01 1 1403-
70 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97254-889-0 01 1 1403-
70 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45 		8-97241-241-0 01 1 1403-
77 GEAR; 6TH,MAINSHAFT
Z=18 		8-97241-264-0 01 1 1403-
80 GEAR; SPD DRIVE
Z=4 		8-97253-555-0 01 1 1403-
260 NUT; MAINSHAFT END
M27 H=25 		8-97360-410-0 01 1 1403-
266 RING; SNAP,BRG INNER 8-97286-915-0 01 1 1403-
273 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 1403-
288 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 1403-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 		1-09623-379-0 01 1 1403-
335 RING; SNAP,BEARING 8-97254-720-0 01 1 1403-
393 BEARING; MAINSHAFT END 8-97253-104-0 01 1 1403-
396 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 1403-
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1403-
432 BEARING; NEEDLE,4TH
NSK 		8-97253-111-0 01 1 1403-
467 COLLAR; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 1403-
500 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 1403-
501 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 1403-
505 COLLAR; 3RD & REV 8-97253-119-2 02 1 1403-
515 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 1403-
515 HUB; CLU,1ST & REV,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97239-155-2 01 1 1403-
516 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 1403-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1403-
518 SHAFT; MAIN,5TH & 6TH SPEED
Z=26-42-23 		8-97253-115-3 01 1 1403-
