Sayfa 1-41 - Isuzu EPC

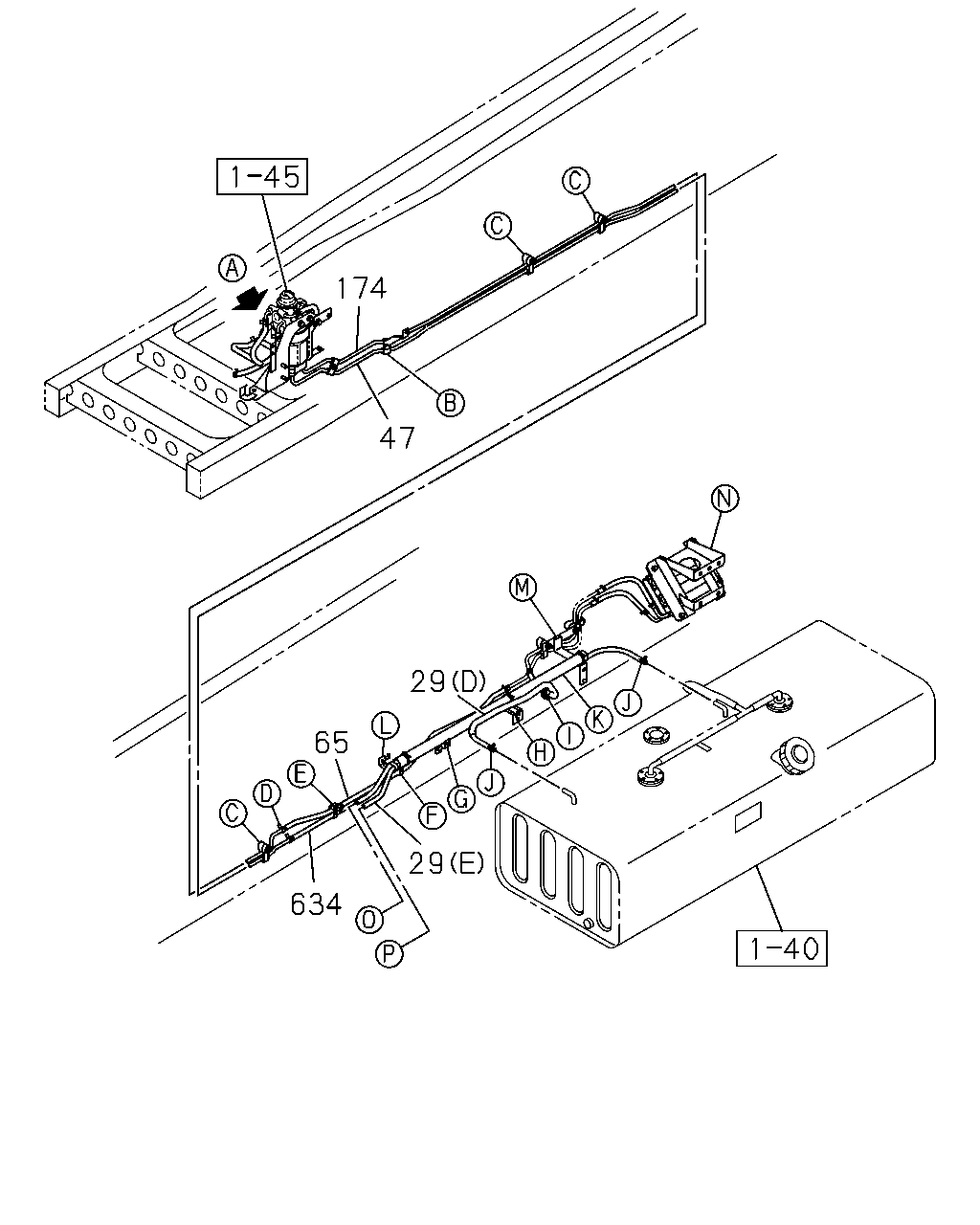

1-41 — FUEL PIPING; CHASSIS (#129417) — 272 parça

174 47 29 65 29 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 4000MM(40W) (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) SINGAPORE EQUIPMENT(2G0) (E) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (E) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 5300MM(53W) (E) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
29	HOSE; FUEL (A)	8-98136-901-0	01	1	1403-
29	HOSE; FUEL (B)	8-98147-183-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4000MM(40W) (C) L=170 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4000MM(40W) (C) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (D)	8-98273-029-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (C) L=330 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (C) L=360 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) L=250 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) L=280 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (D)	8-98273-030-0	01	1	1403-
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) L=2219	8-98273-022-0	01	1	1403-
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) L=2240	8-98220-907-0	01	1	1403-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) SINGAPORE EQUIPMENT(2G0) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
174	PIPE; FUEL,FEED,FRT L=2080	8-98220-906-0	01	1	1403-
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W) L=310	0-01508-310-0	01	1	1403-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=660 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) L=1100 SERVICED BY L=3000	0-01558-300-0	01	1	1403-

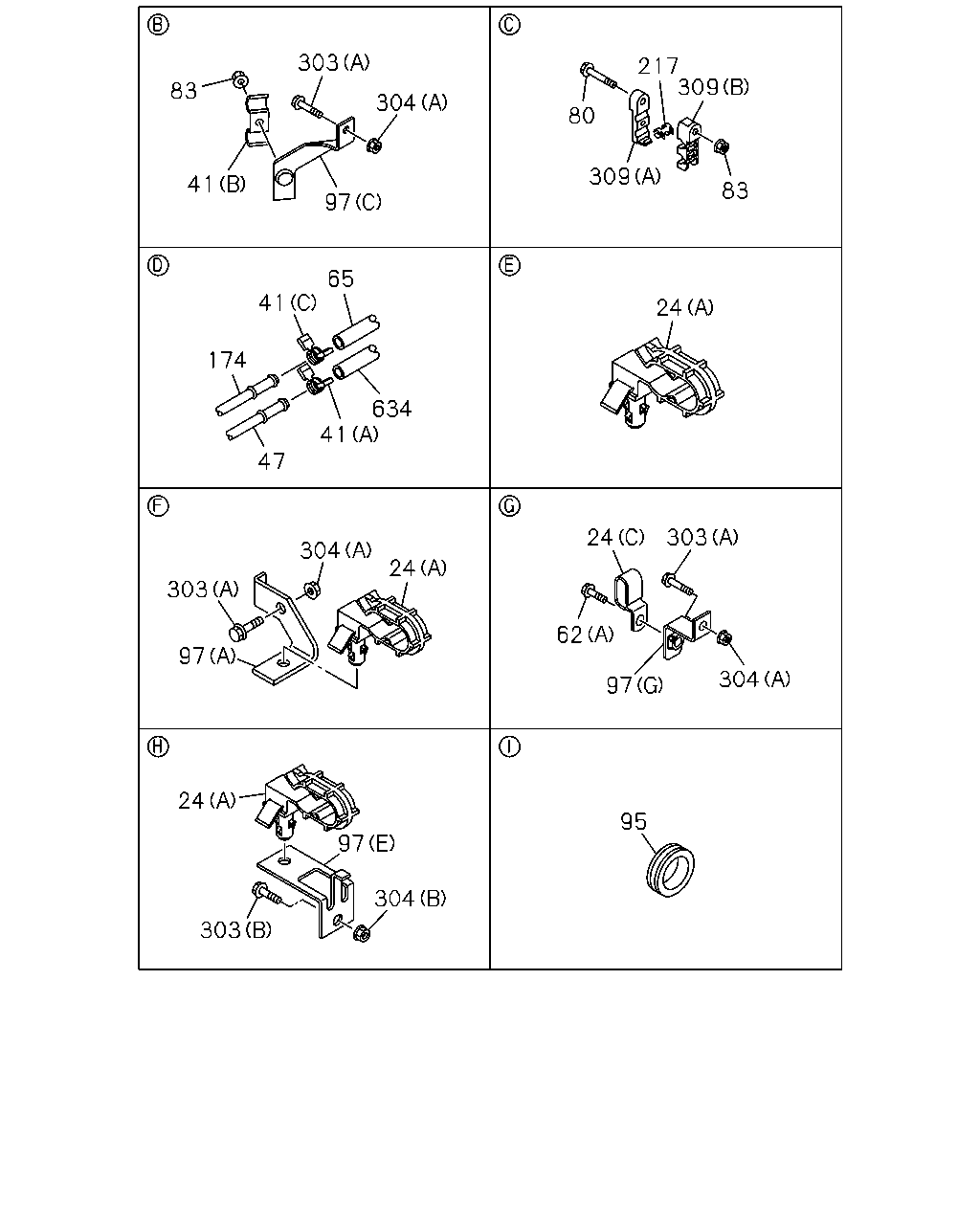

24 83 309 217 80 309 303 24 62 97 304 95 304 97 303 24 97 303 304 24 634 41 47 174 41 65 97 304 303 83 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1403-
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	1403-
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) L=2219	8-98273-022-0	01	1	1403-
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) L=2240	8-98220-907-0	01	1	1403-
62	BOLT; CLIP FIX SINGAPORE EQUIPMENT(2G0) (B) M8X50 FLANGE	0-28050-850-0	02	1	1403-
62	BOLT; CLIP FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) M8X50 FLANGE	0-28050-850-0	02	1	1403-
62	BOLT; CLIP FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (A) M8X20 FLANGE	0-28650-820-0	01	1	1403-
62	BOLT; CLIP FIX WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (A) M8X20 FLANGE	0-28650-820-0	01	1	1403-
62	BOLT; CLIP FIX WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (A) M8X20 FLANGE	0-28650-820-0	01	1	1403-
62	BOLT; CLIP FIX WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (A) M8X20 FLANGE	0-28650-820-0	01	1	1403-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) SINGAPORE EQUIPMENT(2G0) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	03	1	1403-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1403-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	06	1	1403-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1403-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1403-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1403-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1403-
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4000MM(40W) (I)	8-98253-212-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (F)	8-98100-216-1	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (F)	8-98100-216-1	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (G)	1-47478-981-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (G)	1-47478-981-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (H)	8-98239-701-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (H)	8-98239-701-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	1403-
174	PIPE; FUEL,FEED,FRT L=2080	8-98220-906-0	01	1	1403-
217	COLLAR; FUEL PIPE FIX ID=8	1-47459-011-0	03	1	1403-
217	COLLAR; FUEL PIPE FIX SINGAPORE EQUIPMENT(2G0) ID=8	1-47459-011-0	04	1	1403-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) ID=8	1-47459-011-0	04	1	1403-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1403-
303	BOLT; BRKT WHEEL BASE 4600MM(46W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1403-
303	BOLT; BRKT HONG KONG EQUIPMENT(B14) (C) M10X35 FLANGE	0-28651-035-0	02	1	1403-
303	BOLT; BRKT SINGAPORE EQUIPMENT(2G0) (B) M10X30 FLANGE	0-28651-030-0	02	1	1403-
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) M10X30 FLANGE	0-28651-030-0	02	1	1403-
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) M10X30 FLANGE	0-28651-030-0	01	1	1403-
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (B) M10X30 FLANGE	0-28651-030-0	01	1	1403-
303	BOLT; BRKT WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (A) M8X30 FLANGE	0-28650-830-0	02	1	1403-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 4600MM(46W) (A) M8 FLANGE	0-91180-108-0	01	1	1403-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1403-
304	NUT; BRKT HONG KONG EQUIPMENT(B14) (B) M10 FLANGE	0-91180-210-0	02	1	1403-
304	NUT; BRKT SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (A) M8 FLANGE	0-91180-108-0	02	1	1403-
309	CLIP; PIPE (A) ID=10 & 10	1-09709-241-0	03	1	1403-
309	CLIP; PIPE (B) ID=10 & 10	1-09709-243-0	03	1	1403-
309	CLIP; PIPE SINGAPORE EQUIPMENT(2G0) (A) ID=10 & 10	1-09709-241-0	02	1	1403-
309	CLIP; PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (A) ID=10 & 10	1-09709-241-0	02	1	1403-
309	CLIP; PIPE SINGAPORE EQUIPMENT(2G0) (B) ID=10 & 10	1-09709-243-0	02	1	1403-
309	CLIP; PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) ID=10 & 10	1-09709-243-0	02	1	1403-
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W) L=310	0-01508-310-0	01	1	1403-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=660 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) L=1100 SERVICED BY L=3000	0-01558-300-0	01	1	1403-

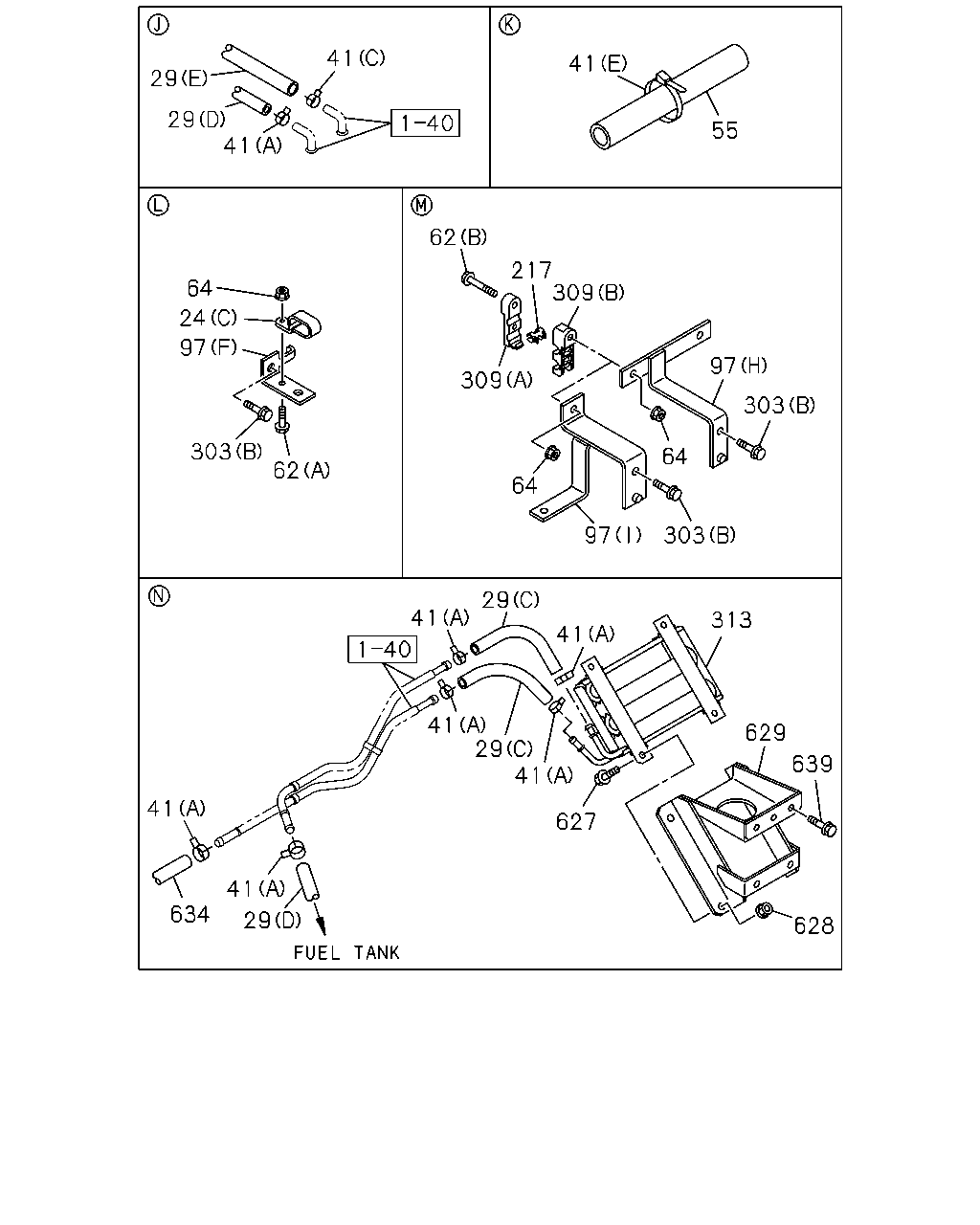

29 29 41 41 41 55 62 217 309 97 303 64 303 97 64 309 313 629 639 628 627 41 29 41 41 29 41 29 41 634 41 62 303 97 24 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1403-
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	1403-
29	HOSE; FUEL WHEEL BASE 4000MM(40W) (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) SINGAPORE EQUIPMENT(2G0) (E) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (E) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 5300MM(53W) (E) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
29	HOSE; FUEL (A)	8-98136-901-0	01	1	1403-
29	HOSE; FUEL (B)	8-98147-183-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4000MM(40W) (C) L=170 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4000MM(40W) (C) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (D)	8-98273-029-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (C) L=330 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (C) L=360 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) L=250 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) L=280 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (D)	8-98273-030-0	01	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	1403-
55	COVER; PIPE,FUEL TANK L=800	1-09361-018-0	01	1	1403-
62	BOLT; CLIP FIX SINGAPORE EQUIPMENT(2G0) (B) M8X50 FLANGE	0-28050-850-0	02	1	1403-
62	BOLT; CLIP FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) M8X50 FLANGE	0-28050-850-0	02	1	1403-
62	BOLT; CLIP FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (A) M8X20 FLANGE	0-28650-820-0	01	1	1403-
62	BOLT; CLIP FIX WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (A) M8X20 FLANGE	0-28650-820-0	01	1	1403-
62	BOLT; CLIP FIX WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (A) M8X20 FLANGE	0-28650-820-0	01	1	1403-
62	BOLT; CLIP FIX WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (A) M8X20 FLANGE	0-28650-820-0	01	1	1403-
64	NUT; CLIP SINGAPORE EQUIPMENT(2G0) M8 FLANGE	0-91180-108-0	02	1	1403-
64	NUT; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) M8 FLANGE	0-91180-108-0	02	1	1403-
64	NUT; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1403-
64	NUT; CLIP WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) M8 FLANGE	0-91180-108-0	01	1	1403-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1403-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1403-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1403-
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4000MM(40W) (I)	8-98253-212-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (F)	8-98100-216-1	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (F)	8-98100-216-1	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (G)	1-47478-981-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (G)	1-47478-981-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (H)	8-98239-701-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (H)	8-98239-701-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	1403-
217	COLLAR; FUEL PIPE FIX ID=8	1-47459-011-0	03	1	1403-
217	COLLAR; FUEL PIPE FIX SINGAPORE EQUIPMENT(2G0) ID=8	1-47459-011-0	04	1	1403-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) ID=8	1-47459-011-0	04	1	1403-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1403-
303	BOLT; BRKT WHEEL BASE 4600MM(46W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1403-
303	BOLT; BRKT HONG KONG EQUIPMENT(B14) (C) M10X35 FLANGE	0-28651-035-0	02	1	1403-
303	BOLT; BRKT SINGAPORE EQUIPMENT(2G0) (B) M10X30 FLANGE	0-28651-030-0	02	1	1403-
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) M10X30 FLANGE	0-28651-030-0	02	1	1403-
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) M10X30 FLANGE	0-28651-030-0	01	1	1403-
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (B) M10X30 FLANGE	0-28651-030-0	01	1	1403-
303	BOLT; BRKT WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (A) M8X30 FLANGE	0-28650-830-0	02	1	1403-
309	CLIP; PIPE (A) ID=10 & 10	1-09709-241-0	03	1	1403-
309	CLIP; PIPE (B) ID=10 & 10	1-09709-243-0	03	1	1403-
309	CLIP; PIPE SINGAPORE EQUIPMENT(2G0) (A) ID=10 & 10	1-09709-241-0	02	1	1403-
309	CLIP; PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (A) ID=10 & 10	1-09709-241-0	02	1	1403-
309	CLIP; PIPE SINGAPORE EQUIPMENT(2G0) (B) ID=10 & 10	1-09709-243-0	02	1	1403-
309	CLIP; PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) ID=10 & 10	1-09709-243-0	02	1	1403-
313	COOLER ASM; FUEL	8-98227-679-1	01	1	1403-
627	BOLT; FUEL CLR M6X25 FLANGE	0-28650-625-0	04	1	1403-
628	NUT; FUEL CLR M6 FLANGE	0-91180-106-0	04	1	1403-
629	BRACKET; FUEL CLR	8-98224-320-1	01	1	1403-
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W) L=310	0-01508-310-0	01	1	1403-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=660 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) L=1100 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
639	BOLT; BRKT,FUEL CLR M10X30 FLANGE	0-28651-030-0	04	1	1403-

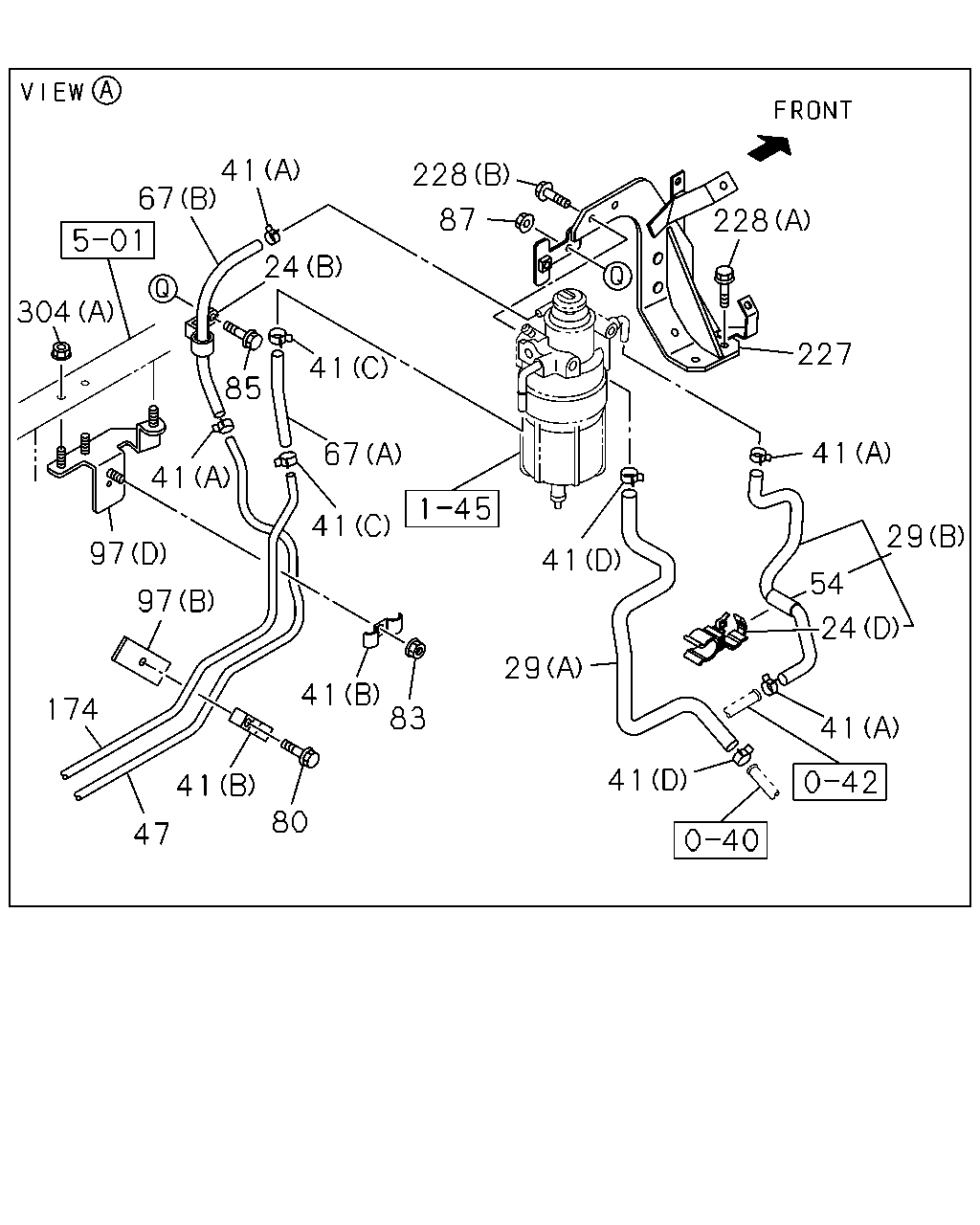

41 67 304 85 24 41 67 41 41 97 97 174 41 47 80 41 83 29 41 228 87 228 227 41 29 54 24 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1403-
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1403-
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	1403-
29	HOSE; FUEL WHEEL BASE 4000MM(40W) (E) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) SINGAPORE EQUIPMENT(2G0) (E) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (E) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 5300MM(53W) (E) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
29	HOSE; FUEL (A)	8-98136-901-0	01	1	1403-
29	HOSE; FUEL (B)	8-98147-183-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4000MM(40W) (C) L=170 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4000MM(40W) (C) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (D)	8-98273-029-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (C) L=330 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (C) L=360 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) L=250 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) L=280 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
29	HOSE; FUEL WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (D)	8-98273-030-0	01	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	1403-
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) L=2219	8-98273-022-0	01	1	1403-
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) L=2240	8-98220-907-0	01	1	1403-
54	SPACER; CLIP,FUEL PIPE	8-98148-172-0	01	1	1403-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1403-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1403-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	03	1	1403-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1403-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	06	1	1403-
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	1403-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1403-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1403-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1403-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1403-
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4000MM(40W) (I)	8-98253-212-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (F)	8-98100-216-1	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (F)	8-98100-216-1	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (G)	1-47478-981-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (G)	1-47478-981-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (H)	8-98239-701-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (H)	8-98239-701-0	01	1	1403-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	1403-
174	PIPE; FUEL,FEED,FRT L=2080	8-98220-906-0	01	1	1403-
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1403-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1403-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1403-
228	BOLT; BRKT,SEDIMENTER SINGAPORE EQUIPMENT(2G0) (C) M10X60 FLANGE	0-28051-060-0	02	1	1403-
228	BOLT; BRKT,SEDIMENTER EXC. SINGAPORE EQUIPMENT(2G0) (C) M10X50 FLANGE	0-28051-050-0	02	1	1403-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 4600MM(46W) (A) M8 FLANGE	0-91180-108-0	01	1	1403-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1403-
304	NUT; BRKT HONG KONG EQUIPMENT(B14) (B) M10 FLANGE	0-91180-210-0	02	1	1403-
304	NUT; BRKT SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (A) M8 FLANGE	0-91180-108-0	02	1	1403-

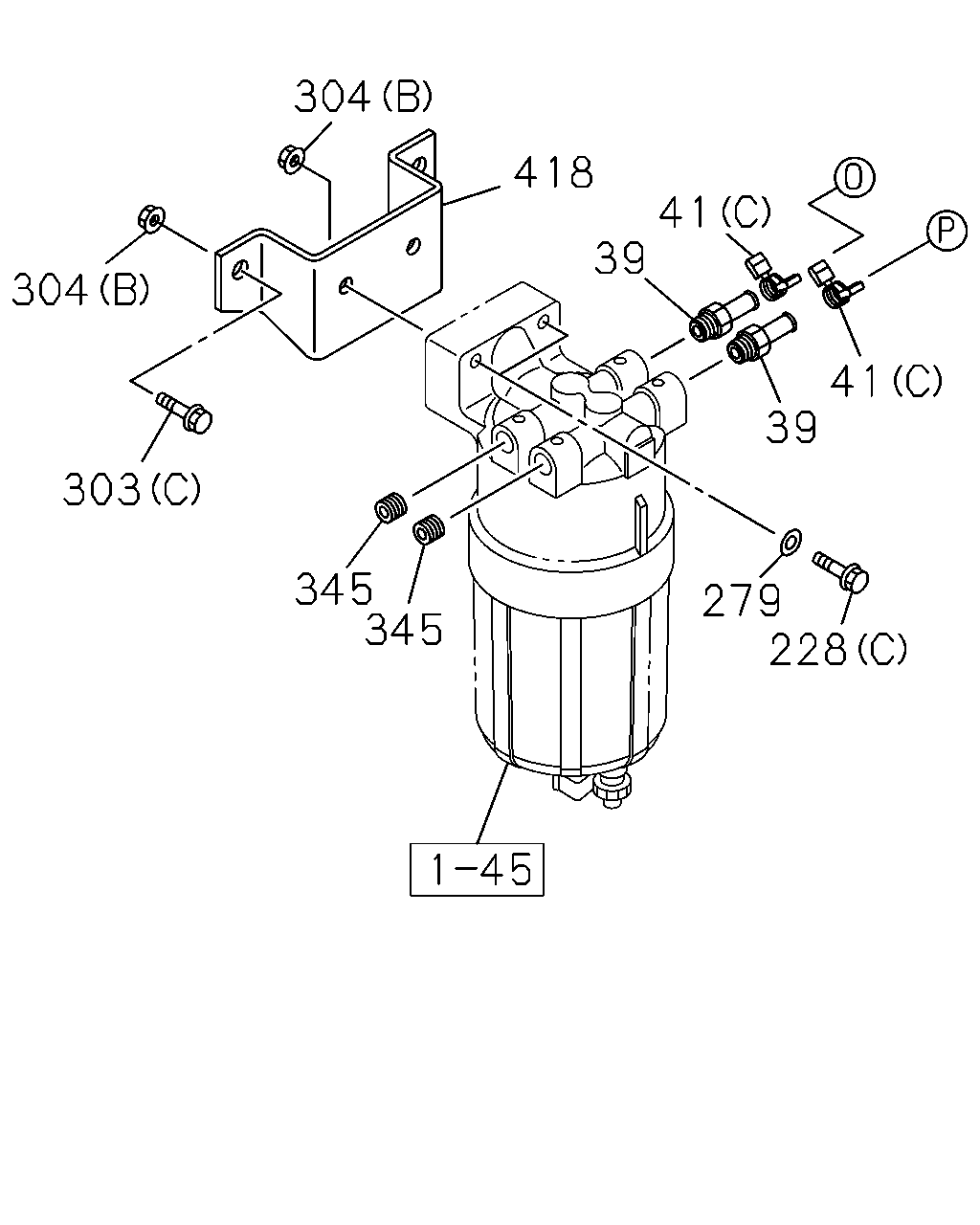

228 279 345 345 303 304 304 418 39 41 41 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL NPTF3/8-18 OD=10	8-98122-953-0	02	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1403-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	1403-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1403-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1403-
228	BOLT; BRKT,SEDIMENTER SINGAPORE EQUIPMENT(2G0) (C) M10X60 FLANGE	0-28051-060-0	02	1	1403-
228	BOLT; BRKT,SEDIMENTER EXC. SINGAPORE EQUIPMENT(2G0) (C) M10X50 FLANGE	0-28051-050-0	02	1	1403-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1403-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1403-
303	BOLT; BRKT WHEEL BASE 4600MM(46W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1403-
303	BOLT; BRKT HONG KONG EQUIPMENT(B14) (C) M10X35 FLANGE	0-28651-035-0	02	1	1403-
303	BOLT; BRKT SINGAPORE EQUIPMENT(2G0) (B) M10X30 FLANGE	0-28651-030-0	02	1	1403-
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) M10X30 FLANGE	0-28651-030-0	02	1	1403-
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) M10X30 FLANGE	0-28651-030-0	01	1	1403-
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (B) M10X30 FLANGE	0-28651-030-0	01	1	1403-
303	BOLT; BRKT WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (A) M8X30 FLANGE	0-28650-830-0	02	1	1403-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 4600MM(46W) (A) M8 FLANGE	0-91180-108-0	01	1	1403-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1403-
304	NUT; BRKT HONG KONG EQUIPMENT(B14) (B) M10 FLANGE	0-91180-210-0	02	1	1403-
304	NUT; BRKT SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) EXC. SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1403-
304	NUT; BRKT WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (A) M8 FLANGE	0-91180-108-0	02	1	1403-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1403-
418	BRACKET; PRE FUEL FILTER HONG KONG EQUIPMENT(B14)	8-98114-787-0	01	1	1403-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
