Isuzu WW
▶
TRUCKS
▶
FRR
▶
11553 - FRR RHD EURO5 SPACECAB
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#129411) — 54 parça
◀

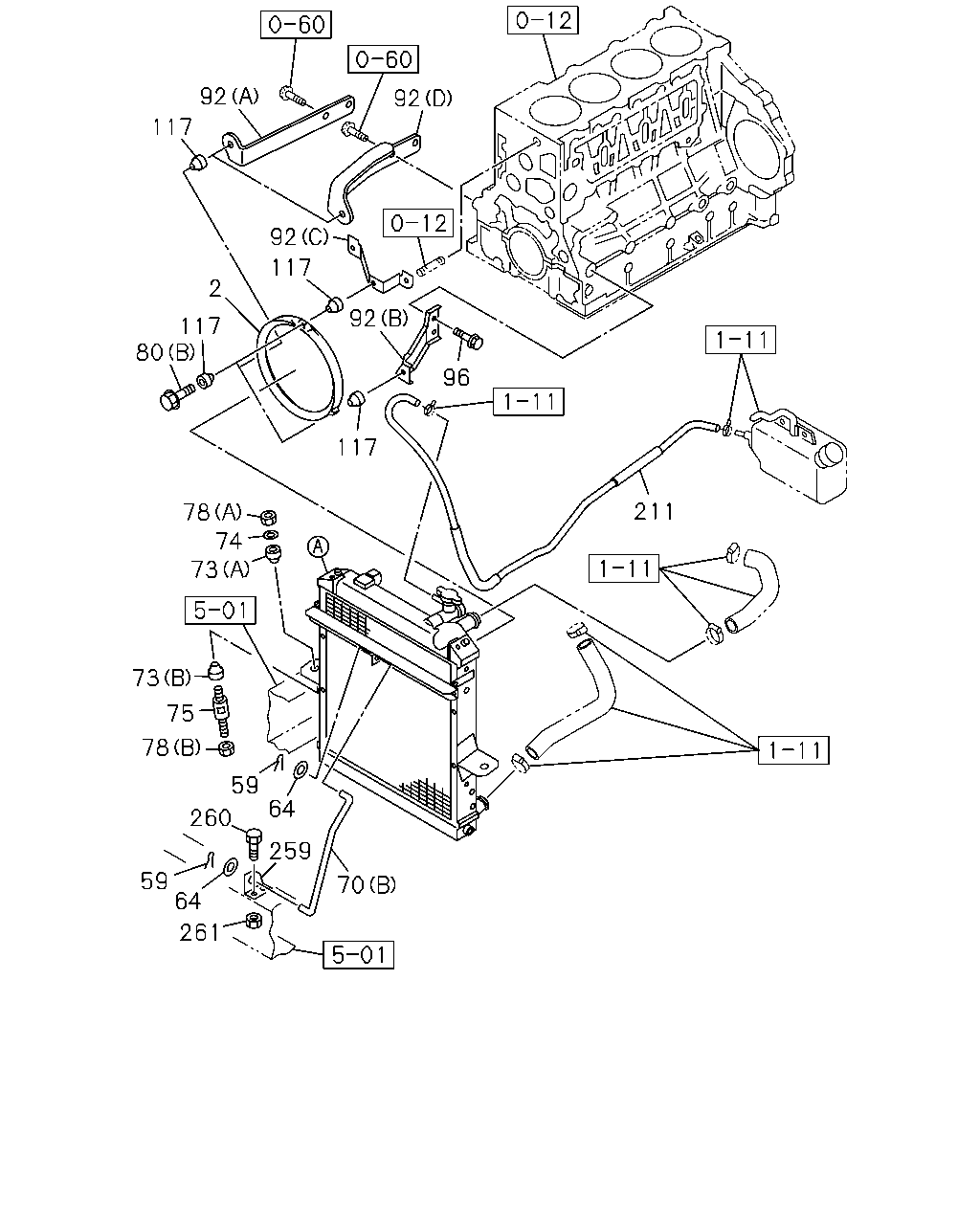

[110A] NO.1 (25 parça)
[110A] NO.2 (29 parça)
▶
92
117
92
92
2
117
117
80
92
96
117
78
73
73
75
78
59
64
259
260
59
64
261
70
211
74
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-97350-995-0
01
1
1403-
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1403-
64
WASHER; STAY TO RAD
ID=10.5
0-91610-510-0
02
1
1403-
70
STAY; RAD
(B)
8-98010-657-0
01
1
1403-
70
STAY; RAD
(A)
8-98018-941-0
01
1
1403-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1403-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1403-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1403-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1403-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
1403-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
1403-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1403-
80
BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1403-
92
BRACKET; FAN GUIDE
(C)
8-97382-827-2
01
1
1403-
92
BRACKET; FAN GUIDE
(B)
8-97386-233-0
01
1
1403-
92
BRACKET; FAN GUIDE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)
8-97350-997-0
01
1
1403-
92
BRACKET; FAN GUIDE
GENERATOR 24V90A(K44) (D)
8-98032-526-0
01
1
1403-
96
BOLT; STAY FIX
M10X20 FLANGE
0-28151-020-0
02
1
1403-
96
BOLT; STAY FIX
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X75 FLANGE
8-94399-669-1
02
1
1403-
96
BOLT; STAY FIX
GENERATOR 24V90A(K44) M10X25 FLANGE
0-28751-025-0
02
1
1403-
117
RUBBER; MTG,FAN GUIDE
1-09337-027-0
06
1
1403-
211
HOSE; RAD TO PIPE
8-98132-968-0
01
1
1403-
259
BRACKET; RAD STAY
8-98063-603-0
01
1
1403-
260
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1403-
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1403-

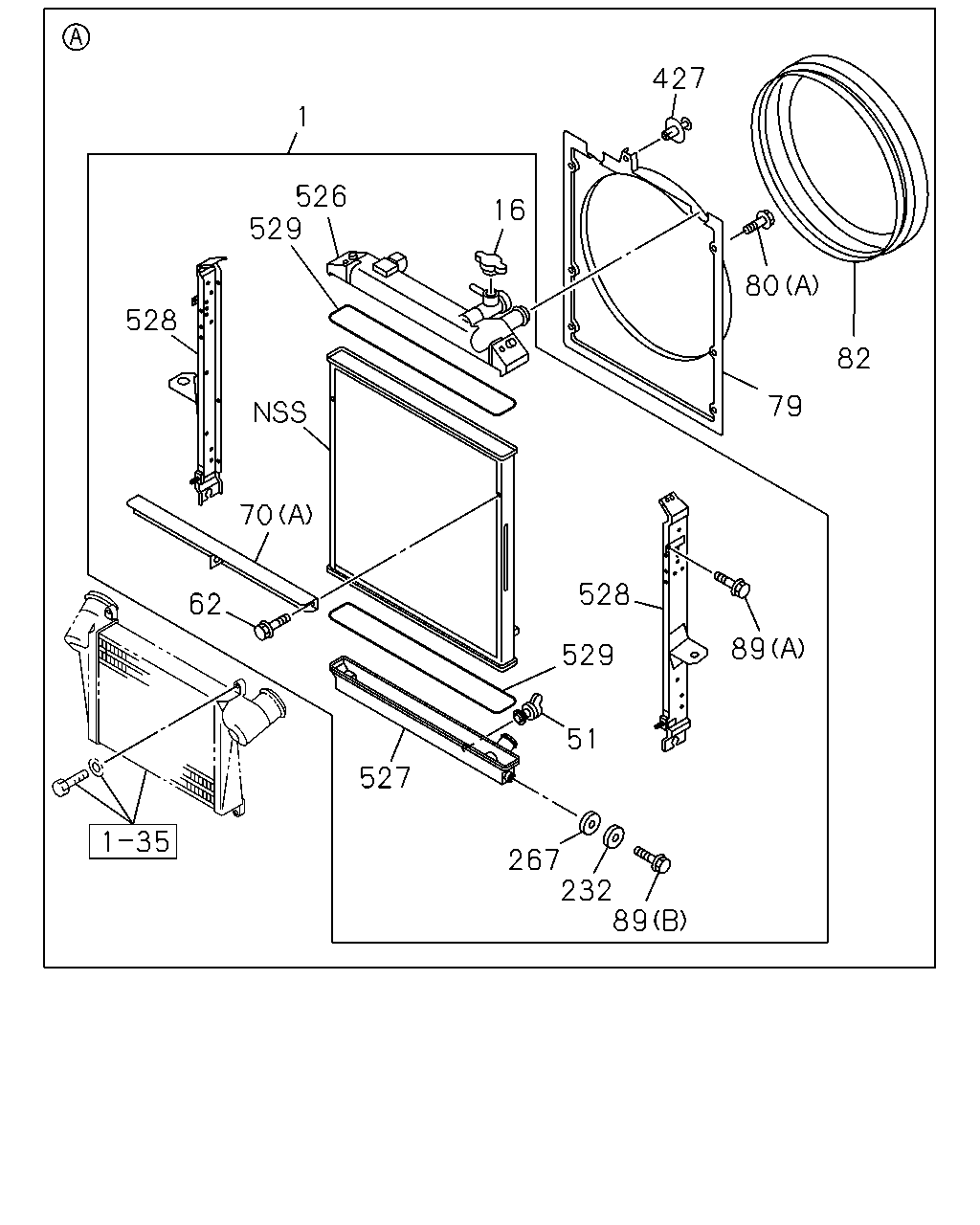

1
526
529
528
70
62
16
527
267
232
89
51
529
528
89
79
82
80
427
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60)
8-98283-859-0
01
1
1404-1405
1
RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98234-536-0
01
1
1403-
1
RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98234-537-0
01
1
1403-1403
1
RADIATOR ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98234-537-0
01
1
1404-1405
1
RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98234-537-0
01
1
1406-
16
CAP; RAD
8-98096-226-0
01
1
1403-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1403-
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1403-
70
STAY; RAD
(B)
8-98010-657-0
01
1
1403-
70
STAY; RAD
(A)
8-98018-941-0
01
1
1403-
79
GUIDE; FAN,RAD
8-98010-297-0
01
1
1403-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1403-
80
BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1403-
82
COVER; FAN,RAD
8-98006-478-0
01
1
1403-
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1403-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1403-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
02
1
1403-
267
RUBBER; CUSHION
1-21467-023-0
02
1
1403-
427
CLIP; FAN GUIDE
1-09470-009-0
02
1
1403-
526
TANK; UPR,RADIATOR CORE
8-98010-271-2
01
1
1403-
527
TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98010-279-0
01
1
1403-
527
TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98032-433-1
01
1
1403-
528
PLATE; SIDE,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60)
8-98283-860-0
01
1
1404-1405
528
PLATE; SIDE,RADIATOR CORE
8-98220-521-0
01
1
1403-1403
528
PLATE; SIDE,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98220-521-0
01
1
1404-1405
528
PLATE; SIDE,RADIATOR CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98220-521-0
01
1
1404-1405
528
PLATE; SIDE,RADIATOR CORE
8-98220-521-0
01
1
1406-
528
PLATE; SIDE,RADIATOR CORE
8-98204-114-0
01
1
1403-
529
GASKET; CORE,RADIATOR
8-98032-435-0
02
1
1403-
