Sayfa 5-01 - Isuzu EPC

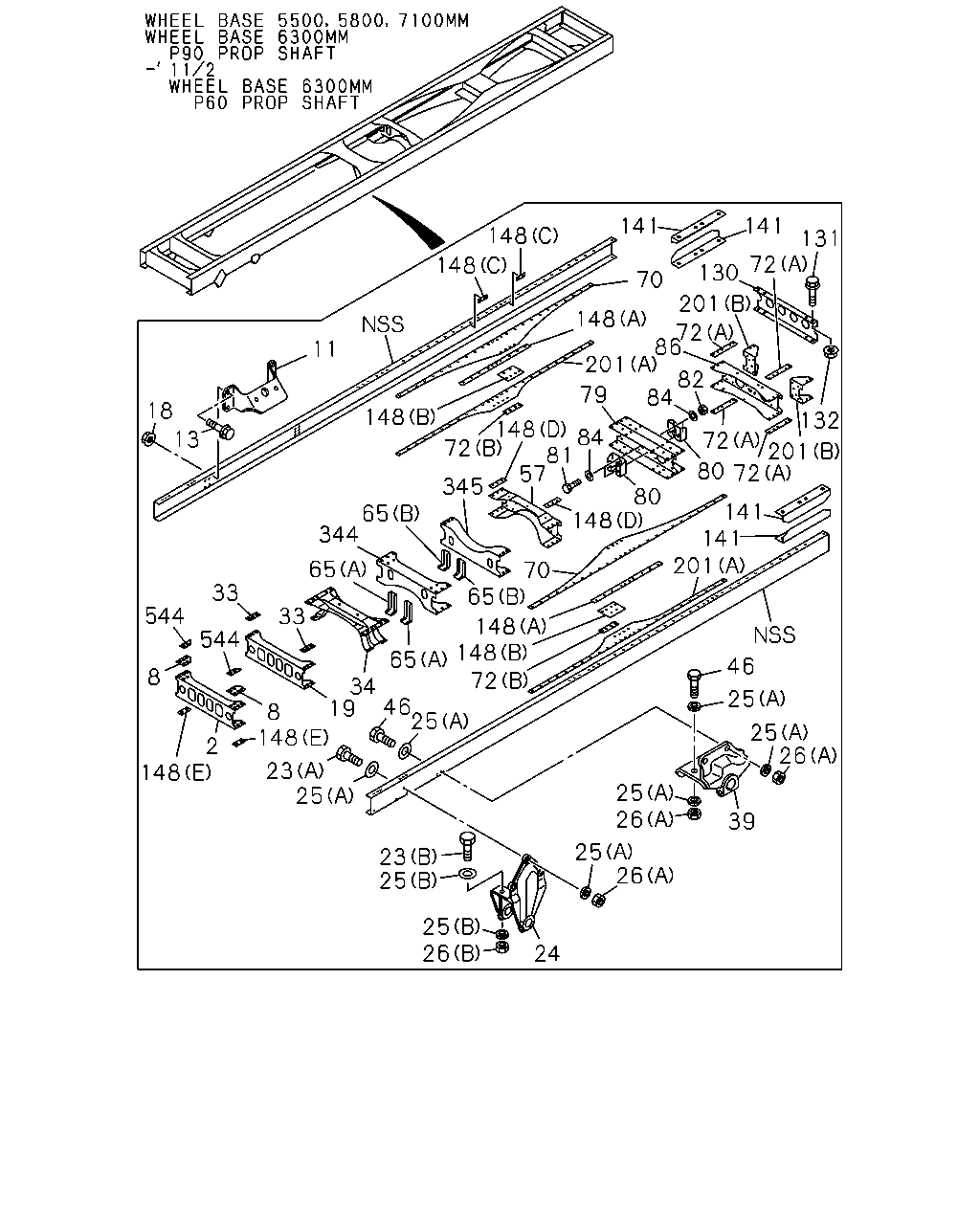

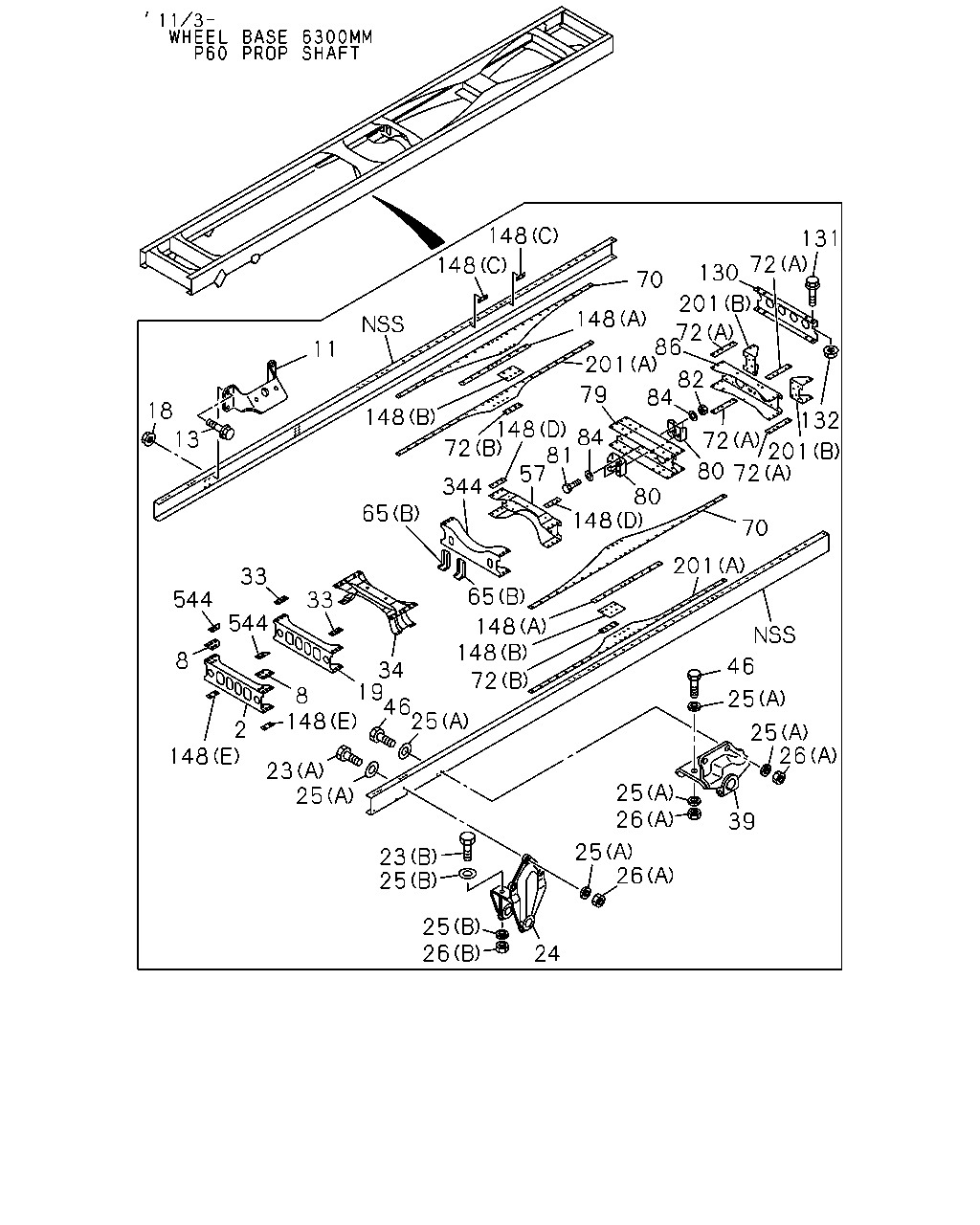

5-01 — FRAME AND OTHER PARTS (#12940) — 207 parça

148 131 72 148 130 70 201 148 148 84 72 57 80 148 201 65 148 148 72 201 148 72 86 82 84 11 79 13 132 18 201 80 72 72 344 65 70 33 33 544 544 8 46 34 19 46 25 8 148 25 2 148 25 26 23 25 25 26 39 25 26 23 25 25 26 24 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	8-97610-852-6	01	1	0807-1109	●	●	●
2	MEMBER; CROSS,1ST	8-97610-852-6	01	1	1110-	●	●	●	●
8	GUSSET; 1ST C/MBR THA	8-97611-027-0	02	1	0807-1109	●	●	●
8	GUSSET; 1ST C/MBR THA	8-97611-027-0	02	1	1110-	●	●	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	0807-1109	●	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1110-	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE IMA	0-28661-240-0	08	1	0807-1109	●	●	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE IMA	0-28661-240-0	08	1	1110-	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE THA	0-91180-212-0	08	1	0807-1109	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE THA	0-91180-212-0	08	1	1110-	●	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-4	01	1	0807-1109	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-4	01	1	1110-	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X50 THA	0-20951-450-0	06	1	0807-1109	●	●	●
23	BOLT; BRKT,SPR (A) M14X50 THA	0-20951-450-0	06	1	1110-	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0807-1109	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1110-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	0807-1109	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1110-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	0807-1109	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1110-	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0807-1109	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1110-	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15 THA	8-98010-627-1	28	1	0807-1109	●	●	●
25	WASHER; PL,BRKT (A) ID=15 THA	8-98010-627-1	28	1	1110-	●	●	●	●
26	NUT; BRKT,SPR (A) M14 THA	0-91110-514-0	14	1	0807-1109	●	●	●
26	NUT; BRKT,SPR (A) M14 THA	0-91110-514-0	14	1	1110-	●	●	●	●
26	NUT; BRKT,SPR (B) M16 THA	0-91110-516-0	04	1	0807-1109	●	●	●
26	NUT; BRKT,SPR (B) M16 THA	0-91110-516-0	04	1	1110-	●	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0807-1109	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1110-	●	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0807-1109	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1110-	●	●	●	●
39	BRACKET; FRT SPR,RR THA	8-97924-625-0	01	1	0807-1109	●	●	●
39	BRACKET; FRT SPR,RR THA	8-97924-625-0	01	1	1110-	●	●	●	●
39	BRACKET; FRT SPR,RR THA	8-97924-626-0	01	1	0807-1109	●	●	●
39	BRACKET; FRT SPR,RR THA	8-97924-626-0	01	1	1110-	●	●	●	●
46	BOLT; BRKT FIX M14X50 THA	0-20951-450-0	08	1	0807-1109	●	●	●
46	BOLT; BRKT FIX M14X50 THA	0-20951-450-0	08	1	1110-	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT THA	8-97612-103-1	01	1	0807-1109	●	●	●
57	MEMBER; CROSS,RR SUSP FRT THA	8-97612-103-1	01	1	1110-	●	●	●	●
65	BRACKET; CENTER BRG (B)	8-97614-132-0	02	1	1110-				●
65	BRACKET; CENTER BRG (A)	8-97614-133-0	02	1	1110-				●
65	BRACKET; CENTER BRG P60 PROP SHAFT<C2M> (A)	8-97622-644-0	02	1	0807-	●
65	BRACKET; CENTER BRG (A)	8-97614-139-0	02	1	0807-		●
65	BRACKET; CENTER BRG P60 PROP SHAFT<C2M> (B)	8-97614-150-0	02	1	0807-			●
65	BRACKET; CENTER BRG P60 PROP SHAFT<C2M> (A)	8-97621-881-0	02	1	0807-1102			●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (A)	8-97622-646-0	02	1	0807-	●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (A)	8-97612-486-0	02	1	0807-			●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (B)	8-97614-125-0	02	1	0807-			●
70	GUSSET; TRUNNION,UPR	8-97612-106-0	02	1	0807-1109	●	●	●
70	GUSSET; TRUNNION,UPR	8-97612-106-0	02	1	1110-	●	●	●	●
72	SPACER; TRUNNION (A)	8-97612-110-0	04	1	0807-1109	●	●	●
72	SPACER; TRUNNION (A)	8-97612-110-0	04	1	1110-	●	●	●	●
72	SPACER; TRUNNION (B) THA	8-97922-399-0	02	1	0807-	●	●	●	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97612-104-0	01	1	0807-1109	●	●	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97612-104-0	01	1	1110-	●	●	●	●
80	BRACKET; C/MBR THA	1-53363-068-0	02	1	0807-1109	●	●	●
80	BRACKET; C/MBR THA	1-53363-068-0	02	1	1110-	●	●	●	●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	0807-1109	●	●	●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	1110-	●	●	●	●
82	NUT; BRKT M14 THA	0-91110-514-0	02	1	0807-1109	●	●	●
82	NUT; BRKT M14 THA	0-91110-514-0	02	1	1110-	●	●	●	●
84	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	04	1	0807-1109	●	●	●
84	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	04	1	1110-	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR THA	8-97924-655-0	01	1	0807-1109	●	●	●
86	MEMBER; CROSS,RR SUSP RR THA	8-97924-655-0	01	1	1110-	●	●	●	●
130	MEMBER; CROSS,END THA	8-97916-031-0	01	1	0807-1109	●	●	●
130	MEMBER; CROSS,END THA	8-97916-031-0	01	1	1110-	●	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER THA	0-50541-230-0	04	1	0807-1109	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER THA	0-50541-230-0	04	1	1110-	●	●	●	●
132	NUT; END C/MBR M12 THA	0-91110-512-0	04	1	0807-1109	●	●	●
132	NUT; END C/MBR M12 THA	0-91110-512-0	04	1	1110-	●	●	●	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	0807-1109	●	●	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1110-	●	●	●	●
148	SPACER; C/MBR (D) THA	8-97612-109-0	02	1	0807-1109	●	●	●
148	SPACER; C/MBR (D) THA	8-97612-109-0	02	1	1110-	●	●	●	●
148	SPACER; C/MBR (C)	8-97612-111-0	04	1	0807-1109	●	●	●
148	SPACER; C/MBR (C)	8-97612-111-0	04	1	1110-	●	●	●	●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	0807-1109	●	●	●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	1110-	●	●	●	●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	0807-1109	●	●	●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1110-	●	●	●	●
201	GUSSET; C/MBR (A)	8-97635-951-1	02	1	1110-				●
201	GUSSET; C/MBR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> P60 PROP SHAFT<C2M> (A)	8-97640-348-1	01	1	1108-	●
201	GUSSET; C/MBR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> P60 PROP SHAFT<C2M> (A)	8-97640-712-1	01	1	1108-	●
201	GUSSET; C/MBR P60 PROP SHAFT<C2M> (A)	8-97622-841-2	02	1	1104-1107	●
201	GUSSET; C/MBR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> P60 PROP SHAFT<C2M> (A)	8-97622-841-2	02	1	1108-	●
201	GUSSET; C/MBR (B) THA	8-97612-108-2	02	1	0807-1109	●	●	●
201	GUSSET; C/MBR (B) THA	8-97612-108-2	02	1	1110-	●	●	●	●
201	GUSSET; C/MBR P60 PROP SHAFT<C2M> (A)	8-97622-841-1	02	1	0807-1102	●
201	GUSSET; C/MBR P60 PROP SHAFT<C2M> (A)	8-97637-133-1	02	1	1103-			●
201	GUSSET; C/MBR (A)	8-97618-438-2	02	1	0807-		●
201	GUSSET; C/MBR (A)	8-97612-107-2	02	1	0807-1102			●
201	GUSSET; C/MBR P90 PROP SHAFT<C5T> (A)	8-97612-107-3	02	1	1103-			●
201	GUSSET; C/MBR P90 PROP SHAFT<C5T> (A)	8-97618-439-1	02	1	0807-1102	●
201	GUSSET; C/MBR (A)	8-97618-439-1	02	1	1103-1103	●
201	GUSSET; C/MBR P90 PROP SHAFT<C5T> (A)	8-97618-439-2	02	1	1104-	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0807-1109	●	●	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1110-	●	●	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	0807-1109	●	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1110-	●	●	●	●

141 141 148 131 130 72 148 70 201 148 148 84 72 57 80 141 148 70 201 65 148 148 72 201 148 72 86 82 84 11 79 13 132 18 201 80 72 72 345 65 344 65 33 33 544 544 65 46 8 34 25 25 8 148 25 26 2 148 23 25 25 26 39 25 26 23 25 25 26 24 81 19 46 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	8-97610-852-6	01	1	0807-1109	●	●	●
2	MEMBER; CROSS,1ST	8-97610-852-6	01	1	1110-	●	●	●	●
8	GUSSET; 1ST C/MBR THA	8-97611-027-0	02	1	0807-1109	●	●	●
8	GUSSET; 1ST C/MBR THA	8-97611-027-0	02	1	1110-	●	●	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	0807-1109	●	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1110-	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE IMA	0-28661-240-0	08	1	0807-1109	●	●	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE IMA	0-28661-240-0	08	1	1110-	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE THA	0-91180-212-0	08	1	0807-1109	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE THA	0-91180-212-0	08	1	1110-	●	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-4	01	1	0807-1109	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-4	01	1	1110-	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X50 THA	0-20951-450-0	06	1	0807-1109	●	●	●
23	BOLT; BRKT,SPR (A) M14X50 THA	0-20951-450-0	06	1	1110-	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0807-1109	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1110-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	0807-1109	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1110-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	0807-1109	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1110-	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0807-1109	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1110-	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15 THA	8-98010-627-1	28	1	0807-1109	●	●	●
25	WASHER; PL,BRKT (A) ID=15 THA	8-98010-627-1	28	1	1110-	●	●	●	●
26	NUT; BRKT,SPR (A) M14 THA	0-91110-514-0	14	1	0807-1109	●	●	●
26	NUT; BRKT,SPR (A) M14 THA	0-91110-514-0	14	1	1110-	●	●	●	●
26	NUT; BRKT,SPR (B) M16 THA	0-91110-516-0	04	1	0807-1109	●	●	●
26	NUT; BRKT,SPR (B) M16 THA	0-91110-516-0	04	1	1110-	●	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0807-1109	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1110-	●	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0807-1109	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1110-	●	●	●	●
39	BRACKET; FRT SPR,RR THA	8-97924-625-0	01	1	0807-1109	●	●	●
39	BRACKET; FRT SPR,RR THA	8-97924-625-0	01	1	1110-	●	●	●	●
39	BRACKET; FRT SPR,RR THA	8-97924-626-0	01	1	0807-1109	●	●	●
39	BRACKET; FRT SPR,RR THA	8-97924-626-0	01	1	1110-	●	●	●	●
46	BOLT; BRKT FIX M14X50 THA	0-20951-450-0	08	1	0807-1109	●	●	●
46	BOLT; BRKT FIX M14X50 THA	0-20951-450-0	08	1	1110-	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT THA	8-97612-103-1	01	1	0807-1109	●	●	●
57	MEMBER; CROSS,RR SUSP FRT THA	8-97612-103-1	01	1	1110-	●	●	●	●
65	BRACKET; CENTER BRG (B)	8-97614-132-0	02	1	1110-				●
65	BRACKET; CENTER BRG (A)	8-97614-133-0	02	1	1110-				●
65	BRACKET; CENTER BRG P60 PROP SHAFT<C2M> (A)	8-97622-644-0	02	1	0807-	●
65	BRACKET; CENTER BRG (A)	8-97614-139-0	02	1	0807-		●
65	BRACKET; CENTER BRG P60 PROP SHAFT<C2M> (B)	8-97614-150-0	02	1	0807-			●
65	BRACKET; CENTER BRG P60 PROP SHAFT<C2M> (A)	8-97621-881-0	02	1	0807-1102			●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (A)	8-97622-646-0	02	1	0807-	●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (A)	8-97612-486-0	02	1	0807-			●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (B)	8-97614-125-0	02	1	0807-			●
70	GUSSET; TRUNNION,UPR	8-97612-106-0	02	1	0807-1109	●	●	●
70	GUSSET; TRUNNION,UPR	8-97612-106-0	02	1	1110-	●	●	●	●
72	SPACER; TRUNNION (A)	8-97612-110-0	04	1	0807-1109	●	●	●
72	SPACER; TRUNNION (A)	8-97612-110-0	04	1	1110-	●	●	●	●
72	SPACER; TRUNNION (B) THA	8-97922-399-0	02	1	0807-	●	●	●	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97612-104-0	01	1	0807-1109	●	●	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97612-104-0	01	1	1110-	●	●	●	●
80	BRACKET; C/MBR THA	1-53363-068-0	02	1	0807-1109	●	●	●
80	BRACKET; C/MBR THA	1-53363-068-0	02	1	1110-	●	●	●	●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	0807-1109	●	●	●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	1110-	●	●	●	●
82	NUT; BRKT M14 THA	0-91110-514-0	02	1	0807-1109	●	●	●
82	NUT; BRKT M14 THA	0-91110-514-0	02	1	1110-	●	●	●	●
84	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	04	1	0807-1109	●	●	●
84	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	04	1	1110-	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR THA	8-97924-655-0	01	1	0807-1109	●	●	●
86	MEMBER; CROSS,RR SUSP RR THA	8-97924-655-0	01	1	1110-	●	●	●	●
130	MEMBER; CROSS,END THA	8-97916-031-0	01	1	0807-1109	●	●	●
130	MEMBER; CROSS,END THA	8-97916-031-0	01	1	1110-	●	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER THA	0-50541-230-0	04	1	0807-1109	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER THA	0-50541-230-0	04	1	1110-	●	●	●	●
132	NUT; END C/MBR M12 THA	0-91110-512-0	04	1	0807-1109	●	●	●
132	NUT; END C/MBR M12 THA	0-91110-512-0	04	1	1110-	●	●	●	●
141	STIFFENER THA	8-97926-003-1	04	1	1111-				●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	0807-1109	●	●	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1110-	●	●	●	●
148	SPACER; C/MBR (D) THA	8-97612-109-0	02	1	0807-1109	●	●	●
148	SPACER; C/MBR (D) THA	8-97612-109-0	02	1	1110-	●	●	●	●
148	SPACER; C/MBR (C)	8-97612-111-0	04	1	0807-1109	●	●	●
148	SPACER; C/MBR (C)	8-97612-111-0	04	1	1110-	●	●	●	●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	0807-1109	●	●	●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	1110-	●	●	●	●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	0807-1109	●	●	●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1110-	●	●	●	●
201	GUSSET; C/MBR (A)	8-97635-951-1	02	1	1110-				●
201	GUSSET; C/MBR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> P60 PROP SHAFT<C2M> (A)	8-97640-348-1	01	1	1108-	●
201	GUSSET; C/MBR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> P60 PROP SHAFT<C2M> (A)	8-97640-712-1	01	1	1108-	●
201	GUSSET; C/MBR P60 PROP SHAFT<C2M> (A)	8-97622-841-2	02	1	1104-1107	●
201	GUSSET; C/MBR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> P60 PROP SHAFT<C2M> (A)	8-97622-841-2	02	1	1108-	●
201	GUSSET; C/MBR (B) THA	8-97612-108-2	02	1	0807-1109	●	●	●
201	GUSSET; C/MBR (B) THA	8-97612-108-2	02	1	1110-	●	●	●	●
201	GUSSET; C/MBR P60 PROP SHAFT<C2M> (A)	8-97622-841-1	02	1	0807-1102	●
201	GUSSET; C/MBR P60 PROP SHAFT<C2M> (A)	8-97637-133-1	02	1	1103-			●
201	GUSSET; C/MBR (A)	8-97618-438-2	02	1	0807-		●
201	GUSSET; C/MBR (A)	8-97612-107-2	02	1	0807-1102			●
201	GUSSET; C/MBR P90 PROP SHAFT<C5T> (A)	8-97612-107-3	02	1	1103-			●
201	GUSSET; C/MBR P90 PROP SHAFT<C5T> (A)	8-97618-439-1	02	1	0807-1102	●
201	GUSSET; C/MBR (A)	8-97618-439-1	02	1	1103-1103	●
201	GUSSET; C/MBR P90 PROP SHAFT<C5T> (A)	8-97618-439-2	02	1	1104-	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0807-1109	●	●	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1110-	●	●	●	●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	0807-1102			●
345	MEMBER; CROSS,5TH P90 PROP SHAFT<C5T>	8-97611-238-1	01	1	1103-1109			●
345	MEMBER; CROSS,5TH P90 PROP SHAFT<C5T>	8-97611-238-1	01	1	1110-			●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1110-				●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	0807-1109	●	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1110-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
