Isuzu WW
▶
TRUCKS
▶
FRR
▶
11552 - FRR RHD EURO5 EXC.SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#129362) — 45 parça
◀
[826A] VEHICLE SPEED SENSOR (2 parça)
[826A] FRONT SIDE NO.4 (2 parça)
[826A] FRONT SIDE NO.3 (5 parça)
[826A] FRONT SIDE NO.2 (13 parça)
[826A] AIR TANK SIDE (8 parça)
[826A] FRONT SIDE NO.1 (15 parça)
▶

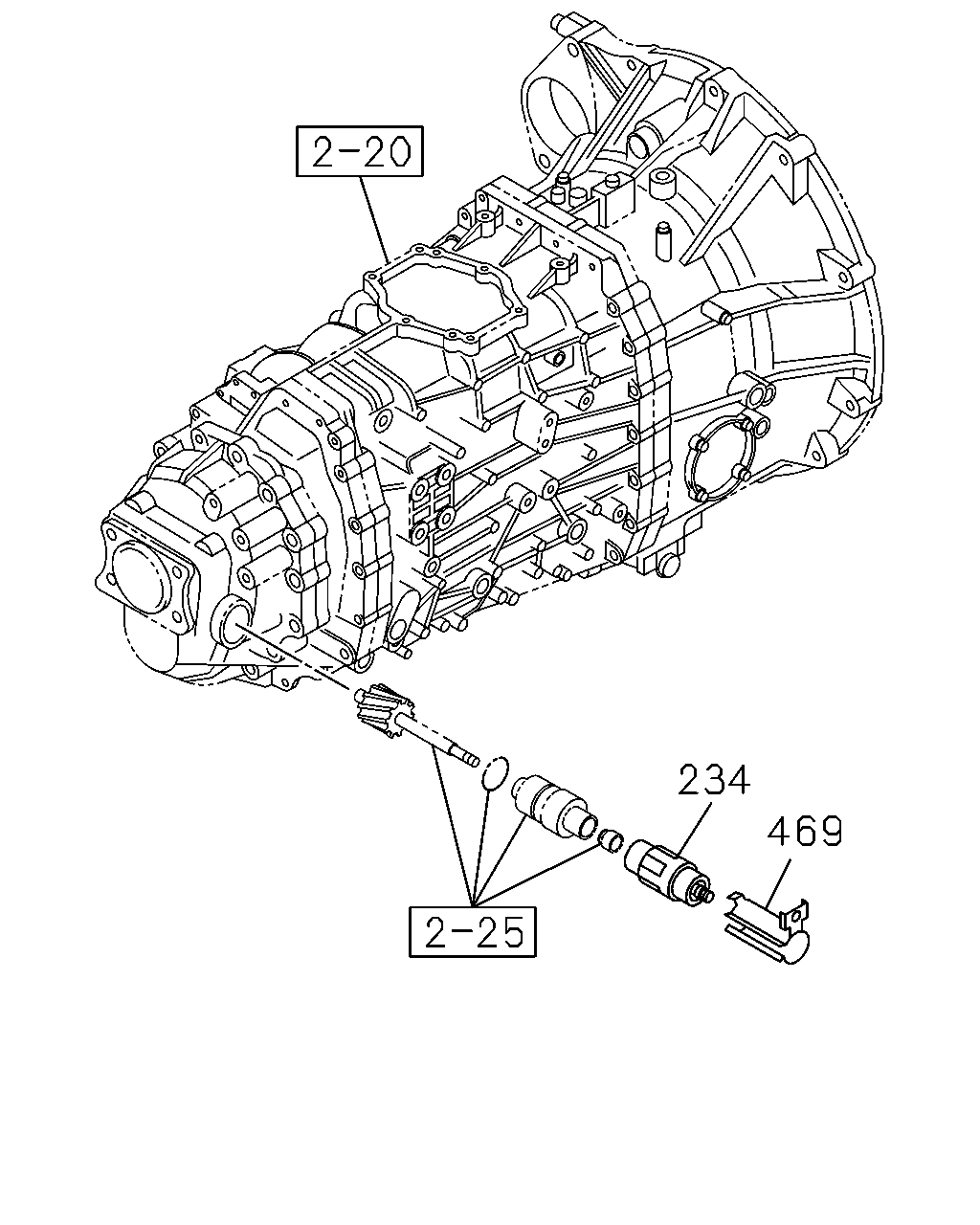

234
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1310-
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
1310-
380
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1310-
507
CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>
1-82690-666-0
01
1
1310-

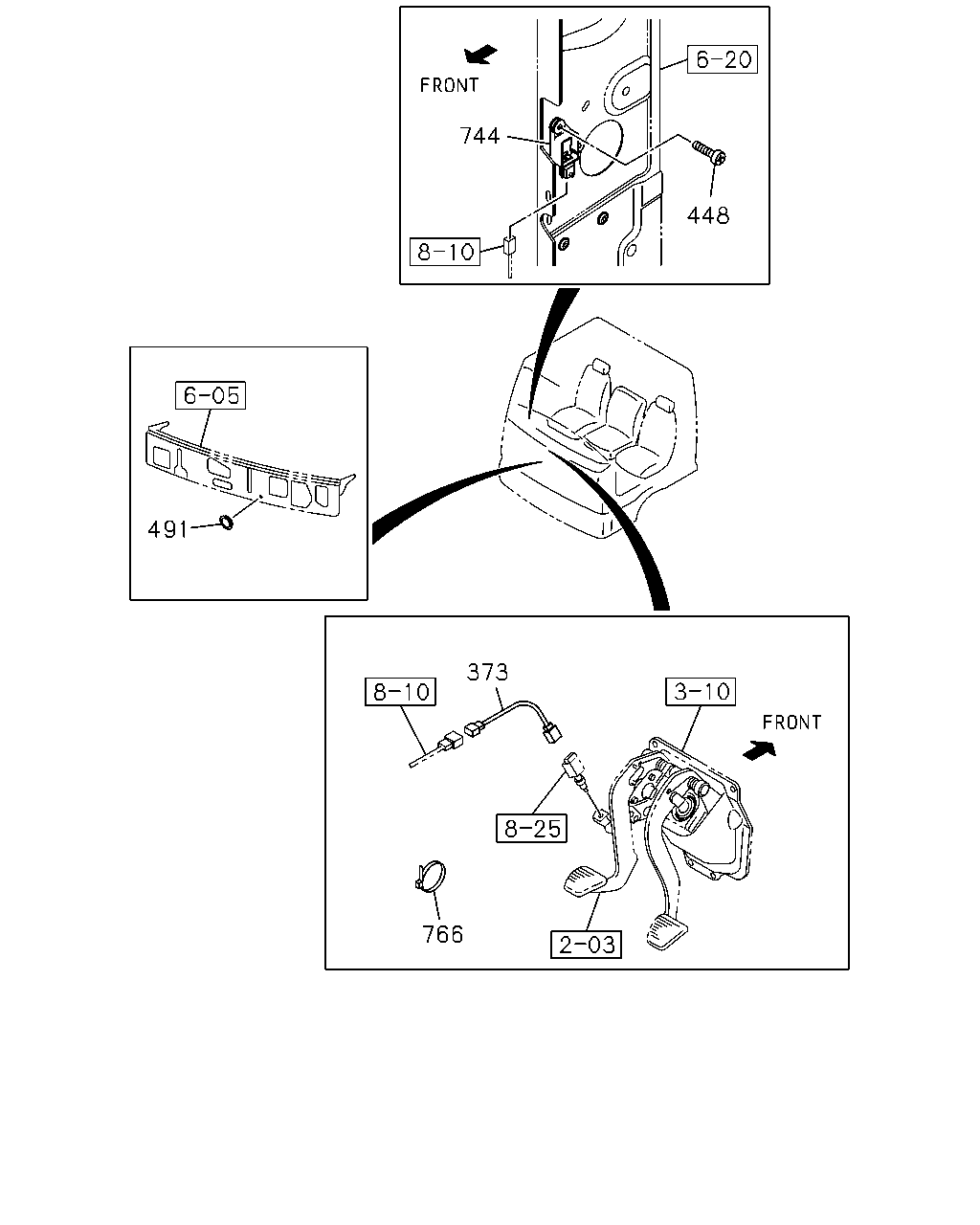

448
744
491
373
766
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
373
HARNESS; CLU SWITCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98059-419-2
01
1
1310-
448
BOLT; SENSOR
AIR BAG DRIVER(AJ3) M6X18 W/PL WASHER
8-97105-796-1
02
1
1310-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1310-
744
SENSOR; AIR BAG
AIR BAG DRIVER(AJ3)
8-97386-841-2
01
1
1310-
766
BAND; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> L=140
5-09707-031-1
01
1
1310-

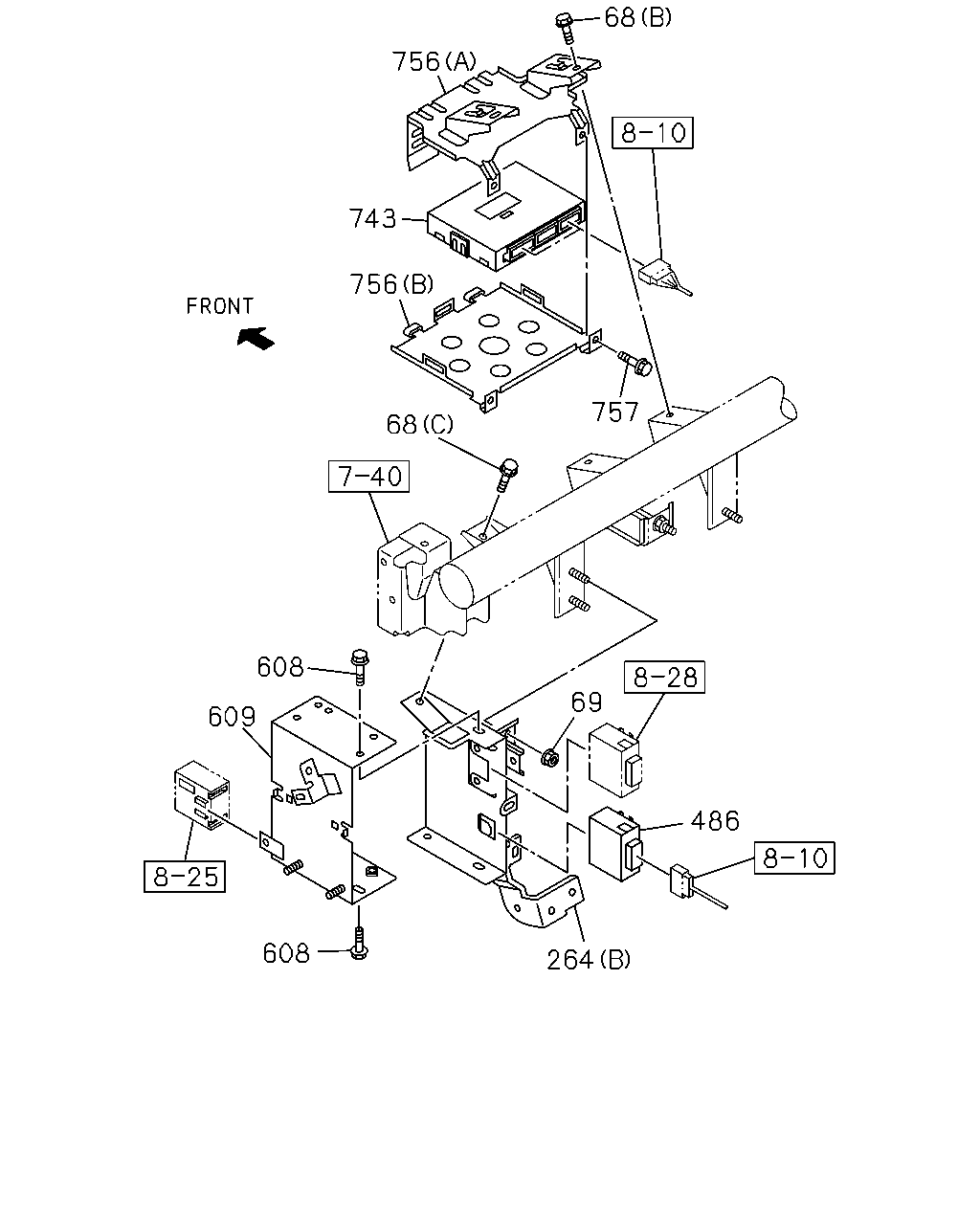

68
756
743
756
68
757
486
69
264
608
608
609
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
(C) M6X16 FLANGE
0-28650-616-0
01
1
1310-
68
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
03
1
1310-
68
BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER
1-09980-492-0
02
1
1310-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1310-
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
1310-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98064-901-0
01
1
1310-
486
CONTROL UNIT; MIRROR
8-97610-202-1
01
1
1310-
608
BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE
0-28650-616-0
05
1
1310-
609
BRACKET ASM; ELEC UNIT,AIR SUS
8-98169-737-1
01
1
1310-
743
CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY>
8-98182-026-3
01
1
1310-
756
BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A)
8-98056-411-3
01
1
1310-
756
BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B)
8-98111-836-1
01
1
1310-
757
BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE
0-28650-616-0
02
1
1310-

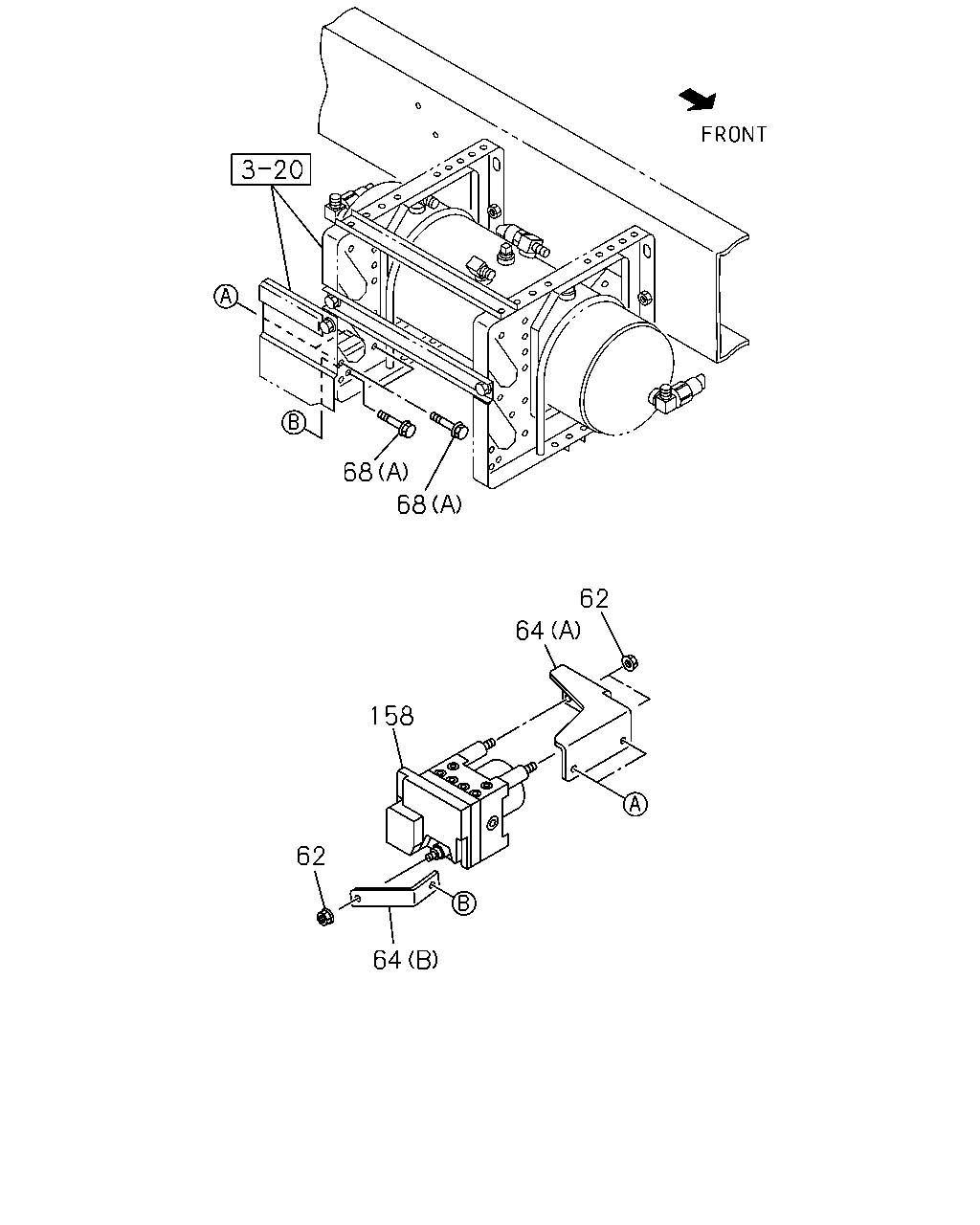

68
68
62
64
158
62
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
1310-
64
BRACKET; CONTROLLER
(A)
8-98044-238-2
01
1
1310-
64
BRACKET; CONTROLLER
(B)
8-98044-239-1
01
1
1310-
68
BOLT; BRKT
(C) M6X16 FLANGE
0-28650-616-0
01
1
1310-
68
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
03
1
1310-
68
BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER
1-09980-492-0
02
1
1310-
158
CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH)
8-98157-998-1
01
1
1310-
158
CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH)
8-98157-992-1
01
1
1310-
300
452
437
657
108
446
631
737
108
264
763

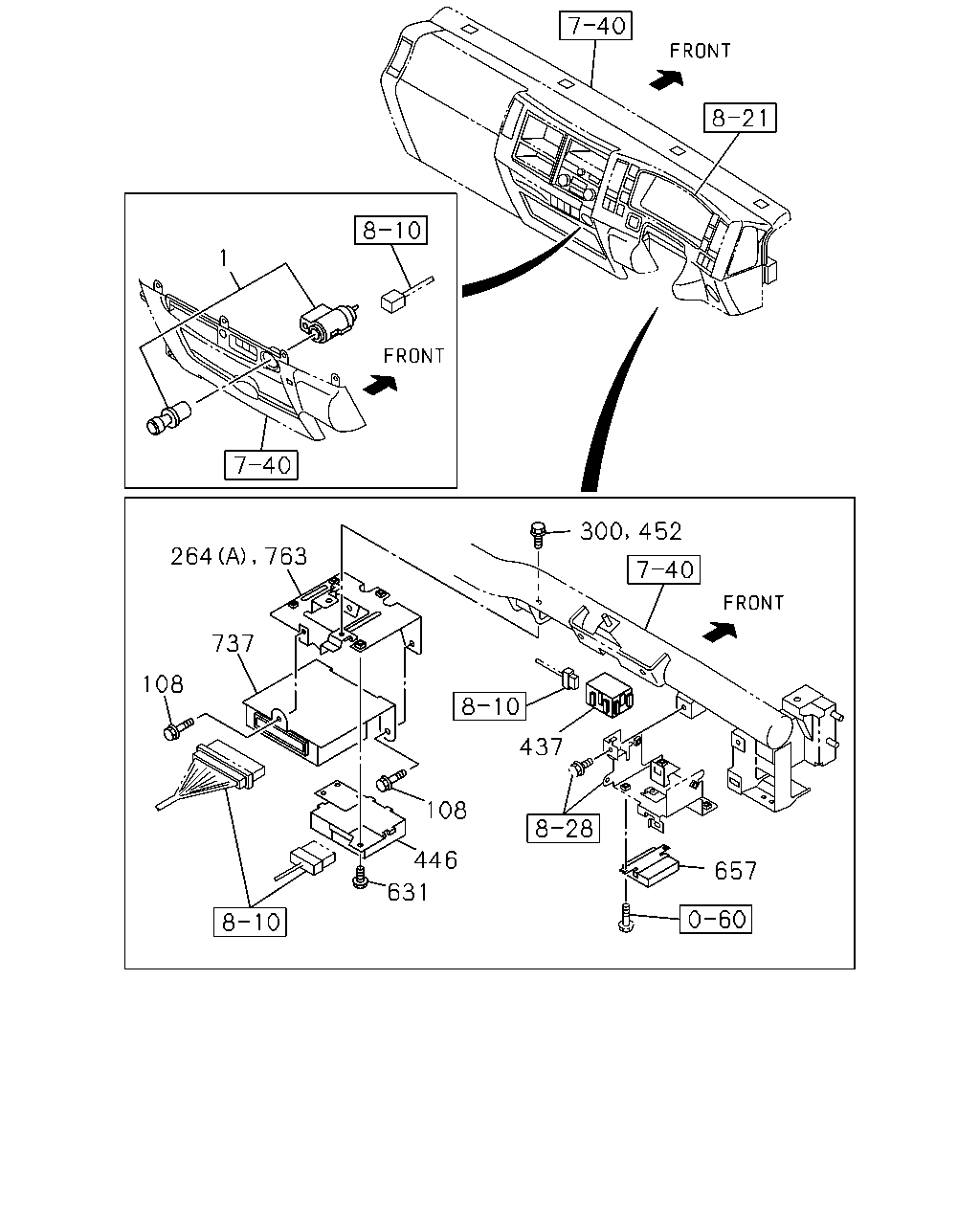

1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX>
8-98142-962-0
01
1
1310-
108
BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE
0-28650-616-0
03
1
1310-
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
1310-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98064-901-0
01
1
1310-
300
BOLT; CONT UNIT BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE
0-28650-616-0
02
1
1310-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1310-
446
CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98136-318-1
01
1
1310-
452
BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE
0-28650-616-0
02
1
1310-
631
BOLT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE
0-28650-616-0
02
1
1310-
657
CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY>
8-98013-144-8
01
1
1310-1401
657
CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY>
8-98260-912-1
01
1
1402-
737
CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98252-968-0
01
1
1310-1404
737
CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98273-241-0
01
1
1405-1411
737
CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98282-919-0
01
1
1412-
763
BRACKET; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98064-901-0
01
1
1310-
