4-55 — FRONT LEAF SPRING (#12936) — 71 parça

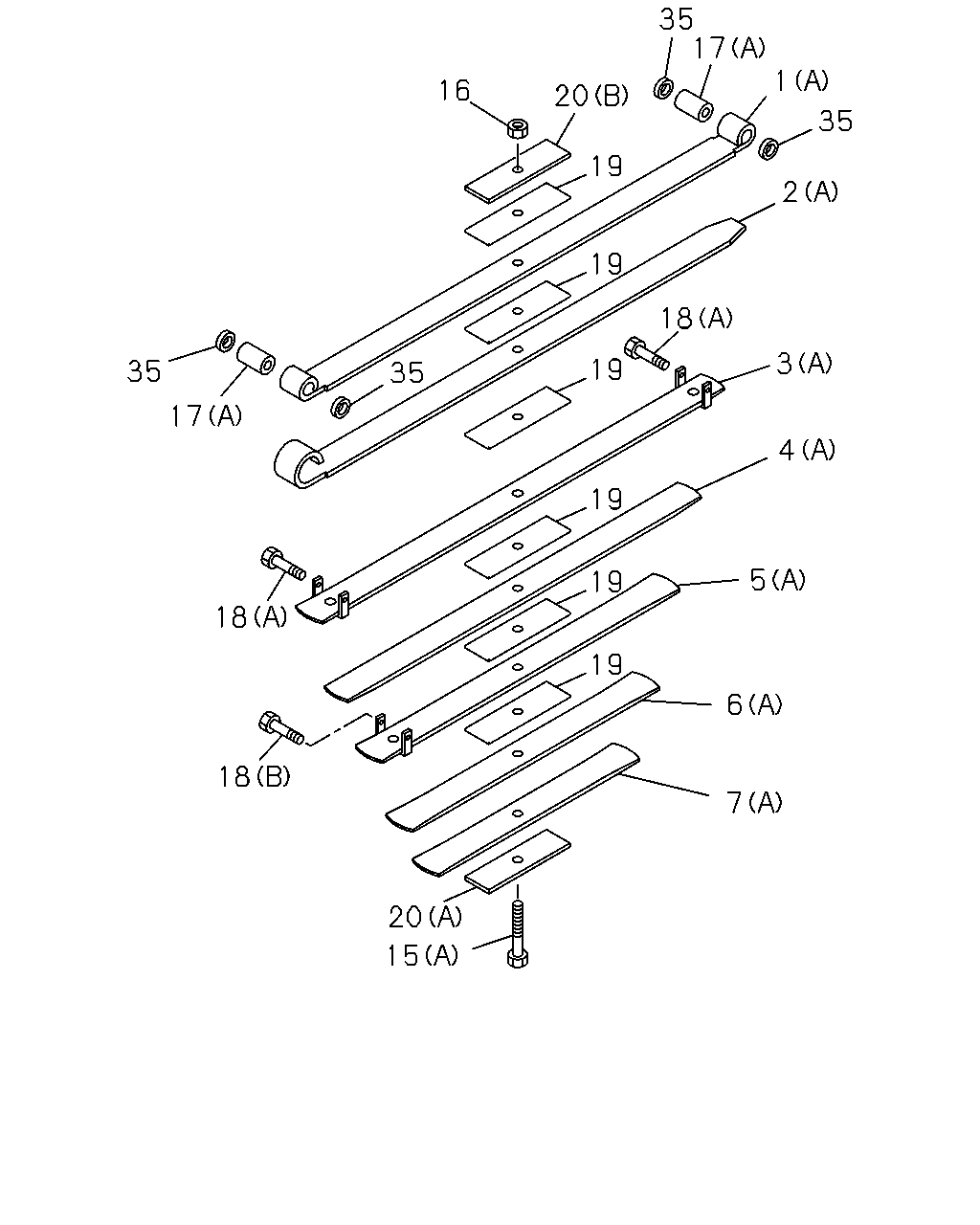

35 17 1 16 20 35 19 2 19 18 3 19 35 35 17 4 19 5 19 18 19 6 18 7 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51131-961-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B), THA ASM PART: B = 8-98029-096-0	8-98031-827-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A), THA ASM PART: C = 8-98167-308-0	8-98167-548-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51132-961-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B), THA ASM PART: B = 8-98029-096-0	8-98031-828-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), THA ASM PART: C = 8-98167-308-0	8-98167-549-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51133-961-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B), THA ASM PART: B = 8-98029-096-0	8-98031-829-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), THA ASM PART: C = 8-98167-308-0	8-98167-550-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51134-961-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B), THA ASM PART: B = 8-98029-096-0	8-98031-830-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), THA ASM PART: C = 8-98167-308-0	8-98167-551-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51135-961-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B), THA ASM PART: B = 8-98029-096-0	8-98031-831-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), THA ASM PART: C = 8-98167-308-0	8-98167-552-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51136-961-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B), THA ASM PART: B = 8-98029-096-0	8-98031-832-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), THA ASM PART: C = 8-98167-308-0	8-98167-553-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51137-961-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B), THA ASM PART: B = 8-98029-096-0	8-98031-833-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), THA ASM PART: C = 8-98167-308-0	8-98167-554-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=145 ASM PART: B = 8-98029-096-0	1-51156-298-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=150 ASM PART: C = 8-98167-308-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=165 ASM PART: A = 1-51130-961-0	1-51156-366-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16, THA ASM PART: A = 1-51130-961-0, B = 8-98029-096-0, C = 8-98167-308-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=38 ASM PART: B = 8-98029-096-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=42 ASM PART: A = 1-51130-961-0, C = 8-98167-308-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: B = 8-98029-096-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: A = 1-51130-961-0, C = 8-98167-308-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 1-51130-961-0, C = 8-98167-308-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1, THA ASM PART: A = 1-51130-961-0, B = 8-98029-096-0, C = 8-98167-308-0	1-51177-071-0	06	1	-
20	SEAT; LEAF SPR,FRT (B), T=14 ASM PART: A = 1-51130-961-0, C = 8-98167-308-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: B = 8-98029-096-0	1-51177-161-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=8 ASM PART: B = 8-98029-096-0	1-51177-178-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=15 ASM PART: A = 1-51130-961-0	1-51177-352-0	01	1	-
35	SEAL; DUST THA ASM PART: A = 1-51130-961-0, C = 8-98167-308-0	1-51177-321-0	04	1	-

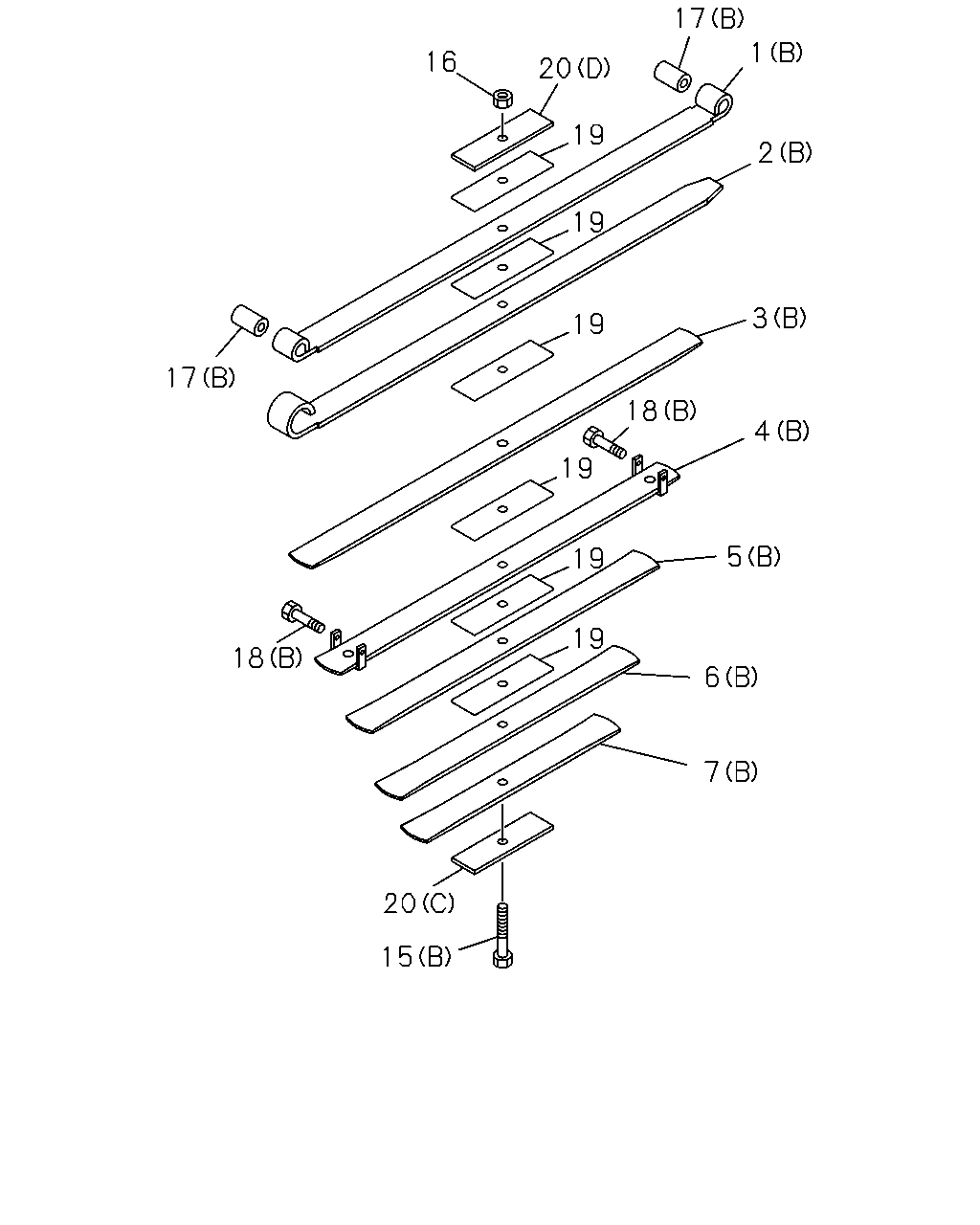

17 1 16 20 19 2 19 3 19 17 18 4 19 5 19 19 18 6 7 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51131-961-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B), THA ASM PART: B = 8-98029-096-0	8-98031-827-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A), THA ASM PART: C = 8-98167-308-0	8-98167-548-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51132-961-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B), THA ASM PART: B = 8-98029-096-0	8-98031-828-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), THA ASM PART: C = 8-98167-308-0	8-98167-549-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51133-961-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B), THA ASM PART: B = 8-98029-096-0	8-98031-829-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), THA ASM PART: C = 8-98167-308-0	8-98167-550-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51134-961-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B), THA ASM PART: B = 8-98029-096-0	8-98031-830-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), THA ASM PART: C = 8-98167-308-0	8-98167-551-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51135-961-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B), THA ASM PART: B = 8-98029-096-0	8-98031-831-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), THA ASM PART: C = 8-98167-308-0	8-98167-552-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51136-961-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B), THA ASM PART: B = 8-98029-096-0	8-98031-832-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), THA ASM PART: C = 8-98167-308-0	8-98167-553-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51137-961-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B), THA ASM PART: B = 8-98029-096-0	8-98031-833-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), THA ASM PART: C = 8-98167-308-0	8-98167-554-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=145 ASM PART: B = 8-98029-096-0	1-51156-298-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=150 ASM PART: C = 8-98167-308-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=165 ASM PART: A = 1-51130-961-0	1-51156-366-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16, THA ASM PART: A = 1-51130-961-0, B = 8-98029-096-0, C = 8-98167-308-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=38 ASM PART: B = 8-98029-096-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=42 ASM PART: A = 1-51130-961-0, C = 8-98167-308-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: B = 8-98029-096-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: A = 1-51130-961-0, C = 8-98167-308-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 1-51130-961-0, C = 8-98167-308-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1, THA ASM PART: A = 1-51130-961-0, B = 8-98029-096-0, C = 8-98167-308-0	1-51177-071-0	06	1	-
20	SEAT; LEAF SPR,FRT (B), T=14 ASM PART: A = 1-51130-961-0, C = 8-98167-308-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: B = 8-98029-096-0	1-51177-161-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=8 ASM PART: B = 8-98029-096-0	1-51177-178-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=15 ASM PART: A = 1-51130-961-0	1-51177-352-0	01	1	-
