◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11552 - FRR RHD EURO5 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#129358) — 112 parça
çizim 381921
304 304 139 38 38 304 304 139 516 377 47 139 139 38 139 139 38 386 127 524 294 219 525 184 84
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1310-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1310-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1310-
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1310-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
84 WASHER; LK BRKT,HARNESS
ID=14.2 		0-91510-814-0 02 1 1310-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1310-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1310-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28050-830-0 04 1 1310-
139 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1310-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1310-
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1310-
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1310-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1310-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1310-
294 NUT
M8 FLANGE 		0-91180-108-0 05 1 1310-
304 BOLT; ENG HARNESS CLIP
(D) M6X12 FLANGE 		0-28050-612-0 01 1 1310-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1310-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1310-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1310-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1310-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1310-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1310-
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 1310-
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 1310-

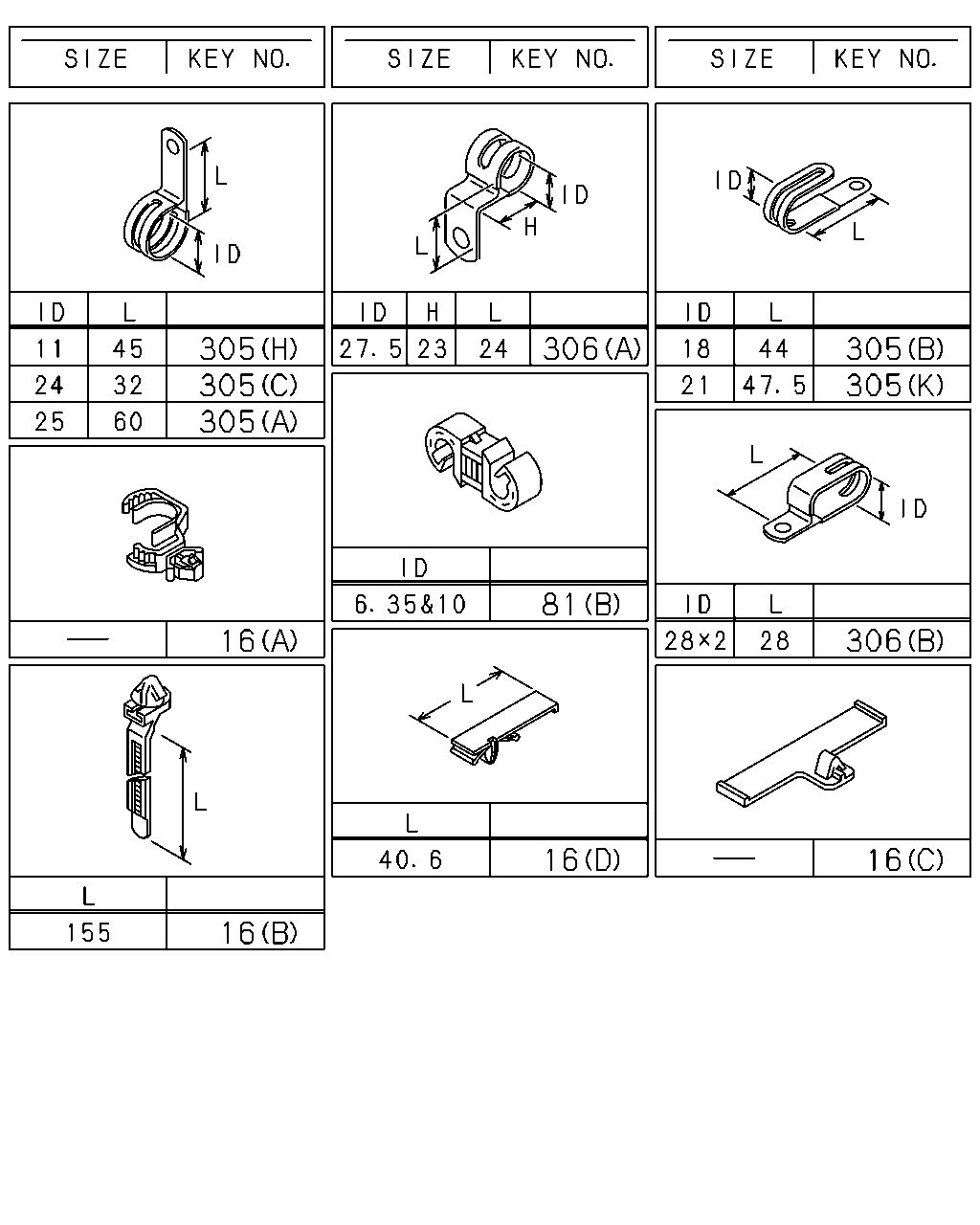

çizim 381958
305 305 305 16 16 306 81 16 305 306 305 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=11 L=16 		0-95235-025-0 02 1 1310-
16 CLIP; HARNESS
(H) ID=11X2 L=16 		1-09700-734-0 01 1 1310-
16 CLIP; HARNESS
(E) L=350 		1-09707-183-0 01 1 1310-
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 1310-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1310-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1310-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1310-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1310-
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1310-
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1310-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1310-
305 CLIP; ENG HARNESS
(G) ID=16 L=40 		0-95235-576-0 01 1 1310-
305 CLIP; ENG HARNESS
(C) ID=24 L=32 		1-09700-766-1 01 1 1310-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1310-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1310-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1310-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 1310-
305 CLIP; ENG HARNESS
(E) L=100 		8-94443-021-1 01 1 1310-
305 CLIP; ENG HARNESS
(D) L=140 		8-97122-360-0 01 1 1310-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1310-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (K) ID=21 L=47.5 		8-94178-108-0 01 1 1310-
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1310-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1310-

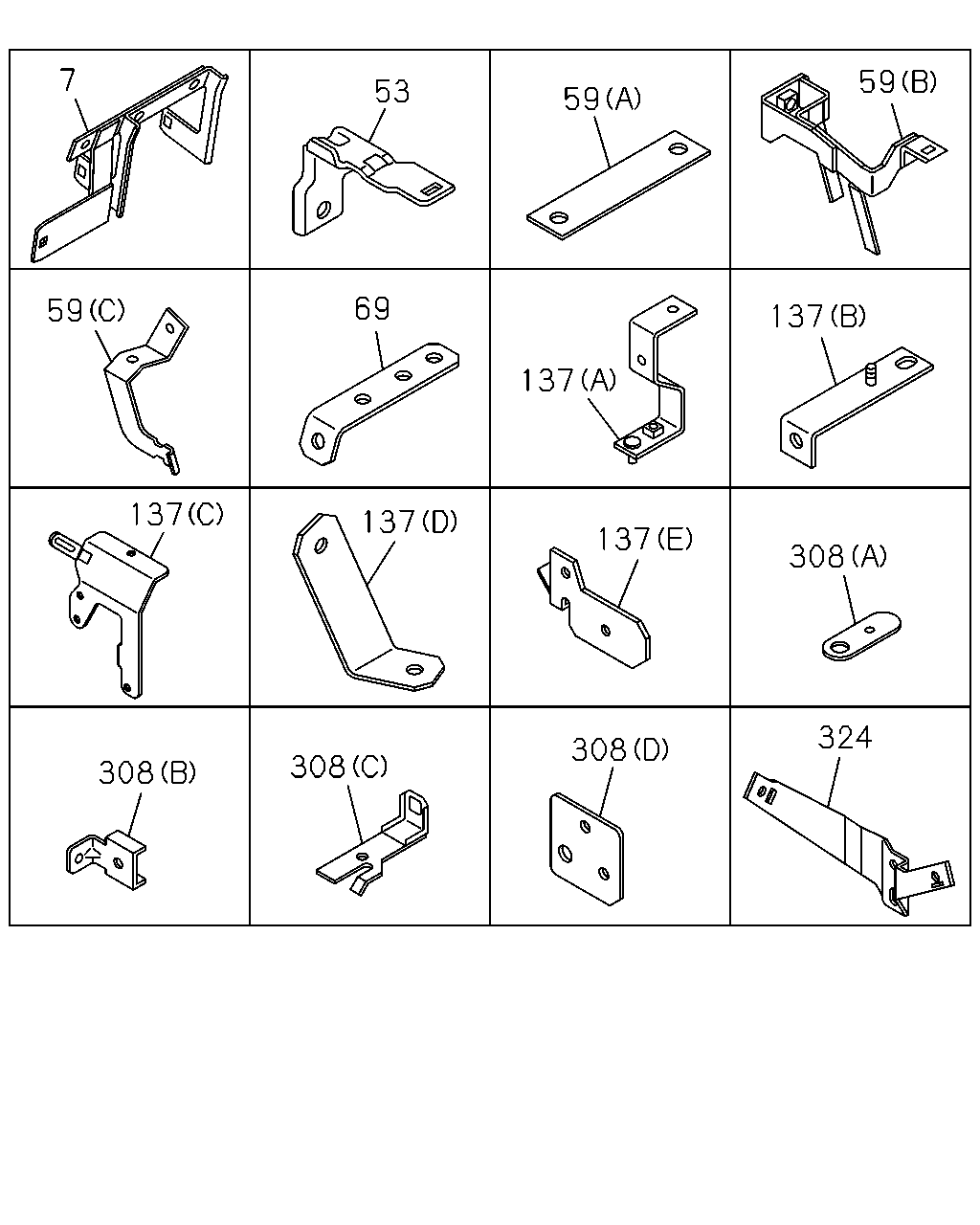

çizim 382113
324 308 308 308 308 137 137 137 59 69 137 137 59 59 53 7
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1310-
53 BRACKET; HARNESS 8-98052-458-0 01 1 1310-
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 1310-
59 BRACKET; FRAME HARNESS
(C) 		8-97616-357-3 01 1 1310-
59 BRACKET; FRAME HARNESS
(A) L=85 		8-98044-743-0 01 1 1310-
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-82698-167-0 01 1 1310-
137 BRACKET; HARNESS CLAMP
(D) 		8-97614-728-1 01 1 1310-
137 BRACKET; HARNESS CLAMP
(C) 		8-97618-098-2 01 1 1310-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1310-
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 1310-
137 BRACKET; HARNESS CLAMP
(E) 		8-98059-231-1 01 1 1310-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1310-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1310-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1310-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1310-
324 BRACKET; CLIP 8-98061-654-2 01 1 1310-
324 BRACKET; CLIP 8-98061-653-2 01 1 1310-

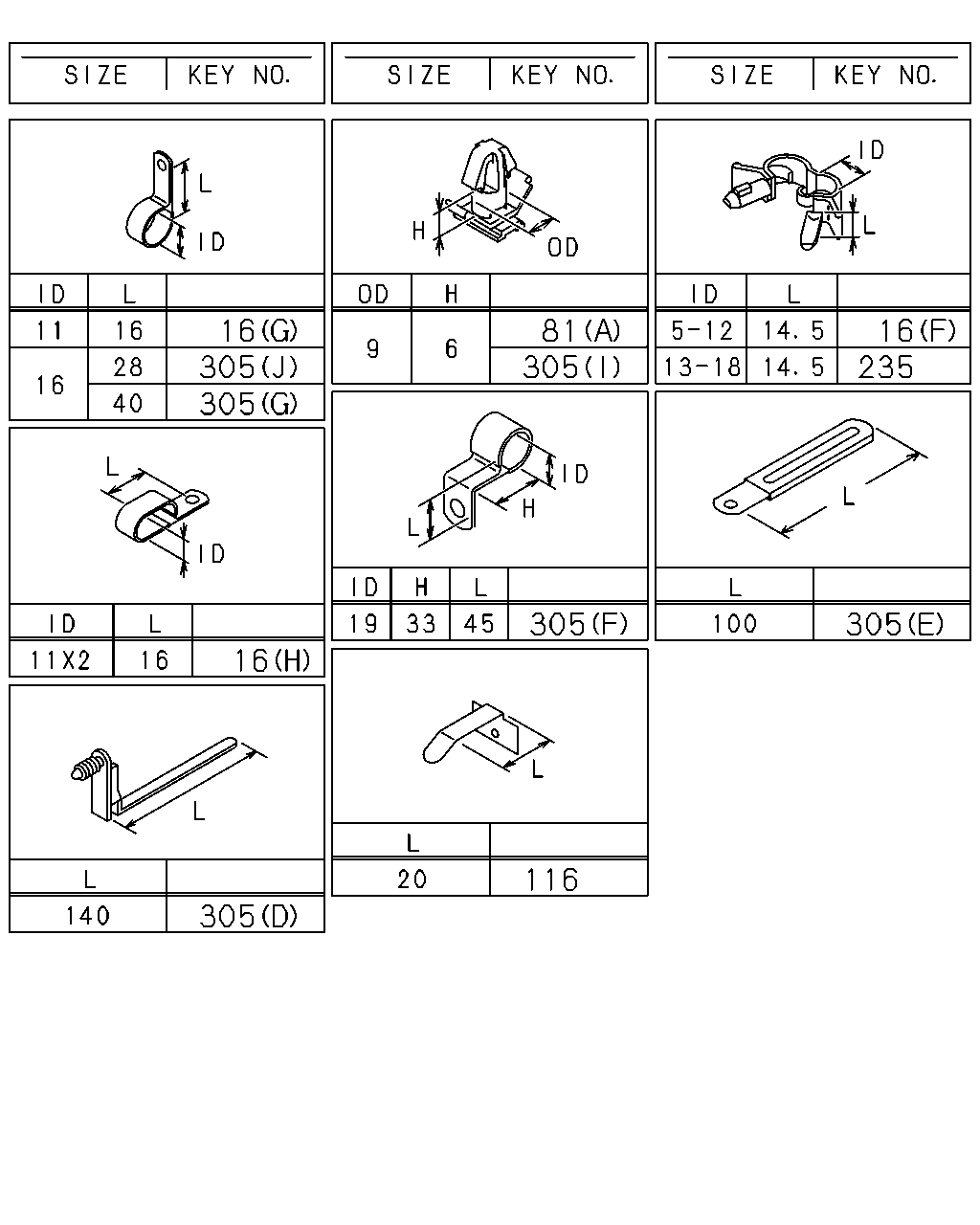

çizim 382208
305 16 235 116 305 305 81 16 305 305 16 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=11 L=16 		0-95235-025-0 02 1 1310-
16 CLIP; HARNESS
(H) ID=11X2 L=16 		1-09700-734-0 01 1 1310-
16 CLIP; HARNESS
(E) L=350 		1-09707-183-0 01 1 1310-
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 1310-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1310-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1310-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1310-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1310-
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1310-
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1310-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1310-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=13-18 L=14.5 		1-09709-290-0 01 1 1310-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1310-
305 CLIP; ENG HARNESS
(G) ID=16 L=40 		0-95235-576-0 01 1 1310-
305 CLIP; ENG HARNESS
(C) ID=24 L=32 		1-09700-766-1 01 1 1310-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1310-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1310-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1310-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 1310-
305 CLIP; ENG HARNESS
(E) L=100 		8-94443-021-1 01 1 1310-
305 CLIP; ENG HARNESS
(D) L=140 		8-97122-360-0 01 1 1310-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1310-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (K) ID=21 L=47.5 		8-94178-108-0 01 1 1310-
çizim 382282
14 530 48 16 538 503 1 178 1
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1310-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1310-
14 CLIP; BAND,HARNESS
L=250 		8-98216-430-0 14 1 1310-
16 CLIP; HARNESS
(G) ID=11 L=16 		0-95235-025-0 02 1 1310-
16 CLIP; HARNESS
(H) ID=11X2 L=16 		1-09700-734-0 01 1 1310-
16 CLIP; HARNESS
(E) L=350 		1-09707-183-0 01 1 1310-
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 1310-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1310-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1310-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1310-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1310-
48 CLIP; FRAME HARNESS
L=250 		5-09707-030-1 01 1 1310-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1310-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1310-
503 CONNECTOR 1-82690-668-0 01 1 1310-
503 CONNECTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-82690-668-0 01 1 1310-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1310-
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP> 180X40 		1-72498-019-1 01 1 1310-
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1310-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1310-
