8-10 — WIRING HARNESS AND FUSE (#129357) — 155 parça

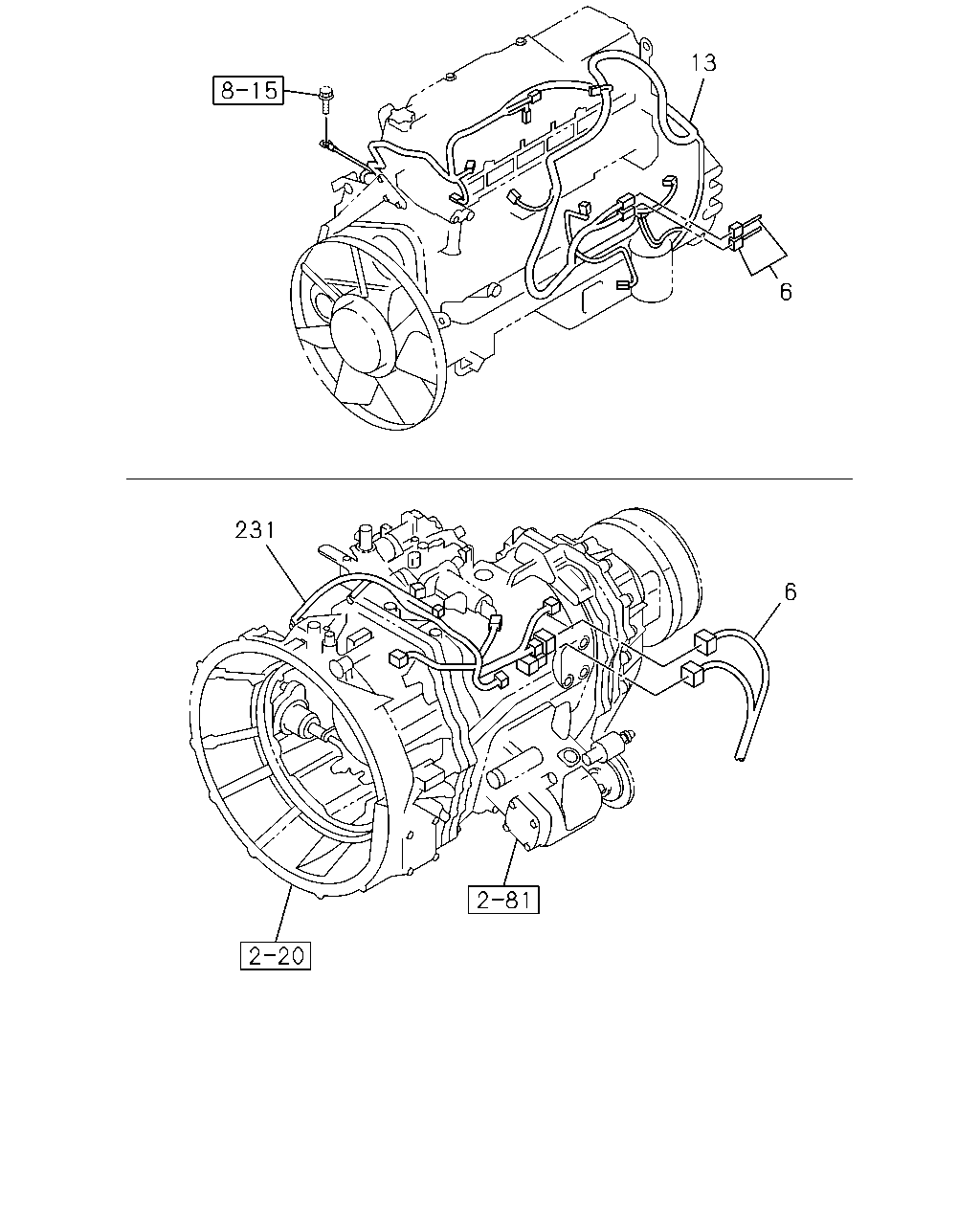

çizim 380831
13 6 231 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-888-2 01 1 1310-
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-890-2 01 1 1310-
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98242-595-0 01 1 1310-
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98242-596-0 01 1 1310-
231 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98234-229-1 01 1 1310-
231 HARNESS; TRANS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-722-0 01 1 1310-

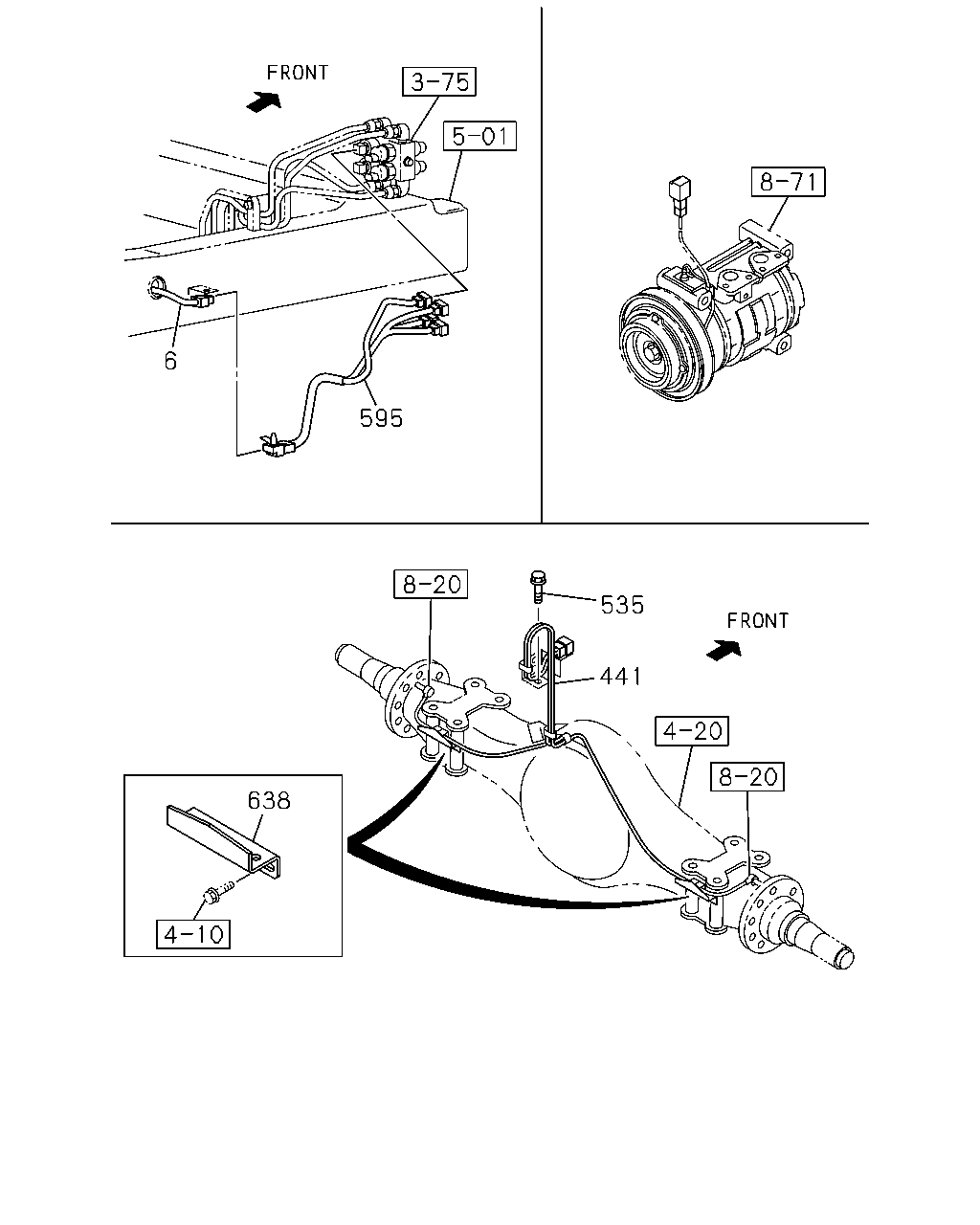

çizim 380893
6 595 535 441 638
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-888-2 01 1 1310-
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-890-2 01 1 1310-
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 1310-
535 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 1310-
535 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 1310-
535 BOLT; BRKT FIX
M8X10 W/LK WASHER 		8-98029-928-0 02 1 1310-
595 HARNESS; WARNING,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97621-005-3 01 1 1310-
595 HARNESS; WARNING,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97621-003-3 01 1 1310-
638 BRACKET; SPD SENSOR 8-98012-580-1 02 1 1310-

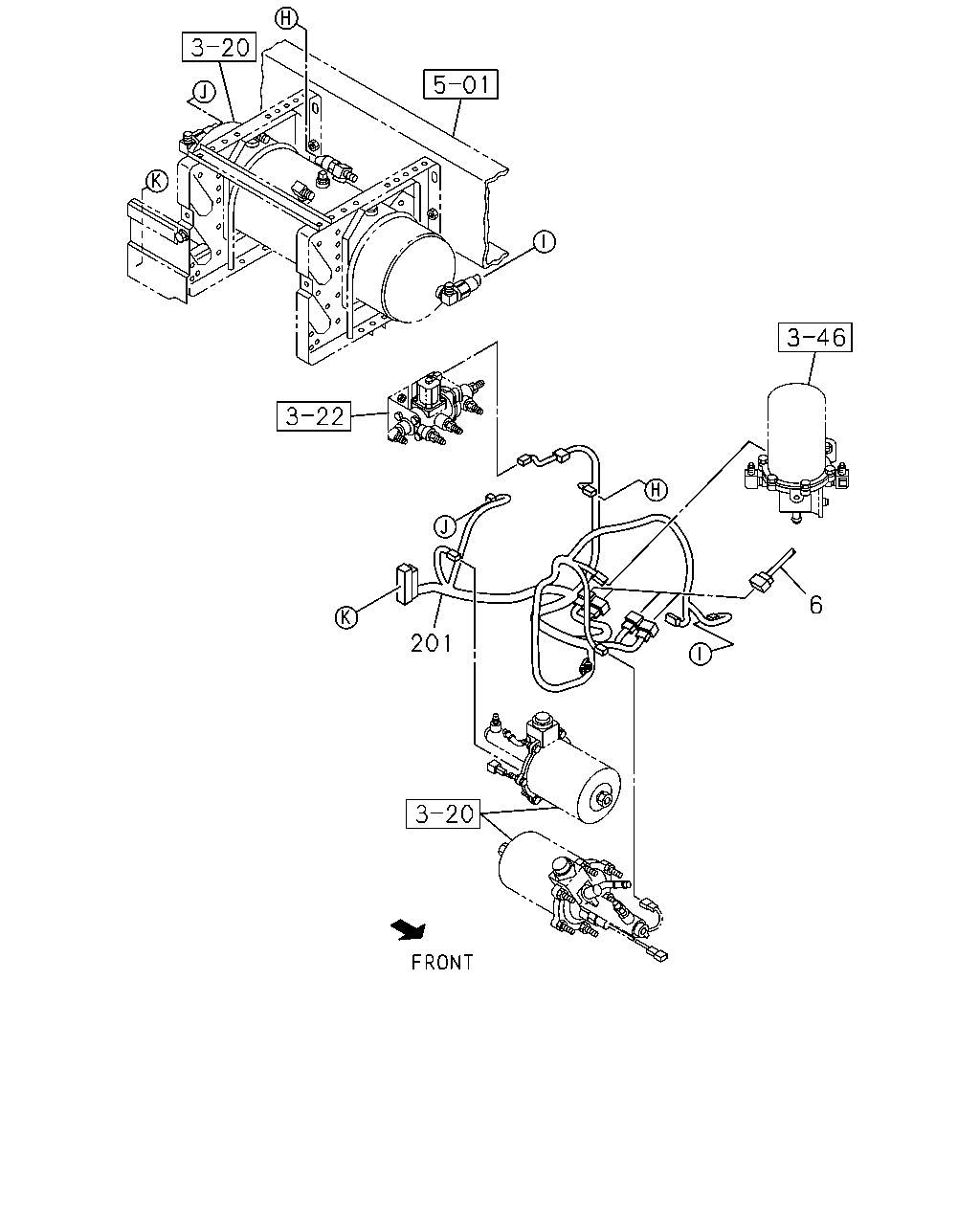

çizim 380917
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-888-2 01 1 1310-
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-890-2 01 1 1310-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1310-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1310-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98156-709-2 01 1 1310-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-707-2 01 1 1310-
çizim 381367
339 663
BalonParca AdiParca NoAdetTipApplied Date
339 HARNESS; EXT,FUEL
WHEEL BASE 4300MM(43W) 		8-98239-526-1 01 1 1310-
339 HARNESS; EXT,FUEL
WHEEL BASE 4800MM(48W) 		8-98124-758-0 01 1 1310-
663 HARNESS; EXTENSION,RR WHEEL PARKING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98126-779-2 01 1 1310-

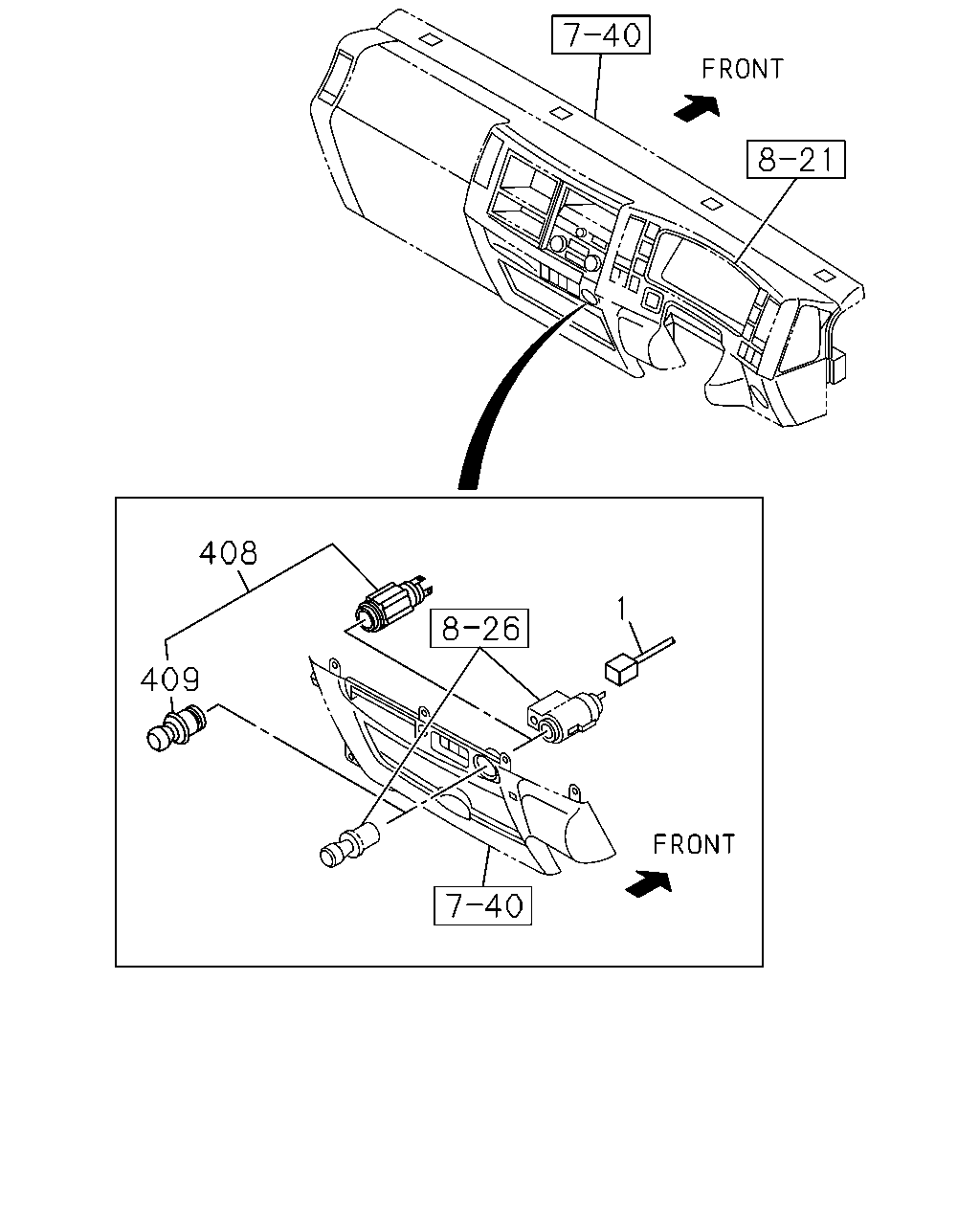

çizim 381620
1 408 409
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-531-0 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98233-533-0 01 1 1310-
1 HARNESS; CAB
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98233-530-0 01 1 1310-
1 HARNESS; CAB
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3) 		8-98233-532-0 01 1 1310-
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1310-
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1310-

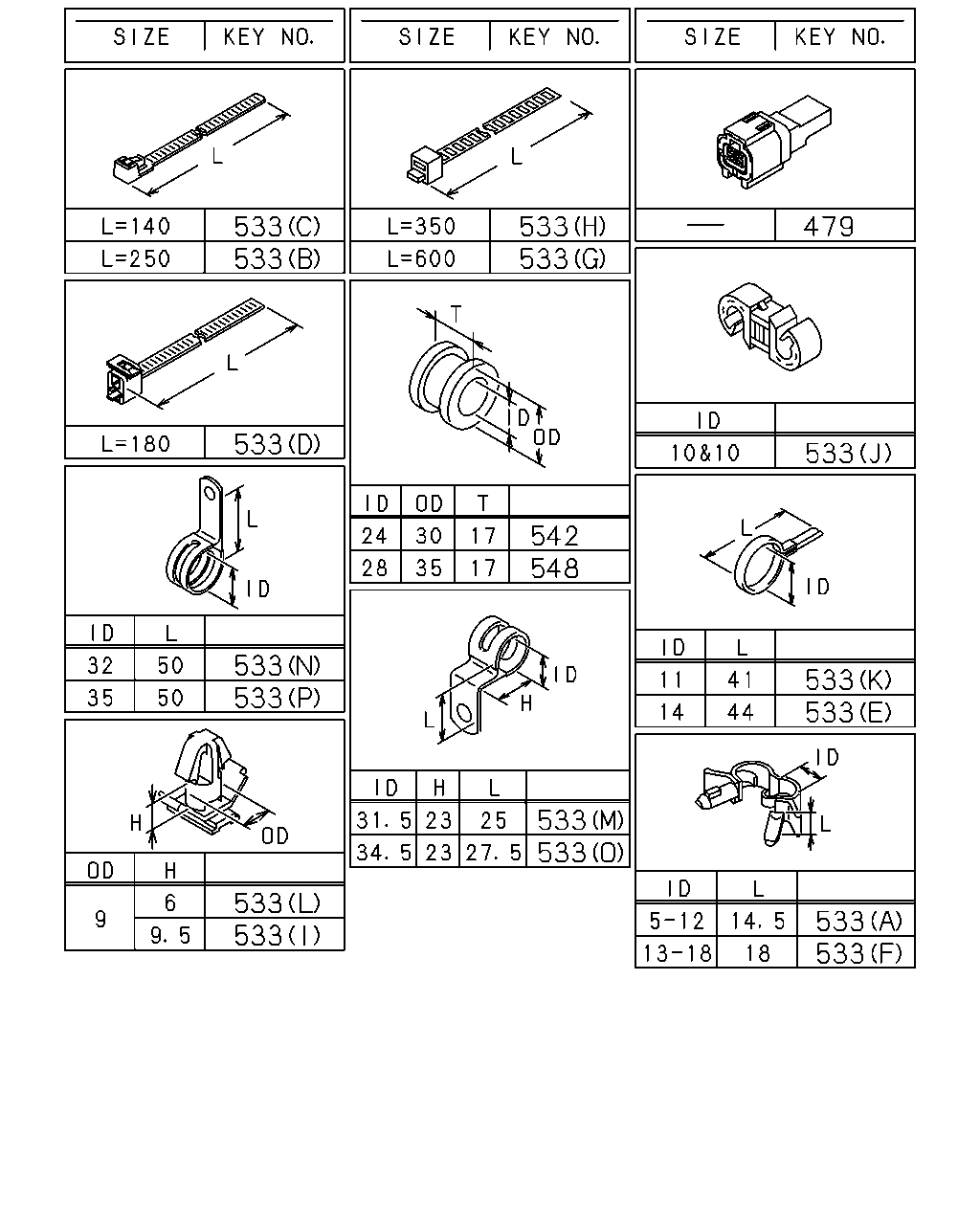

çizim 381881
533 533 533 533 533 533 533 533 542 533 548 533 533 479 533 533 533 533 533
BalonParca AdiParca NoAdetTipApplied Date
479 CAP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82691-191-0 01 1 1310-
533 CLIP
(G) L=600 		1-09707-107-1 01 1 1310-
533 CLIP
(D) L=180 		1-09707-162-1 01 1 1310-
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (D) L=180 		1-09707-162-1 01 1 1310-
533 CLIP
(H) L=350 		1-09707-183-0 01 1 1310-
533 CLIP
(H) L=350 		1-09707-183-0 01 1 1310-
533 CLIP
(I) OD=9 H=9.5 		1-09709-179-0 01 1 1310-
533 CLIP
(J) ID=10 & 10 		1-09709-277-1 04 1 1310-
533 CLIP
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1310-
533 CLIP
(B) L=250 		5-09707-030-1 02 1 1310-
533 CLIP
(B) L=250 		5-09707-030-1 03 1 1310-
533 CLIP
(B) L=250 		5-09707-030-1 04 1 1310-
533 CLIP
(C) L=140 		5-09707-031-1 02 1 1310-
533 CLIP
(K) ID=11 L=41 		1-09700-403-0 01 1 1310-
533 CLIP
(E) ID=14 L=44 		9-09917-427-0 02 1 1310-
533 CLIP
EXC. H.S.A SYSTEM<6EP> (L) OD=9 H=6 		1-09709-178-0 01 1 1310-
533 CLIP
(L) OD=9 H=6 		1-09709-178-0 01 1 1310-
533 CLIP
(L) OD=9 H=6 		1-09709-178-0 01 1 1310-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1310-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50 		1-09701-055-1 01 1 1310-
533 CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1310-
533 CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=35 L=50 		1-09701-214-0 01 1 1310-
533 CLIP
WHEEL BASE 4300MM(43W) (E) ID=14 L=44 		9-09917-427-0 13 1 1310-
533 CLIP
WHEEL BASE 4800MM(48W) (F) ID=13-18 L=18 		1-09709-291-0 01 1 1310-
533 CLIP
WHEEL BASE 4800MM(48W) (E) ID=14 L=44 		9-09917-427-0 15 1 1310-
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 01 1 1310-
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 01 1 1310-
548 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1310-

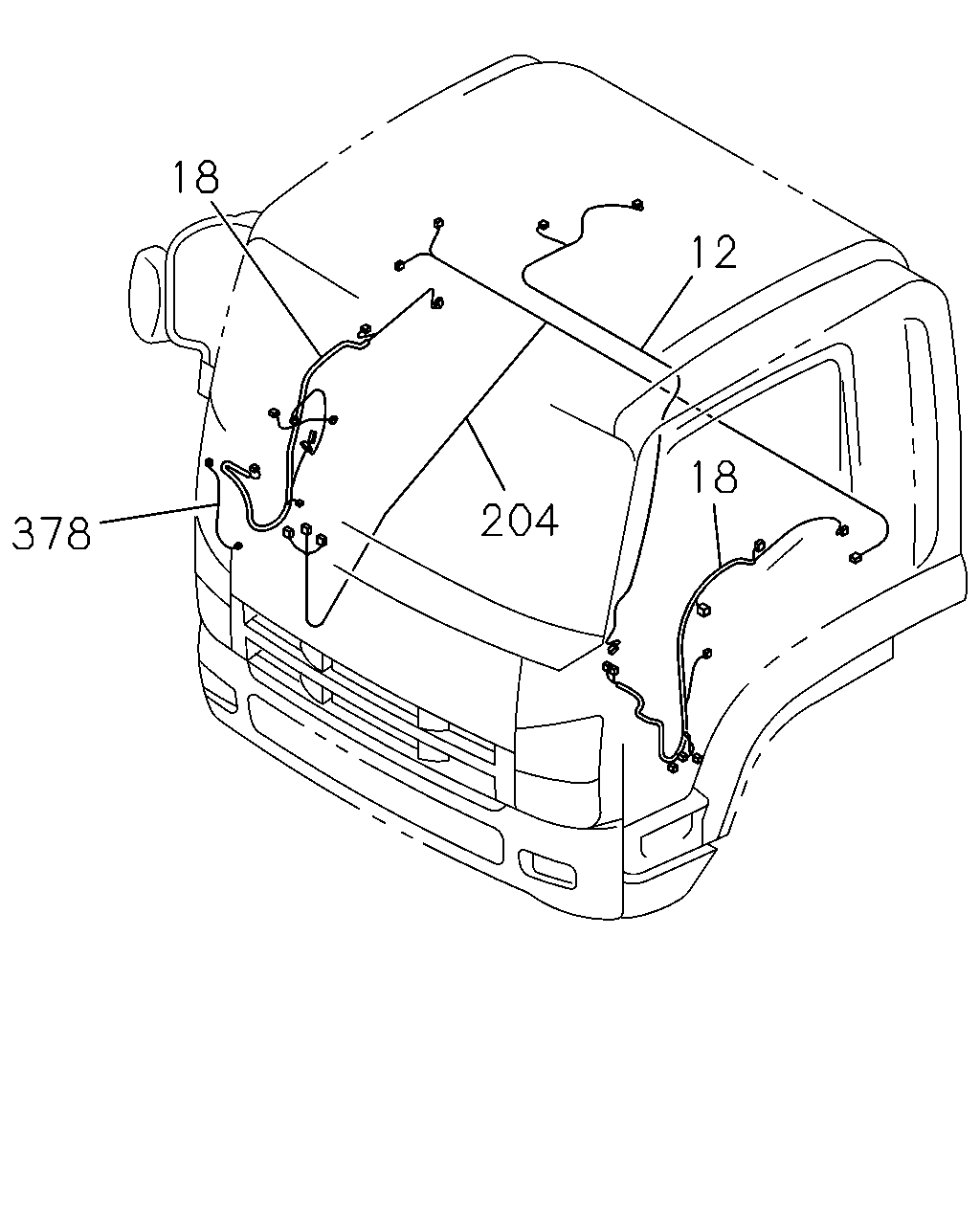

çizim 381912
18 378 204 18 12
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98048-930-2 01 1 1310-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98041-948-2 01 1 1310-
18 HARNESS; DOOR 8-98108-440-1 01 1 1310-
18 HARNESS; DOOR 8-98108-439-1 01 1 1310-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-208-1 01 1 1310-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-194-0 01 1 1310-
204 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER(AJ3),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-188-0 01 1 1310-
204 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3) 		8-98084-204-0 01 1 1310-
378 HARNESS; EXT,MIRROR 8-98022-717-1 01 1 1310-
çizim 381954
290 293 525 290 267 267 534 639 267 267
BalonParca AdiParca NoAdetTipApplied Date
267 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1310-
267 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1310-
267 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 1310-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1310-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 1310-
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 1310-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1310-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1310-
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1310-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1310-
639 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1310-

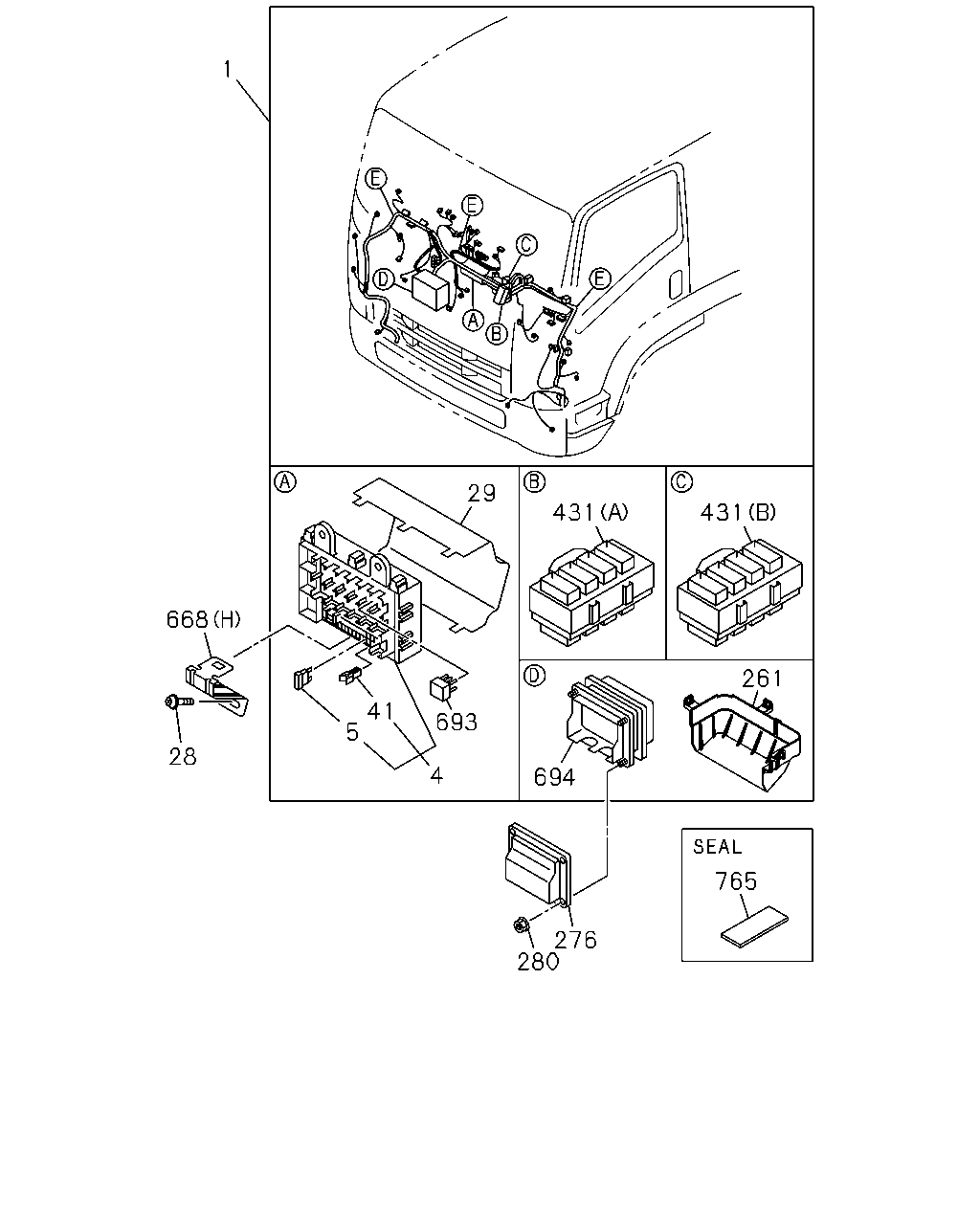

çizim 382028
1 28 668 29 693 4 41 5 431 694 280 431 261 765 276
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-531-0 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98233-533-0 01 1 1310-
1 HARNESS; CAB
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98233-530-0 01 1 1310-
1 HARNESS; CAB
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3) 		8-98233-532-0 01 1 1310-
4 BOX ASM; FUSE,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98065-666-0 01 1 1310-
5 FUSE; FACIA HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 10A RED 		8-98054-257-0 AR 1 1310-
5 FUSE; FACIA HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 15A BLUE 		8-98054-258-0 AR 1 1310-
5 FUSE; FACIA HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 20A YELLOW 		8-98054-259-0 AR 1 1310-
5 FUSE; FACIA HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 25A WHITE 		8-98062-982-0 AR 1 1310-
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1310-
29 COVER; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98056-968-0 01 1 1310-
41 PULLER; FUSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98054-260-0 01 1 1310-
261 COVER; CONNECTOR BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98065-986-1 01 1 1310-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1310-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1310-
431 CONNECTOR; JOINT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) WHITE 		8-98056-374-0 01 1 1310-
431 CONNECTOR; JOINT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) WHITE 		8-98056-375-0 01 1 1310-
668 BRACKET; HARNESS
(F) 		8-97622-828-0 01 1 1310-
668 BRACKET; HARNESS
(A) L=55 		1-47475-304-0 01 1 1310-
668 BRACKET; HARNESS
(G) L=170 		1-47479-380-0 01 1 1310-
668 BRACKET; HARNESS
(B) 		8-97619-097-1 01 1 1310-
668 BRACKET; HARNESS
(C) 		8-97619-533-0 01 1 1310-
668 BRACKET; HARNESS
(E) 		8-98090-952-0 01 1 1310-
668 BRACKET; HARNESS
(D) 		8-97616-305-0 01 1 1310-1502
668 BRACKET; HARNESS
(I) 		8-98254-592-0 01 1 1503-
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (H) 		8-98095-653-2 01 1 1310-
693 RELAY; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 10A PANASONIC 		8-97173-035-1 AR 1 1310-
694 BOX ASM; CONNECTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98057-771-0 01 1 1310-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

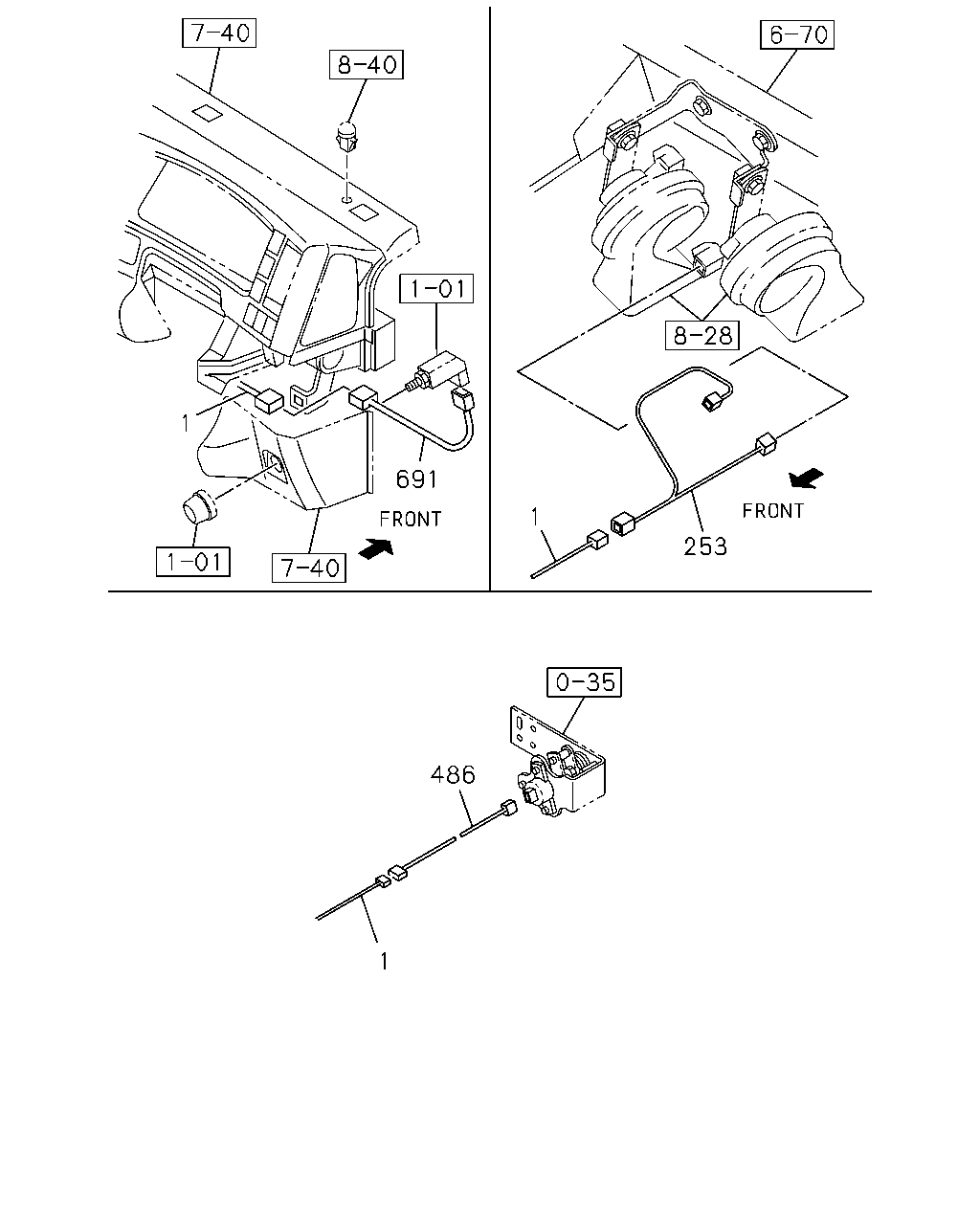

çizim 382033
486 1 253 1 1 691
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-531-0 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98233-533-0 01 1 1310-
1 HARNESS; CAB
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98233-530-0 01 1 1310-
1 HARNESS; CAB
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3) 		8-98233-532-0 01 1 1310-
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 1310-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1310-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1310-
çizim 382035
668 668 668 668 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date
668 BRACKET; HARNESS
(F) 		8-97622-828-0 01 1 1310-
668 BRACKET; HARNESS
(A) L=55 		1-47475-304-0 01 1 1310-
668 BRACKET; HARNESS
(G) L=170 		1-47479-380-0 01 1 1310-
668 BRACKET; HARNESS
(B) 		8-97619-097-1 01 1 1310-
668 BRACKET; HARNESS
(C) 		8-97619-533-0 01 1 1310-
668 BRACKET; HARNESS
(E) 		8-98090-952-0 01 1 1310-
668 BRACKET; HARNESS
(D) 		8-97616-305-0 01 1 1310-1502
668 BRACKET; HARNESS
(I) 		8-98254-592-0 01 1 1503-
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (H) 		8-98095-653-2 01 1 1310-

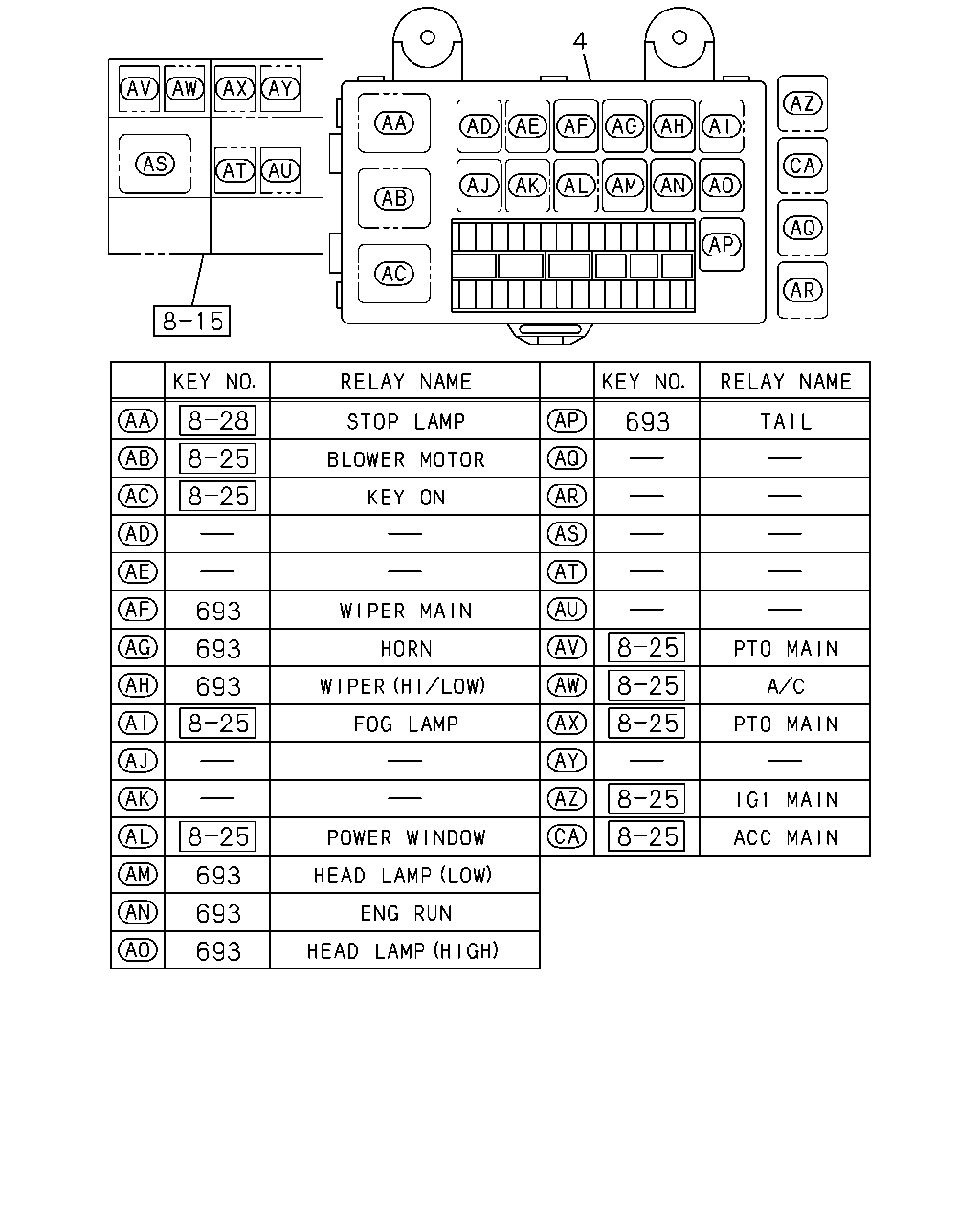

çizim 382071
4 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98065-666-0 01 1 1310-
693 RELAY; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 10A PANASONIC 		8-97173-035-1 AR 1 1310-
çizim 382176
1 2 2
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-531-0 01 1 1310-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98233-533-0 01 1 1310-
1 HARNESS; CAB
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3) 		8-98233-530-0 01 1 1310-
1 HARNESS; CAB
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3) 		8-98233-532-0 01 1 1310-
2 DIODE; CABLE HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) BLACK 10P 		1-82699-703-0 AR 1 1310-
2 DIODE; CABLE HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1310-

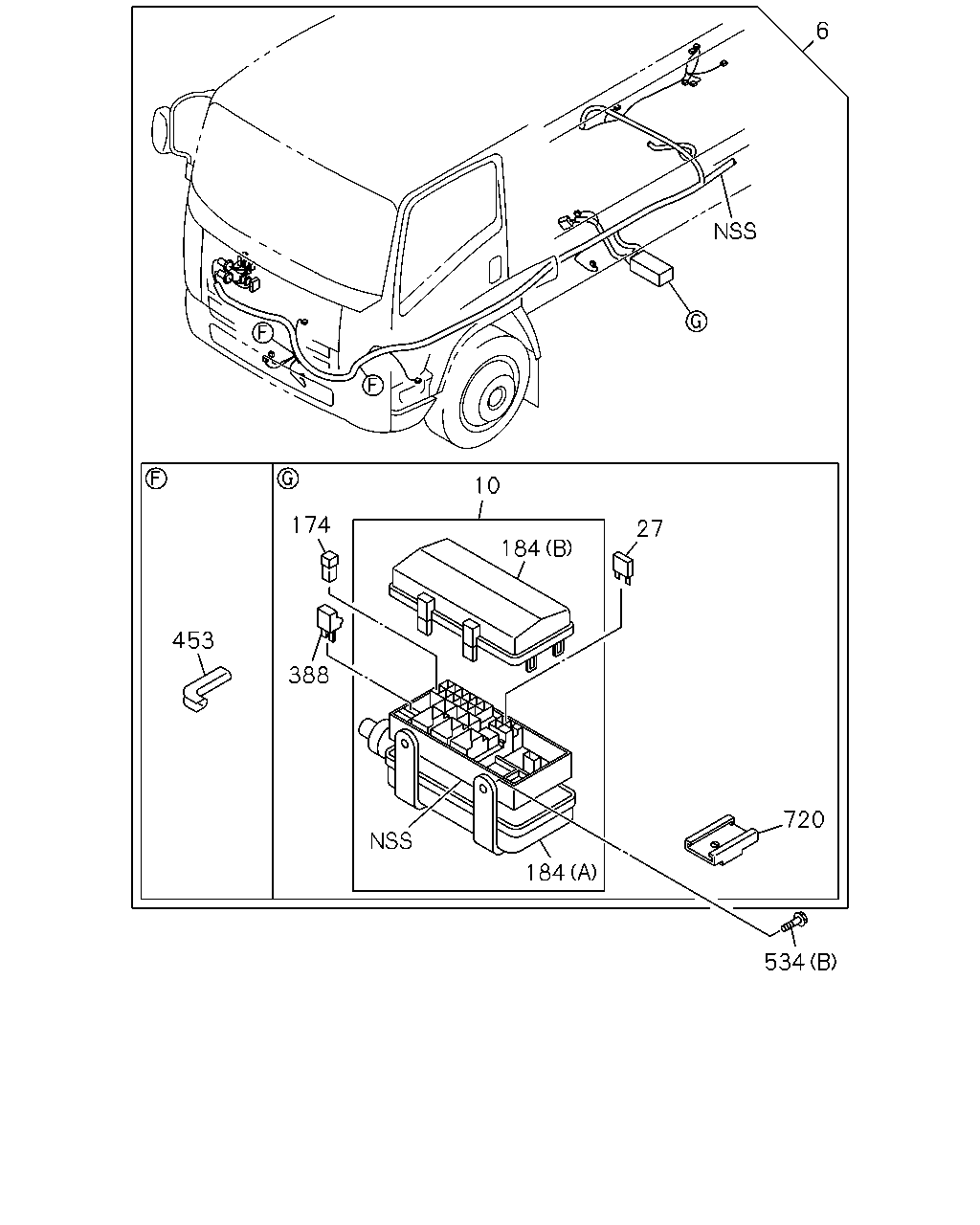

çizim 382241
6 27 720 534 184 184 10 388 174 453
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-888-2 01 1 1310-
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-890-2 01 1 1310-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1310-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1310-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1310-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1310-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1310-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 1310-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 1310-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1310-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1310-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1310-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 02 1 1310-
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 1310-
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1310-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1310-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1310-

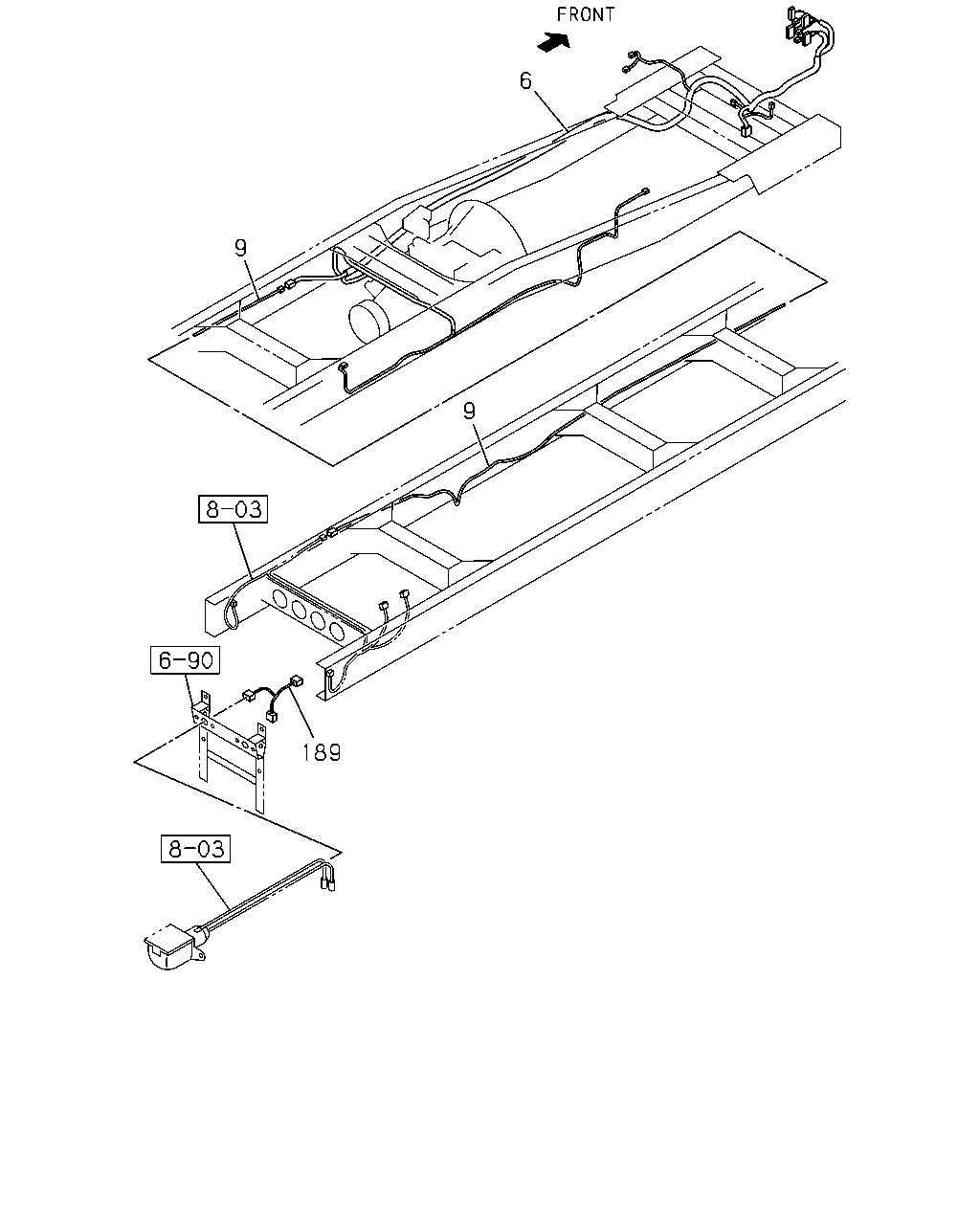

çizim 382341
9 6 9 189
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-888-2 01 1 1310-
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-890-2 01 1 1310-
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) 		8-98168-595-0 01 1 1310-
9 HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W) 		8-98168-583-0 01 1 1310-
189 HARNESS; EXT 8-98131-066-0 01 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
