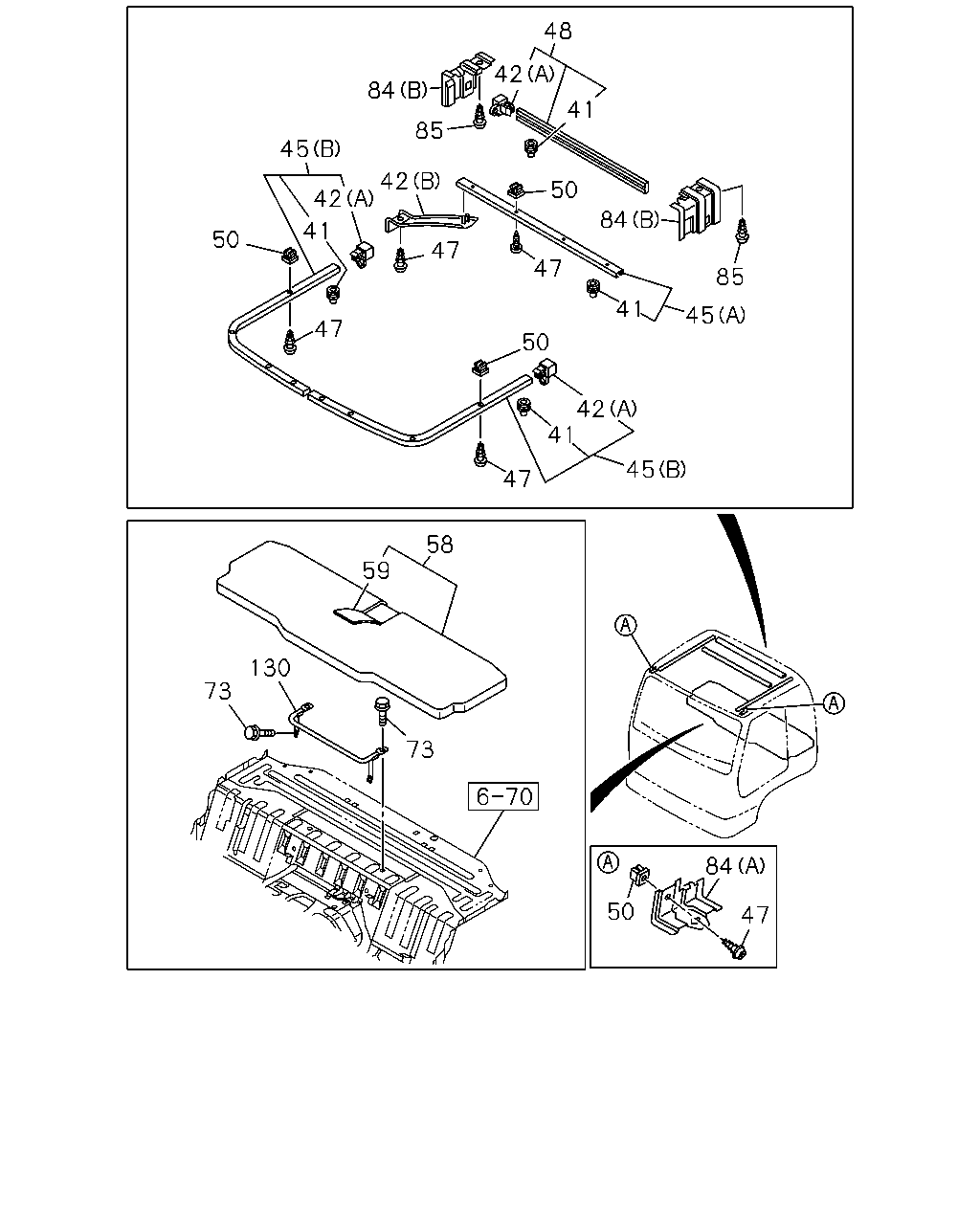

7-70 — SEPARATER AND BED (#129353) — 36 parça

73 130 73 59 58 47 41 42 50 41 47 50 42 84 45 85 45 42 85 45 50 84 48 41 47 47 41 42 84 50 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	12	1	1310-
41	HOOK; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> H=14.5 WHITE	1-73996-398-0	42	1	1310-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	1310-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	1310-
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	03	1	1310-
45	RAIL; CURTAIN,FRT (A) DARK GRAY	8-97407-487-1	01	1	1310-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) LIGHT GRAY	8-97415-678-0	01	1	1310-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) LIGHT GRAY	8-97415-677-0	01	1	1310-
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1310-
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	14	1	1310-
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-490-2	01	1	1310-
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1310-1405
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1310-1405
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	14	1	1310-1405
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	20	1	1406-
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-382-2	01	1	1310-
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-772-1	01	1	1310-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-045-1	01	1	1310-
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-106-0	01	1	1310-
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1310-
84	BRACKET; CURTAIN RAIL (A)	8-98028-326-1	02	1	1310-1405
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A)	8-98028-326-1	02	1	1406-
84	BRACKET; CURTAIN RAIL (B)	8-98042-152-0	04	1	1310-
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	04	1	1406-
85	SCREW; BRKT M5X20	5-09981-059-0	06	1	1310-1405
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	1406-
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1310-

44 44 51 51 92 92 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER BLUE	8-97407-946-1	01	1	1310-
44	CURTAIN ASM; CABIN CENTER BLUE	8-97407-945-1	01	1	1310-
51	CURTAIN; BACK BLUE	8-97407-759-1	01	1	1310-
51	CURTAIN; BACK BLUE	8-97407-758-1	01	1	1310-
64	CURTAIN KIT	8-97415-694-0	01	1	1310-
92	CURTAIN ASM; ROUND BLUE	8-97415-700-0	01	1	1310-
92	CURTAIN ASM; ROUND BLUE	8-97415-696-0	01	1	1310-
