7-20 — MIRROR AND MIRROR STAY (#129345) — 134 parça

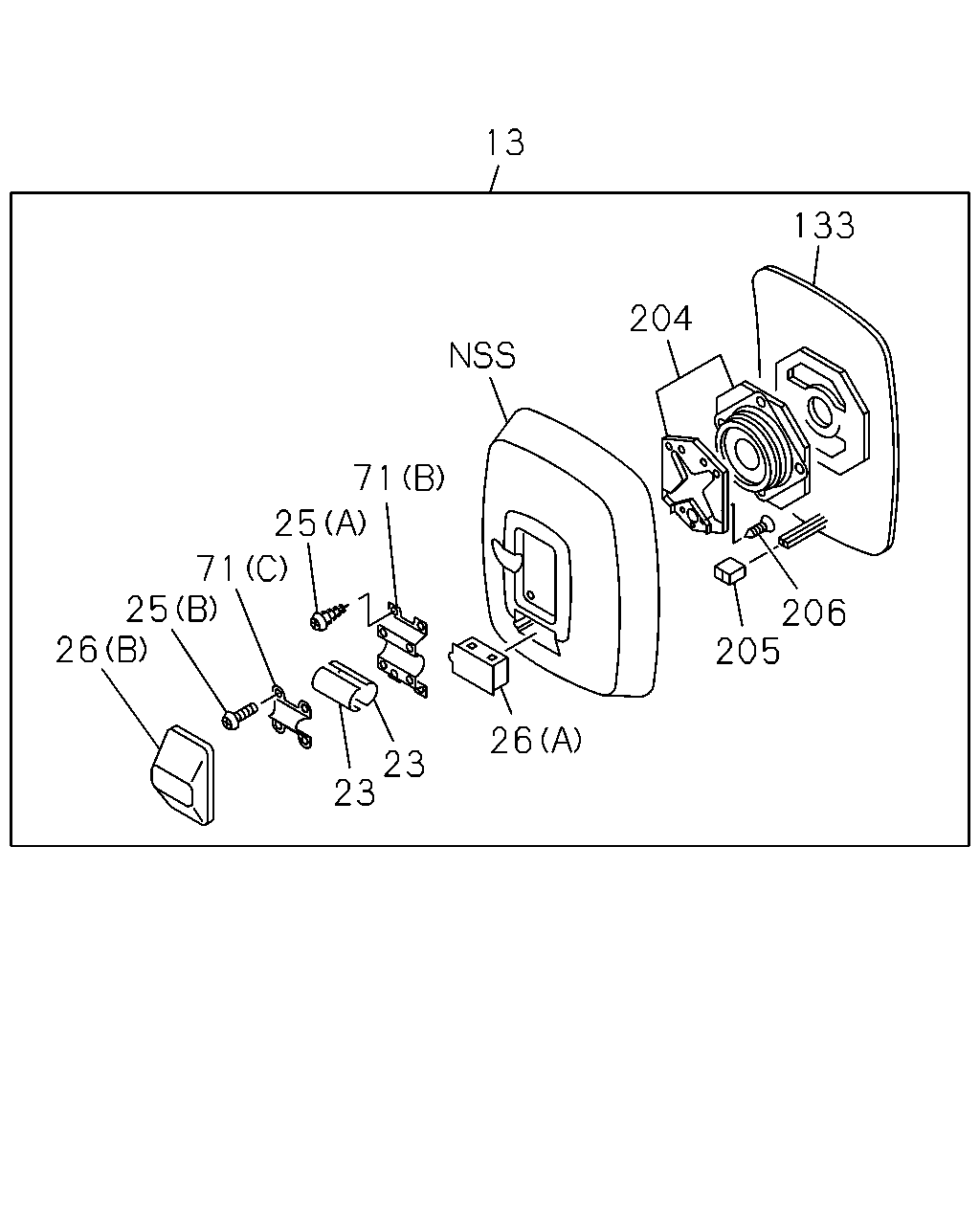

çizim 379631
13 133 204 71 25 71 25 26 23 23 26 205 206
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-101-2 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-100-2 01 1 1310-
23 WASHER; OUTSIDE MIRROR 1-71797-883-0 04 1 1310-
25 SCREW; OUTSIDE MIRROR
(A) M5X14 		1-71797-881-0 08 1 1310-
25 SCREW; OUTSIDE MIRROR
(B) M6X10 		1-71797-882-0 08 1 1310-
26 COVER; OUTSIDE MIRROR
(B) 		1-71797-879-0 02 1 1310-
26 COVER; OUTSIDE MIRROR
(A) 		1-71797-880-0 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-877-0 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71797-878-0 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98040-022-1 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98040-021-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98040-543-1 01 1 1310-
133 LENS; MIRROR,OUTSIDE 1-71797-953-0 01 1 1310-
133 LENS; MIRROR,OUTSIDE 1-71797-952-1 01 1 1310-
204 MOTOR KIT; MIRROR 1-71707-144-0 02 1 1310-
205 CONNECTOR KIT; MIRROR 1-71797-955-0 02 1 1310-
206 SCREW; MOTOR,MIRROR 8-98134-316-0 04 1 1310-

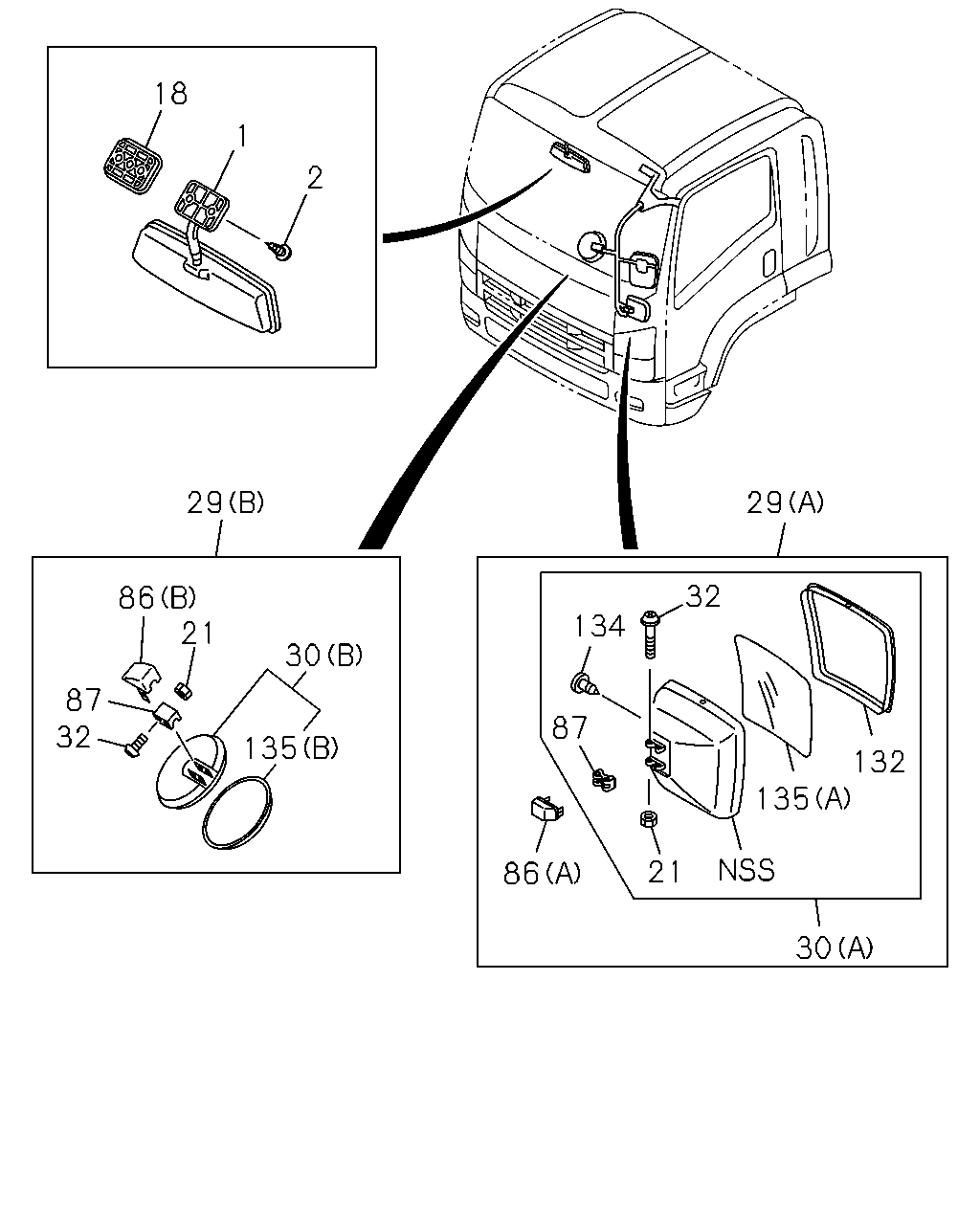

çizim 379639
18 1 2 29 86 87 32 21 30 135 29 32 134 87 86 21 135 132 30
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1310-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1310-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1310-
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 1310-
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 1310-
29 MIRROR ASM; UNDER
(B) 		1-71798-421-1 01 1 1310-
29 MIRROR ASM; UNDER
(A) 		1-71798-422-0 01 1 1310-
30 MIRROR; UNDER
(B) 		1-71798-591-1 01 1 1310-
30 MIRROR; UNDER
(A) 		1-71798-592-1 01 1 1310-
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 1310-
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(B) BLACK 		1-71737-649-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(A) BLACK 		1-71737-652-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98040-545-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(D) 		8-98040-546-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(E) 		8-98040-542-2 01 1 1310-
87 SPACER 1-71737-646-2 01 1 1310-
87 SPACER 1-71737-646-2 01 1 1310-
132 RING; MIRROR 1-71737-935-0 01 1 1310-
134 CLIP; MIRROR LENS 1-71737-936-0 01 1 1310-
135 LENS; MIRROR,SIDE UNDER
(A) 		1-71737-929-0 01 1 1310-
135 LENS; MIRROR,SIDE UNDER
(B) 		1-71798-838-0 01 1 1310-

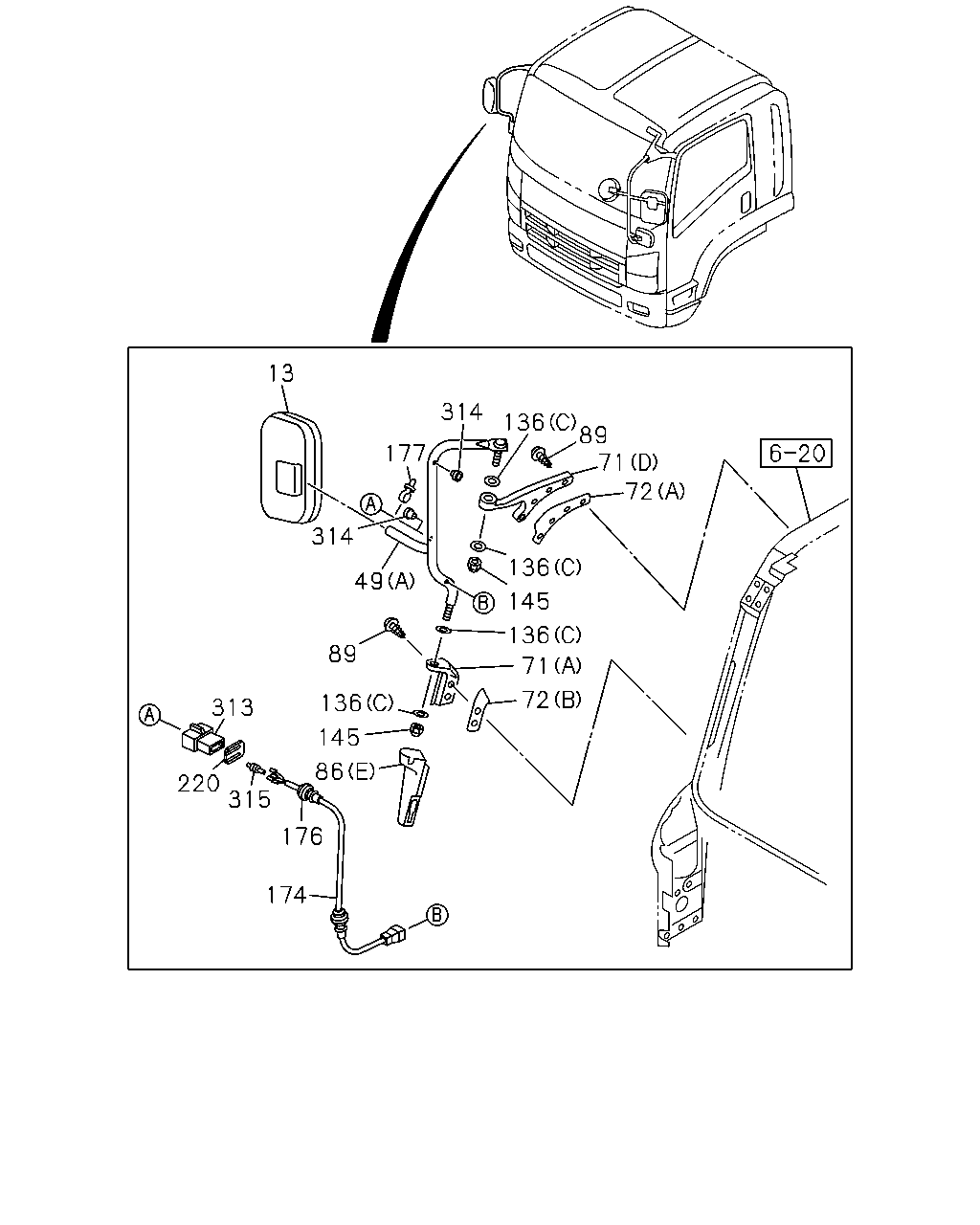

çizim 379664
13 314 49 89 136 145 86 176 174 315 220 313 71 72 136 145 72 71 89 136 314 177 136
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-101-2 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-100-2 01 1 1310-
49 STAY; MIRROR SIDE
(B) 		8-98083-831-1 01 1 1310-1402
49 STAY; MIRROR SIDE
(B) 		8-98257-753-0 01 1 1403-
49 STAY; MIRROR SIDE
(A) 		8-98091-456-0 01 1 1310-1502
49 STAY; MIRROR SIDE
(A) 		8-98305-584-0 01 1 1503-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-877-0 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71797-878-0 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98040-022-1 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98040-021-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98040-543-1 01 1 1310-
72 SHEET
(C) 		8-98040-535-0 01 1 1310-
72 SHEET
(D) 		8-98040-537-1 01 1 1310-
72 SHEET
(A) 		8-98040-351-0 01 1 1310-
72 SHEET
(B) 		8-98040-353-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(B) BLACK 		1-71737-649-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(A) BLACK 		1-71737-652-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98040-545-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(D) 		8-98040-546-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(E) 		8-98040-542-2 01 1 1310-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 10 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
(A) ID=10 		1-09985-180-0 01 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1310-
145 NUT; CAP,SUB STAY
M10 CAP NUT 		1-09984-134-0 03 1 1310-
174 HARNESS; MIRROR 8-98047-367-0 01 1 1310-1402
174 HARNESS; MIRROR 8-98258-260-0 01 1 1403-
174 HARNESS; MIRROR 8-98047-368-2 01 1 1310-
176 GROMMET; HARNESS 1-82699-906-0 01 1 1310-
176 GROMMET; HARNESS 1-82699-906-0 01 1 1310-
177 CLIP; HARNESS
L=140 		5-09707-031-1 01 1 1310-
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1310-
220 HOLDER; CONNECTOR 8-94447-536-0 01 1 1310-
220 HOLDER; CONNECTOR 8-94447-536-0 01 1 1310-
313 CONNECTOR; MIRROR 8-94447-532-0 01 1 1310-
313 CONNECTOR; MIRROR 8-94447-532-0 01 1 1310-
314 BUFFER; STOPPER 8-94314-317-0 01 1 1310-
315 RUBBER ASM; CONNECTOR 1-82691-026-0 01 1 1310-
315 RUBBER ASM; CONNECTOR 1-82691-026-0 01 1 1310-

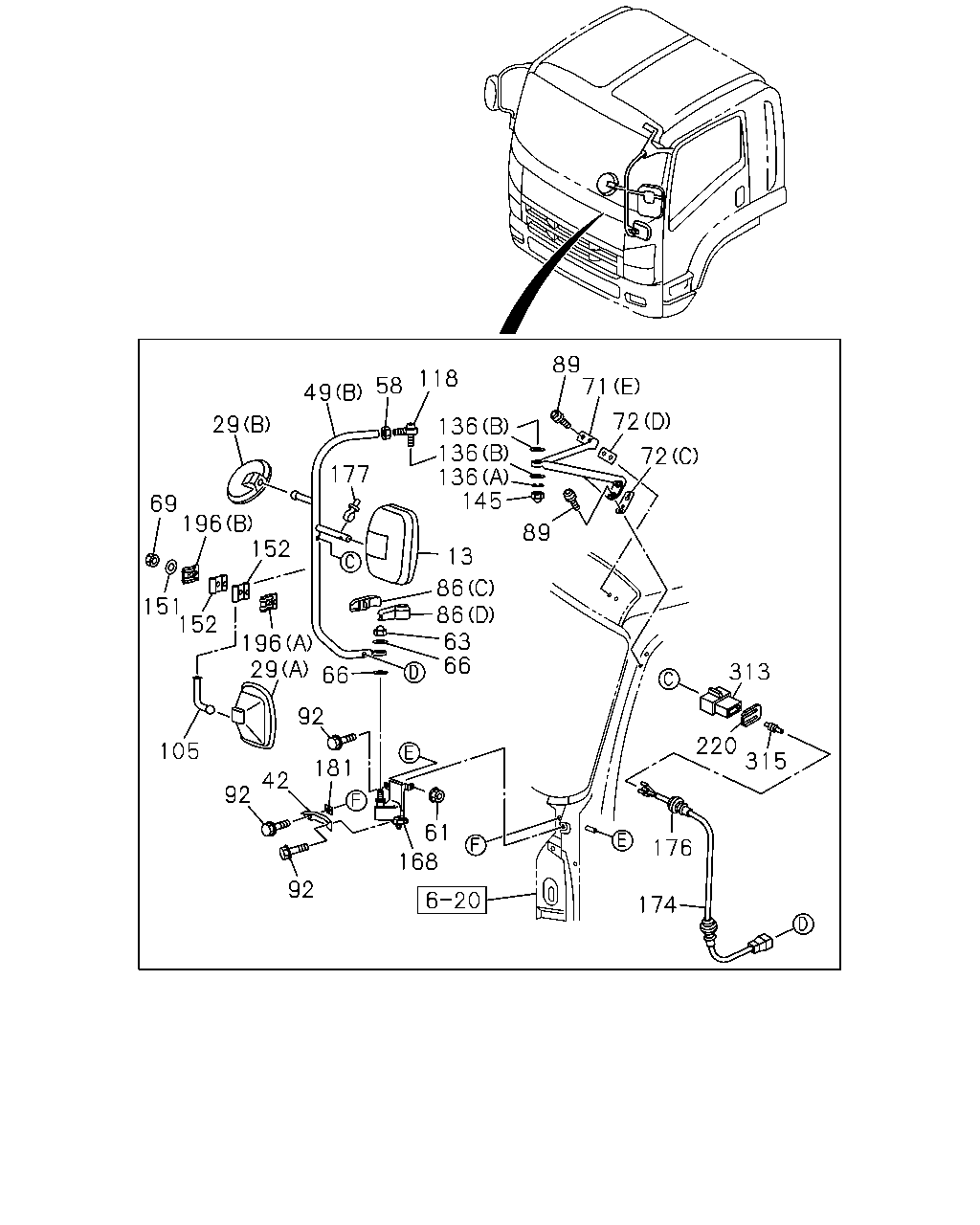

çizim 381380
89 71 72 72 313 220 315 176 174 118 136 136 136 145 89 13 86 86 63 66 61 168 92 92 42 181 92 66 29 105 152 151 196 69 29 49 58 152 196 177
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-101-2 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-100-2 01 1 1310-
29 MIRROR ASM; UNDER
(B) 		1-71798-421-1 01 1 1310-
29 MIRROR ASM; UNDER
(A) 		1-71798-422-0 01 1 1310-
42 ATTACHMENT; OUTSIDE MIRROR 8-98070-643-0 01 1 1310-
49 STAY; MIRROR SIDE
(B) 		8-98083-831-1 01 1 1310-1402
49 STAY; MIRROR SIDE
(B) 		8-98257-753-0 01 1 1403-
49 STAY; MIRROR SIDE
(A) 		8-98091-456-0 01 1 1310-1502
49 STAY; MIRROR SIDE
(A) 		8-98305-584-0 01 1 1503-
58 NUT; MIRROR STAY
M12 		8-98061-883-0 01 1 1310-
61 NUT; STAY,OUTSIDE MIRROR
M8 FLANGE 		0-91180-108-0 01 1 1310-
63 NUT; STAY
M14 CAP NUT 		8-98041-311-1 01 1 1310-
66 WASHER; PL
ID=14.5 OD=30 		9-09851-946-0 02 1 1310-
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-877-0 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71797-878-0 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98040-022-1 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98040-021-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98040-543-1 01 1 1310-
72 SHEET
(C) 		8-98040-535-0 01 1 1310-
72 SHEET
(D) 		8-98040-537-1 01 1 1310-
72 SHEET
(A) 		8-98040-351-0 01 1 1310-
72 SHEET
(B) 		8-98040-353-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(B) BLACK 		1-71737-649-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(A) BLACK 		1-71737-652-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98040-545-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(D) 		8-98040-546-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(E) 		8-98040-542-2 01 1 1310-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 10 1 1310-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 04 1 1310-
105 STAY; SUB UNDER MIRROR 8-98041-571-2 01 1 1310-1402
105 STAY; SUB UNDER MIRROR 8-98257-761-0 01 1 1403-
118 JOINT ASM; BALL 1-71798-356-2 01 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
(A) ID=10 		1-09985-180-0 01 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1310-
145 NUT; CAP,SUB STAY
M10 CAP NUT 		1-09984-134-0 03 1 1310-
151 WASHER; PL,MIRROR
ID=10.5 T=2.0 		1-09985-183-0 01 1 1310-
152 SHEET; MIRROR STAY 1-71798-445-1 02 1 1310-
168 POWER UNIT; MIRROR STAY 8-97612-287-2 01 1 1310-
174 HARNESS; MIRROR 8-98047-367-0 01 1 1310-1402
174 HARNESS; MIRROR 8-98258-260-0 01 1 1403-
174 HARNESS; MIRROR 8-98047-368-2 01 1 1310-
176 GROMMET; HARNESS 1-82699-906-0 01 1 1310-
176 GROMMET; HARNESS 1-82699-906-0 01 1 1310-
177 CLIP; HARNESS
L=140 		5-09707-031-1 01 1 1310-
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1310-
181 SEAL; BRKT
25X25 		8-94272-533-0 01 1 1310-
196 HOLDER; STAY
(A) 		1-71798-442-2 01 1 1310-
196 HOLDER; STAY
(B) 		1-71798-444-2 01 1 1310-
220 HOLDER; CONNECTOR 8-94447-536-0 01 1 1310-
220 HOLDER; CONNECTOR 8-94447-536-0 01 1 1310-
313 CONNECTOR; MIRROR 8-94447-532-0 01 1 1310-
313 CONNECTOR; MIRROR 8-94447-532-0 01 1 1310-
315 RUBBER ASM; CONNECTOR 1-82691-026-0 01 1 1310-
315 RUBBER ASM; CONNECTOR 1-82691-026-0 01 1 1310-
