Isuzu WW
▶
TRUCKS
▶
FRR
▶
11552 - FRR RHD EURO5 EXC.SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

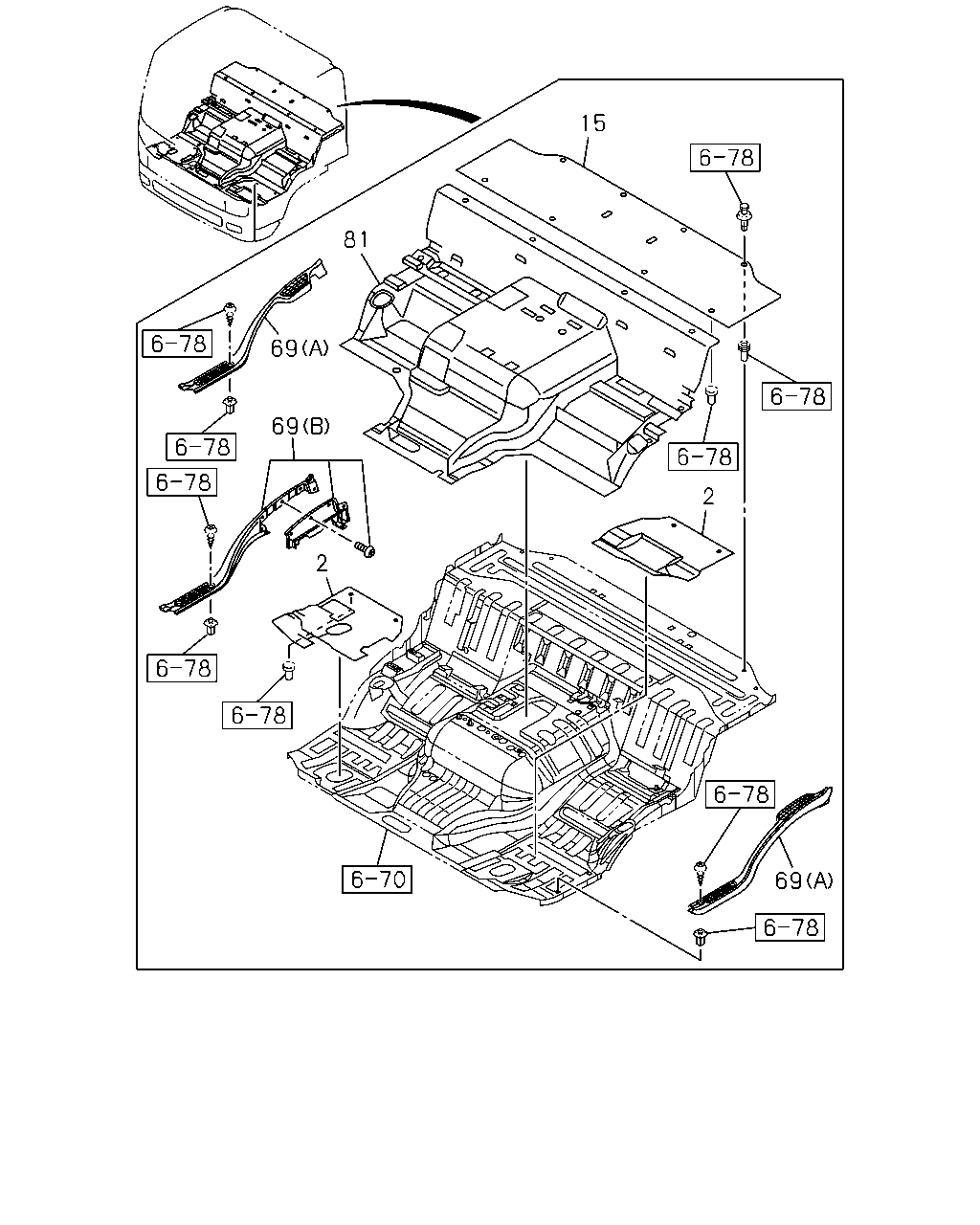

6-75 - MAT AND CARPET
▶
6-75 — MAT AND CARPET
(#129336) — 13 parça
15
81
69
69
69
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY
8-97407-745-2
01
1
1310-
2
MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY
8-97412-936-2
01
1
1310-
2
MAT; FLOOR
VINYL CARPET<B30> DARK GRAY
8-97418-948-0
01
1
1310-
2
MAT; FLOOR
VINYL CARPET<B30>
8-97421-857-0
01
1
1310-
15
MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY
8-97407-403-1
01
1
1310-
15
MAT; FLOOR REAR
VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97418-950-0
01
1
1310-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY
8-97412-927-0
01
1
1310-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY
8-97412-928-1
01
1
1310-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY
8-97412-926-0
01
1
1310-
81
MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY
8-97407-405-3
01
1
1310-
81
MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY
8-97407-407-3
01
1
1310-
81
MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) VINYL CARPET<B30> DARK GRAY
8-97418-937-0
01
1
1310-
81
MAT; FLOOR,CENTER
VINYL CARPET<B30> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DARK GRAY
8-97418-936-0
01
1
1310-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
