6-70 — FLOOR PANEL (#129335) — 61 parça

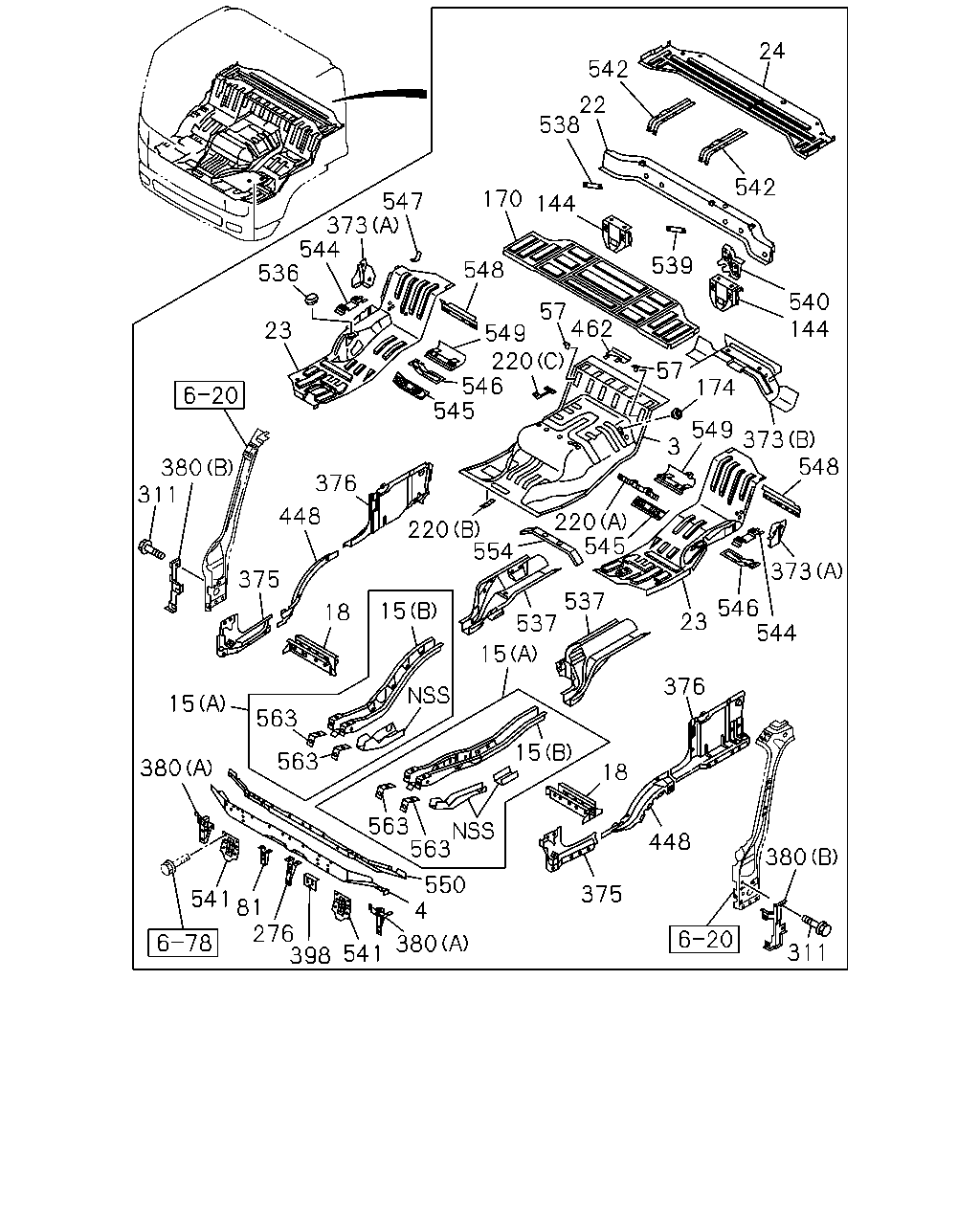

çizim 381270
542 24 542 540 174 144 539 22 538 144 170 548 549 462 57 220 57 3 549 373 373 544 546 23 376 18 546 220 545 537 537 15 15 375 448 380 311 548 547 373 544 536 23 376 448 220 554 15 18 563 563 563 563 550 4 380 545 380 311 375 15 380 541 81 276 398 541
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98167-036-0 01 1 1310-
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-037-0 01 1 1310-
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1310-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1310-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1310-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1310-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1310-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1310-
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 1310-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1310-
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1310-
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1310-
24 PANEL; BED PAN 8-97584-377-6 01 1 1310-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1310-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1310-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1310-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1310-
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 1310-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1310-
220 PATCH
(A) 		8-97588-840-4 01 1 1310-
220 PATCH
(B) 		8-97589-603-3 01 1 1310-
220 PATCH
(C) 		8-97589-627-2 01 1 1310-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1310-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1310-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1310-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1310-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1310-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1310-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1310-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1310-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1310-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1310-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1310-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1310-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1310-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1310-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1310-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1310-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1310-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1310-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1310-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1310-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1310-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1310-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1310-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1310-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1310-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1310-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1310-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1310-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1310-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1310-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1310-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1310-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1310-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1310-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1310-
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1310-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1310-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1310-
