Isuzu WW
▶
TRUCKS
▶
FRR
▶
11552 - FRR RHD EURO5 EXC.SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

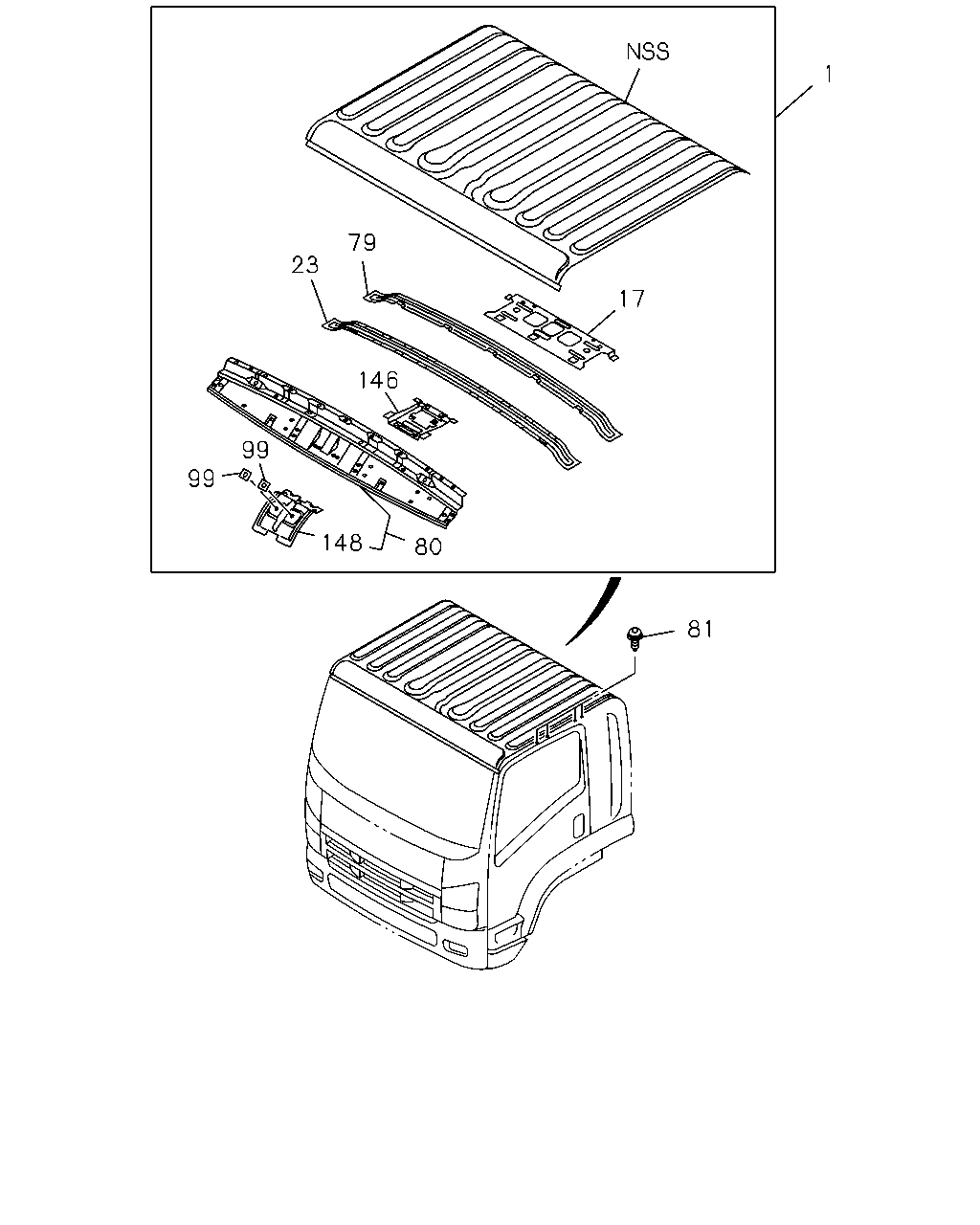

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#129333) — 10 parça
81
80
148
99
99
23
79
17
1
146
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
FLUORESCENT LAMP<6UC>
8-97584-170-7
01
1
1310-
1
PANEL; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-98152-801-1
01
1
1310-
17
REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC>
8-97584-203-5
01
1
1310-
23
REINFORCEMENT; ROOF PANEL,FRT
8-98019-310-0
01
1
1310-
79
REINFORCEMENT; ROOF PANEL,RR
8-97584-199-1
01
1
1310-
80
PANEL; HEADER,ROOF
8-97584-191-4
01
1
1310-
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1310-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
02
1
1310-
146
REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
1310-
148
REINFORCEMENT; MIRROR
8-97411-015-1
01
1
1310-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
