6-20 — SIDE PANEL AND STEP (#129326) — 66 parça

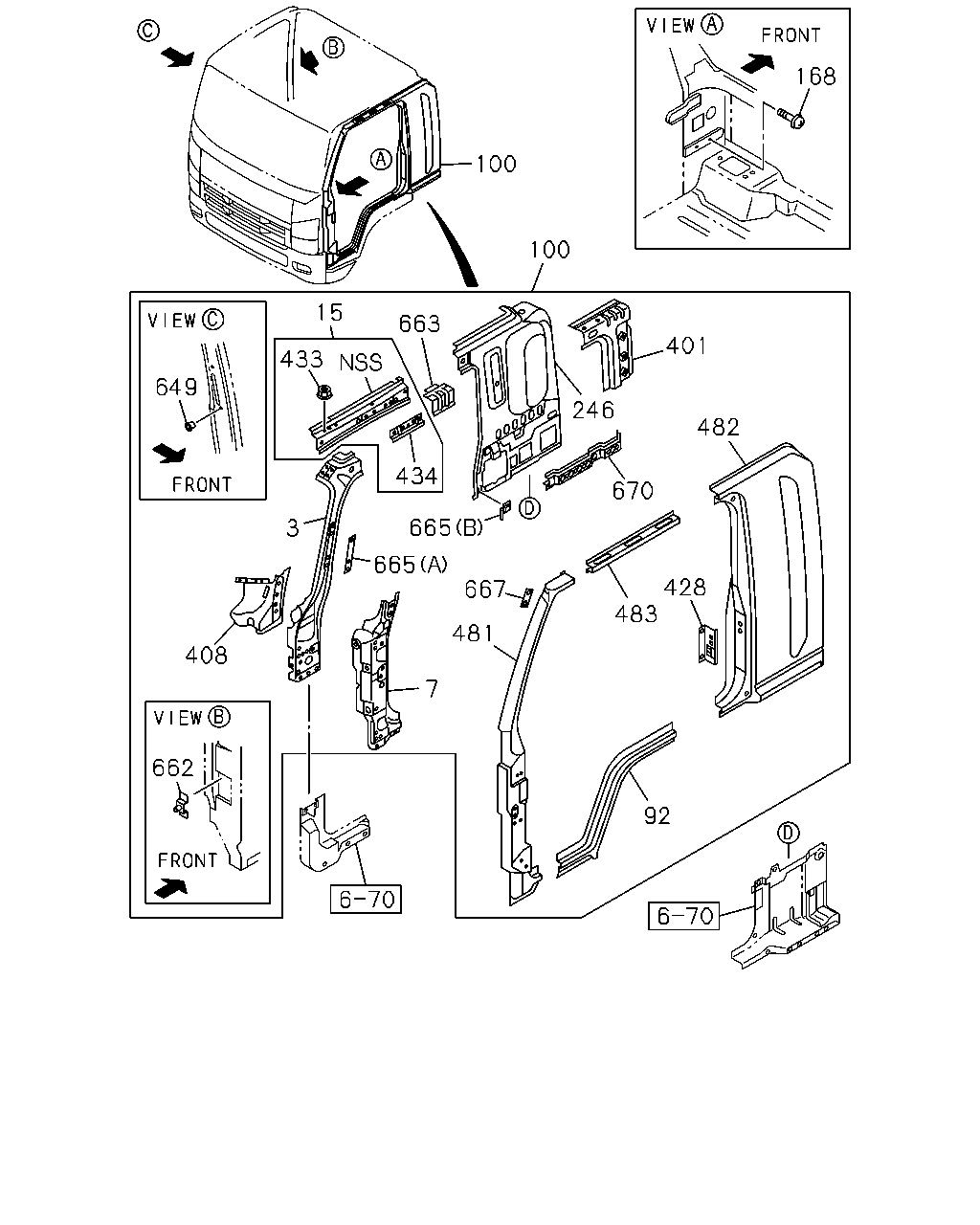

çizim 379947
401 100 100 168 482 428 670 483 92 481 667 665 665 3 7 408 662 434 663 246 15 433 649
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1310-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1310-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1310-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1310-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1310-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1310-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1310-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1310-
100 PANEL ASM; BODY SIDE 8-97586-073-9 01 1 1310-
100 PANEL ASM; BODY SIDE 8-97586-065-6 01 1 1310-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1310-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1310-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1310-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1310-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1310-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1310-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1310-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1310-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1310-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1310-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1310-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1310-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1310-
481 PANEL; SIDE FRT PILLAR 8-98055-453-0 01 1 1310-
481 PANEL; SIDE FRT PILLAR 8-98055-471-0 01 1 1310-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1310-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1310-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1310-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1310-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1310-
662 BRACKET; DUCT 8-97584-611-1 01 1 1310-
663 BRACKET; AIR 8-97585-208-2 01 1 1310-
663 BRACKET; AIR 8-97585-207-2 01 1 1310-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1310-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1310-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1310-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1310-
667 BRACKET; MIRROR 8-98109-948-0 01 1 1310-
667 BRACKET; MIRROR 8-98109-948-0 02 1 1310-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1310-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1310-

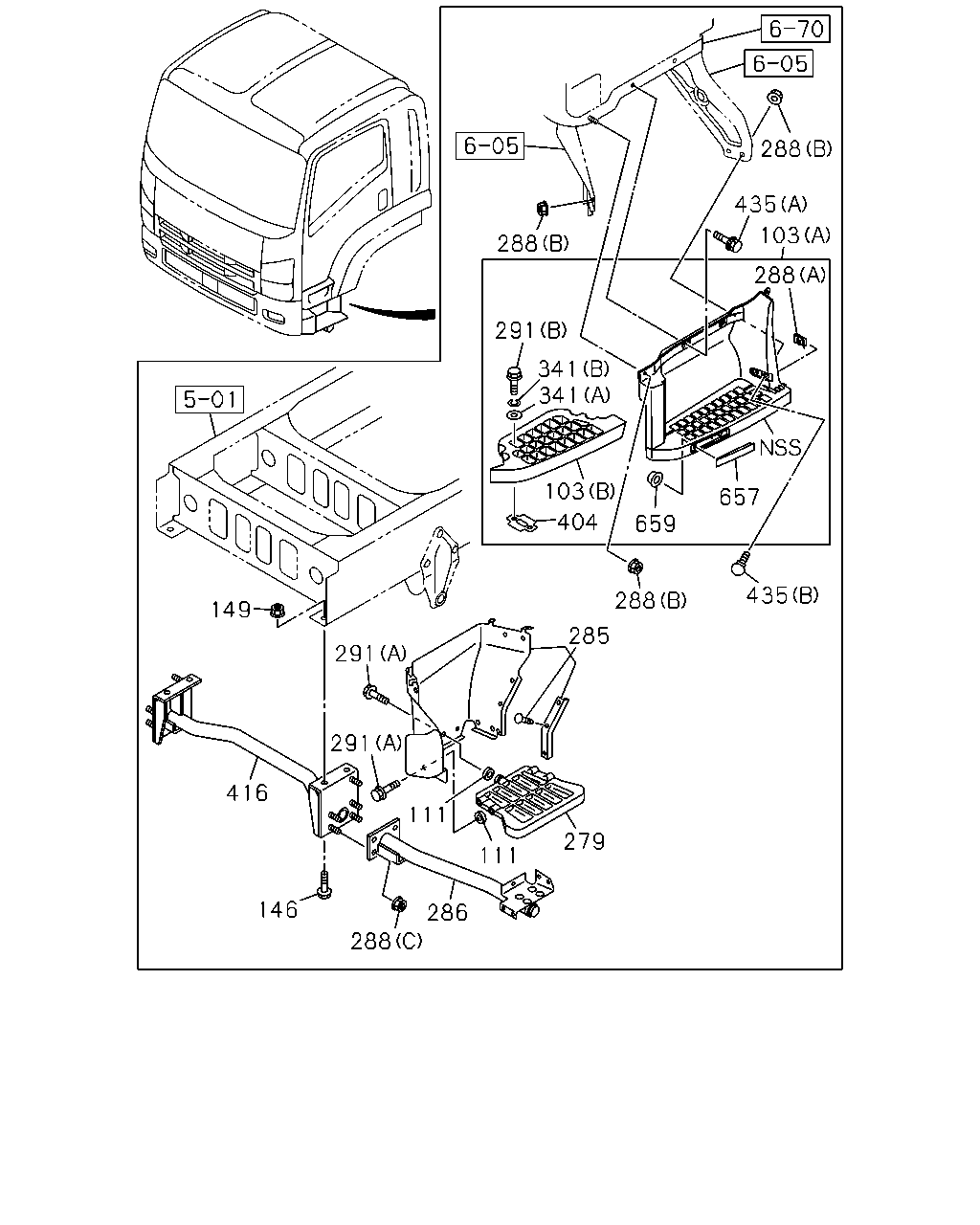

çizim 380188
288 288 435 288 657 659 103 288 341 341 291 285 279 291 291 149 416 146 288 103 435 286 404 111 111
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP
(A) 		8-98080-623-1 01 1 1310-
103 PLATE; STEP
(B) 		8-98080-628-0 01 1 1310-
103 PLATE; STEP
(A) 		8-98080-622-1 01 1 1310-
103 PLATE; STEP
(B) 		8-98080-627-0 01 1 1310-
111 COVER; 1ST STEP 1-71998-153-0 10 1 1310-
146 BOLT; STEP BRKT
M14X45 FLANGE 		0-28851-445-0 04 1 1310-
149 NUT; STEP BRKT
M14 FLANGE 		0-91180-214-0 04 1 1310-
279 BOARD; STEP 1ST 1-71998-312-2 02 1 1310-
285 PLATE; STEP,1ST STEP 8-98135-441-0 01 1 1310-
285 PLATE; STEP,1ST STEP 8-98135-440-0 01 1 1310-
286 STEP ASM; 1ST 8-98135-438-0 01 1 1310-
286 STEP ASM; 1ST 8-98135-437-0 01 1 1310-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1310-
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 08 1 1310-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1310-
291 BOLT; STEP PLATE
(A) M8X16 FLANGE 		0-28050-816-0 14 1 1310-
291 BOLT; STEP PLATE
(B) 		8-98165-009-0 08 1 1310-
341 WASHER; PL,STEP
(A) 		8-98112-672-1 08 1 1310-
341 WASHER; PL,STEP
(B) 		8-98112-673-1 08 1 1310-
404 BRACKET 8-98080-646-1 04 1 1310-
416 BRACKET; ASSIST STEP 8-98135-442-0 01 1 1310-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1310-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1310-
657 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1310-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1310-
