Isuzu WW
▶
TRUCKS
▶
FRR
▶
11552 - FRR RHD EURO5 EXC.SPACECAB
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#129316) — 37 parça
Tümü
A - WHEEL BASE 4300MM
B - WHEEL BASE 4800MM
◀

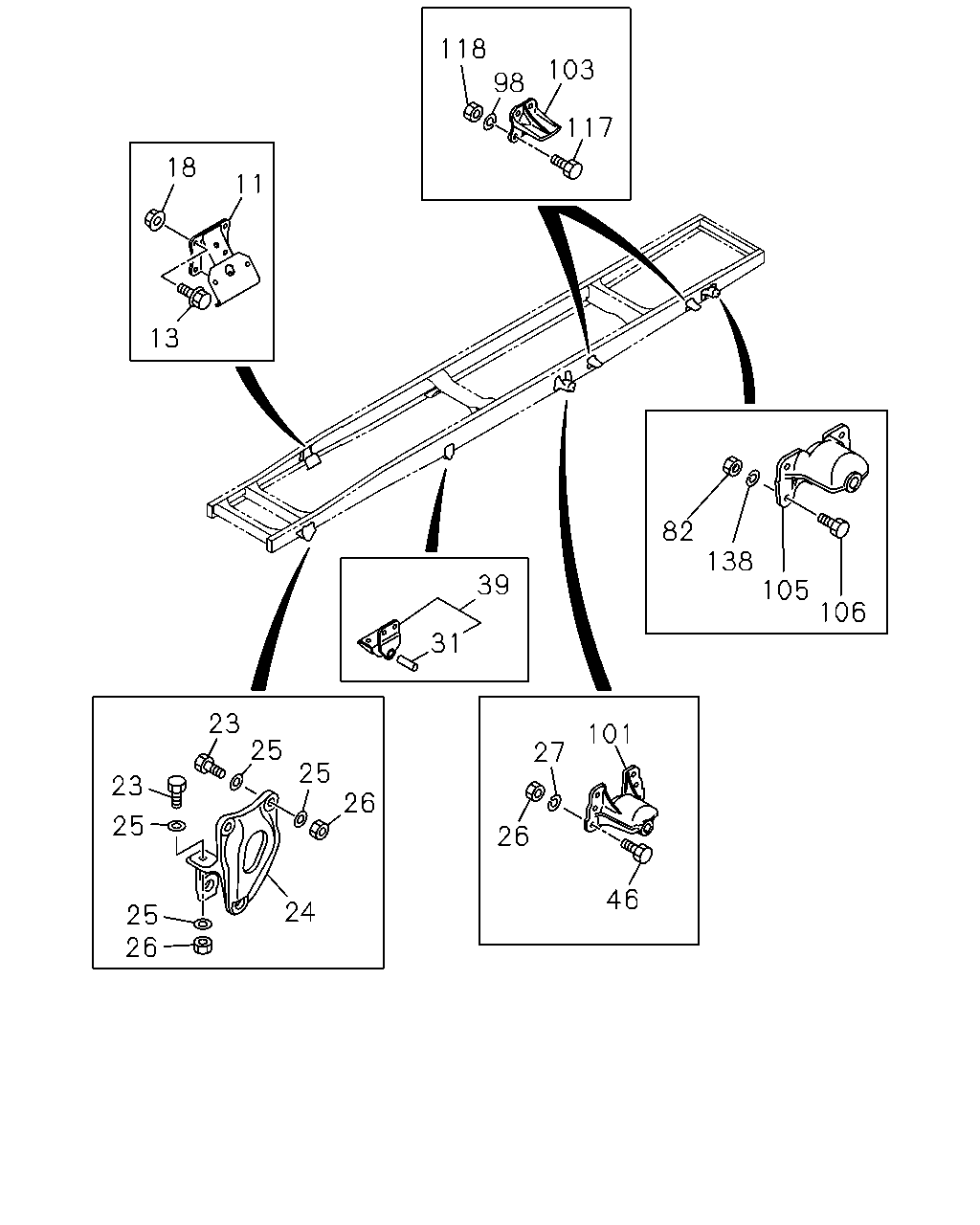

[501A] BRACKET AND OTHER PARTS (21 parça)

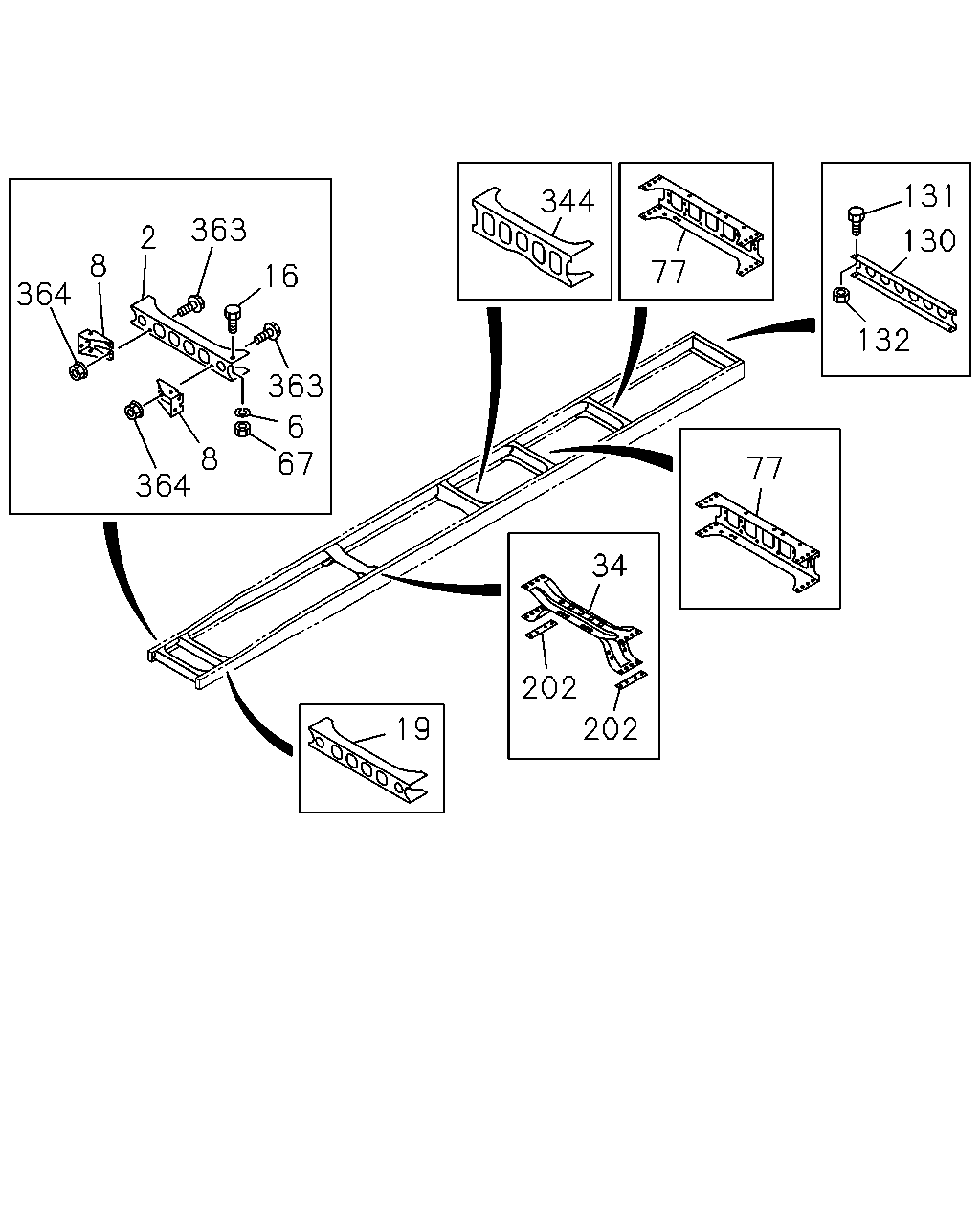

[501A] CROSS MEMBER (16 parça)
▶
82
105
106
138
101
27
26
46
24
26
25
25
23
23
25
25
26
13
11
18
118
117
103
98
39
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
BRACKET; ENG MTG
8-97609-502-0
02
1
1310-
●
●
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1310-
●
●
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1310-
●
●
23
BOLT; BRKT,SPR
M14X50
0-20951-450-0
08
1
1310-
●
●
24
BRACKET; FRT SPR,FRT
8-98059-201-0
01
1
1310-
●
●
24
BRACKET; FRT SPR,FRT
8-98059-203-0
01
1
1310-
●
●
25
WASHER; PL,BRKT
ID=15
8-98010-627-1
16
1
1310-
●
●
26
NUT; BRKT,SPR
M14
0-91110-514-0
20
1
1310-
●
●
27
WASHER; LK,BRKT,FRT SPR
ID=14.2
0-91510-614-0
12
1
1310-
●
●
31
BUSHING; FRT SPR,RR
ID=25
8-98082-176-0
02
1
1310-
●
●
39
BRACKET; FRT SPR,RR
1-53352-154-2
02
1
1310-
●
●
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
12
1
1310-
●
●
82
NUT; BRKT
M14
0-91110-514-0
10
1
1310-
●
●
98
WASHER; LK,STOPPER
ID=14.2
0-91510-614-0
16
1
1310-
●
●
101
BRACKET; RR SPR,FRT
1-53353-090-4
02
1
1310-
●
●
103
STOPPER; SUB SPR
1-53356-059-1
04
1
1310-
●
●
105
BRACKET; RR SPR,RR
1-53354-074-0
02
1
1310-
●
●
106
BOLT; BRKT
M14X50
0-20951-450-0
10
1
1310-
●
●
117
BOLT; STOPPER
M14X50
0-20951-450-0
16
1
1310-
●
●
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1310-
●
●
138
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
10
1
1310-
●
●
202
202
34
77
19
67
6
363
16
363
2
8
364
364
8
344
77
131
130
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
8-97615-669-2
01
1
1310-
●
●
6
WASHER; LK,1ST C/MBR
ID=12.2
0-91510-512-0
02
1
1310-
●
●
8
GUSSET; 1ST C/MBR
8-97609-759-1
01
1
1310-
●
●
8
GUSSET; 1ST C/MBR
8-97609-760-2
01
1
1310-
●
●
16
BOLT; 1ST C/MBR TO S/MBR
M12X30
0-20851-230-0
02
1
1310-
●
●
19
MEMBER; CROSS,2ND
8-97615-670-2
01
1
1310-
●
●
34
MEMBER; CROSS,3RD
8-97609-755-0
01
1
1310-
●
●
67
NUT; C/MBR
M12
0-91110-512-0
02
1
1310-
●
●
77
MEMBER; CROSS,TRUNNION RR
8-97610-935-1
02
1
1310-
●
●
130
MEMBER; CROSS,END
8-97609-470-0
01
1
1310-
●
●
131
BOLT; END C/MBR
M10X25 W/LK WASHER
0-50541-025-0
04
1
1310-
●
●
132
NUT; END C/MBR
M10
0-91110-510-0
04
1
1310-
●
●
202
SPACER; 3RD C/MBR
8-97609-757-0
02
1
1310-
●
●
344
MEMBER; CROSS,4TH
8-97609-472-2
01
1
1310-
●
●
363
BOLT; GUSSET
M12X25 FLANGE
0-28661-225-0
04
1
1310-
●
●
364
NUT; GUSSET
M12 FLANGE
0-91180-212-0
04
1
1310-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
