3-70 — BRAKE PIPING; AIR,AIR MASTER (#129295) — 72 parça

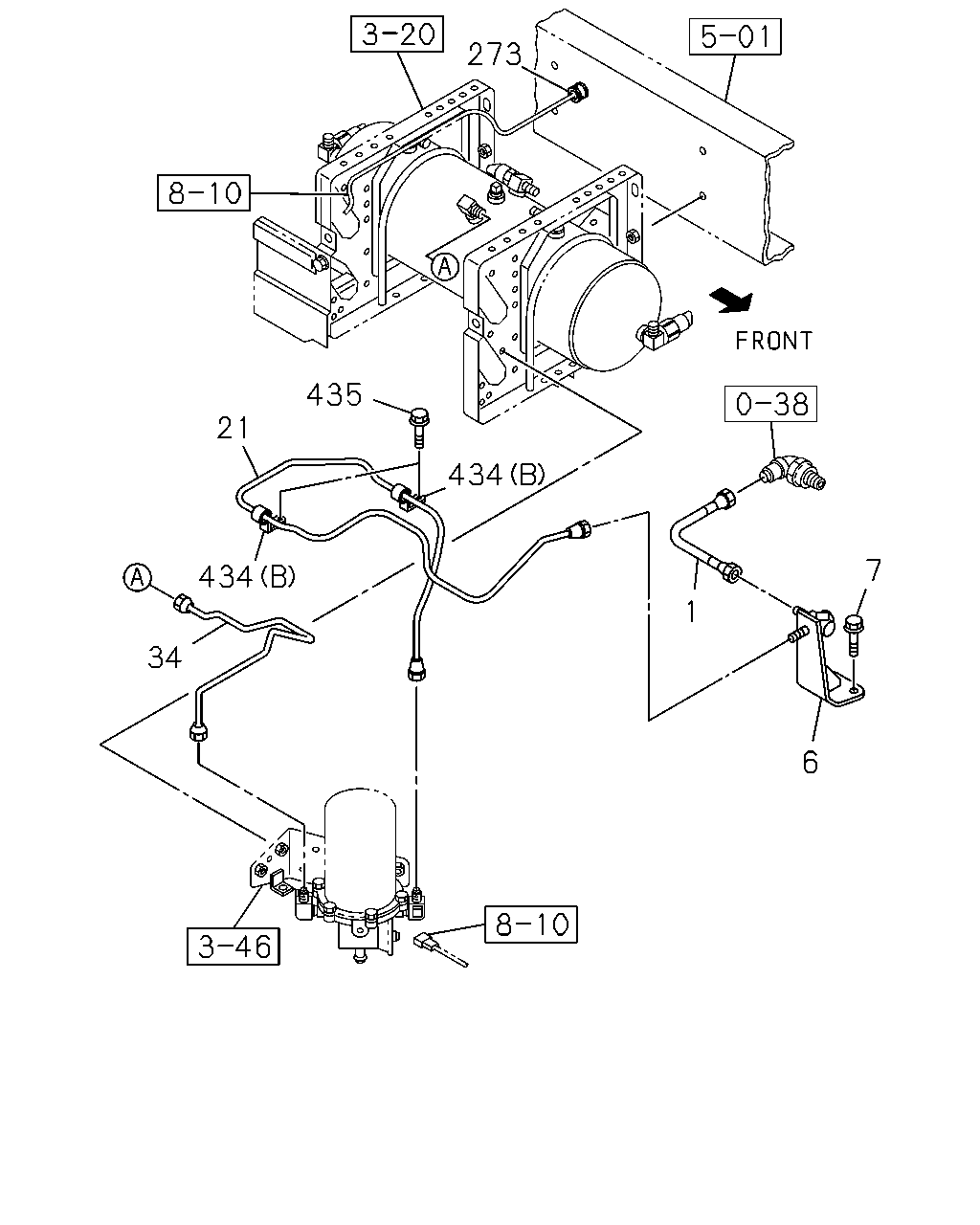

çizim 380228
435 21 434 34 1 7 6 273 434
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 1310-
6 BRACKET; FLEX HOSE,AIR TANK 8-98079-987-1 01 1 1310-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1310-
21 PIPE; AIR,UNION TO AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1816 		8-98083-100-0 01 1 1310-
21 PIPE; AIR,UNION TO AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1798 		8-98083-099-0 01 1 1310-
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1310-
34 PIPE; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=615 SERVICED BY L=660 		1-49115-480-0 01 1 1310-
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1310-
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1310-
434 CLIP
AIR SUSP DRIVER SEAT<A56> (C) ID=7 L=20 		0-95234-635-0 01 1 1310-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1310-
434 CLIP
AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1310-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1310-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1310-
435 BOLT; CLIP
AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE 		0-28650-820-0 01 1 1310-

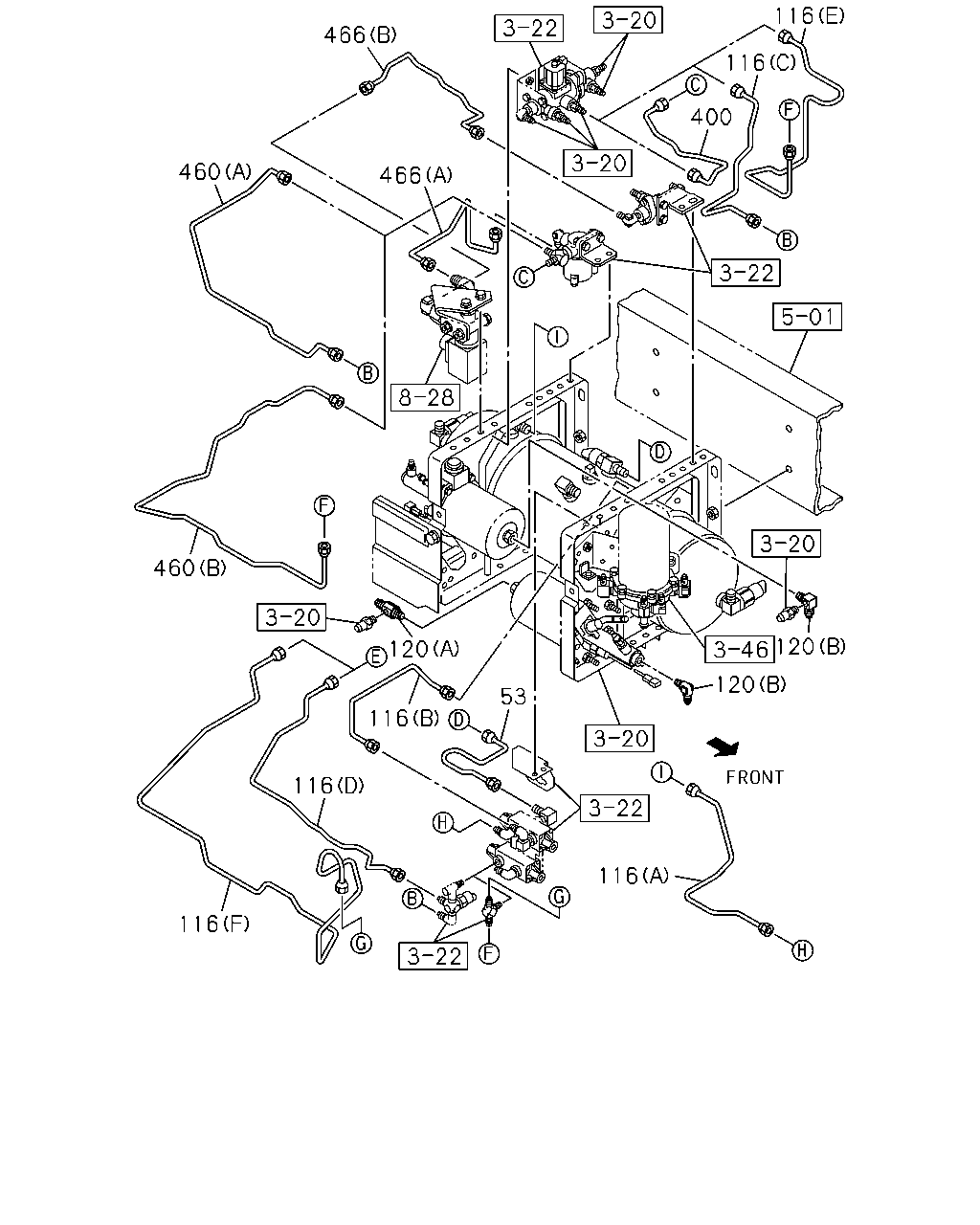

çizim 380310
116 466 460 466 460 120 116 116 116 116 120 120 400 116 53
BalonParca AdiParca NoAdetTipApplied Date
53 PIPE; AIR,AIR TANK TO VALVE 8-98213-331-0 01 1 1310-
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1310-
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1310-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1310-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1310-
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1310-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (E) L=666 SERVICED BY L=700 		1-47428-811-0 01 1 1310-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) L=1423 SERVICED BY L=1500 		1-47428-819-0 01 1 1310-
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (F) L=1423 SERVICED BY L=1500 		1-47428-819-0 01 1 1310-
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1310-
120 CONNECTOR; AIR PIPE
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1310-
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1310-
460 PIPE; AIR,PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) L=1036 		8-98225-793-0 01 1 1310-
460 PIPE; AIR,PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98225-792-0 01 1 1310-
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700 		1-47428-870-0 01 1 1310-
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1310-

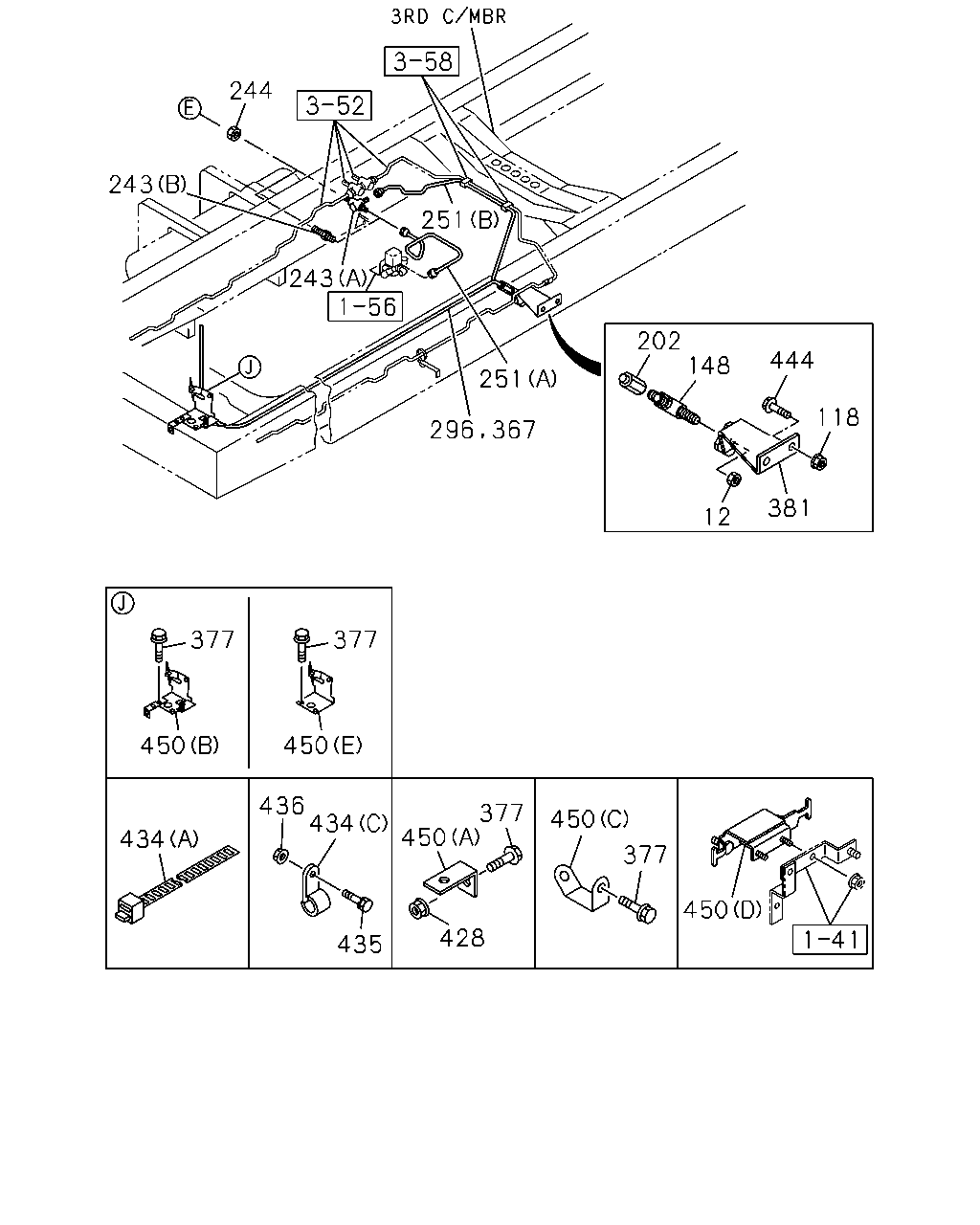

çizim 380368
450 450 377 428 377 450 435 434 436 450 377 377 450 434 12 381 118 444 148 202 251 296 367 251 243 244 243
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		0-91111-512-0 01 1 1310-
118 NUT; UNION
AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91180-210-0 02 1 1310-
148 CONNECTOR; UNION
AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 2WAY 		1-09654-059-2 01 1 1310-
202 ADAPTER
AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1310-
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 L=66.5 		0-92113-306-0 01 1 1310-
243 UNION; AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 3WAY 		0-92138-906-0 01 1 1310-
243 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 3WAY 		0-92138-906-0 01 1 1310-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1310-
251 PIPE; AIR,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=480 		8-98120-257-0 01 1 1310-
251 PIPE; AIR,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 1310-
251 PIPE; AIR,UNION TO MAG VLV
AIR SUSP DRIVER SEAT<A56> (B) L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 1310-
251 PIPE; AIR,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=456 		8-98067-434-0 01 1 1310-
251 PIPE; AIR,UNION TO MAG VLV
AIR SUSP DRIVER SEAT<A56> (A) L=456 		8-98067-434-0 01 1 1310-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1310-
367 TUBE; CORRUGATE
AIR SUSP DRIVER SEAT<A56> SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1310-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 03 1 1310-
377 BOLT; BRKT FIX
AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 03 1 1310-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 1310-
377 BOLT; BRKT FIX
AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 1310-
381 BRACKET
AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98119-700-0 01 1 1310-
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 1310-
428 NUT; BRKT
AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 1310-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1310-
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1310-
434 CLIP
AIR SUSP DRIVER SEAT<A56> (C) ID=7 L=20 		0-95234-635-0 01 1 1310-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1310-
434 CLIP
AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1310-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1310-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1310-
435 BOLT; CLIP
AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE 		0-28650-820-0 01 1 1310-
436 NUT; CLIP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		0-91180-108-0 01 1 1310-
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE 		0-28651-030-0 02 1 1310-
450 BRACKET; CLIP
AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		8-98254-305-0 01 1 1501-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47477-694-0 01 1 1310-
450 BRACKET; CLIP
AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47477-694-0 01 1 1310-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 1310-1412
450 BRACKET; CLIP
AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 1310-1412
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 1501-
450 BRACKET; CLIP
(D) 		8-98077-895-1 01 1 1310-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98117-686-0 03 1 1310-
450 BRACKET; CLIP
AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98117-686-0 03 1 1310-
