3-52 — BRAKE PIPING; OIL,FRONT (#129292) — 16 parça

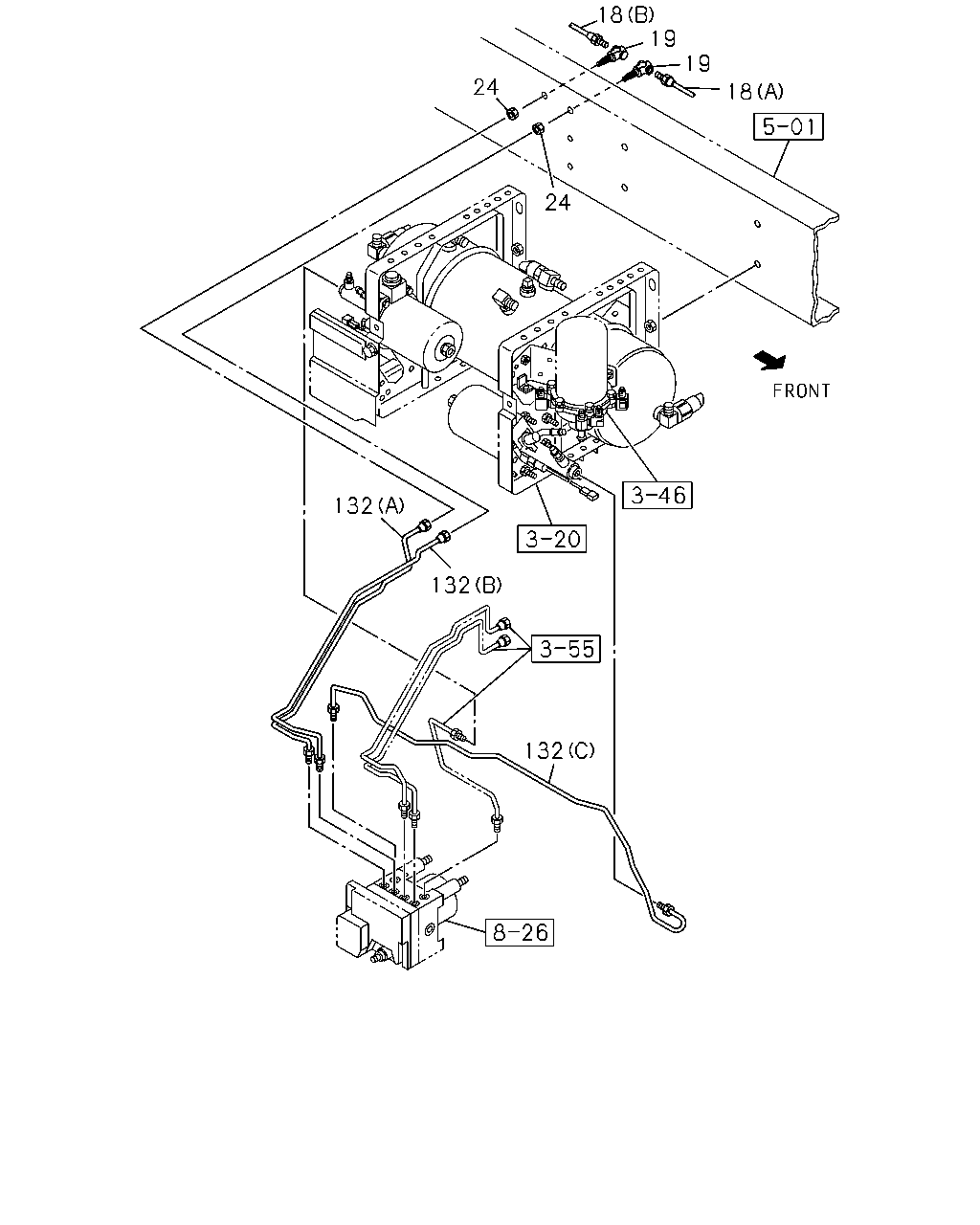

çizim 379958
24 18 19 19 18 24 132 132 132
BalonParca AdiParca NoAdetTipApplied Date
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=3122 		8-98078-160-0 01 1 1310-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=1821 		8-98067-419-0 01 1 1310-
19 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1310-
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 1310-
132 PIPE; OIL,BRK,HYD UNIT
(C) L=948 		8-98213-849-0 01 1 1310-
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=625 		8-98116-095-0 01 1 1310-
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=661 		8-98213-363-0 01 1 1310-

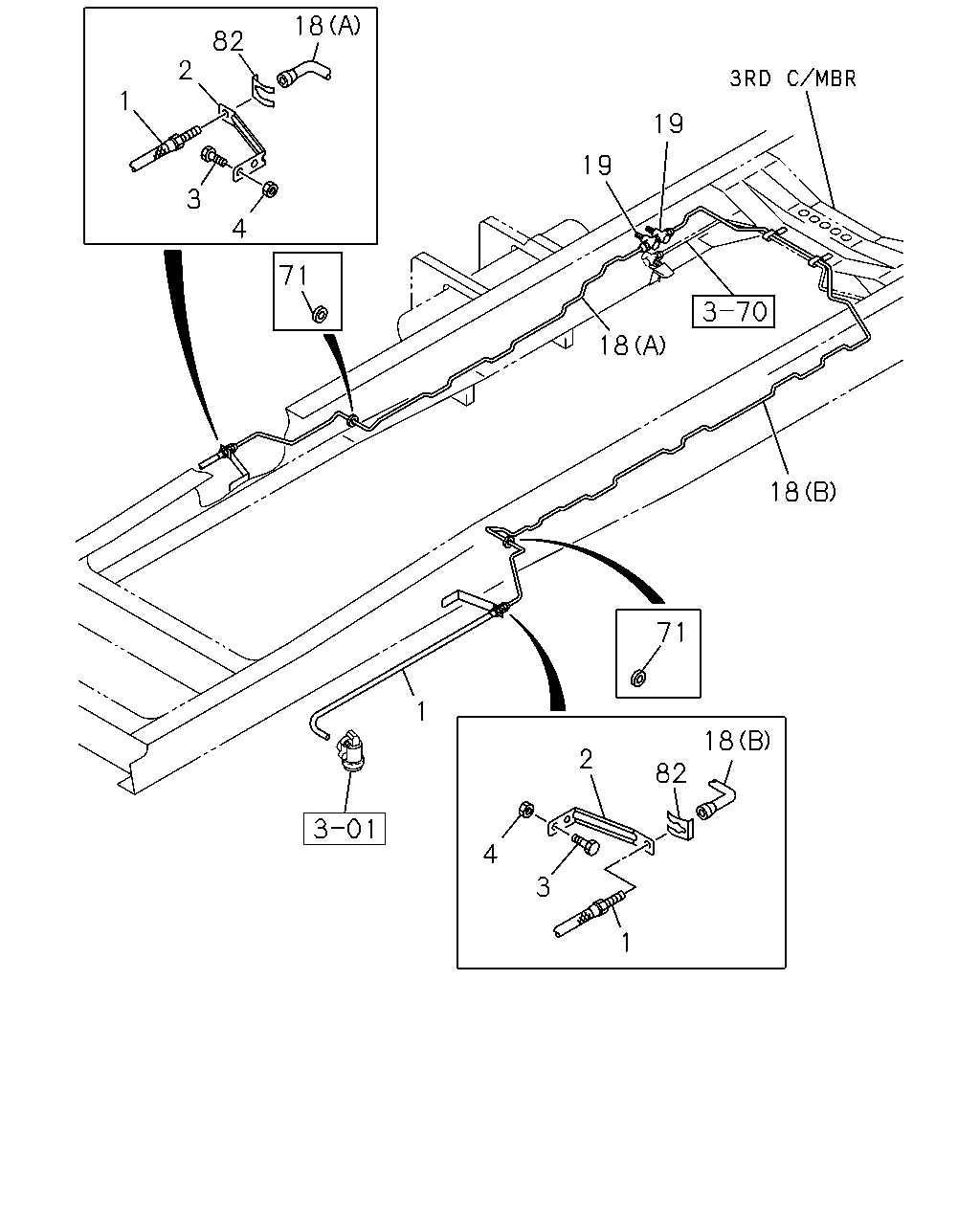

çizim 380419
82 2 1 3 4 18 71 1 18 18 19 19 4 3 1 2 82 18 71
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
L=660 		8-98232-626-0 02 1 1310-
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-947-1 02 1 1310-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1310-
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 1310-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=3122 		8-98078-160-0 01 1 1310-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=1821 		8-98067-419-0 01 1 1310-
19 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1310-
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1310-
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 1310-
