4-31 — STEERING COLUMN AND SHAFT (#12929) — 27 parça

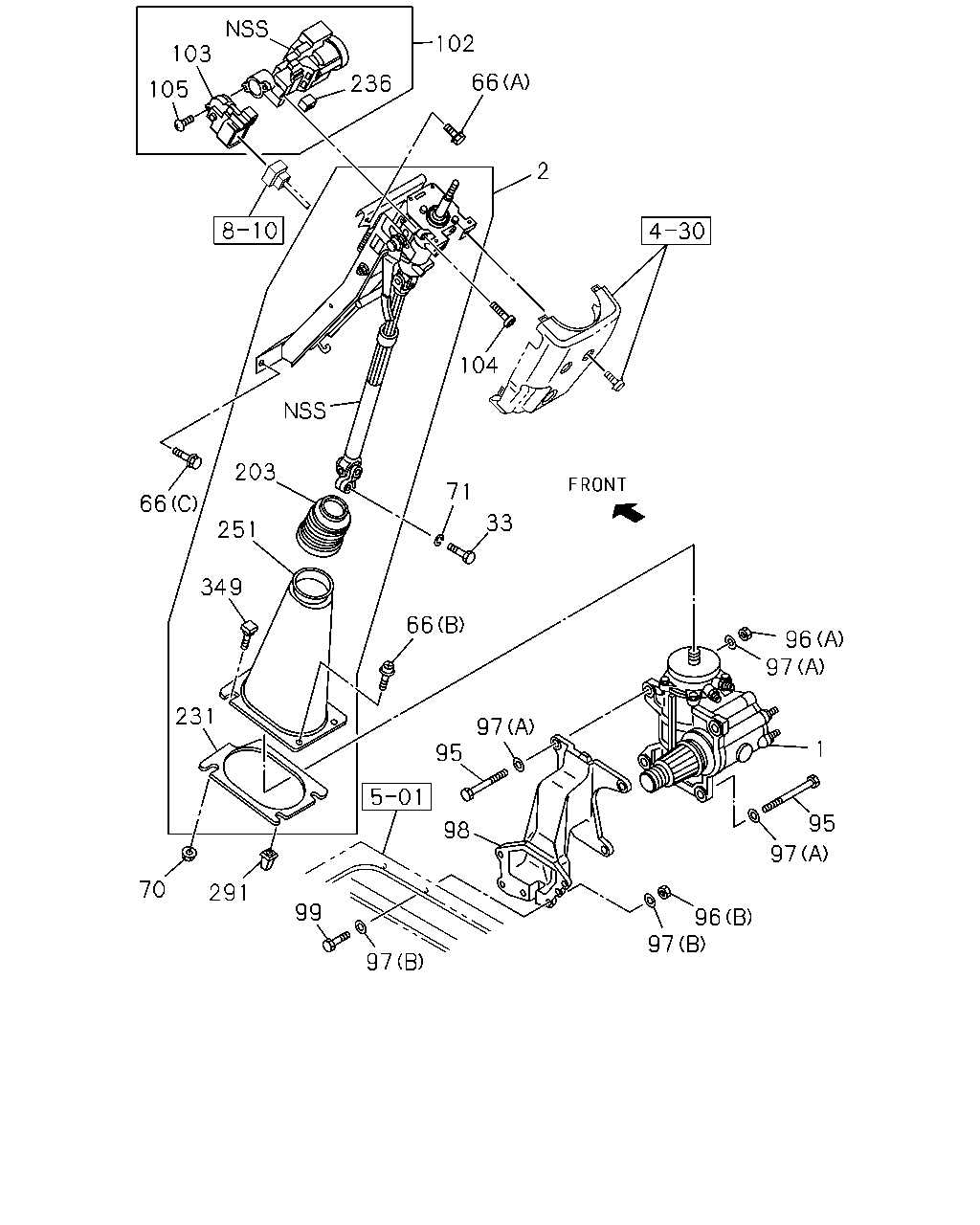

çizim 98375
102 103 66 236 105 2 104 203 71 66 33 251 349 66 96 97 231 97 1 95 95 98 97 70 291 99 96 97 97
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-953-1 01 1 0807-
2 SHAFT ASM; STRG
BLACK 		8-97415-618-2 01 1 0807-
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 0807-
66 BOLT; STRG COLUMN
(B) M5X18 TAPPING 		0-72180-518-0 02 1 0807-
66 BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 02 1 0807-
66 BOLT; STRG COLUMN
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 0807-
70 NUT; STRG COLUMN
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0807-
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0807-
95 BOLT; STRG UNIT
M16X66 		1-09000-305-0 04 1 0807-
96 NUT; STRG UNIT
(B) M14 THA 		0-91110-514-0 06 1 0807-
96 NUT; STRG UNIT
(A) M16 THA 		0-91110-516-0 02 1 0807-
97 WASHER; PL,STRG UNIT
(A) ID=16.2 		1-09503-316-0 06 1 0807-
97 WASHER; PL,STRG UNIT
(B) ID=15 THA 		8-98010-627-1 12 1 0807-
98 BRACKET; STRG GEAR BOX 1-44226-136-1 01 1 0807-
99 BOLT; BRKT TO FRAME
M14X50 		1-09000-787-1 06 1 0807-
102 LOCK ASM; STRG 8-98006-150-0 01 1 1004-
102 LOCK ASM; STRG
REMOTE CONT DOOR LOCK<6NF> 		8-97387-036-0 01 1 0807-1003
102 LOCK ASM; STRG
EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98006-150-0 01 1 0807-1003
103 SWITCH; IGNITION
THA 		8-98045-349-0 01 1 0807-
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 0807-
105 SCREW; IGN SW
THA 		8-98045-346-0 02 1 0807-
203 BOOT; STRG COLUMN LWR 8-98137-333-0 01 1 0807-
231 SEAL; RUBBER,STRG COLUMN 8-98137-330-0 01 1 0807-
236 SWITCH; DOOR WARNING,STRG LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98045-350-0 01 1 0807-1003
251 COVER; LWR
BLACK 		8-97417-050-0 01 1 0807-
291 GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0807-
349 BOLT; COVER 8-98137-334-0 02 1 0807-
