Isuzu WW
▶
TRUCKS
▶
FRR
▶
11552 - FRR RHD EURO5 EXC.SPACECAB
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶
3-08 — PARKING BRAKE
(#129282) — 22 parça
◀

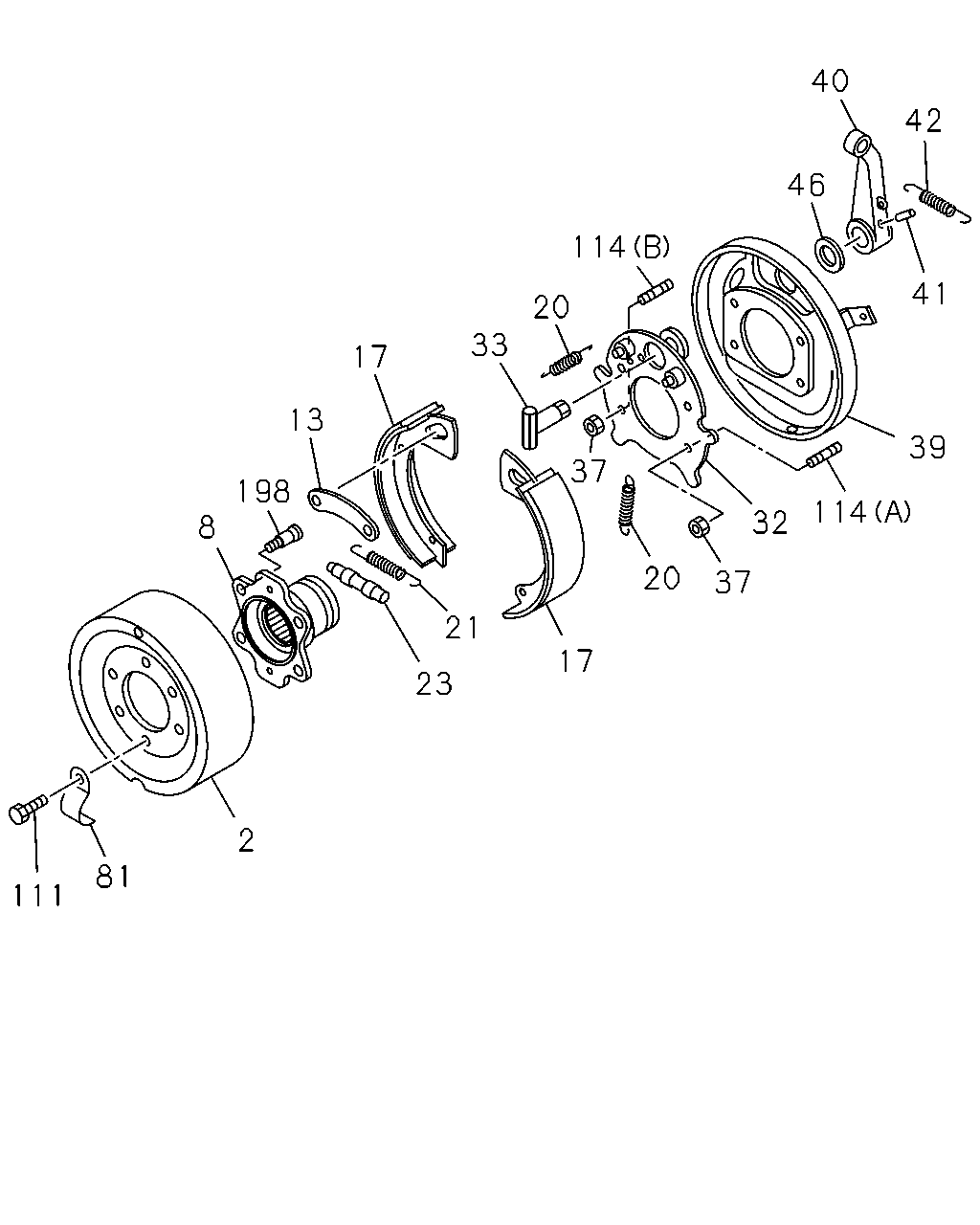

[308A] NO.1 (20 parça)
[308A] NO.2 (2 parça)
▶
42
40
46
114
33
17
20
13
198
8
111
2
23
17
21
37
20
32
114
37
39
41
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
1-46211-020-1
01
1
1310-
8
FLANGE; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
8-98153-194-0
01
1
1310-
13
BRACE; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
9-46239-003-0
01
1
1310-
17
SHOE; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
1-46220-029-0
02
1
1310-
20
SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
9-09942-567-1
02
1
1310-
21
SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 8.5"(B1S)
1-09583-268-0
01
1
1310-
23
SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 8.5"(B1S)
9-46240-008-0
01
1
1310-
32
PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
1-46213-023-0
01
1
1310-
33
SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
1-46251-070-0
01
1
1310-
37
NUT; SUPPORT PLATE
PARKING BRAKE DRUM 8.5"(B1S) M14 FLANGE
8-97365-444-0
04
1
1310-
39
COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
1-46213-111-0
01
1
1310-
40
LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
1-46252-052-0
01
1
1310-
41
PIN; KNOCK,LEVER
PARKING BRAKE DRUM 8.5"(B1S)
9-09878-594-0
01
1
1310-
42
SPRING; RETURN,LEVER
PARKING BRAKE DRUM 8.5"(B1S)
9-09942-592-0
01
1
1310-
46
WASHER; LEVER
PARKING BRAKE DRUM 8.5"(B1S)
9-09855-367-0
01
1
1310-
81
COVER; CHECK HOLE,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
1-46219-018-0
02
1
1310-
111
BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 8.5"(B1S) M8X20 W/LK WASHER
0-50740-820-0
02
1
1310-
114
STUD; SUPPORT PLATE
PARKING BRAKE DRUM 8.5"(B1S) (A) M14X22 WO/DRY-ROCK
8-98014-137-0
03
1
1310-
114
STUD; SUPPORT PLATE
PARKING BRAKE DRUM 8.5"(B1S) (B) M14X22 W/DRY-ROCK
8-98014-138-0
01
1
1310-
198
BOLT; KNURL
PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL
8-98014-003-0
04
1
1310-
130
197
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
130
BOLT; BRKT
PARKING BRAKE DRUM 8.5"(B1S) M10X25 FLANGE
0-28751-025-0
03
1
1310-
197
BRACKET; CENTER BRAKE CABLE
PARKING BRAKE DRUM 8.5"(B1S)
8-98020-897-1
01
1
1310-
