Sayfa 3-05 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11552 - FRR RHD EURO5 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶

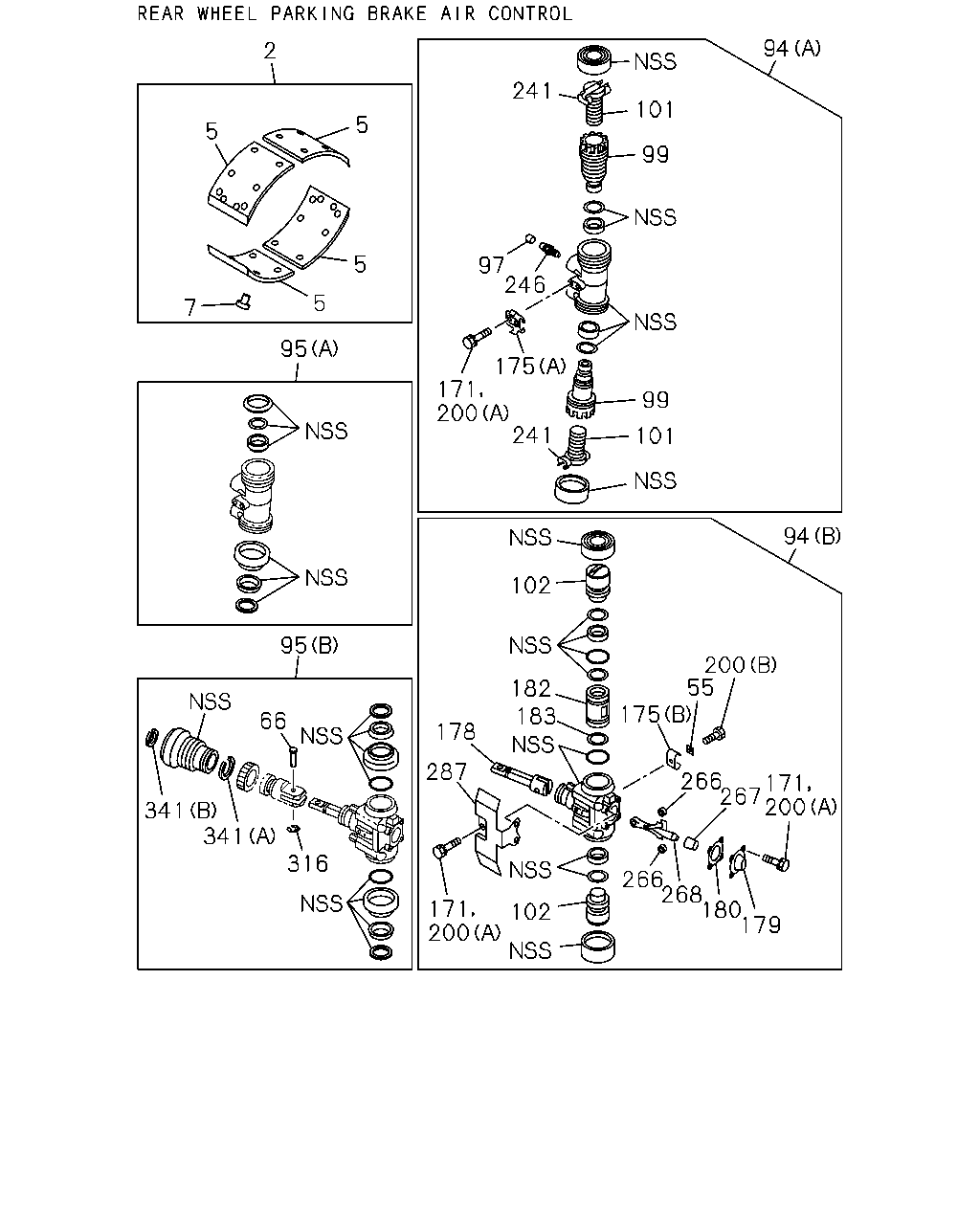

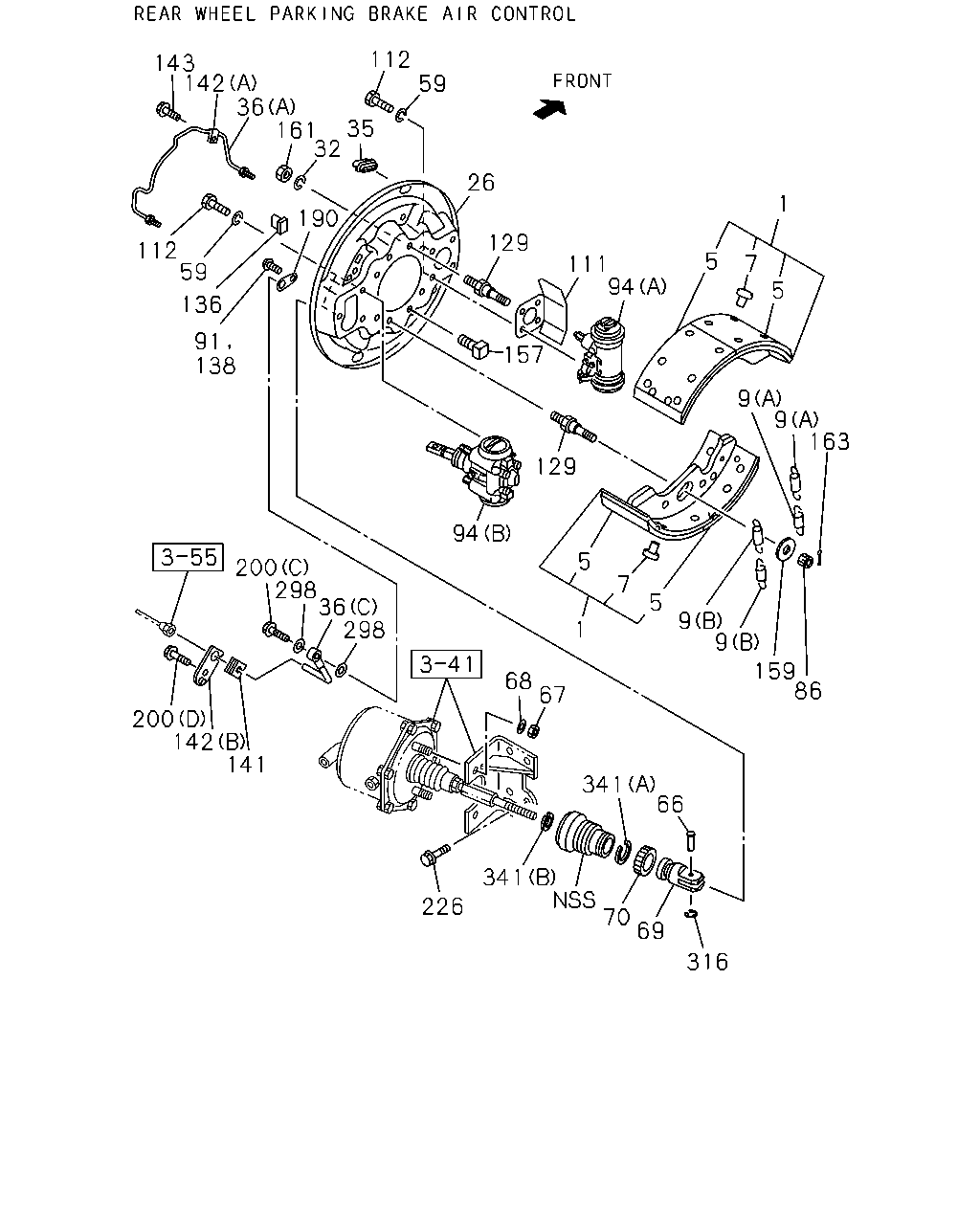

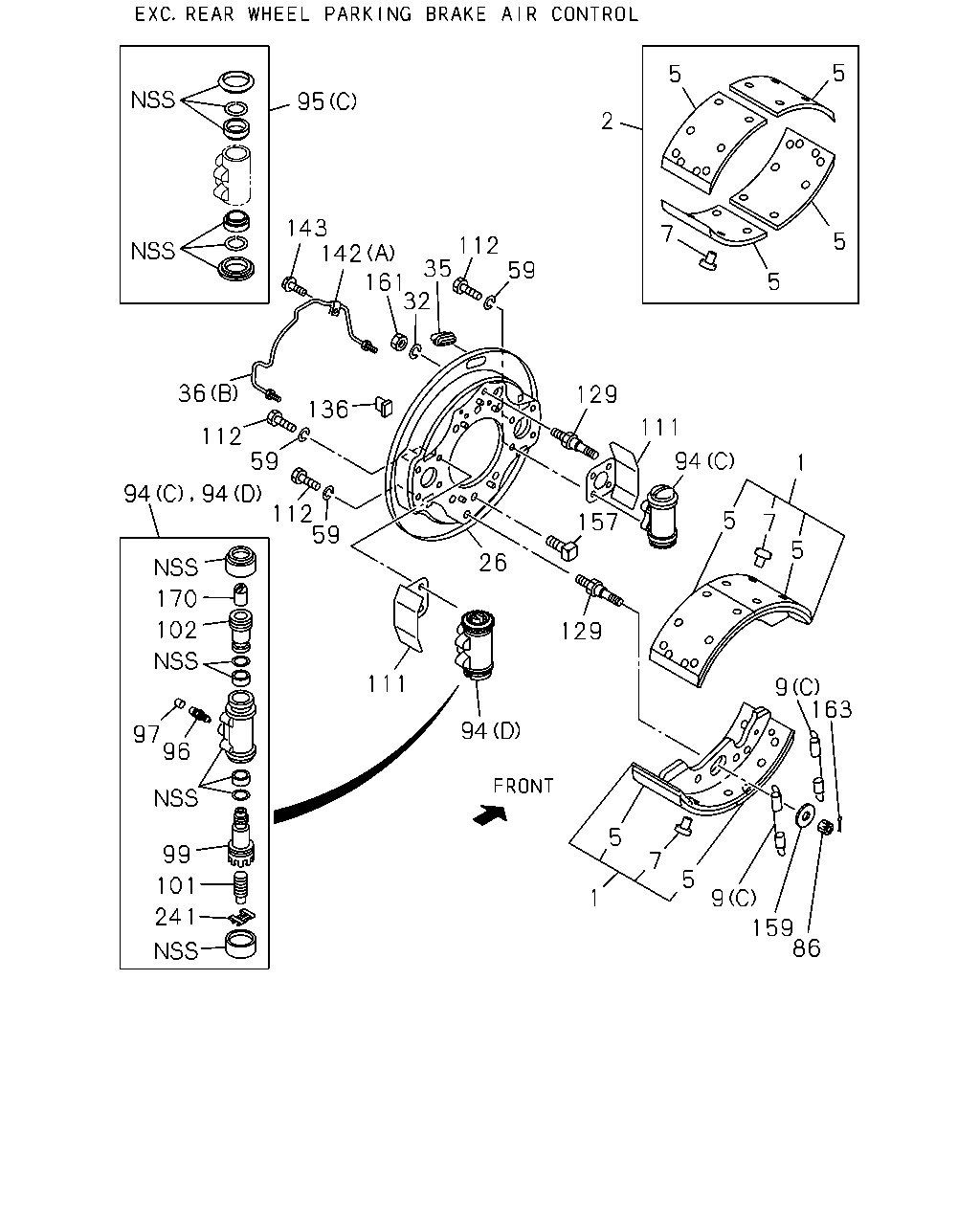

3-05 — REAR WHEEL BRAKE (#129281) — 159 parça

2 5 5 7 5 5 95 95 66 341 341 316 287 178 171 200 102 183 182 102 175 266 268 180 179 200 171 267 266 55 200 94 94 101 241 97 246 175 99 99 171 200 101 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	1310-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	1310-
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1310-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	1310-
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	1310-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-073-0	02	1	1310-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	1310-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1310-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) FORWARD	1-47601-171-1	01	1	1310-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1310-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	1310-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	1310-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	1310-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	1310-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	1310-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	1310-
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	1310-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	1310-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	1310-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-070-0	04	1	1310-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	1310-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	1310-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-071-0	10	1	1310-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47619-187-0	02	1	1310-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-188-0	02	1	1310-
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47640-013-0	02	1	1310-
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-045-0	02	1	1310-
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-013-0	02	1	1310-
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-280-0	04	1	1310-
183	GASKET; TAPPET,WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09623-690-0	02	1	1310-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	1310-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	1310-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	1310-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	1310-
241	HOLDER	1-47619-097-0	04	1	1310-
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	1310-1406
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47643-003-0	04	1	1310-
267	CAGE; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-004-0	02	1	1310-
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-003-0	02	1	1310-
287	COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-186-0	02	1	1310-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	1310-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47616-110-0	02	1	1310-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	1310-

95 143 142 35 161 32 112 59 2 5 5 5 5 7 129 111 94 1 5 7 5 9 163 157 26 129 111 94 136 36 112 59 94 94 112 59 170 102 97 96 99 101 241 5 1 7 5 9 159 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	1310-
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	1310-
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	1310-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	1310-
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1310-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	1310-
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	1310-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	1310-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	1310-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-381-1	04	1	1310-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-382-0	04	1	1310-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	1310-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	1310-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-713-2	01	1	1310-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-712-2	01	1	1310-
32	WASHER; LK	1-47159-110-0	04	1	1310-
35	GROMMET; CHECK HOLE	1-09333-139-0	04	1	1310-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-859-0	02	1	1310-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49167-905-0	02	1	1310-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	1310-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	1310-
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	1310-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	1310-
86	NUT; FLANGE	1-09440-101-0	04	1	1310-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1310-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) FORWARD	1-47601-171-1	01	1	1310-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1310-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	1310-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	1310-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	1310-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	1310-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	1310-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	1310-
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	1310-1406
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	1310-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	1310-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	1310-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-070-0	04	1	1310-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	1310-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	1310-
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	1310-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	1310-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	1310-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	1310-
129	PIN; SHOE HOLD	1-47162-044-0	04	1	1310-
136	GROMMET	1-09333-138-0	04	1	1310-
142	CLAMP; OIL PIPE (A)	1-09701-322-0	02	1	1310-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-189-0	02	1	1310-
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	1310-
157	BOLT; RR BRK SET M14X43	1-09060-003-0	12	1	1310-
159	WASHER; SHOE HOLD	1-47169-037-0	04	1	1310-
161	NUT; SHOE HOLD LOCK	1-47159-111-0	04	1	1310-
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	04	1	1310-
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-185-0	04	1	1310-
241	HOLDER	1-47619-097-0	04	1	1310-

316 69 70 341 226 341 66 67 68 298 36 298 200 200 142 141 94 5 7 5 1 9 9 159 86 129 163 9 9 5 7 1 5 94 111 157 129 26 59 112 35 32 190 161 36 142 143 112 136 59 91 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	1310-
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	1310-
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1310-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	1310-
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	1310-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	1310-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	1310-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-381-1	04	1	1310-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-382-0	04	1	1310-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	1310-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	1310-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-713-2	01	1	1310-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-712-2	01	1	1310-
32	WASHER; LK	1-47159-110-0	04	1	1310-
35	GROMMET; CHECK HOLE	1-09333-139-0	04	1	1310-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-859-0	02	1	1310-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49167-905-0	02	1	1310-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	1310-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	1310-
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	1310-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	1310-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	1310-
67	NUT; POWER CHAMBER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91110-516-0	04	1	1310-
68	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2	0-91510-816-0	04	1	1310-
69	JOINT; JAW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09768-106-1	02	1	1310-
70	NUT; LK,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	0-91111-518-0	02	1	1310-
86	NUT; FLANGE	1-09440-101-0	04	1	1310-
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	1310-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1310-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) FORWARD	1-47601-171-1	01	1	1310-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1310-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	1310-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	1310-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	1310-
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	1310-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	1310-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	1310-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	1310-
129	PIN; SHOE HOLD	1-47162-044-0	04	1	1310-
136	GROMMET	1-09333-138-0	04	1	1310-
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	1310-
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09332-133-0	02	1	1310-
142	CLAMP; OIL PIPE (A)	1-09701-322-0	02	1	1310-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-189-0	02	1	1310-
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	1310-
157	BOLT; RR BRK SET M14X43	1-09060-003-0	12	1	1310-
159	WASHER; SHOE HOLD	1-47169-037-0	04	1	1310-
161	NUT; SHOE HOLD LOCK	1-47159-111-0	04	1	1310-
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	04	1	1310-
190	PLATE; LK,CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	1310-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	1310-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	1310-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	1310-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	1310-
226	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X35 FLANGE	0-28651-435-0	08	1	1310-
298	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47616-115-0	04	1	1310-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	1310-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47616-110-0	02	1	1310-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	1310-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
