◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11552 - FRR RHD EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#129264) — 26 parça

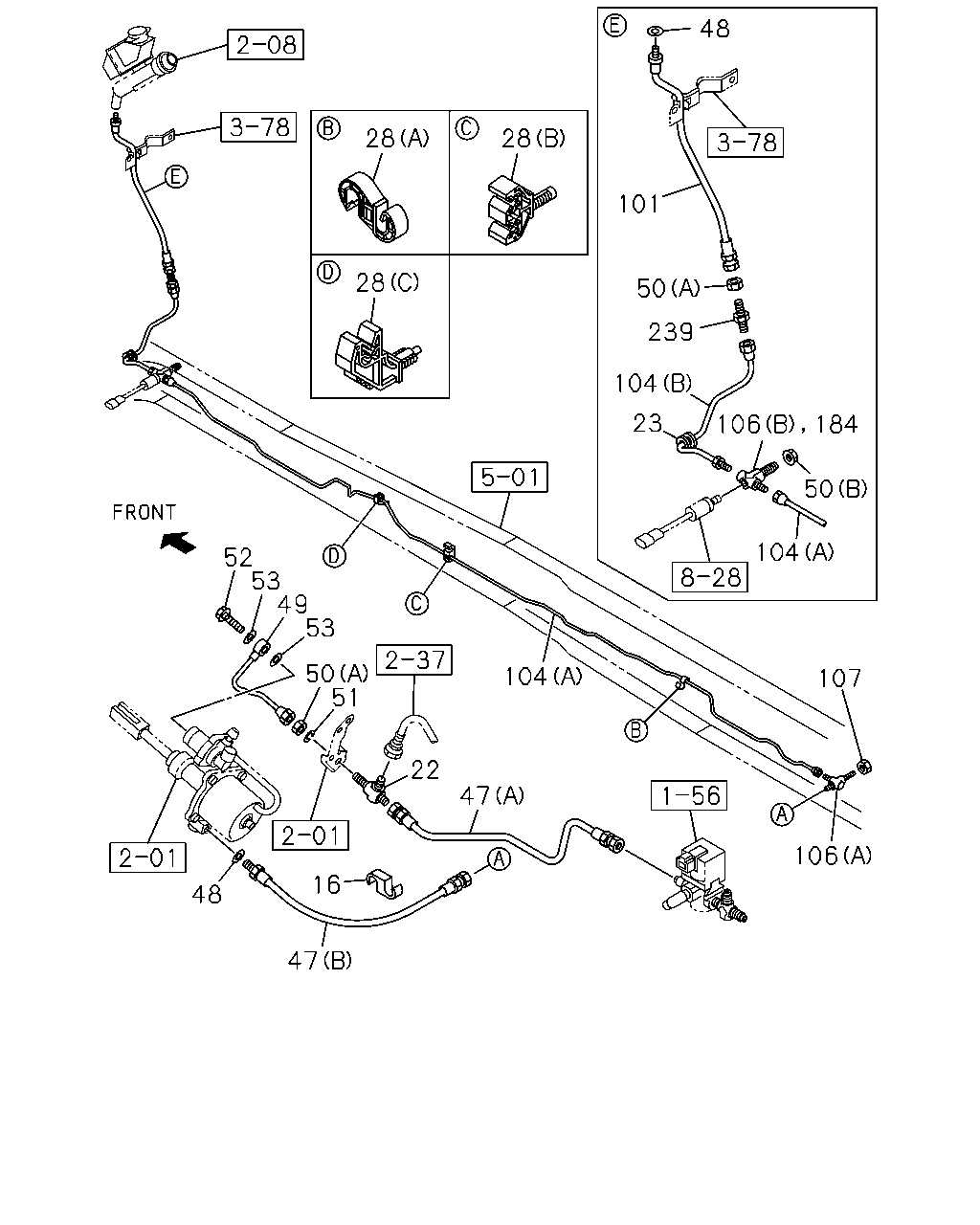

çizim 380041
48 101 50 239 104 184 106 23 104 50 107 106 104 47 16 47 48 50 51 53 49 53 52 22 28 28 28
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12 		1-09709-278-1 02 1 1310-
22 UNION; CLU PIPE
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1310-
23 GROMMET; CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1310-
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1310-
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1310-
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 01 1 1310-
47 HOSE; FLEX,CLU CONT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=540 		1-09363-612-1 01 1 1310-
47 HOSE; FLEX,CLU CONT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=470 		8-98072-353-0 01 1 1310-
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1310-
48 GASKET; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1310-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1310-
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1310-
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1310-
50 NUT; UNION
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1310-
51 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1310-
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 1310-
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1310-1312
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500 		8-98072-350-0 01 1 1310-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1310-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2695 		8-98078-148-2 01 1 1310-
106 UNION; OIL PIPE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 2WAY 		1-09654-059-2 01 1 1310-
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 3WAY 		8-98051-113-0 01 1 1310-
107 NUT; UNION,OIL PIPE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 		0-91111-512-0 01 1 1310-
184 UNION; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1310-
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 L=66.5 		0-92113-306-0 01 1 1310-
