1-41 — FUEL PIPING; CHASSIS (#129257) — 104 parça

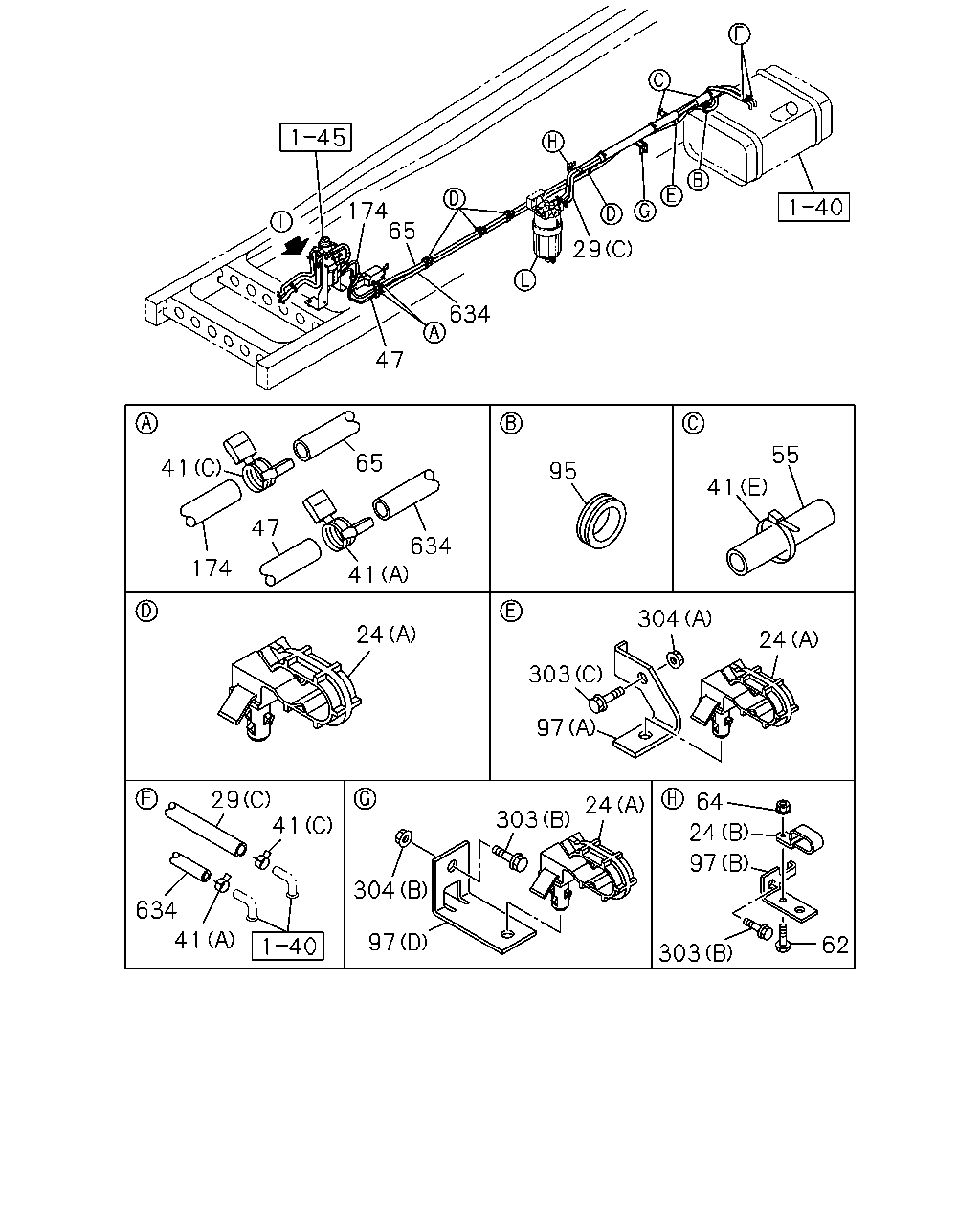

çizim 379504
174 65 634 47 29 41 55 95 65 41 174 47 634 41 24 304 303 97 24 64 24 97 303 62 24 303 304 97 29 41 634 41
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 1310-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1310-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1310-
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 1310-
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 1310-
29 HOSE; FUEL
(C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1310-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1310-
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 1310-
55 COVER; PIPE,FUEL TANK
L=800 		1-09361-018-0 01 1 1310-
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1310-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1310-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=2450 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W) L=3350 SERVICED BY L=8000 		0-01260-800-0 01 1 1310-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1310-
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 1310-
97 BRACKET; CLIP
(B) 		8-98100-216-1 01 1 1310-
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1310-
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W) (A) 		8-98083-349-0 01 1 1310-
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 1310-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
303 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1310-
303 BOLT; BRKT
WHEEL BASE 4800MM(48W) (C) M8X30 FLANGE 		0-28650-830-0 01 1 1310-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1310-
304 NUT; BRKT
WHEEL BASE 4800MM(48W) (A) M8 FLANGE 		0-91180-108-0 01 1 1310-
634 HOSE; RUBBER RETURN
WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000 		0-01558-300-0 01 1 1310-
634 HOSE; RUBBER RETURN
WHEEL BASE 4800MM(48W) L=2850 SERVICED BY L=3000 		0-01558-300-0 01 1 1310-

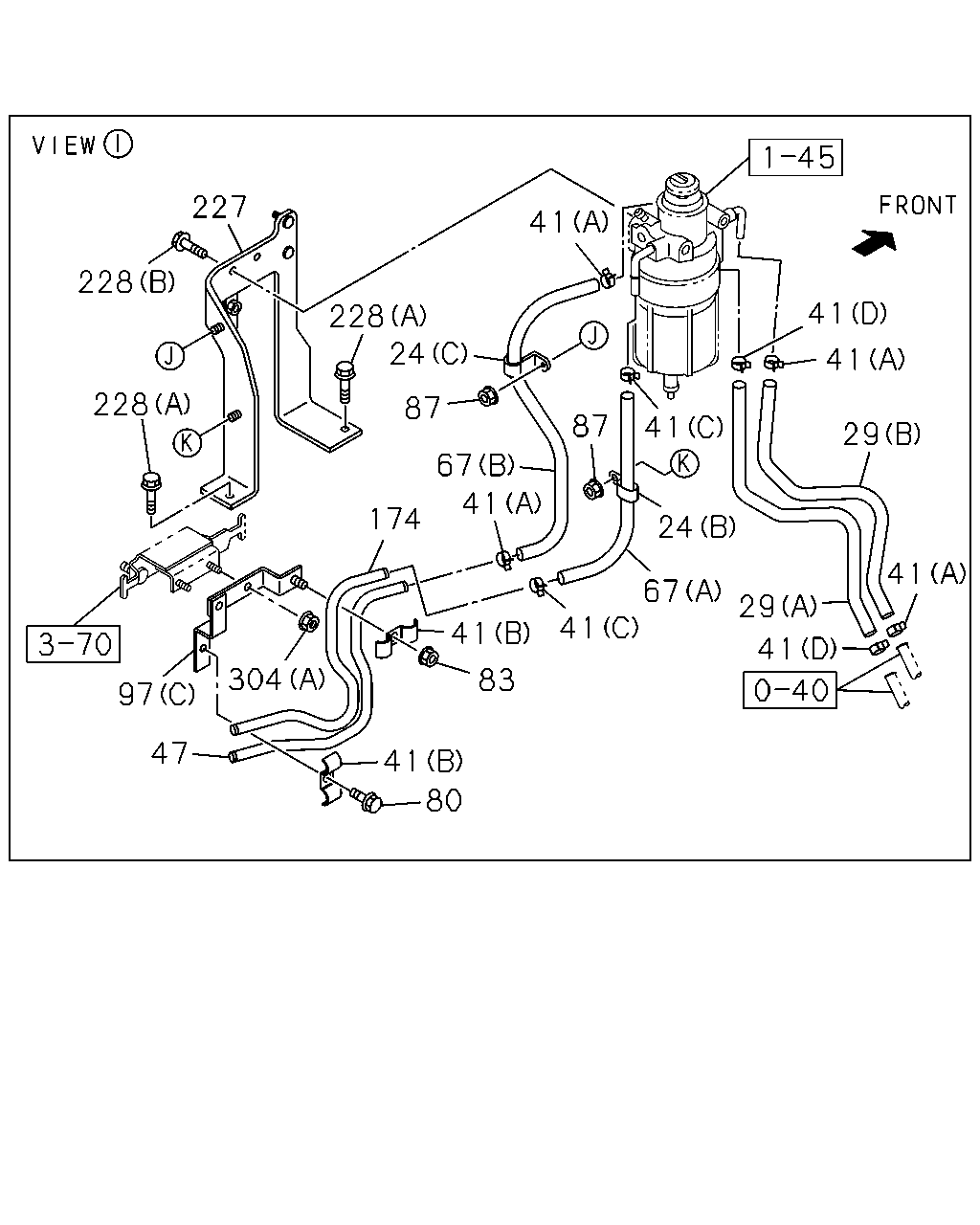

çizim 379516
227 228 228 97 47 304 41 80 83 41 174 41 41 67 87 24 228 41 87 24 67 41 29 41 29 41 41 41
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 1310-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1310-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1310-
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 1310-
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 1310-
29 HOSE; FUEL
(C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1310-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1310-
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 1310-
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 1310-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1310-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1310-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 1310-
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 1310-
97 BRACKET; CLIP
(B) 		8-98100-216-1 01 1 1310-
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1310-
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W) (A) 		8-98083-349-0 01 1 1310-
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 1310-
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 1310-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1310-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 1310-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1310-
304 NUT; BRKT
WHEEL BASE 4800MM(48W) (A) M8 FLANGE 		0-91180-108-0 01 1 1310-
çizim 379525
304 303 345 345 279 228 39 41 29 65 41 39 418 304
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
(C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1310-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1310-
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1310-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=2450 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W) L=3350 SERVICED BY L=8000 		0-01260-800-0 01 1 1310-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1310-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 1310-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1310-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
303 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1310-
303 BOLT; BRKT
WHEEL BASE 4800MM(48W) (C) M8X30 FLANGE 		0-28650-830-0 01 1 1310-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1310-
304 NUT; BRKT
WHEEL BASE 4800MM(48W) (A) M8 FLANGE 		0-91180-108-0 01 1 1310-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1310-
418 BRACKET; PRE FUEL FILTER 8-98114-787-0 01 1 1310-
