Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#12924) — 339 parça

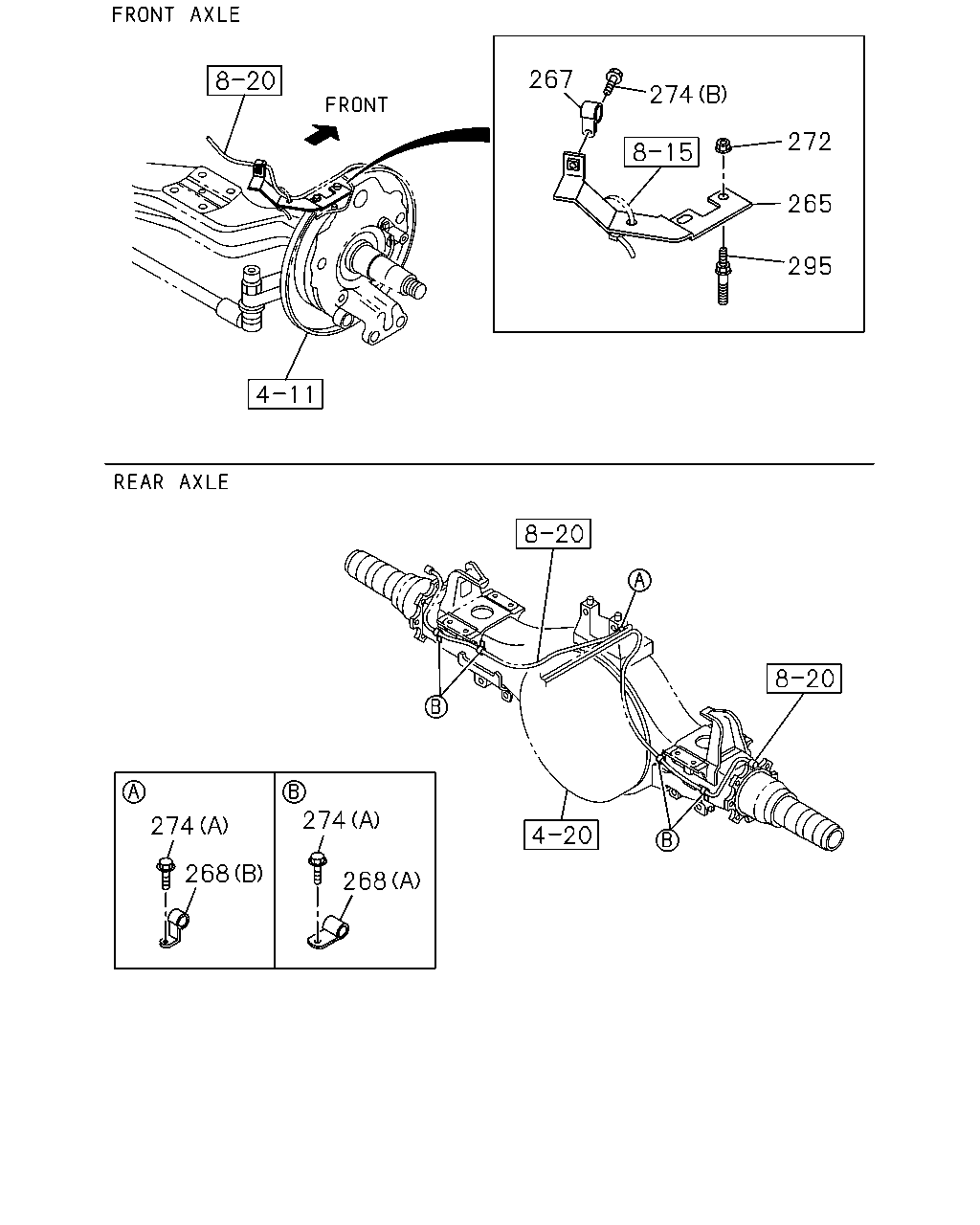

267 274 272 265 295 274 274 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5>	8-98073-525-0	01	1	0809-1107
265	BRACKET; CLIP I BEAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ANTI LOCK BRAKE<JE5>	8-98073-525-0	01	1	1108-
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5>	8-98073-526-0	01	1	0809-1107
265	BRACKET; CLIP I BEAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ANTI LOCK BRAKE<JE5>	8-98073-526-0	01	1	1108-
267	CLIP; HARNESS ANTI LOCK BRAKE<JE5> ID=11 L=20	0-95235-035-0	02	1	0809-1107
267	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ANTI LOCK BRAKE<JE5> ID=11 L=20	0-95235-035-0	02	1	1108-
268	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0809-
268	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (A) ID=11 L=20	0-95235-035-0	04	1	0809-
272	NUT; CLIP ANTI LOCK BRAKE<JE5> M10 FLANGE THA	0-91180-110-0	04	1	0809-1107
272	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ANTI LOCK BRAKE<JE5> M10 FLANGE THA	0-91180-110-0	04	1	1108-
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (A) M8X10 FLANGE THA	0-28050-810-0	05	1	0809-
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0809-1107
274	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE THA	0-28050-816-0	02	1	1108-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0807-1107
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X20,M10X26 L=56	8-98010-334-0	04	1	1108-

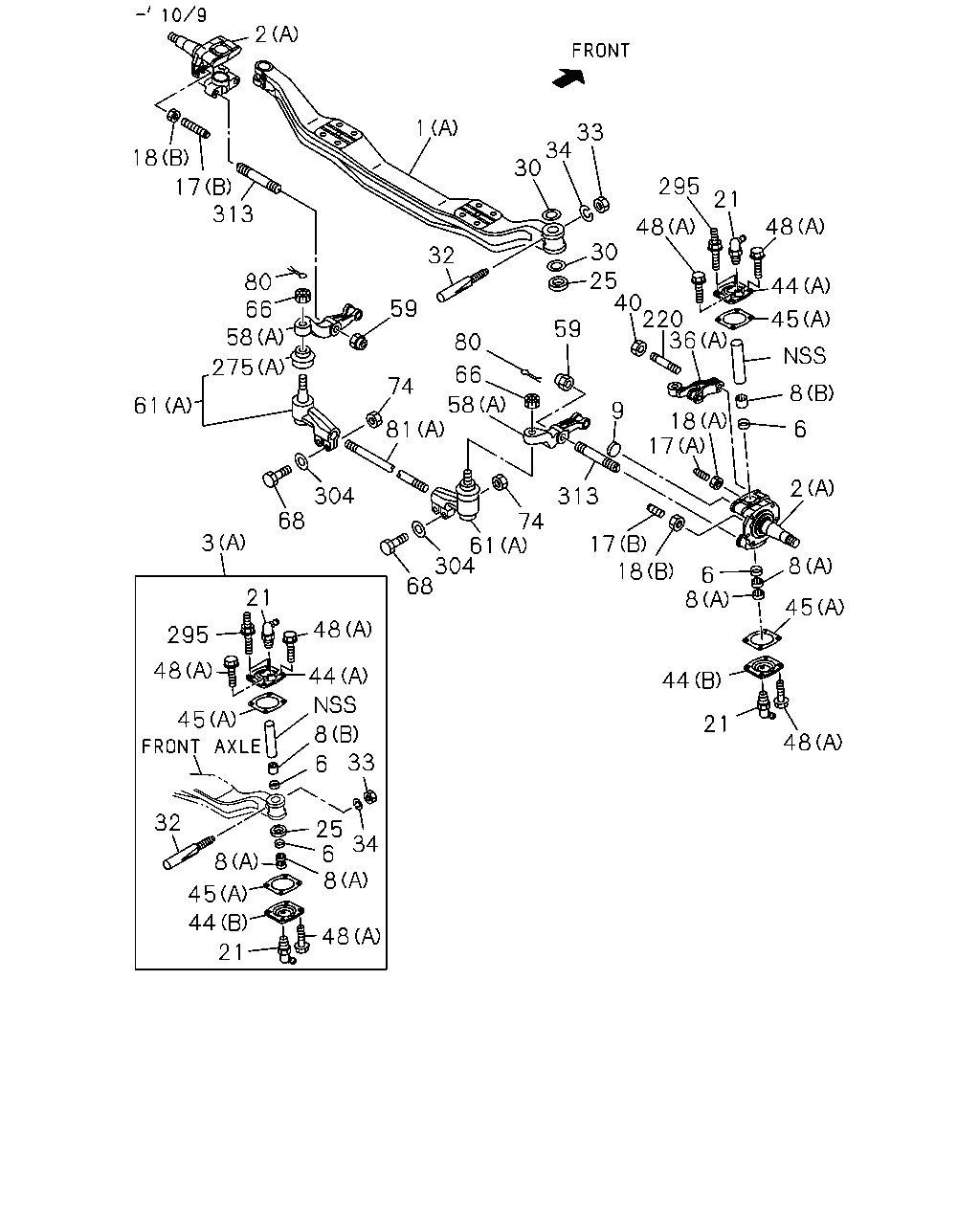

2 1 33 34 30 18 295 17 313 21 48 48 30 32 25 40 220 36 80 66 58 44 59 45 59 80 275 66 74 8 18 17 58 61 9 6 81 2 304 68 313 74 3 17 18 61 304 68 8 6 8 21 45 48 295 48 44 44 45 21 8 33 48 6 32 25 34 6 8 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43111-113-6	01	1	1108-
1	AXLE; FRT (A)	8-98061-842-2	01	1	0807-1102
1	AXLE; FRT (A)	8-98170-180-2	01	1	1103-1107
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98170-180-2	01	1	1108-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43131-079-1	01	1	1108-1412
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-705-0	01	1	1501-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43132-079-1	01	1	1108-1412
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-706-0	01	1	1501-
2	KNUCKLE; FRT AXLE (A)	1-43131-118-1	01	1	0807-1107
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43131-118-1	01	1	1108-1412
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-703-0	01	1	1501-
2	KNUCKLE; FRT AXLE (A)	1-43132-101-1	01	1	0807-1107
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43132-101-1	01	1	1108-1412
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-704-0	01	1	1501-
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-87831-412-1	02	1	1108-
3	KING PIN SET (A)	1-87831-349-1	02	1	0807-1102
3	KING PIN SET (A)	1-87831-410-1	02	1	1103-1107
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-87831-410-1	02	1	1108-
6	SEAL; KING PIN	9-09926-024-0	04	1	0807-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0807-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0807-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0807-0807
9	PLUG; KNUCKLE EXC. ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	0808-1102
9	PLUG; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	1103-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	0807-1107
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M18X53	1-09009-066-0	01	1	1108-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0807-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18 THA	0-91110-518-0	02	1	0807-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0807-1107
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) OCTAGON M18	1-09469-011-1	01	1	1108-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES THA	0-90301-510-0	04	1	0807-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0807-
30	WASHER; THRUST,KING PIN T=4.875 -4.900 THA	1-43171-185-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=4.900 -4.925 THA	1-43171-186-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=4.925 -4.950 THA	1-43171-187-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=4.950 -4.975 THA	1-43171-188-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.075 -5.100 THA	1-43171-193-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.100 -5.125 THA	1-43171-194-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.125 -5.150 THA	1-43171-195-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.150 -5.175 THA	1-43171-196-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.175 -5.200 THA	1-43171-197-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.200 -5.225 THA	1-43171-198-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.225 -5.250 THA	1-43171-199-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0807-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0807-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0807-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0807-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0807-
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	0807-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0807-1102
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-810-0	02	1	1103-
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43133-063-3	01	1	1108-1412
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-707-0	01	1	1501-
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	0807-1107
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43133-073-3	01	1	1108-1412
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-710-0	01	1	1501-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0807-
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	1-43175-014-1	02	1	1108-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	0807-1107
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98100-654-0	02	1	1108-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	0807-1107
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98100-655-0	02	1	1108-
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-42319-044-0	02	1	1108-
45	GASKET; KING PIN COVER (A)	8-98100-656-1	04	1	0807-1107
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98100-656-1	04	1	1108-
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M12X16 FLANGE	0-28051-216-0	08	1	1108-
48	BOLT; COVER (A) M10X25 FLANGE THA	0-28751-025-0	12	1	0807-1107
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M10X25 FLANGE THA	0-28751-025-0	12	1	1108-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43134-042-3	01	1	1108-1412
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-711-0	01	1	1501-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43135-042-3	01	1	1108-1412
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-712-0	01	1	1501-
58	ARM; TIE ROD (A)	1-43134-049-4	01	1	0807-1107
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43134-049-4	01	1	1108-1412
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-713-0	01	1	1501-
58	ARM; TIE ROD (A)	1-43135-049-4	01	1	0807-1107
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43135-049-4	01	1	1108-1412
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-714-0	01	1	1501-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0807-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98171-444-0	01	1	1108-1306
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98171-445-0	01	1	1108-1306
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98236-801-0	01	1	1307-
61	ROD END; TIE ROD (A)	8-98054-851-0	01	1	0807-1009
61	ROD END; TIE ROD (B)	8-98096-753-0	01	1	1010-1107
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98096-753-0	01	1	1108-1306
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD (A)	8-98054-853-0	01	1	0807-1009
61	ROD END; TIE ROD (B)	8-98096-754-0	01	1	1010-1107
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98096-754-0	01	1	1108-1306
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0807-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0807-
74	NUT; TIE ROD END M12 THA	0-91110-512-0	04	1	0807-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0807-
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98172-133-0	01	1	1108-1109
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98193-965-0	01	1	1110-
81	ROD; TIE (A)	1-43151-157-0	01	1	0807-1009
81	ROD; TIE (B)	8-98171-947-0	01	1	1010-1107
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98171-947-0	01	1	1108-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0807-1107
220	STUD; KNUCKLE ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M22X145	1-09300-127-1	02	1	1108-
275	BOOT; ROD END,TIE (A)	1-43159-107-0	02	1	0807-1009
275	BOOT; ROD END,TIE (B)	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE (B)	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0807-1107
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X20,M10X26 L=56	8-98010-334-0	04	1	1108-
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0807-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0807-1107
313	STUD; TIE ROD ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M22X145	1-09300-127-1	04	1	1108-

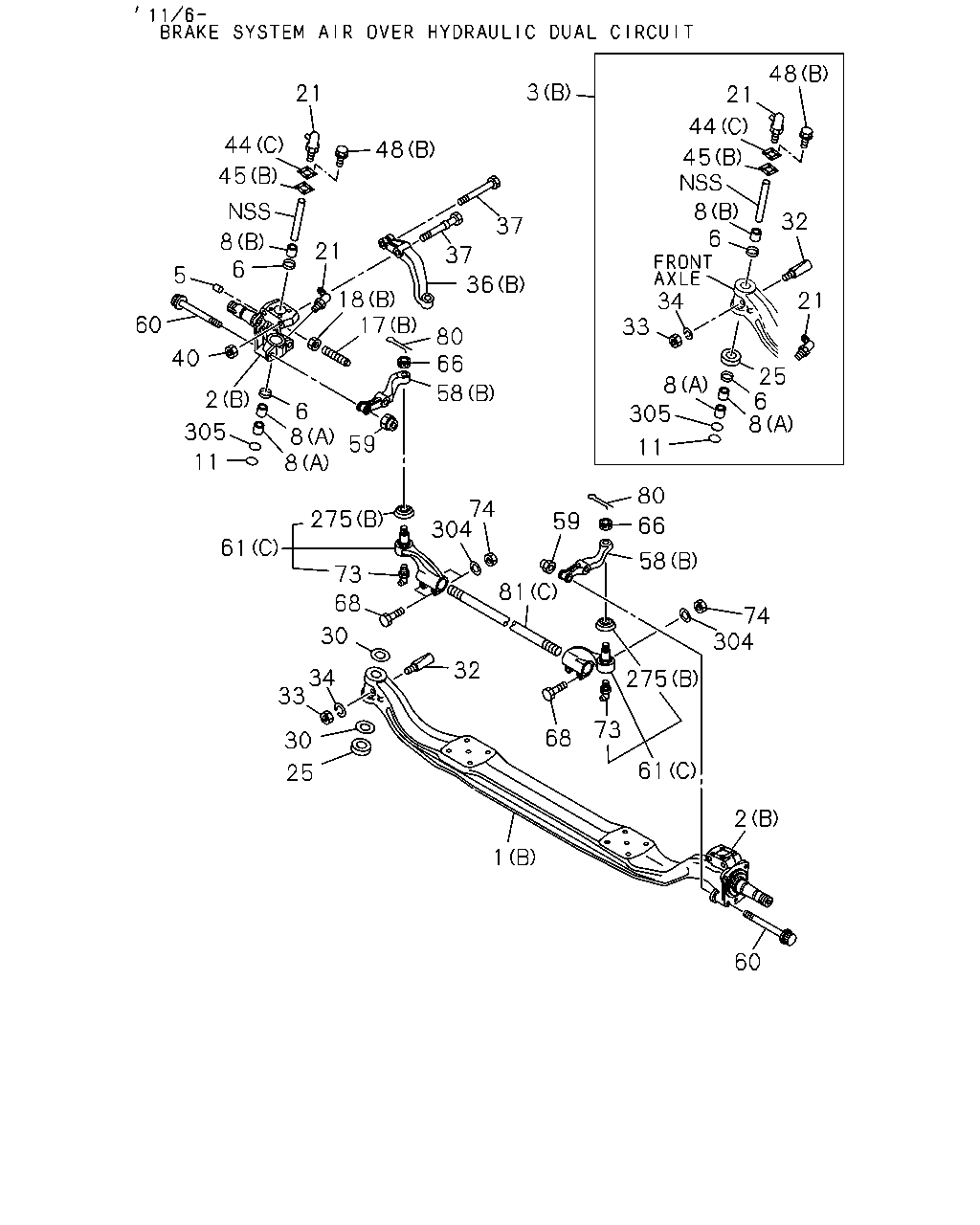

48 3 21 21 44 44 48 45 45 8 6 34 33 32 37 8 6 21 37 5 36 18 17 21 60 80 66 40 25 6 8 8 58 2 6 8 8 305 305 59 11 11 80 74 304 275 59 66 61 58 1 73 68 74 304 30 32 34 33 275 30 73 68 61 25 2 1 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43111-113-6	01	1	1108-
1	AXLE; FRT (A)	8-98061-842-2	01	1	0807-1102
1	AXLE; FRT (A)	8-98170-180-2	01	1	1103-1107
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98170-180-2	01	1	1108-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43131-079-1	01	1	1108-1412
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-705-0	01	1	1501-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43132-079-1	01	1	1108-1412
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-706-0	01	1	1501-
2	KNUCKLE; FRT AXLE (A)	1-43131-118-1	01	1	0807-1107
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43131-118-1	01	1	1108-1412
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-703-0	01	1	1501-
2	KNUCKLE; FRT AXLE (A)	1-43132-101-1	01	1	0807-1107
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43132-101-1	01	1	1108-1412
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-704-0	01	1	1501-
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-87831-412-1	02	1	1108-
3	KING PIN SET (A)	1-87831-349-1	02	1	0807-1102
3	KING PIN SET (A)	1-87831-410-1	02	1	1103-1107
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-87831-410-1	02	1	1108-
5	PIN; KNUCKLE TO DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-09740-072-0	02	1	1108-
6	SEAL; KING PIN	9-09926-024-0	04	1	0807-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0807-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0807-
11	RING; SNAP,KNUCKLE PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	9-09950-204-0	02	1	1108-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	0807-1107
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M18X53	1-09009-066-0	01	1	1108-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0807-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18 THA	0-91110-518-0	02	1	0807-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0807-1107
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) OCTAGON M18	1-09469-011-1	01	1	1108-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES THA	0-90301-510-0	04	1	0807-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0807-
30	WASHER; THRUST,KING PIN T=4.875 -4.900 THA	1-43171-185-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=4.900 -4.925 THA	1-43171-186-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=4.925 -4.950 THA	1-43171-187-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=4.950 -4.975 THA	1-43171-188-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.075 -5.100 THA	1-43171-193-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.100 -5.125 THA	1-43171-194-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.125 -5.150 THA	1-43171-195-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.150 -5.175 THA	1-43171-196-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.175 -5.200 THA	1-43171-197-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.200 -5.225 THA	1-43171-198-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.225 -5.250 THA	1-43171-199-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0807-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0807-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0807-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0807-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0807-
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	0807-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0807-1102
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-810-0	02	1	1103-
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43133-063-3	01	1	1108-1412
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-707-0	01	1	1501-
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	0807-1107
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43133-073-3	01	1	1108-1412
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-710-0	01	1	1501-
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M22X179	8-98052-380-1	01	1	1108-
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M22X167	8-98052-381-1	01	1	1108-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0807-
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	1-43175-014-1	02	1	1108-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	0807-1107
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98100-654-0	02	1	1108-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	0807-1107
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98100-655-0	02	1	1108-
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-42319-044-0	02	1	1108-
45	GASKET; KING PIN COVER (A)	8-98100-656-1	04	1	0807-1107
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98100-656-1	04	1	1108-
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M12X16 FLANGE	0-28051-216-0	08	1	1108-
48	BOLT; COVER (A) M10X25 FLANGE THA	0-28751-025-0	12	1	0807-1107
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M10X25 FLANGE THA	0-28751-025-0	12	1	1108-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43134-042-3	01	1	1108-1412
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-711-0	01	1	1501-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43135-042-3	01	1	1108-1412
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-712-0	01	1	1501-
58	ARM; TIE ROD (A)	1-43134-049-4	01	1	0807-1107
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43134-049-4	01	1	1108-1412
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-713-0	01	1	1501-
58	ARM; TIE ROD (A)	1-43135-049-4	01	1	0807-1107
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43135-049-4	01	1	1108-1412
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-714-0	01	1	1501-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0807-
60	BOLT; TIE ROD ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M22X193	8-98052-379-1	04	1	1108-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98171-444-0	01	1	1108-1306
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98171-445-0	01	1	1108-1306
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98236-801-0	01	1	1307-
61	ROD END; TIE ROD (A)	8-98054-851-0	01	1	0807-1009
61	ROD END; TIE ROD (B)	8-98096-753-0	01	1	1010-1107
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98096-753-0	01	1	1108-1306
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD (A)	8-98054-853-0	01	1	0807-1009
61	ROD END; TIE ROD (B)	8-98096-754-0	01	1	1010-1107
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98096-754-0	01	1	1108-1306
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0807-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0807-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12 THA	0-91110-512-0	04	1	0807-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0807-
275	BOOT; ROD END,TIE (A)	1-43159-107-0	02	1	0807-1009
275	BOOT; ROD END,TIE (B)	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE (B)	8-98229-116-0	02	1	1307-
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0807-
305	COVER; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	8-98052-291-0	02	1	1108-

2 33 34 30 1 18 17 313 295 21 48 48 30 25 40 220 36 80 44 66 32 45 58 275 59 80 68 59 66 313 9 61 8 18 17 58 73 6 81 68 2 304 74 275 17 18 61 74 3 73 21 48 8 304 295 6 8 48 45 44 45 8 6 44 21 48 32 33 34 25 6 8 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43111-113-6	01	1	1108-
1	AXLE; FRT (A)	8-98061-842-2	01	1	0807-1102
1	AXLE; FRT (A)	8-98170-180-2	01	1	1103-1107
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98170-180-2	01	1	1108-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43131-079-1	01	1	1108-1412
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-705-0	01	1	1501-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43132-079-1	01	1	1108-1412
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-706-0	01	1	1501-
2	KNUCKLE; FRT AXLE (A)	1-43131-118-1	01	1	0807-1107
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43131-118-1	01	1	1108-1412
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-703-0	01	1	1501-
2	KNUCKLE; FRT AXLE (A)	1-43132-101-1	01	1	0807-1107
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43132-101-1	01	1	1108-1412
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-704-0	01	1	1501-
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-87831-412-1	02	1	1108-
3	KING PIN SET (A)	1-87831-349-1	02	1	0807-1102
3	KING PIN SET (A)	1-87831-410-1	02	1	1103-1107
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-87831-410-1	02	1	1108-
6	SEAL; KING PIN	9-09926-024-0	04	1	0807-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0807-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0807-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0807-0807
9	PLUG; KNUCKLE EXC. ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	0808-1102
9	PLUG; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	1103-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	0807-1107
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M18X53	1-09009-066-0	01	1	1108-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0807-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18 THA	0-91110-518-0	02	1	0807-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	0807-1107
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) OCTAGON M18	1-09469-011-1	01	1	1108-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES THA	0-90301-510-0	04	1	0807-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0807-
30	WASHER; THRUST,KING PIN T=4.875 -4.900 THA	1-43171-185-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=4.900 -4.925 THA	1-43171-186-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=4.925 -4.950 THA	1-43171-187-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=4.950 -4.975 THA	1-43171-188-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.075 -5.100 THA	1-43171-193-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.100 -5.125 THA	1-43171-194-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.125 -5.150 THA	1-43171-195-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.150 -5.175 THA	1-43171-196-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.175 -5.200 THA	1-43171-197-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.200 -5.225 THA	1-43171-198-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=5.225 -5.250 THA	1-43171-199-0	AR	1	1103-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0807-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0807-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0807-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0807-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0807-
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	0807-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0807-1102
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-810-0	02	1	1103-
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43133-063-3	01	1	1108-1412
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-707-0	01	1	1501-
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	0807-1107
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43133-073-3	01	1	1108-1412
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-710-0	01	1	1501-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0807-
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	1-43175-014-1	02	1	1108-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	0807-1107
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98100-654-0	02	1	1108-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	0807-1107
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98100-655-0	02	1	1108-
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-42319-044-0	02	1	1108-
45	GASKET; KING PIN COVER (A)	8-98100-656-1	04	1	0807-1107
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98100-656-1	04	1	1108-
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M12X16 FLANGE	0-28051-216-0	08	1	1108-
48	BOLT; COVER (A) M10X25 FLANGE THA	0-28751-025-0	12	1	0807-1107
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M10X25 FLANGE THA	0-28751-025-0	12	1	1108-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43134-042-3	01	1	1108-1412
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-711-0	01	1	1501-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-43135-042-3	01	1	1108-1412
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98296-712-0	01	1	1501-
58	ARM; TIE ROD (A)	1-43134-049-4	01	1	0807-1107
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43134-049-4	01	1	1108-1412
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-713-0	01	1	1501-
58	ARM; TIE ROD (A)	1-43135-049-4	01	1	0807-1107
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-43135-049-4	01	1	1108-1412
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98296-714-0	01	1	1501-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0807-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98171-444-0	01	1	1108-1306
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98171-445-0	01	1	1108-1306
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98236-801-0	01	1	1307-
61	ROD END; TIE ROD (A)	8-98054-851-0	01	1	0807-1009
61	ROD END; TIE ROD (B)	8-98096-753-0	01	1	1010-1107
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98096-753-0	01	1	1108-1306
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD (A)	8-98054-853-0	01	1	0807-1009
61	ROD END; TIE ROD (B)	8-98096-754-0	01	1	1010-1107
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98096-754-0	01	1	1108-1306
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0807-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0807-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12 THA	0-91110-512-0	04	1	0807-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0807-
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98172-133-0	01	1	1108-1109
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	8-98193-965-0	01	1	1110-
81	ROD; TIE (A)	1-43151-157-0	01	1	0807-1009
81	ROD; TIE (B)	8-98171-947-0	01	1	1010-1107
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98171-947-0	01	1	1108-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0807-1107
220	STUD; KNUCKLE ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M22X145	1-09300-127-1	02	1	1108-
275	BOOT; ROD END,TIE (A)	1-43159-107-0	02	1	0807-1009
275	BOOT; ROD END,TIE (B)	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE (B)	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0807-1107
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X20,M10X26 L=56	8-98010-334-0	04	1	1108-
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0807-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0807-1107
313	STUD; TIE ROD ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M22X145	1-09300-127-1	04	1	1108-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
