◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-02 - PROPELLER SHAFT GUARD ▶
4-02 — PROPELLER SHAFT GUARD (#12923) — 15 parça

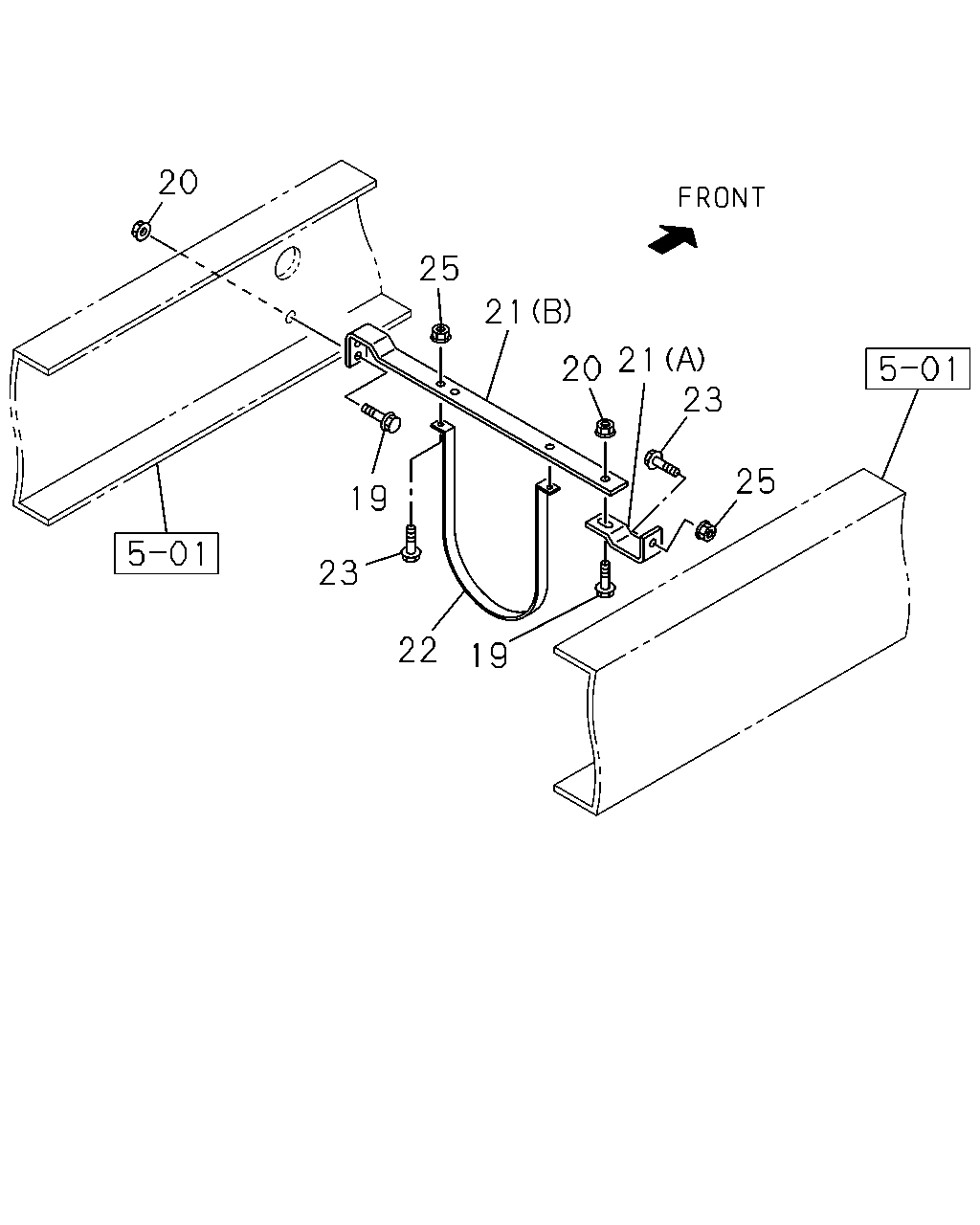

çizim 98396
20 25 21 21 23 20 25 19 23 22 19
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; BRKT,PROP SHAFT GUARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X35 FLANGE THA 		0-28051-035-0 03 1 1108-
19 BOLT; BRKT,PROP SHAFT GUARD
M10X35 FLANGE THA 		0-28051-035-0 02 1 0807-1107
19 BOLT; BRKT,PROP SHAFT GUARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA 		0-28051-035-0 02 1 1108-
20 NUT; BRKT,PROP SHAFT GUARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA 		0-91180-210-0 03 1 1108-
20 NUT; BRKT,PROP SHAFT GUARD
M10 FLANGE THA 		0-91180-210-0 02 1 0807-1107
20 NUT; BRKT,PROP SHAFT GUARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA 		0-91180-210-0 02 1 1108-
21 BRACKET; PROP GUARD
(A) THA 		8-97922-686-0 01 1 0807-
21 BRACKET; PROP GUARD
(B) THA 		8-97922-687-0 01 1 0807-
22 GUARD; PROP SHAFT
MZW6P M/T<RSZ> THA 		8-97923-221-0 01 1 1103-
22 GUARD; PROP SHAFT
THA 		8-97915-120-1 01 1 0807-1102
22 GUARD; PROP SHAFT
ZF9S1110 M/T<Y5E> THA 		8-97915-120-1 01 1 1103-
23 BOLT; GUARD
M10X35 FLANGE THA 		0-28051-035-0 02 1 0807-
23 BOLT; GUARD
M10X35 FLANGE THA 		0-28051-035-0 04 1 0807-
25 NUT; GUARD
M10 FLANGE THA 		0-91180-210-0 02 1 0807-
25 NUT; GUARD
M10 FLANGE THA 		0-91180-210-0 04 1 0807-
