◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#12922) — 1295 parça

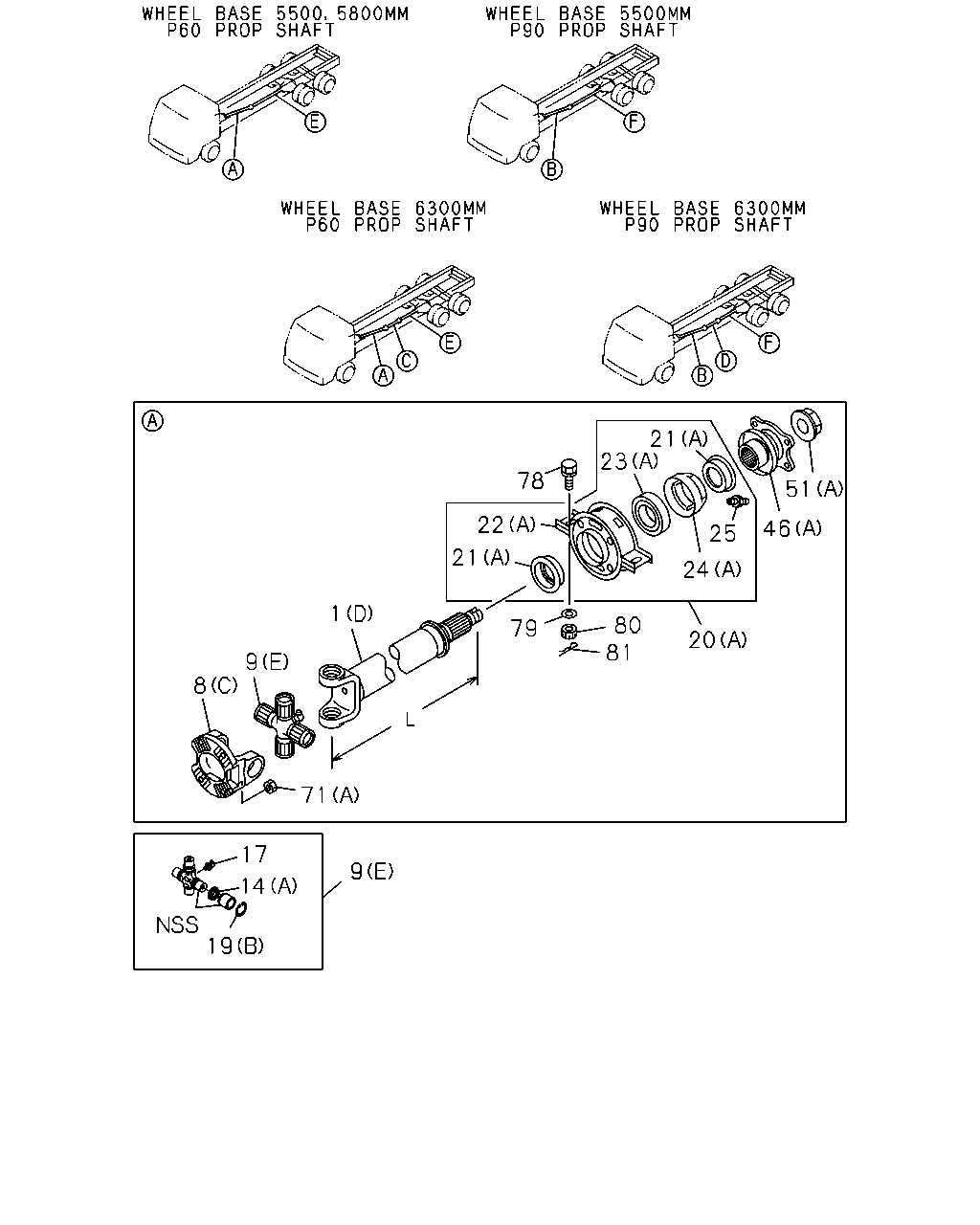

çizim 98197
21 23 51 78 22 46 25 21 24 1 80 81 79 20 9 8 71 17 9 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=784 THA 		1-37124-195-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (H) L=1454 THA 		8-98185-868-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1199 THA 		8-98185-867-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1194 THA 		1-37124-114-0 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=904 THA 		1-37124-613-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 1103- ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=994 		8-98091-269-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (F) L=824 		8-98091-295-0 01 1 0807-1102 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=1039 THA 		1-37124-615-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) L=820 THA 		8-98091-468-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=910 THA 		8-98091-476-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=725 THA 		8-98091-479-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=771 		8-98092-016-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=706 THA 		1-37152-558-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=1053 		1-37152-749-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=976 THA 		1-37153-100-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=911 		1-37152-590-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1459 THA 		8-98167-307-0 01 1 1103- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1110- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 02 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 0807-1102 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 1103- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 0807-1102 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 03 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 0807- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (C) 		8-98092-073-0 01 1 0807-1102 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1103-1109 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 1110- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 0807-1102 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) END THA 		1-37300-110-0 02 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-095-1 AR 1 0807-1102 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 5500MM 1ST,6300MM 2ND THA 		1-37300-111-0 01 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 1ST THA 		1-37300-110-0 01 1 0807-1505 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (E) 		1-37300-108-0 01 1 0807-1102 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 1110- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 12 1 0807- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 08 1 0807- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 0807-1102 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 1103- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 0807-1102 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 0807- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 0807-1109 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ● ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0807-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1103-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 08 1 0807- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 12 1 0807- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 04 1 0807- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (B) 		1-09587-101-1 04 1 0807-1102 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 0807-1102 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 0807-1102 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1103-1109 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1110- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1110- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 0807- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 0807- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 0807-1102 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 0807-1102 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1103-1109 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1110- ● ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1110- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 0807- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 0807- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 0807- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 0807- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 0807-1102 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 0807-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1103-1109 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1110- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1110- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 0807- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 0807- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 0807-1102 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 0807-1102 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1103-1109 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1110- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1110- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 0807- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 0807- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 0807-1102 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 0807-1102 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1103-1109 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1110- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1110- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 0807- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 0807- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1103-1109 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1103-1109 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 0807-1102 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 0807-1102 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1103-1109 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1110- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1110- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 0807- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 0807- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 0807-1102 ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 0807-1102 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1103-1109 ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1110- ● ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1110- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 0807- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 0807- ●
71 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE 		8-97365-444-0 04 1 0807- ● ● ● ●
71 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M12 THA 		0-91110-512-0 04 1 0807-1102 ● ● ●
71 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE 		1-09449-065-0 04 1 1103- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0807-1102 ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1103- ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0807-1102 ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1103- ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0807-1102 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1103-1204 ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0807-1102 ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1103- ● ● ● ●

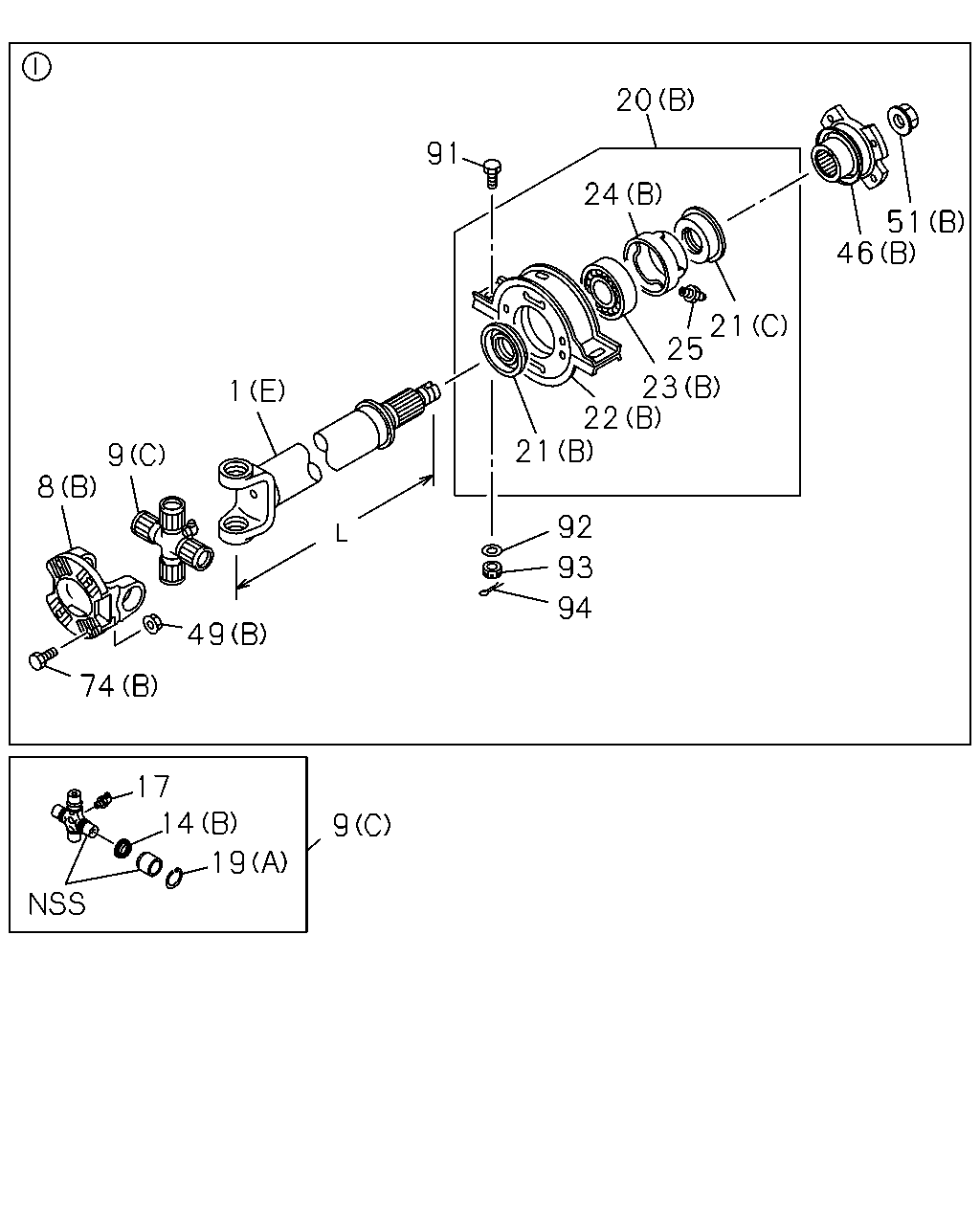

çizim 98263
20 91 24 51 46 21 25 23 22 21 1 9 8 92 93 94 49 74 17 14 9 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=784 THA 		1-37124-195-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (H) L=1454 THA 		8-98185-868-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1199 THA 		8-98185-867-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1194 THA 		1-37124-114-0 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=904 THA 		1-37124-613-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 1103- ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=994 		8-98091-269-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (F) L=824 		8-98091-295-0 01 1 0807-1102 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=1039 THA 		1-37124-615-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) L=820 THA 		8-98091-468-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=910 THA 		8-98091-476-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=725 THA 		8-98091-479-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=771 		8-98092-016-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=706 THA 		1-37152-558-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=1053 		1-37152-749-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=976 THA 		1-37153-100-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=911 		1-37152-590-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1459 THA 		8-98167-307-0 01 1 1103- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1110- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 02 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 0807-1102 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 1103- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 0807-1102 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 03 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 0807- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (C) 		8-98092-073-0 01 1 0807-1102 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1103-1109 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 1110- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 0807-1102 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) END THA 		1-37300-110-0 02 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-095-1 AR 1 0807-1102 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 5500MM 1ST,6300MM 2ND THA 		1-37300-111-0 01 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 1ST THA 		1-37300-110-0 01 1 0807-1505 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (E) 		1-37300-108-0 01 1 0807-1102 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 1110- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 12 1 0807- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 08 1 0807- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 0807-1102 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 1103- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 0807-1102 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 0807- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 0807-1109 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ● ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0807-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1103-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 08 1 0807- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 12 1 0807- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 04 1 0807- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (B) 		1-09587-101-1 04 1 0807-1102 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 0807-1102 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 0807-1102 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1103-1109 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1110- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1110- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 0807- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 0807- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 0807-1102 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 0807-1102 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1103-1109 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1110- ● ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1110- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 0807- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 0807- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 0807- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 0807- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 0807-1102 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 0807-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1103-1109 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1110- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1110- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 0807- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 0807- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 0807-1102 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 0807-1102 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1103-1109 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1110- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1110- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 0807- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 0807- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 0807-1102 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 0807-1102 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1103-1109 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1110- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1110- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 0807- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 0807- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1103-1109 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1103-1109 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 0807-1102 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 0807-1102 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1103-1109 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1110- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1110- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 0807- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 0807- ●
49 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE 		1-09449-065-0 04 1 1110- ●
49 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE 		1-09449-065-0 04 1 0807-1102 ●
49 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE 		8-97365-444-0 04 1 0807- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 0807-1102 ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 0807-1102 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1103-1109 ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1110- ● ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1110- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 0807- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 0807- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 04 1 1110- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 08 1 0807- ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 		1-09000-645-0 08 1 0807- ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 04 1 0807-1102 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 		1-09000-645-0 04 1 0807- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0807-1102 ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16X45 		1-09042-030-0 02 1 1103-1109 ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16X45 		1-09042-030-0 02 1 1110- ●
91 BOLT; HOLDER SET,CTR BRG
P60 PROP SHAFT<C2M> M16X45 		1-09042-030-0 02 1 1110- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0807-1102 ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> ID=17 		1-09503-241-1 02 1 1103-1109 ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> ID=17 		1-09503-241-1 02 1 1110- ●
92 WASHER; LK,HOLDER SET,CTR BRG
P60 PROP SHAFT<C2M> ID=17 		1-09503-241-1 02 1 1110- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0807-1102 ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16 SLOTTED 		0-91116-516-0 02 1 1103-1109 ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16 SLOTTED 		0-91116-516-0 02 1 1110-1204 ●
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT<C2M> M16 SLOTTED 		0-91116-516-0 02 1 1110-1204 ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT<C2M> M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0807-1102 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT<C5T> OD=3.7 L=25 		0-81124-025-0 02 1 1103-1109 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT<C5T> OD=3.7 L=25 		0-81124-025-0 02 1 1110- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P60 PROP SHAFT<C2M> OD=3.7 L=25 		0-81124-025-0 02 1 1110- ●

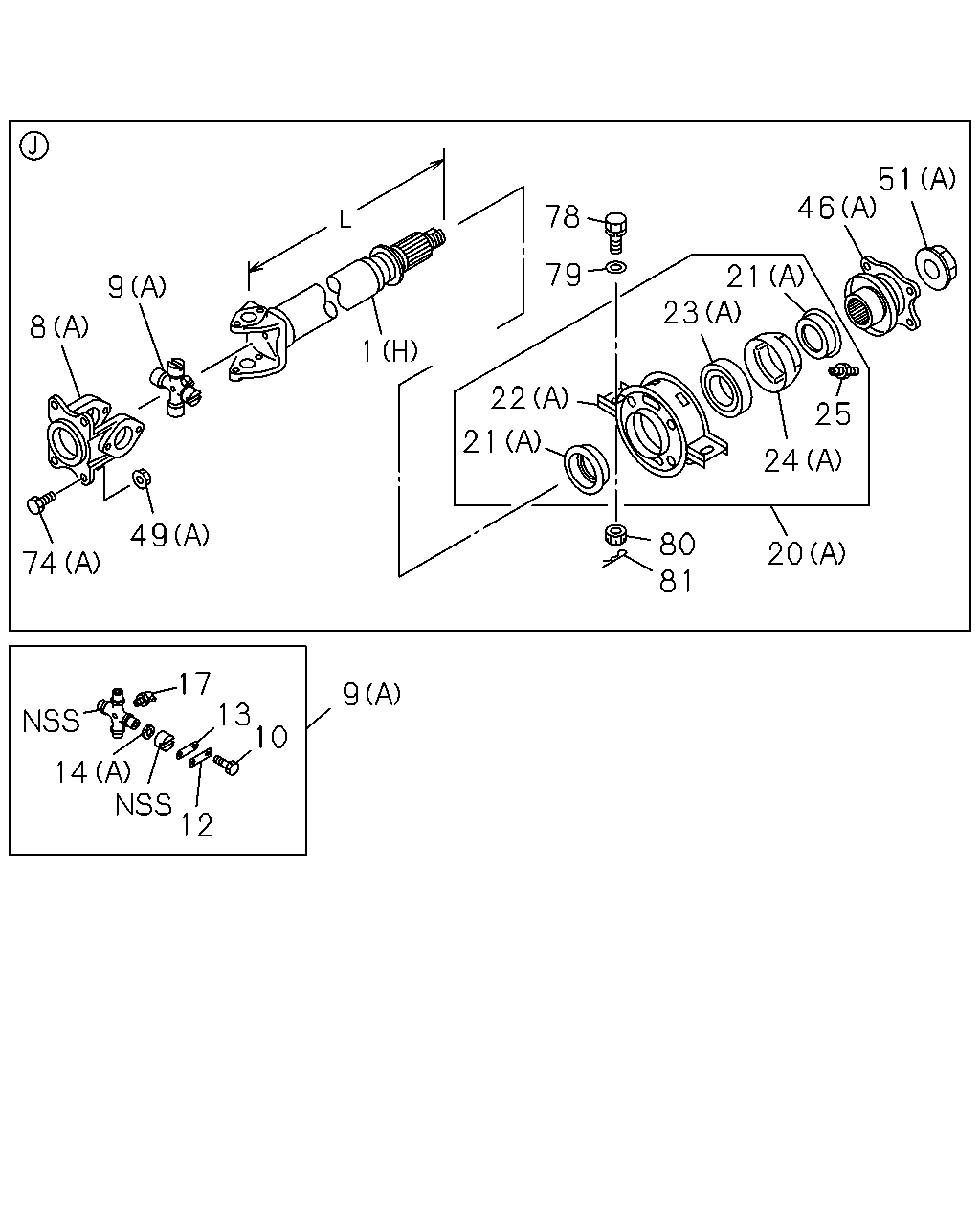

çizim 98316
51 46 78 79 21 23 9 8 1 22 25 21 24 49 80 81 20 74 17 13 10 9 14 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=784 THA 		1-37124-195-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (H) L=1454 THA 		8-98185-868-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1199 THA 		8-98185-867-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1194 THA 		1-37124-114-0 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=904 THA 		1-37124-613-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 1103- ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=994 		8-98091-269-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (F) L=824 		8-98091-295-0 01 1 0807-1102 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=1039 THA 		1-37124-615-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) L=820 THA 		8-98091-468-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=910 THA 		8-98091-476-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=725 THA 		8-98091-479-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=771 		8-98092-016-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=706 THA 		1-37152-558-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=1053 		1-37152-749-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=976 THA 		1-37153-100-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=911 		1-37152-590-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1459 THA 		8-98167-307-0 01 1 1103- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1110- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 02 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 0807-1102 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 1103- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 0807-1102 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 03 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 0807- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (C) 		8-98092-073-0 01 1 0807-1102 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1103-1109 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 1110- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 0807-1102 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) END THA 		1-37300-110-0 02 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-095-1 AR 1 0807-1102 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 5500MM 1ST,6300MM 2ND THA 		1-37300-111-0 01 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 1ST THA 		1-37300-110-0 01 1 0807-1505 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (E) 		1-37300-108-0 01 1 0807-1102 ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1202- ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1110- ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 16 1 0807-1102 ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 16 1 1103- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 24 1 0807-1102 ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1103-1109 ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 24 1 1110- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 08 1 1110- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 0807-1102 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1103-1109 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1103-1109 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1110- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1110- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 08 1 0807-1102 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 08 1 1110- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 0807-1102 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1103-1109 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1103-1109 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1110- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1110- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 08 1 0807-1102 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 1110- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 12 1 0807- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 08 1 0807- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 0807-1102 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 1103- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 0807-1102 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 0807- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 0807-1109 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ● ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0807-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1103-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 0807-1102 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 0807-1102 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1103-1109 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1110- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1110- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 0807- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 0807- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 0807-1102 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 0807-1102 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1103-1109 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1110- ● ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1110- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 0807- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 0807- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 0807- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 0807- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 0807-1102 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 0807-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1103-1109 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1110- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1110- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 0807- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 0807- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 0807-1102 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 0807-1102 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1103-1109 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1110- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1110- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 0807- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 0807- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 0807-1102 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 0807-1102 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1103-1109 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1110- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1110- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 0807- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 0807- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1103-1109 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1103-1109 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 0807-1102 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 0807-1102 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1103-1109 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1110- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1110- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 0807- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 0807- ●
49 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE 		1-09449-065-0 04 1 1110- ●
49 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE 		1-09449-065-0 04 1 0807-1102 ●
49 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE 		8-97365-444-0 04 1 0807- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 0807-1102 ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 0807-1102 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1103-1109 ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1110- ● ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1110- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 0807- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 0807- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 04 1 1110- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 08 1 0807- ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 		1-09000-645-0 08 1 0807- ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 04 1 0807-1102 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 		1-09000-645-0 04 1 0807- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0807-1102 ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1103- ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0807-1102 ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1103- ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0807-1102 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1103-1204 ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0807-1102 ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1103- ● ● ● ●

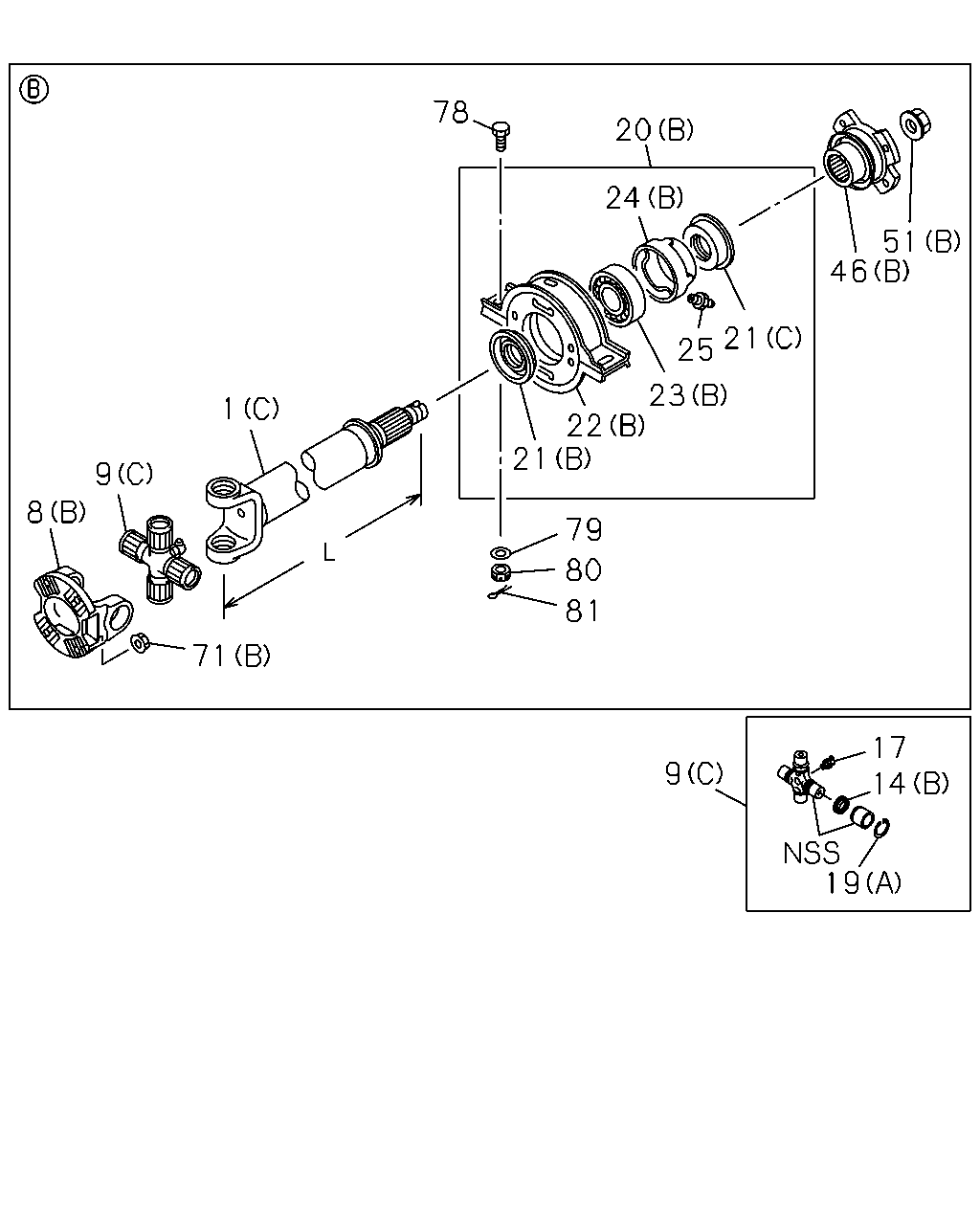

çizim 98347
78 20 24 51 46 21 25 23 22 21 1 9 8 79 80 81 71 17 14 9 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=784 THA 		1-37124-195-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (H) L=1454 THA 		8-98185-868-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1199 THA 		8-98185-867-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1194 THA 		1-37124-114-0 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=904 THA 		1-37124-613-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 1103- ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=994 		8-98091-269-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (F) L=824 		8-98091-295-0 01 1 0807-1102 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=1039 THA 		1-37124-615-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) L=820 THA 		8-98091-468-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=910 THA 		8-98091-476-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=725 THA 		8-98091-479-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=771 		8-98092-016-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=706 THA 		1-37152-558-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=1053 		1-37152-749-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=976 THA 		1-37153-100-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=911 		1-37152-590-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1459 THA 		8-98167-307-0 01 1 1103- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1110- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 02 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 0807-1102 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 1103- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 0807-1102 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 03 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 0807- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (C) 		8-98092-073-0 01 1 0807-1102 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1103-1109 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 1110- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 0807-1102 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) END THA 		1-37300-110-0 02 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-095-1 AR 1 0807-1102 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 5500MM 1ST,6300MM 2ND THA 		1-37300-111-0 01 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 1ST THA 		1-37300-110-0 01 1 0807-1505 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (E) 		1-37300-108-0 01 1 0807-1102 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 1110- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 12 1 0807- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 08 1 0807- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 0807-1102 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 1103- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 0807-1102 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 0807- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 0807-1109 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ● ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0807-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1103-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 08 1 0807- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 12 1 0807- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 04 1 0807- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (B) 		1-09587-101-1 04 1 0807-1102 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 0807-1102 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 0807-1102 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1103-1109 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1110- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1110- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 0807- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 0807- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 0807-1102 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 0807-1102 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1103-1109 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1110- ● ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1110- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 0807- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 0807- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 0807- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 0807- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 0807-1102 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 0807-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1103-1109 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1110- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1110- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 0807- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 0807- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 0807-1102 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 0807-1102 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1103-1109 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1110- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1110- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 0807- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 0807- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 0807-1102 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 0807-1102 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1103-1109 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1110- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1110- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 0807- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 0807- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1103-1109 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1103-1109 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 0807-1102 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 0807-1102 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1103-1109 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1110- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1110- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 0807- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 0807- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 0807-1102 ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 0807-1102 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1103-1109 ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1110- ● ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1110- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 0807- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 0807- ●
71 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE 		8-97365-444-0 04 1 0807- ● ● ● ●
71 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M12 THA 		0-91110-512-0 04 1 0807-1102 ● ● ●
71 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE 		1-09449-065-0 04 1 1103- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0807-1102 ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1103- ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0807-1102 ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1103- ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0807-1102 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1103-1204 ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0807-1102 ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1103- ● ● ● ●
çizim 98448
20 78 24 51 46 21 25 23 22 21 1 9 8 79 80 81 71 17 9 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=784 THA 		1-37124-195-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (H) L=1454 THA 		8-98185-868-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1199 THA 		8-98185-867-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1194 THA 		1-37124-114-0 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=904 THA 		1-37124-613-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 1103- ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=994 		8-98091-269-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (F) L=824 		8-98091-295-0 01 1 0807-1102 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=1039 THA 		1-37124-615-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) L=820 THA 		8-98091-468-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=910 THA 		8-98091-476-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=725 THA 		8-98091-479-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=771 		8-98092-016-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=706 THA 		1-37152-558-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=1053 		1-37152-749-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=976 THA 		1-37153-100-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=911 		1-37152-590-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1459 THA 		8-98167-307-0 01 1 1103- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1110- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 02 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 0807-1102 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 1103- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 0807-1102 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 03 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 0807- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (C) 		8-98092-073-0 01 1 0807-1102 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1103-1109 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 1110- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 0807-1102 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) END THA 		1-37300-110-0 02 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-095-1 AR 1 0807-1102 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 5500MM 1ST,6300MM 2ND THA 		1-37300-111-0 01 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 1ST THA 		1-37300-110-0 01 1 0807-1505 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (E) 		1-37300-108-0 01 1 0807-1102 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 1110- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 12 1 0807- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 08 1 0807- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 0807-1102 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 1103- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 0807-1102 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 0807- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 0807-1109 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ● ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0807-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1103-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 08 1 0807- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 12 1 0807- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 04 1 0807- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (B) 		1-09587-101-1 04 1 0807-1102 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 0807-1102 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 0807-1102 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1103-1109 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1110- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1110- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 0807- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 0807- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 0807-1102 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 0807-1102 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1103-1109 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1110- ● ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1110- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 0807- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 0807- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 0807- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 0807- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 0807-1102 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 0807-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1103-1109 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1110- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1110- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 0807- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 0807- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 0807-1102 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 0807-1102 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1103-1109 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1110- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1110- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 0807- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 0807- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 0807-1102 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 0807-1102 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1103-1109 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1110- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1110- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 0807- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 0807- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1103-1109 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1103-1109 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 0807-1102 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 0807-1102 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1103-1109 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1110- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1110- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 0807- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 0807- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 0807-1102 ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 0807-1102 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1103-1109 ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1110- ● ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1110- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 0807- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 0807- ●
71 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE 		8-97365-444-0 04 1 0807- ● ● ● ●
71 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M12 THA 		0-91110-512-0 04 1 0807-1102 ● ● ●
71 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE 		1-09449-065-0 04 1 1103- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0807-1102 ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1103- ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0807-1102 ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1103- ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0807-1102 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1103-1204 ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0807-1102 ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1103- ● ● ● ●
çizim 98481
51 46 78 79 21 23 9 8 1 22 25 21 24 71 80 81 20 17 13 10 9 14 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=784 THA 		1-37124-195-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (H) L=1454 THA 		8-98185-868-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1199 THA 		8-98185-867-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1194 THA 		1-37124-114-0 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=904 THA 		1-37124-613-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 1103- ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=994 		8-98091-269-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (F) L=824 		8-98091-295-0 01 1 0807-1102 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=1039 THA 		1-37124-615-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) L=820 THA 		8-98091-468-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=910 THA 		8-98091-476-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=725 THA 		8-98091-479-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=771 		8-98092-016-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=706 THA 		1-37152-558-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=1053 		1-37152-749-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=976 THA 		1-37153-100-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=911 		1-37152-590-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1459 THA 		8-98167-307-0 01 1 1103- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1110- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 02 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 0807-1102 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 1103- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 0807-1102 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 03 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 0807- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (C) 		8-98092-073-0 01 1 0807-1102 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1103-1109 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 1110- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 0807-1102 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) END THA 		1-37300-110-0 02 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-095-1 AR 1 0807-1102 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 5500MM 1ST,6300MM 2ND THA 		1-37300-111-0 01 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 1ST THA 		1-37300-110-0 01 1 0807-1505 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (E) 		1-37300-108-0 01 1 0807-1102 ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1202- ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1110- ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 16 1 0807-1102 ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 16 1 1103- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 24 1 0807-1102 ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1103-1109 ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 24 1 1110- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 08 1 1110- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 0807-1102 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1103-1109 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1103-1109 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1110- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1110- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 08 1 0807-1102 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 08 1 1110- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 0807-1102 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1103-1109 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1103-1109 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1110- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1110- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 08 1 0807-1102 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 1110- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 12 1 0807- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 08 1 0807- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 0807-1102 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 1103- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 0807-1102 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 0807- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 0807-1109 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ● ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0807-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1103-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 0807-1102 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 0807-1102 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1103-1109 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1110- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1110- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 0807- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 0807- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 0807-1102 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 0807-1102 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1103-1109 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1110- ● ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1110- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 0807- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 0807- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 0807- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 0807- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 0807-1102 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 0807-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1103-1109 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1110- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1110- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 0807- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 0807- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 0807-1102 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 0807-1102 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1103-1109 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1110- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1110- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 0807- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 0807- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 0807-1102 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 0807-1102 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1103-1109 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1110- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1110- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 0807- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 0807- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1103-1109 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1103-1109 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 0807-1102 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 0807-1102 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1103-1109 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1110- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1110- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 0807- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 0807- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 0807-1102 ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 0807-1102 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1103-1109 ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1110- ● ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1110- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 0807- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 0807- ●
71 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE 		8-97365-444-0 04 1 0807- ● ● ● ●
71 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M12 THA 		0-91110-512-0 04 1 0807-1102 ● ● ●
71 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE 		1-09449-065-0 04 1 1103- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0807-1102 ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1103- ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0807-1102 ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1103- ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0807-1102 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1103-1204 ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0807-1102 ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1103- ● ● ● ●
çizim 106952
51 46 91 20 92 9 21 23 8 1 22 25 21 24 74 93 94 49 20 21 24 91 51 46 25 23 22 21 1 9 8 92 93 94 49 74 17 17 14 9 12 10 9 19 14 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=784 THA 		1-37124-195-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (H) L=1454 THA 		8-98185-868-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1199 THA 		8-98185-867-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1194 THA 		1-37124-114-0 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=904 THA 		1-37124-613-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 1103- ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=994 		8-98091-269-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (F) L=824 		8-98091-295-0 01 1 0807-1102 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=1039 THA 		1-37124-615-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) L=820 THA 		8-98091-468-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=910 THA 		8-98091-476-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=725 THA 		8-98091-479-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=771 		8-98092-016-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=706 THA 		1-37152-558-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=1053 		1-37152-749-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=976 THA 		1-37153-100-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=911 		1-37152-590-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1459 THA 		8-98167-307-0 01 1 1103- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1110- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 02 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 0807-1102 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 1103- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 0807-1102 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 03 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 0807- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (C) 		8-98092-073-0 01 1 0807-1102 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1103-1109 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 1110- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 0807-1102 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) END THA 		1-37300-110-0 02 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-095-1 AR 1 0807-1102 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 5500MM 1ST,6300MM 2ND THA 		1-37300-111-0 01 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 1ST THA 		1-37300-110-0 01 1 0807-1505 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (E) 		1-37300-108-0 01 1 0807-1102 ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1202- ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1110- ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 16 1 0807-1102 ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 16 1 1103- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 24 1 0807-1102 ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1103-1109 ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 24 1 1110- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 08 1 1110- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 0807-1102 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1103-1109 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1103-1109 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1110- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1110- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 08 1 0807-1102 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 08 1 1110- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 0807-1102 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1103-1109 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1103-1109 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1110- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1110- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 08 1 0807-1102 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 1110- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 12 1 0807- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 08 1 0807- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 0807-1102 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 1103- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 0807-1102 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 0807- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 0807-1109 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ● ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0807-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1103-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 08 1 0807- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 12 1 0807- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 04 1 0807- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (B) 		1-09587-101-1 04 1 0807-1102 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 0807-1102 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 0807-1102 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1103-1109 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1110- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1110- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 0807- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 0807- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 0807-1102 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 0807-1102 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1103-1109 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1110- ● ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1110- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 0807- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 0807- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 0807- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 0807- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 0807-1102 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 0807-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1103-1109 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1110- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1110- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 0807- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 0807- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 0807-1102 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 0807-1102 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1103-1109 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1110- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1110- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 0807- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 0807- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 0807-1102 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 0807-1102 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1103-1109 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1110- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1110- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 0807- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 0807- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1102 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1103-1109 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1103-1109 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 0807-1102 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 0807-1102 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1103-1109 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1110- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1110- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 0807- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 0807- ●
49 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE 		1-09449-065-0 04 1 1110- ●
49 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE 		1-09449-065-0 04 1 0807-1102 ●
49 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE 		8-97365-444-0 04 1 0807- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 0807-1102 ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 0807-1102 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1103-1109 ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1110- ● ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1110- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 0807- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 0807- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 04 1 1110- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 08 1 0807- ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 		1-09000-645-0 08 1 0807- ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 04 1 0807-1102 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 		1-09000-645-0 04 1 0807- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0807-1102 ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16X45 		1-09042-030-0 02 1 1103-1109 ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16X45 		1-09042-030-0 02 1 1110- ●
91 BOLT; HOLDER SET,CTR BRG
P60 PROP SHAFT<C2M> M16X45 		1-09042-030-0 02 1 1110- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0807-1102 ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> ID=17 		1-09503-241-1 02 1 1103-1109 ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> ID=17 		1-09503-241-1 02 1 1110- ●
92 WASHER; LK,HOLDER SET,CTR BRG
P60 PROP SHAFT<C2M> ID=17 		1-09503-241-1 02 1 1110- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0807-1102 ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16 SLOTTED 		0-91116-516-0 02 1 1103-1109 ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16 SLOTTED 		0-91116-516-0 02 1 1110-1204 ●
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT<C2M> M16 SLOTTED 		0-91116-516-0 02 1 1110-1204 ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT<C2M> M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0807-1102 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT<C5T> OD=3.7 L=25 		0-81124-025-0 02 1 1103-1109 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT<C5T> OD=3.7 L=25 		0-81124-025-0 02 1 1110- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P60 PROP SHAFT<C2M> OD=3.7 L=25 		0-81124-025-0 02 1 1110- ●
çizim 107014
8 74 107 56 9 1 9 128 8 106 106 74 104 56 225 9 56 74 1 8 128 225 104 9 8 74 106 56 17 12 17 83 10 9 9 14 14 13 19 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=784 THA 		1-37124-195-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (H) L=1454 THA 		8-98185-868-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1199 THA 		8-98185-867-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1194 THA 		1-37124-114-0 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=904 THA 		1-37124-613-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 1103- ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=994 		8-98091-269-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (F) L=824 		8-98091-295-0 01 1 0807-1102 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=1039 THA 		1-37124-615-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) L=820 THA 		8-98091-468-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=910 THA 		8-98091-476-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=725 THA 		8-98091-479-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=771 		8-98092-016-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=706 THA 		1-37152-558-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=1053 		1-37152-749-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=976 THA 		1-37153-100-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=911 		1-37152-590-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1459 THA 		8-98167-307-0 01 1 1103- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1110- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 02 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 0807-1102 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 1103- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 0807-1102 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 03 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 0807- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (C) 		8-98092-073-0 01 1 0807-1102 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1103-1109 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 1110- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 0807-1102 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) END THA 		1-37300-110-0 02 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-095-1 AR 1 0807-1102 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 5500MM 1ST,6300MM 2ND THA 		1-37300-111-0 01 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 1ST THA 		1-37300-110-0 01 1 0807-1505 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (E) 		1-37300-108-0 01 1 0807-1102 ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1202- ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1110- ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 16 1 0807-1102 ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 16 1 1103- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 24 1 0807-1102 ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1103-1109 ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 24 1 1110- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 08 1 1110- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 0807-1102 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1103-1109 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1103-1109 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1110- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1110- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 08 1 0807-1102 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 08 1 1110- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 0807-1102 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1103-1109 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1103-1109 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1110- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1110- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 08 1 0807-1102 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 1110- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 12 1 0807- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 08 1 0807- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 0807-1102 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 1103- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 0807-1102 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 0807- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 0807-1109 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ● ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0807-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1103-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 08 1 0807- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 12 1 0807- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 04 1 0807- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (B) 		1-09587-101-1 04 1 0807-1102 ● ● ●
56 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE 		1-09449-065-0 08 1 0807- ● ● ● ●
56 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE 		8-97365-444-0 08 1 0807- ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 04 1 1110- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 08 1 0807- ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 		1-09000-645-0 08 1 0807- ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 04 1 0807-1102 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 		1-09000-645-0 04 1 0807- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 0807-1109 ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1110- ● ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 0807-1109 ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1110- ● ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-067-0 01 1 0807-1109 ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT<C2M> THA 		1-09600-067-0 01 1 0807-1109 ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-067-0 01 1 1110- ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT<C2M> THA 		1-09600-067-0 01 1 1110- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M> (B) MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1109 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M> (B) MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 0807-1109 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 0807-1109 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 1110- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 1110- ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT<C2M> THA 		1-37249-137-1 01 1 0807-1109 ● ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT<C2M> THA 		1-37249-137-1 01 1 1110- ● ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT<C2M> (B) THA 		1-37247-021-0 01 1 0807-1109 ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT<C2M> (B) THA 		1-37247-021-0 01 1 1110- ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) THA 		1-37247-019-0 01 1 0807- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) L=332 THA 		1-37241-109-1 01 1 0807-1109 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) L=332 THA 		1-37241-109-1 01 1 1110- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) L=330 THA 		1-37241-124-0 01 1 0807- ● ●
çizim 107135
8 74 107 56 9 1 9 128 8 106 106 74 104 56 225 9 56 74 1 8 128 225 104 9 8 74 106 56 17 12 17 83 10 9 9 14 14 13 19 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=784 THA 		1-37124-195-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (H) L=1454 THA 		8-98185-868-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1199 THA 		8-98185-867-0 01 1 1110- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1194 THA 		1-37124-114-0 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=904 THA 		1-37124-613-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 1103- ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=994 		8-98091-269-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (F) L=824 		8-98091-295-0 01 1 0807-1102 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=1039 THA 		1-37124-615-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) L=820 THA 		8-98091-468-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=910 THA 		8-98091-476-1 01 1 0807- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=725 THA 		8-98091-479-1 01 1 0807- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=771 		8-98092-016-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=706 THA 		1-37152-558-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=1053 		1-37152-749-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=976 THA 		1-37153-100-0 01 1 1103- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=911 		1-37152-590-0 01 1 0807-1102 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (G) L=1459 THA 		8-98167-307-0 01 1 1103- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1110- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 02 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 0807-1102 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 1103- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 0807-1102 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 03 1 0807- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 0807- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (C) 		8-98092-073-0 01 1 0807-1102 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1103-1109 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 03 1 1110- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> THA 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 0807-1102 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1103- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-1 AR 1 1110- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) END THA 		1-37300-110-0 02 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-095-1 AR 1 0807-1102 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 5500MM 1ST,6300MM 2ND THA 		1-37300-111-0 01 1 0807-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (C) 1ST THA 		1-37300-110-0 01 1 0807-1505 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (E) 		1-37300-108-0 01 1 0807-1102 ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1202- ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1110- ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 16 1 0807-1102 ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 16 1 1103- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 24 1 0807-1102 ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1103-1109 ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 24 1 1110- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 08 1 1110- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 0807-1102 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1103-1109 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1103-1109 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1110- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1110- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 08 1 0807-1102 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 08 1 1110- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 0807-1102 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1103-1109 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1103-1109 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1110- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1110- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 08 1 0807-1102 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 1110- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 12 1 0807- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 08 1 0807- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 0807-1102 ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 1103- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 0807-1102 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 0807- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 0807-1109 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 12 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807- ● ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0807-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1103-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1110- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0807-1109 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M> PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1110-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 08 1 0807- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 12 1 0807- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (A) T=2.2 THA 		1-09587-102-1 04 1 0807- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (B) 		1-09587-101-1 04 1 0807-1102 ● ● ●
56 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE 		1-09449-065-0 08 1 0807- ● ● ● ●
56 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE 		8-97365-444-0 08 1 0807- ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 04 1 1110- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 08 1 0807- ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 		1-09000-645-0 08 1 0807- ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 		1-09000-383-0 04 1 0807-1102 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 		1-09000-645-0 04 1 0807- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 0807-1109 ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1110- ● ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 0807-1109 ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1110- ● ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-067-0 01 1 0807-1109 ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT<C2M> THA 		1-09600-067-0 01 1 0807-1109 ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-067-0 01 1 1110- ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT<C2M> THA 		1-09600-067-0 01 1 1110- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M> (B) MT6 STRAIGHT THA 		1-09380-006-0 01 1 0807-1109 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M> (B) MT6 STRAIGHT THA 		1-09380-006-0 01 1 1110- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 0807-1109 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 0807-1109 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 1110- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 1110- ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT<C2M> THA 		1-37249-137-1 01 1 0807-1109 ● ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT<C2M> THA 		1-37249-137-1 01 1 1110- ● ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT<C2M> (B) THA 		1-37247-021-0 01 1 0807-1109 ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT<C2M> (B) THA 		1-37247-021-0 01 1 1110- ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) THA 		1-37247-019-0 01 1 0807- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) L=332 THA 		1-37241-109-1 01 1 0807-1109 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) L=332 THA 		1-37241-109-1 01 1 1110- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) L=330 THA 		1-37241-124-0 01 1 0807- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
