Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#12921) — 282 parça

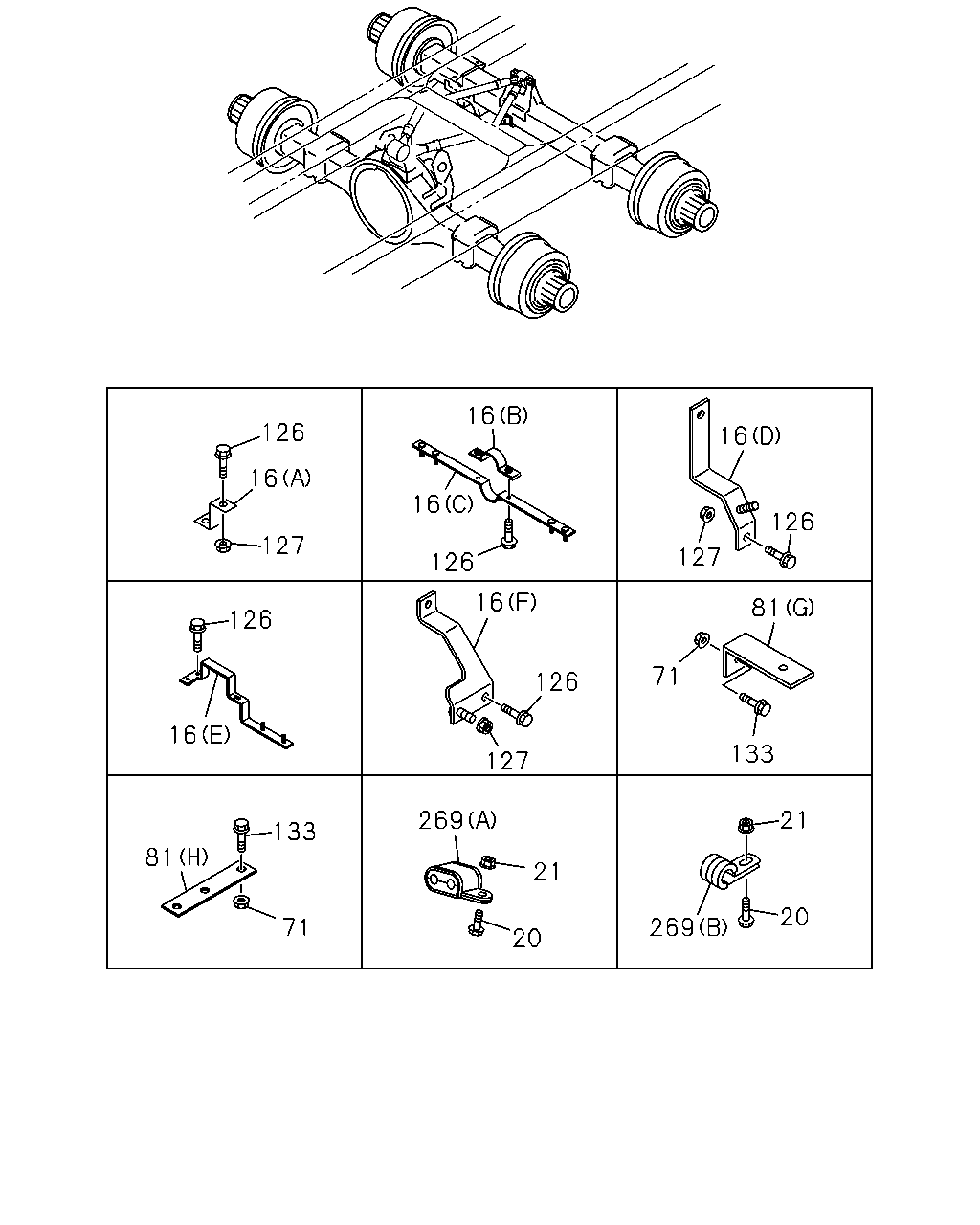

16 126 16 16 16 126 127 127 126 16 81 126 71 126 16 133 127 21 269 133 81 21 20 269 71 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP (A)	1-47475-868-0	01	1	0807-1107
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-47475-868-0	01	1	1108-
16	BRACKET; PIPE CLIP (B)	1-47479-546-0	02	1	0807-1107
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-47479-546-0	02	1	1108-
16	BRACKET; PIPE CLIP (C)	1-47479-720-0	02	1	0807-1107
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C)	1-47479-720-0	02	1	1108-
16	BRACKET; PIPE CLIP (D)	1-47479-815-0	01	1	0807-0808
16	BRACKET; PIPE CLIP (F)	8-98110-074-0	01	1	0809-1107
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F)	8-98110-074-0	01	1	1108-
16	BRACKET; PIPE CLIP (E)	1-47479-901-0	02	1	0807-1107
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E)	1-47479-901-0	02	1	1108-
20	BOLT; CLIP M8X25 FLANGE THA	0-28650-825-0	01	1	0807-1107
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	01	1	1108-
20	BOLT; CLIP M8X10 FLANGE THA	0-28050-810-0	02	1	0807-1107
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8X10 FLANGE THA	0-28050-810-0	02	1	1108-
20	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0807-1107
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA	0-28650-820-0	01	1	1108-
21	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	01	1	1108-
21	NUT; CLIP M8 FLANGE THA	0-91180-108-0	05	1	0807-0807
21	NUT; CLIP M8 FLANGE THA	0-91180-108-0	04	1	0807-1107
21	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	04	1	1108-
71	NUT; BRKT EXC. ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	12	1	0809-0812
71	NUT; BRKT M8 FLANGE THA	0-91180-108-0	12	1	0807-0808
71	NUT; BRKT ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	11	1	0809-0812
71	NUT; BRKT M8 FLANGE THA	0-91180-108-0	11	1	0901-1107
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	11	1	1108-
81	BRACKET; CLIP MZW6P M/T<RSZ> (I) THA	8-98139-765-0	01	1	1103-1107
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (I) THA	8-98139-765-0	01	1	1108-
81	BRACKET; CLIP ZF9S1110 M/T<Y5E> (E) L=100 H=30	1-47477-645-2	04	1	1103-1107
81	BRACKET; CLIP ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) L=100 H=30	1-47477-645-2	04	1	1108-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (G) L=65	1-47477-713-0	01	1	0809-0902
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (G) L=65 B=25	8-98135-584-0	01	1	0903-1107
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) L=65 B=25	8-98135-584-0	01	1	1108-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (H) L=170	1-47479-380-0	01	1	0809-1107
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) L=170	1-47479-380-0	01	1	1108-
81	BRACKET; CLIP EXC. ANTI LOCK BRAKE<JE5> (A)	1-47477-514-3	02	1	0809-1107
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	1-47477-514-3	02	1	1108-
81	BRACKET; CLIP (A)	1-47477-514-3	02	1	0807-0808
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (A)	1-47477-514-3	01	1	0809-0809
81	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	0807-1107
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=150 H=30	1-47477-629-2	01	1	1108-
81	BRACKET; CLIP (E) L=100 H=30	1-47477-645-2	04	1	0807-1102
81	BRACKET; CLIP MZW6P M/T<RSZ> (E) L=100 H=30	1-47477-645-2	03	1	1103-1107
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) L=100 H=30	1-47477-645-2	03	1	1108-
81	BRACKET; CLIP (E) L=225	1-47477-646-3	01	1	0807-0808
81	BRACKET; CLIP EXC. ANTI LOCK BRAKE<JE5> (E) L=225	1-47477-646-3	01	1	0809-1107
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (E) L=225	1-47477-646-3	01	1	1108-
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	0807-1107
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=60 H=30	1-47477-716-1	02	1	1108-
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	0807-1107
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98031-420-2	01	1	1108-
81	BRACKET; CLIP (F)	8-98047-730-0	02	1	0807-1107
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F)	8-98047-730-0	02	1	1108-
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X10 FLANGE THA	0-28050-810-0	04	1	1108-
126	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	0807-1107
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	04	1	1108-
126	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	0807-1107
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	01	1	1108-
126	BOLT; CLIP BRKT M10X35 FLANGE THA	0-28651-035-0	01	1	0807-1107
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	01	1	1108-
127	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	01	1	0807-1107
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	01	1	1108-
127	NUT; CLIP BRKT M10 FLANGE THA	0-91180-210-0	01	1	0807-1107
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	01	1	1108-
133	BOLT; BRKT ZF9S1110 M/T<Y5E> M8X30 FLANGE THA	0-28650-830-0	06	1	1105-1107
133	BOLT; BRKT ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	06	1	1108-
133	BOLT; BRKT ANTI LOCK BRAKE<JE5> M8X25 FLANGE THA	0-28650-825-0	02	1	0809-1102
133	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1103-1107
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	01	1	1108-
133	BOLT; BRKT EXC. ANTI LOCK BRAKE<JE5> M8X25 FLANGE THA	0-28650-825-0	03	1	0809-0812
133	BOLT; BRKT EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	03	1	0901-1102
133	BOLT; BRKT ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	02	1	1103-1107
133	BOLT; BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA	0-28650-820-0	02	1	1108-
133	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	03	1	0807-0808
133	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	0809-1102
133	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1103-1107
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	02	1	1108-
133	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	0807-1102
133	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	06	1	1103-1104
133	BOLT; BRKT MZW6P M/T<RSZ> M8X30 FLANGE THA	0-28650-830-0	05	1	1105-1107
133	BOLT; BRKT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	05	1	1108-
133	BOLT; BRKT M8X35 FLANGE THA	0-28650-835-0	06	1	0807-1102
133	BOLT; BRKT EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	03	1	1103-1107
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	03	1	1108-
269	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	01	1	0809-0812
269	CLIP; BAND,NYLON TUBE (C) L=350	1-09707-183-0	01	1	0901-1107
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=350	1-09707-183-0	01	1	1108-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=20	0-95325-035-0	02	1	0807-1102
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) ID=11X2 L=20	0-95325-035-0	02	1	1103-1107
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A) ID=11X2 L=20	0-95325-035-0	02	1	1108-
269	CLIP; BAND,NYLON TUBE (B) ID=35 L=33	1-09700-945-0	06	1	0807-1107
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=35 L=33	1-09700-945-0	06	1	1108-

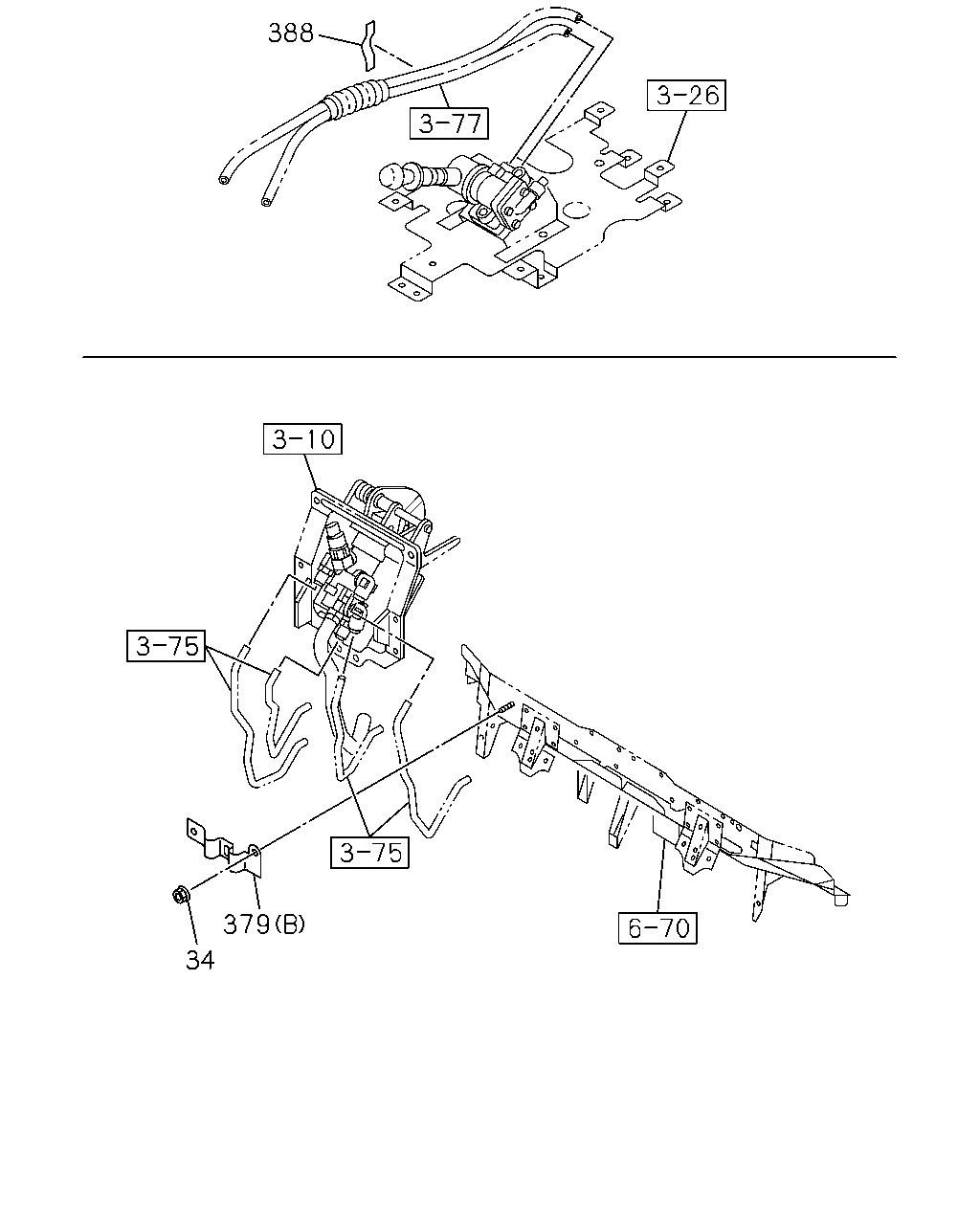

388 379 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M6 FLANGE THA	0-91180-106-0	02	1	1108-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=60 H=30	1-47477-716-1	03	1	1108-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98044-013-0	01	1	1108-
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> 100X40	1-72498-022-1	03	1	0807-1205
388	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> 100X40	1-72498-022-1	03	1	1206-

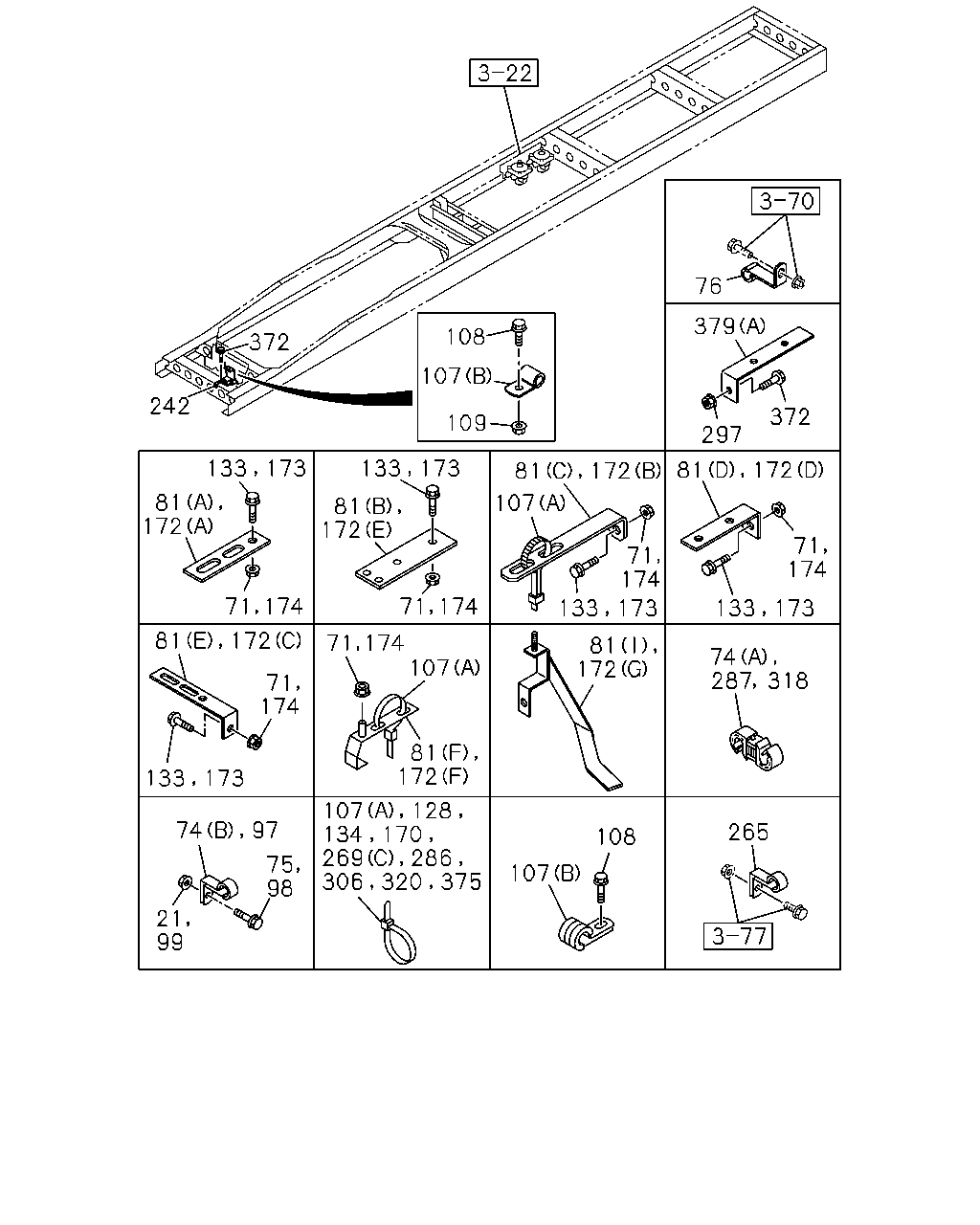

76 379 108 372 107 242 372 109 297 133 173 133 173 81 172 172 81 81 172 107 81 172 71 174 71 174 71 174 71 174 133 173 133 173 81 172 71 174 107 81 172 74 71 174 81 172 133 173 107 128 265 108 75 98 107 21 99 74 97 134 269 306 320 375 286 170 287 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	01	1	1108-
21	NUT; CLIP M8 FLANGE THA	0-91180-108-0	05	1	0807-0807
21	NUT; CLIP M8 FLANGE THA	0-91180-108-0	04	1	0807-1107
21	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	04	1	1108-
71	NUT; BRKT EXC. ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	12	1	0809-0812
71	NUT; BRKT M8 FLANGE THA	0-91180-108-0	12	1	0807-0808
71	NUT; BRKT ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	11	1	0809-0812
71	NUT; BRKT M8 FLANGE THA	0-91180-108-0	11	1	0901-1107
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	11	1	1108-
74	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=13 H=50 L=25	1-09700-529-0	01	1	1108-
74	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) ID=12 & 15	1-09709-281-1	01	1	1108-
74	CLIP; NYLON TUBE (A) ID=12 & 15	1-09709-281-1	01	1	0807-1102
74	CLIP; NYLON TUBE (A) ID=12 & 12	1-09709-280-1	01	1	1103-1107
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) ID=12 & 12	1-09709-280-1	01	1	1108-
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	01	1	1108-
76	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=13 H=50 L=25	1-09700-529-0	01	1	1108-
81	BRACKET; CLIP MZW6P M/T<RSZ> (I) THA	8-98139-765-0	01	1	1103-1107
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (I) THA	8-98139-765-0	01	1	1108-
81	BRACKET; CLIP ZF9S1110 M/T<Y5E> (E) L=100 H=30	1-47477-645-2	04	1	1103-1107
81	BRACKET; CLIP ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) L=100 H=30	1-47477-645-2	04	1	1108-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (G) L=65	1-47477-713-0	01	1	0809-0902
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (G) L=65 B=25	8-98135-584-0	01	1	0903-1107
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) L=65 B=25	8-98135-584-0	01	1	1108-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (H) L=170	1-47479-380-0	01	1	0809-1107
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) L=170	1-47479-380-0	01	1	1108-
81	BRACKET; CLIP EXC. ANTI LOCK BRAKE<JE5> (A)	1-47477-514-3	02	1	0809-1107
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	1-47477-514-3	02	1	1108-
81	BRACKET; CLIP (A)	1-47477-514-3	02	1	0807-0808
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (A)	1-47477-514-3	01	1	0809-0809
81	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	0807-1107
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=150 H=30	1-47477-629-2	01	1	1108-
81	BRACKET; CLIP (E) L=100 H=30	1-47477-645-2	04	1	0807-1102
81	BRACKET; CLIP MZW6P M/T<RSZ> (E) L=100 H=30	1-47477-645-2	03	1	1103-1107
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) L=100 H=30	1-47477-645-2	03	1	1108-
81	BRACKET; CLIP (E) L=225	1-47477-646-3	01	1	0807-0808
81	BRACKET; CLIP EXC. ANTI LOCK BRAKE<JE5> (E) L=225	1-47477-646-3	01	1	0809-1107
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (E) L=225	1-47477-646-3	01	1	1108-
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	0807-1107
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=60 H=30	1-47477-716-1	02	1	1108-
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	0807-1107
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98031-420-2	01	1	1108-
81	BRACKET; CLIP (F)	8-98047-730-0	02	1	0807-1107
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F)	8-98047-730-0	02	1	1108-
97	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	01	1	0807-1107
97	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=11 H=20 L=20	8-98033-780-0	01	1	1108-
98	BOLT; PIPE CLIP M8X30 FLANGE THA	0-28650-830-0	01	1	0807-1107
98	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	01	1	1108-
99	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	01	1	0807-1107
99	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	01	1	1108-
107	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> (B) ID=39 L=33	8-98009-359-0	01	1	0810-1107
107	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=39 L=33	8-98009-359-0	01	1	1108-
107	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (A) L=250	1-09707-126-0	36	1	0810-0812
107	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	37	1	0901-1102
107	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	35	1	1103-1107
107	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	35	1	1108-
107	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (A) L=250	1-09707-126-0	39	1	0810-0812
107	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	40	1	0901-1102
107	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	38	1	1103-1107
107	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) L=350	1-09707-183-0	38	1	1108-
107	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> (B) ID=27 L=26	8-98096-216-0	01	1	0809-0901
107	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> (B) ID=31 L=30	1-09700-969-0	01	1	0902-1107
107	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=31 L=30	1-09700-969-0	01	1	1108-
107	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> (A) L=250	1-09707-126-0	34	1	0807-0808
107	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> (A) L=250	1-09707-126-0	35	1	0809-0809
107	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (A) L=250	1-09707-126-0	37	1	0810-0812
107	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (A) L=250	1-09707-126-0	37	1	0810-0812
107	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	38	1	0901-1102
107	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	38	1	0901-1102
107	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	36	1	1103-1107
107	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	36	1	1103-1107
107	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) L=350	1-09707-183-0	36	1	1108-
107	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	36	1	1108-
107	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> (A) L=250	1-09707-126-0	35	1	0807-0808
107	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> (A) L=250	1-09707-126-0	36	1	0809-0809
107	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (A) L=250	1-09707-126-0	35	1	0810-0812
107	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	36	1	0901-1102
107	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	34	1	1103-1107
107	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	34	1	1108-
107	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> (A) L=250	1-09707-126-0	36	1	0807-0808
107	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> (A) L=250	1-09707-126-0	37	1	0809-0809
107	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (A) L=250	1-09707-126-0	38	1	0810-0812
107	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	39	1	0901-1102
107	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	37	1	1103-1107
107	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) L=350	1-09707-183-0	37	1	1108-
107	CLIP; NYLON TUBE (B) ID=19 L=40	0-95235-876-0	01	1	0807-0808
107	CLIP; NYLON TUBE EXC. ANTI LOCK BRAKE<JE5> (B) ID=19 L=40	0-95235-876-0	01	1	0809-1107
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) ID=19 L=40	0-95235-876-0	01	1	1108-
108	BOLT; TUBE CLIP EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	01	1	0809-1107
108	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	01	1	1108-
108	BOLT; TUBE CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0807-0808
108	BOLT; TUBE CLIP ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	02	1	0809-1107
108	BOLT; TUBE CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA	0-28650-820-0	02	1	1108-
109	NUT; TUBE CLIP M8 FLANGE THA	0-91180-108-0	01	1	0807-1107
109	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	01	1	1108-
128	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> L=250	1-09707-126-0	01	1	0810-0812
128	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	0901-1107
128	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350	1-09707-183-0	01	1	1108-
128	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=350	1-09707-183-0	01	1	1108-
133	BOLT; BRKT ZF9S1110 M/T<Y5E> M8X30 FLANGE THA	0-28650-830-0	06	1	1105-1107
133	BOLT; BRKT ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	06	1	1108-
133	BOLT; BRKT ANTI LOCK BRAKE<JE5> M8X25 FLANGE THA	0-28650-825-0	02	1	0809-1102
133	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1103-1107
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	01	1	1108-
133	BOLT; BRKT EXC. ANTI LOCK BRAKE<JE5> M8X25 FLANGE THA	0-28650-825-0	03	1	0809-0812
133	BOLT; BRKT EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	03	1	0901-1102
133	BOLT; BRKT ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	02	1	1103-1107
133	BOLT; BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA	0-28650-820-0	02	1	1108-
133	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	03	1	0807-0808
133	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	0809-1102
133	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1103-1107
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	02	1	1108-
133	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	0807-1102
133	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	06	1	1103-1104
133	BOLT; BRKT MZW6P M/T<RSZ> M8X30 FLANGE THA	0-28650-830-0	05	1	1105-1107
133	BOLT; BRKT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	05	1	1108-
133	BOLT; BRKT M8X35 FLANGE THA	0-28650-835-0	06	1	0807-1102
133	BOLT; BRKT EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	03	1	1103-1107
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	03	1	1108-
134	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=350	1-09707-183-0	01	1	1108-
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=350	1-09707-183-0	29	1	1108-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A)	1-47477-514-3	01	1	1108-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=150 H=30	1-47477-629-2	01	1	1108-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=100 H=30	1-47477-645-2	04	1	1108-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=225	1-47477-646-3	01	1	1108-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) L=60 H=30	1-47477-716-1	02	1	1108-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E)	8-98031-420-2	01	1	1108-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F)	8-98047-730-0	02	1	1108-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) THA	8-98139-765-0	01	1	1108-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	02	1	1108-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA	0-28650-825-0	02	1	1108-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	07	1	1108-
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	11	1	1108-
242	BRACKET; PIPE CLIP	8-98074-610-0	01	1	0807-1107
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	8-98074-610-0	01	1	1108-
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	0807-0808
265	CLIP; NYLON TUBE ID=16 H=30 L=30	1-09701-080-0	01	1	0809-1107
265	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=16 H=30 L=30	1-09701-080-0	01	1	1108-
269	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	01	1	0809-0812
269	CLIP; BAND,NYLON TUBE (C) L=350	1-09707-183-0	01	1	0901-1107
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=350	1-09707-183-0	01	1	1108-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=20	0-95325-035-0	02	1	0807-1102
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) ID=11X2 L=20	0-95325-035-0	02	1	1103-1107
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A) ID=11X2 L=20	0-95325-035-0	02	1	1108-
269	CLIP; BAND,NYLON TUBE (B) ID=35 L=33	1-09700-945-0	06	1	0807-1107
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=35 L=33	1-09700-945-0	06	1	1108-
286	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=350	1-09707-183-0	04	1	1108-
286	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	1103-1107
286	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350	1-09707-183-0	01	1	1108-
287	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	1103-1107
287	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=6.35 & 6.35	1-09709-273-1	01	1	1108-1506
297	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	03	1	1108-
306	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> L=250	1-09707-126-0	18	1	0810-0812
306	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	16	1	0901-1107
306	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	16	1	1108-
306	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> L=250	1-09707-126-0	23	1	0810-0812
306	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	23	1	0901-1107
306	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350	1-09707-183-0	23	1	1108-
306	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> L=250	1-09707-126-0	19	1	0810-0812
306	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	17	1	0901-1107
306	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	17	1	1108-
306	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> L=250	1-09707-126-0	17	1	0807-0809
306	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> L=250	1-09707-126-0	21	1	0810-0812
306	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	21	1	0901-1107
306	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350	1-09707-183-0	21	1	1108-
306	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> L=250	1-09707-126-0	18	1	0807-0809
306	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> L=250	1-09707-126-0	17	1	0810-0812
306	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	15	1	0901-1107
306	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	15	1	1108-
306	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> L=250	1-09707-126-0	19	1	0807-0809
306	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> L=250	1-09707-126-0	22	1	0810-0812
306	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	22	1	0901-1107
306	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350	1-09707-183-0	22	1	1108-
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=6.35 & 15	1-09709-276-1	04	1	1108-
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	03	1	1103-1107
318	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=6.35 & 15	1-09709-276-1	03	1	1108-
320	CLIP; BAND,FLEX FIX L=250 THA	5-09707-030-1	01	1	1103-
372	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	03	1	1108-
372	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0807-1107
372	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8X25 FLANGE THA	0-28650-825-0	02	1	1108-
375	CLIP; AIR PIPE MZW6P M/T<RSZ> PTO CONTROL<SV6> L=350	1-09707-183-0	01	1	1103-1107
375	CLIP; AIR PIPE ZF9S1110 M/T<Y5E> L=350	1-09707-183-0	01	1	1103-1107
375	CLIP; AIR PIPE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> L=350	1-09707-183-0	01	1	1108-
375	CLIP; AIR PIPE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350	1-09707-183-0	01	1	1108-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=60 H=30	1-47477-716-1	03	1	1108-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98044-013-0	01	1	1108-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
