8-65 — CONTROL LEVER; HEATER AND AIR CON (#129204) — 29 parça
çizim 382053
25 9 3 3 62 62 103 98 87 37 58 58
BalonParca AdiParca NoAdetTipApplied Date
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) A/M 		8-98041-502-0 01 1 1310-
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) MODE 		8-98041-503-1 01 1 1310-
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) R/F 		8-98041-505-2 01 1 1310-
9 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-319-2 01 1 1310-
9 LEVER ASM; HTR & A/C CONT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98062-807-1 01 1 1310-
25 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=4.8 		8-94128-483-0 03 1 1310-
37 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98037-368-0 01 1 1310-
58 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98037-369-0 02 1 1310-
58 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98037-370-0 01 1 1310-
58 KNOB; LVR,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98037-369-0 01 1 1310-
62 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 1.1W 		8-98037-371-0 02 1 1310-
87 CAP; A/C SWITCH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98006-089-0 01 1 1310-
98 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1310-
103 CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1310-

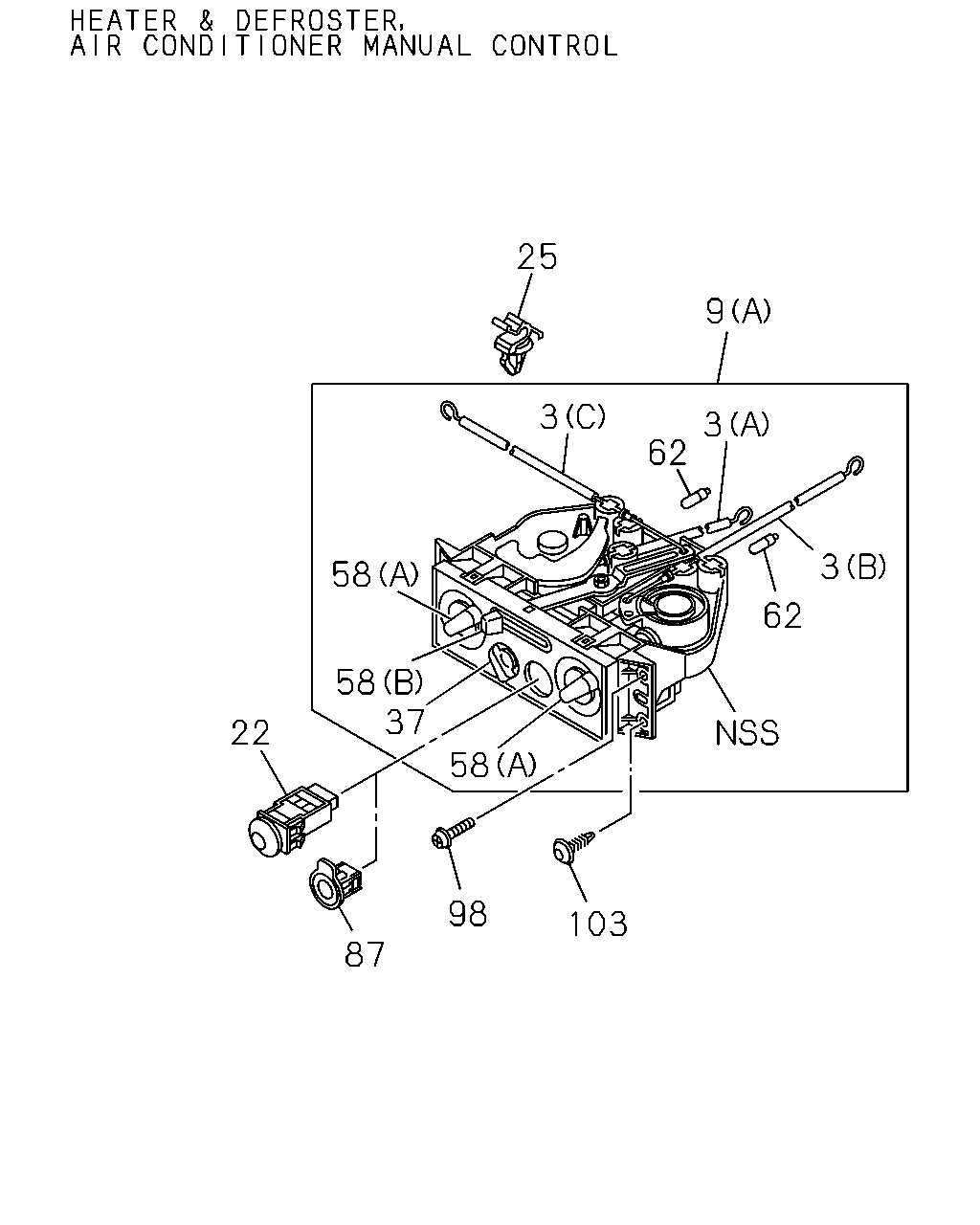

çizim 382194
9 25 3 3 62 3 62 58 37 58 58 22 87 103 98
BalonParca AdiParca NoAdetTipApplied Date
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) A/M 		8-98041-502-0 01 1 1310-
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) MODE 		8-98041-503-1 01 1 1310-
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) R/F 		8-98041-505-2 01 1 1310-
9 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-319-2 01 1 1310-
9 LEVER ASM; HTR & A/C CONT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98062-807-1 01 1 1310-
22 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98021-982-0 01 1 1310-
25 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=4.8 		8-94128-483-0 03 1 1310-
37 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98037-368-0 01 1 1310-
58 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98037-369-0 02 1 1310-
58 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98037-370-0 01 1 1310-
58 KNOB; LVR,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98037-369-0 01 1 1310-
62 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 1.1W 		8-98037-371-0 02 1 1310-
87 CAP; A/C SWITCH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98006-089-0 01 1 1310-
98 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1310-
103 CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1310-
