Isuzu WW
▶
TRUCKS
▶
FVR
▶
11556 - FVR-RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#129201) — 20 parça
◀

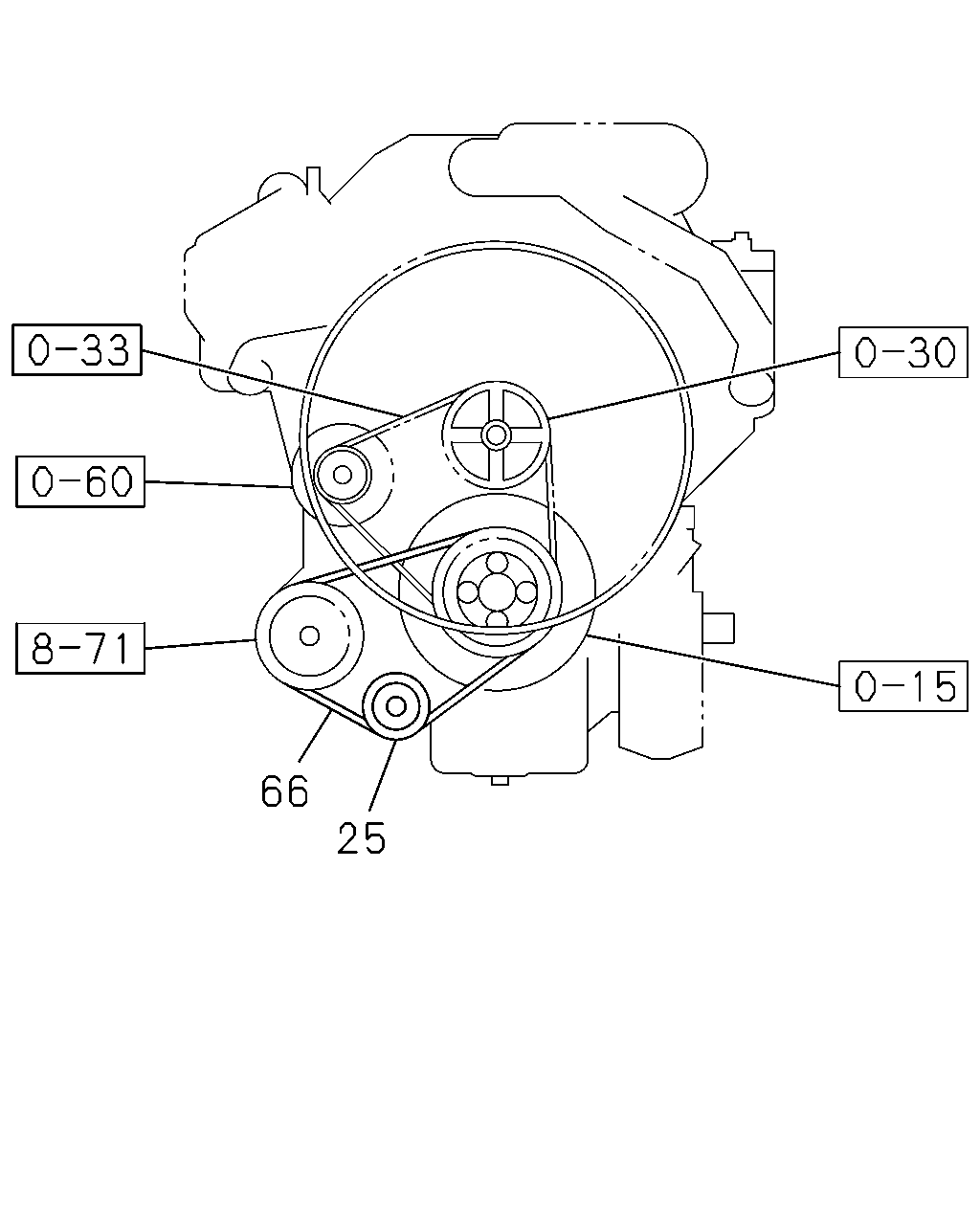

[850A] A/C CMPR BELT (3 parça)
[850A] EVAP COVER,DRAIN HOSE AND HOSE CLIP (4 parça)

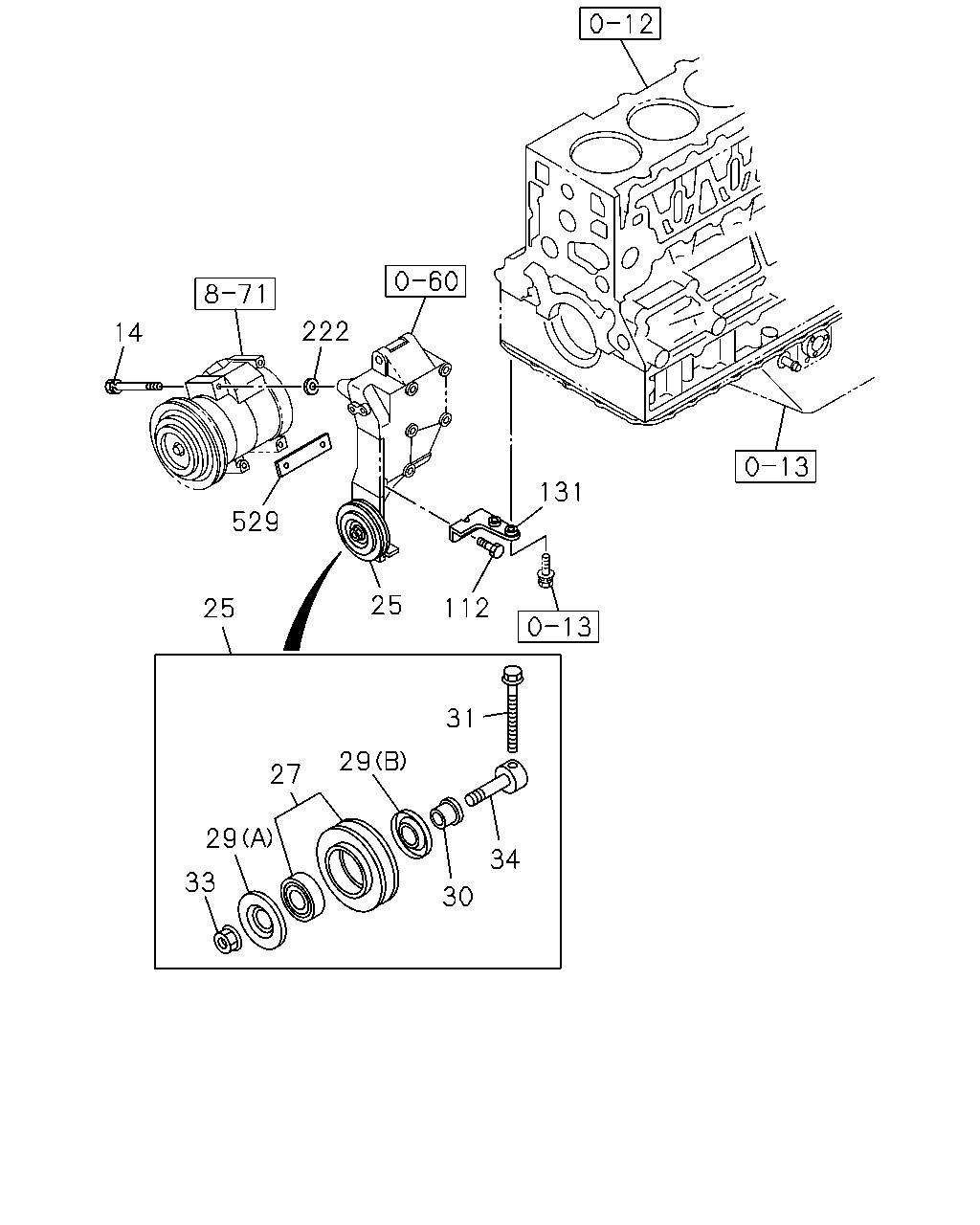

[850A] A/C CMPR FIXING AND IDLE PULLEY (13 parça)
▶
66
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
8-97605-079-0
01
1
1310-
66
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS
1-87610-104-0
01
1
1310-
66
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1114
8-97605-102-0
01
1
1310-
71
201
378
378
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
71
COVER; EVAP,A/C
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
8-98017-234-1
01
1
1310-
201
CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60)
8-94423-042-0
01
1
1310-
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98204-846-0
01
1
1310-
378
HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
8-98041-428-0
01
1
1310-
14
222
529
25
25
112
131
31
34
30
29
27
29
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X78 W/LK WASHER
5-09000-228-1
04
1
1310-
25
PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
8-97605-079-0
01
1
1310-
27
PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-97605-323-0
01
1
1310-
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-97605-329-0
01
1
1310-
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-97605-330-0
01
1
1310-
30
COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97605-328-0
01
1
1310-
31
BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97605-325-0
01
1
1310-
33
NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97605-326-0
01
1
1310-
34
SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97605-327-0
01
1
1310-
112
BOLT; STAY
M8X16 FLANGE
0-28050-816-0
02
1
1310-
131
STAY; CMPR BRKT
8-94393-451-0
01
1
1310-
222
GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2
8-94312-733-0
02
1
1310-
529
SPACER
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-271-0
01
1
1310-
