3-77 — BRAKE PIPING; AIR,REAR (#12920) — 115 parça

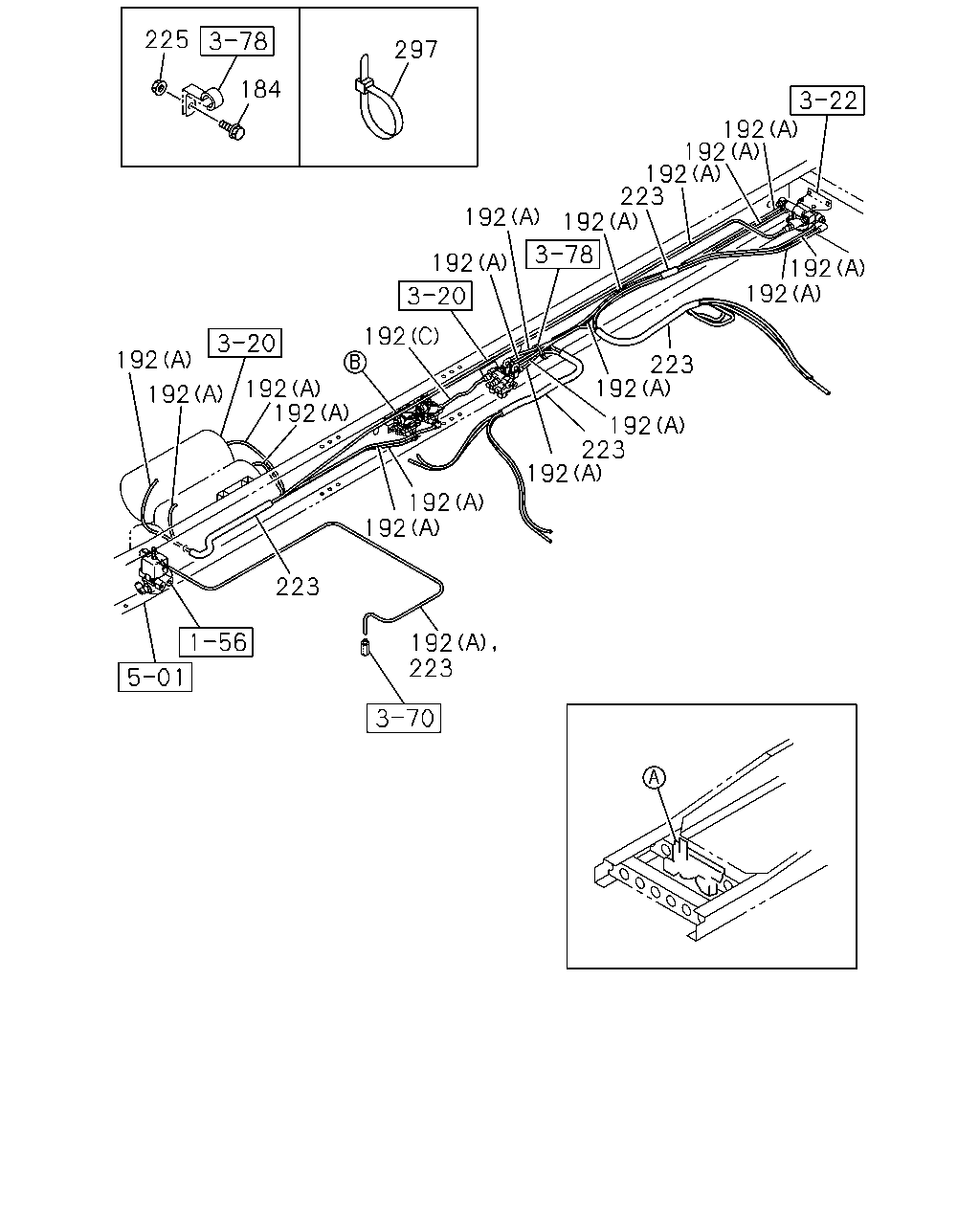

225 297 184 192 192 192 223 192 192 192 192 192 192 192 223 192 192 192 192 192 223 192 192 192 223 192 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
184	BOLT; TUBE CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0807-1107
184	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA	0-28650-820-0	01	1	1108-
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C) THA	8-98130-687-0	01	1	0809-1107
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) THA	8-98130-687-0	01	1	1108-
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C) L=220 OD=12	8-98107-956-0	01	1	0809-0809
192	TUBE; NYLON (B) FORWARD L=960 OD=8 THA	1-49218-613-1	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) FORWARD L=960 OD=8 THA	1-49218-613-1	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) FORWARD L=960 OD=8 THA	1-49218-613-1	01	1	1108-
192	TUBE; NYLON (B) FORWARD L=1050 OD=8 THA	1-49218-619-1	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) FORWARD L=1050 OD=8 THA	1-49218-619-1	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) FORWARD L=1050 OD=8 THA	1-49218-619-1	01	1	1108-
192	TUBE; NYLON (B) REARWARD L=970 OD=8 THA	1-49222-926-0	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) REARWARD L=970 OD=8 THA	1-49222-926-0	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) REARWARD L=970 OD=8 THA	1-49222-926-0	01	1	1108-
192	TUBE; NYLON (B) REARWARD L=1030 OD=8 THA	1-49222-927-0	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) REARWARD L=1030 OD=8 THA	1-49222-927-0	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) REARWARD L=1030 OD=8 THA	1-49222-927-0	01	1	1108-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8 THA	1-87411-007-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12 THA	1-87411-012-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12 THA	1-87411-013-0	AR	1	0807-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10 THA	1-87411-019-0	AR	1	0807-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13 THA	1-87411-022-0	AR	1	0807-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25 THA	1-87411-031-0	AR	1	0807-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 THA	1-87411-033-0	AR	1	0807-
225	NUT; TUBE CLIP M8 FLANGE THA	0-91180-108-0	01	1	0807-1107
225	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	01	1	1108-
297	CLIP; BAND MZW6P M/T<RSZ> L=350	1-09707-183-0	01	1	1103-

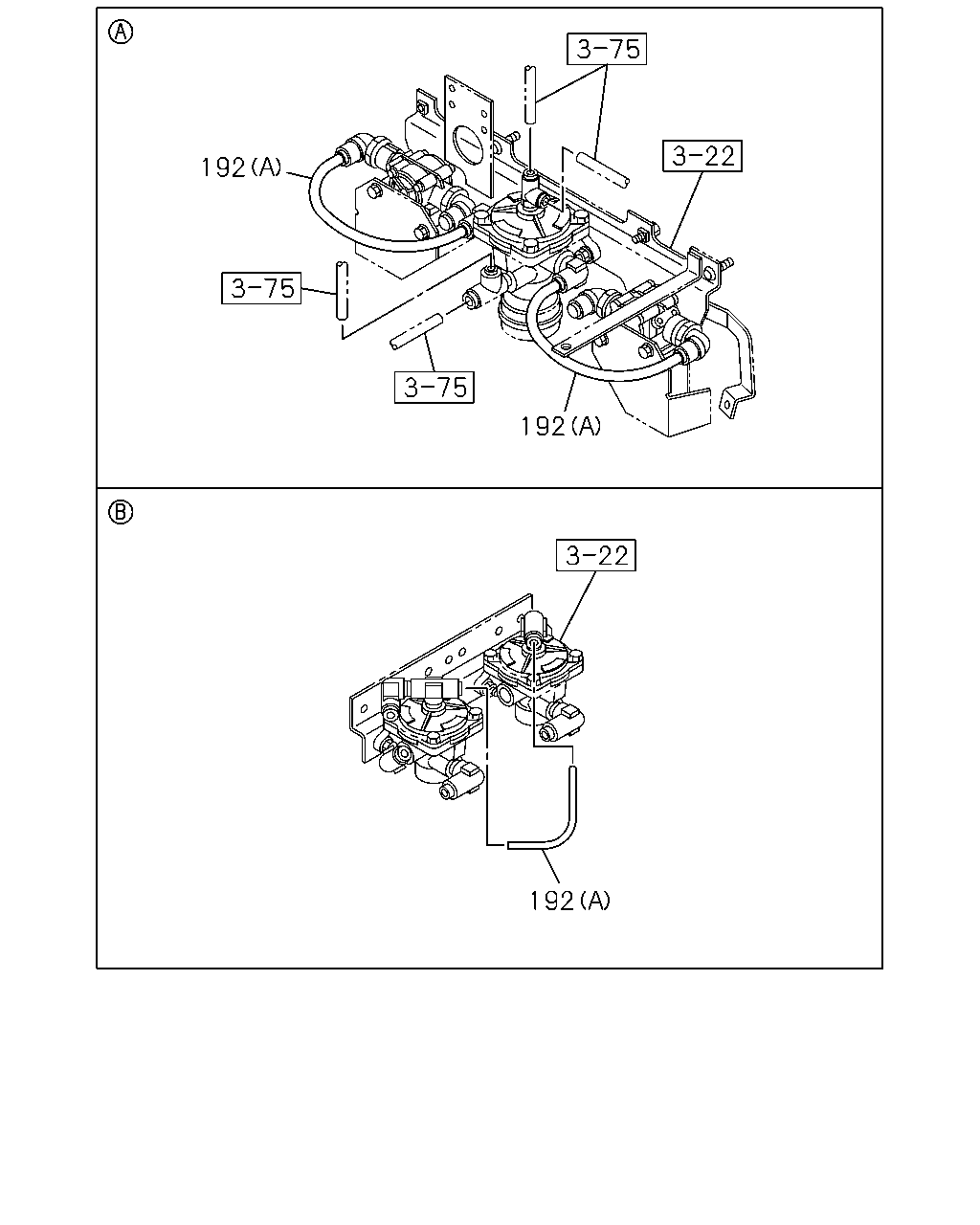

192 223 192 192 192 223 192 223 192 223 192 223 192 223 192 223 192 192 223 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C) THA	8-98130-687-0	01	1	0809-1107
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) THA	8-98130-687-0	01	1	1108-
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C) L=220 OD=12	8-98107-956-0	01	1	0809-0809
192	TUBE; NYLON (B) FORWARD L=960 OD=8 THA	1-49218-613-1	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) FORWARD L=960 OD=8 THA	1-49218-613-1	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) FORWARD L=960 OD=8 THA	1-49218-613-1	01	1	1108-
192	TUBE; NYLON (B) FORWARD L=1050 OD=8 THA	1-49218-619-1	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) FORWARD L=1050 OD=8 THA	1-49218-619-1	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) FORWARD L=1050 OD=8 THA	1-49218-619-1	01	1	1108-
192	TUBE; NYLON (B) REARWARD L=970 OD=8 THA	1-49222-926-0	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) REARWARD L=970 OD=8 THA	1-49222-926-0	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) REARWARD L=970 OD=8 THA	1-49222-926-0	01	1	1108-
192	TUBE; NYLON (B) REARWARD L=1030 OD=8 THA	1-49222-927-0	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) REARWARD L=1030 OD=8 THA	1-49222-927-0	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) REARWARD L=1030 OD=8 THA	1-49222-927-0	01	1	1108-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8 THA	1-87411-007-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12 THA	1-87411-012-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12 THA	1-87411-013-0	AR	1	0807-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10 THA	1-87411-019-0	AR	1	0807-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13 THA	1-87411-022-0	AR	1	0807-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25 THA	1-87411-031-0	AR	1	0807-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 THA	1-87411-033-0	AR	1	0807-

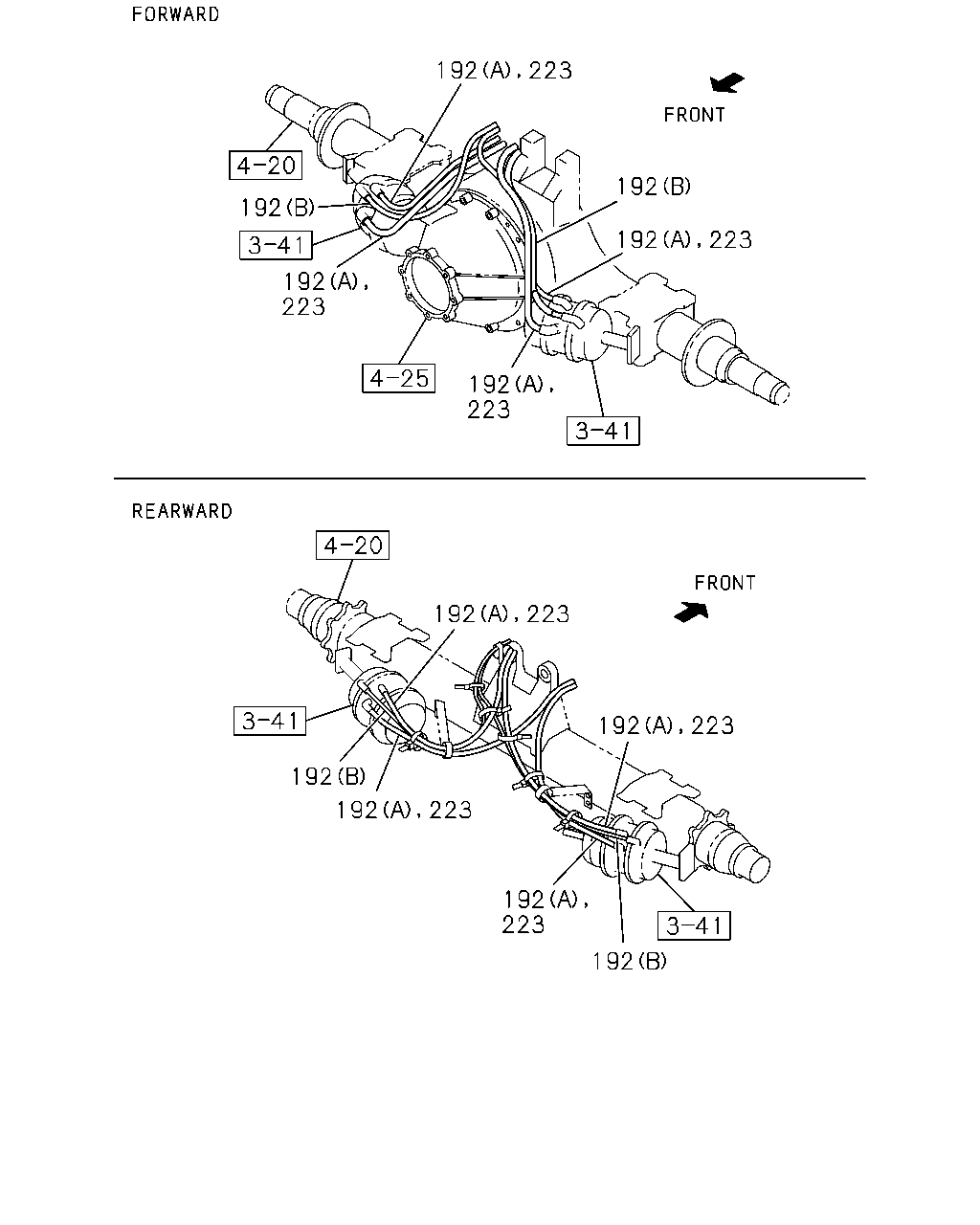

192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C) THA	8-98130-687-0	01	1	0809-1107
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) THA	8-98130-687-0	01	1	1108-
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C) L=220 OD=12	8-98107-956-0	01	1	0809-0809
192	TUBE; NYLON (B) FORWARD L=960 OD=8 THA	1-49218-613-1	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) FORWARD L=960 OD=8 THA	1-49218-613-1	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) FORWARD L=960 OD=8 THA	1-49218-613-1	01	1	1108-
192	TUBE; NYLON (B) FORWARD L=1050 OD=8 THA	1-49218-619-1	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) FORWARD L=1050 OD=8 THA	1-49218-619-1	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) FORWARD L=1050 OD=8 THA	1-49218-619-1	01	1	1108-
192	TUBE; NYLON (B) REARWARD L=970 OD=8 THA	1-49222-926-0	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) REARWARD L=970 OD=8 THA	1-49222-926-0	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) REARWARD L=970 OD=8 THA	1-49222-926-0	01	1	1108-
192	TUBE; NYLON (B) REARWARD L=1030 OD=8 THA	1-49222-927-0	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) REARWARD L=1030 OD=8 THA	1-49222-927-0	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) REARWARD L=1030 OD=8 THA	1-49222-927-0	01	1	1108-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8 THA	1-87411-007-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12 THA	1-87411-012-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12 THA	1-87411-013-0	AR	1	0807-

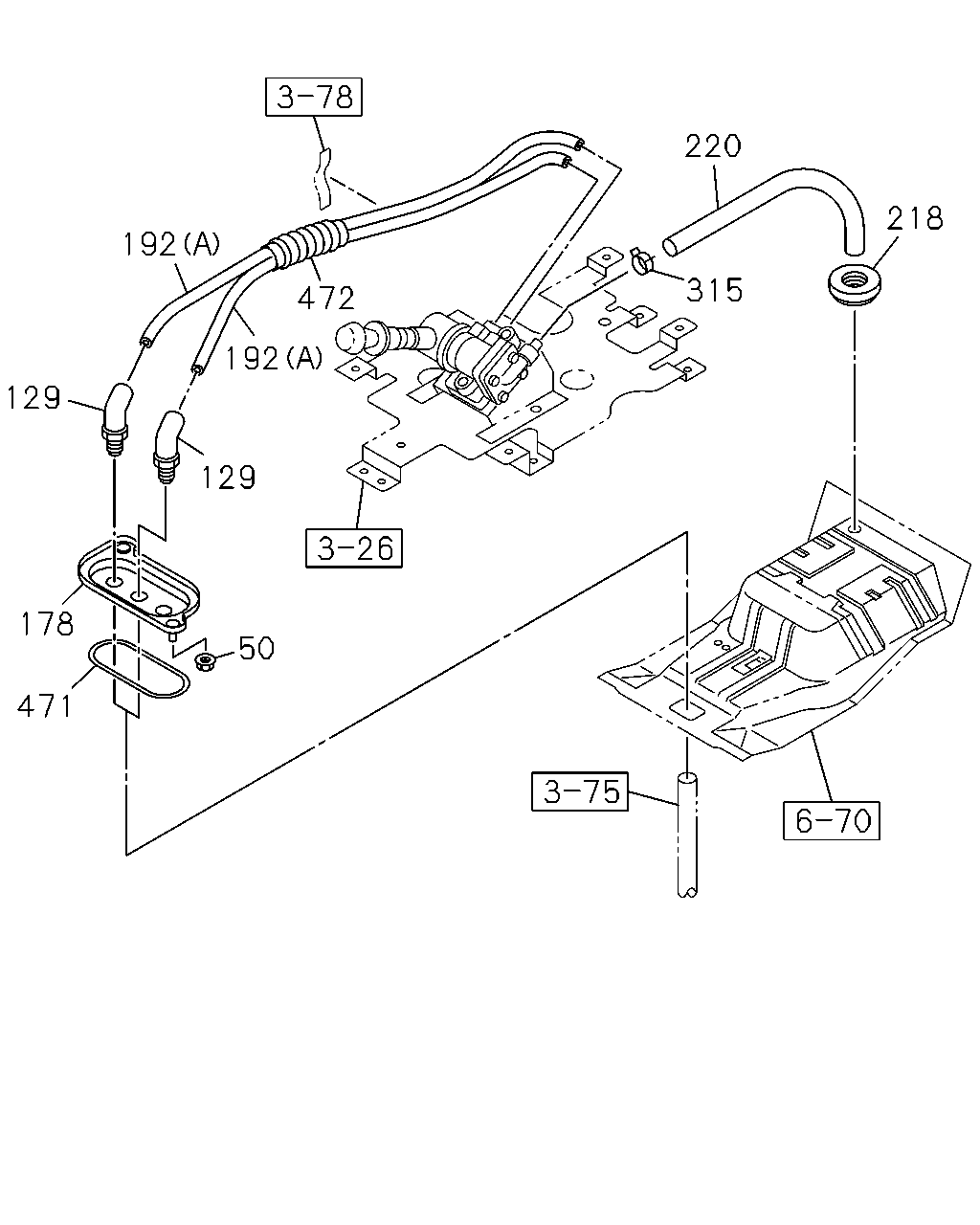

220 218 192 315 472 192 129 129 178 50 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	NUT; UNION BRKT M8 FLANGE THA	0-91180-108-0	02	1	0807-1205
50	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8 FLANGE THA	0-91180-108-0	02	1	1206-
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8 FLANGE THA	0-91180-108-0	02	1	1206-
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> DIN13 & M18 ELBOW	8-97611-963-1	01	1	0807-1101
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> DIN13 & M18 ELBOW	8-97611-963-1	02	1	1102-1205
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> DIN13 & M18 ELBOW	8-97611-963-1	02	1	1206-
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	8-98017-052-0	01	1	1108-1205
178	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	8-98017-052-1	01	1	1206-
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	8-98017-054-0	01	1	0807-1205
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	8-98017-054-1	01	1	1206-
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C) THA	8-98130-687-0	01	1	0809-1107
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) THA	8-98130-687-0	01	1	1108-
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C) L=220 OD=12	8-98107-956-0	01	1	0809-0809
192	TUBE; NYLON (B) FORWARD L=960 OD=8 THA	1-49218-613-1	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) FORWARD L=960 OD=8 THA	1-49218-613-1	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) FORWARD L=960 OD=8 THA	1-49218-613-1	01	1	1108-
192	TUBE; NYLON (B) FORWARD L=1050 OD=8 THA	1-49218-619-1	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) FORWARD L=1050 OD=8 THA	1-49218-619-1	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) FORWARD L=1050 OD=8 THA	1-49218-619-1	01	1	1108-
192	TUBE; NYLON (B) REARWARD L=970 OD=8 THA	1-49222-926-0	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) REARWARD L=970 OD=8 THA	1-49222-926-0	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) REARWARD L=970 OD=8 THA	1-49222-926-0	01	1	1108-
192	TUBE; NYLON (B) REARWARD L=1030 OD=8 THA	1-49222-927-0	01	1	0807-1102
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) REARWARD L=1030 OD=8 THA	1-49222-927-0	01	1	1103-1107
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) REARWARD L=1030 OD=8 THA	1-49222-927-0	01	1	1108-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8 THA	1-87411-007-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12 THA	1-87411-012-0	AR	1	0807-
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12 THA	1-87411-013-0	AR	1	0807-
218	GROMMET; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> OD=24	9-61166-007-0	01	1	0912-1205
218	GROMMET; VINYL HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> OD=24	9-61166-007-0	01	1	1206-
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0912-1205
220	HOSE; VINYL,EXH,PARKING BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1206-
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> ID=14	8-94238-572-0	01	1	0912-1205
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> ID=14	8-94238-572-0	01	1	1206-
471	SEAL; BRKT	1-79738-832-0	01	1	0807-1205
471	SEAL; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-79738-832-0	01	1	1206-
471	SEAL; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-79738-832-0	01	1	1206-
472	TUBE; SPUTTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA	8-98067-708-0	01	1	1210-
472	TUBE; SPUTTER THA	8-98067-708-0	01	1	0807-1107
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA	8-98067-708-0	01	1	1108-
