◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#129198) — 88 parça
çizim 381288
584 744 376 732 42 253 449
BalonParca AdiParca NoAdetTipApplied Date
42 BRACKET; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-051-2 01 1 1310-
253 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 1310-
376 BOLT; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1310-
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-82410-143-1 01 1 1310-
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1310-
732 RELAY; EDS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82550-337-1 01 1 1310-
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1310-
çizim 381804
40 88 450 79 88 88
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) 		8-98174-365-0 01 1 1411-
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 02 1 1411-
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1411-
450 VALVE; MAG
ZF9S1110 M/T(Y5E) 		1-82563-871-2 01 1 1411-

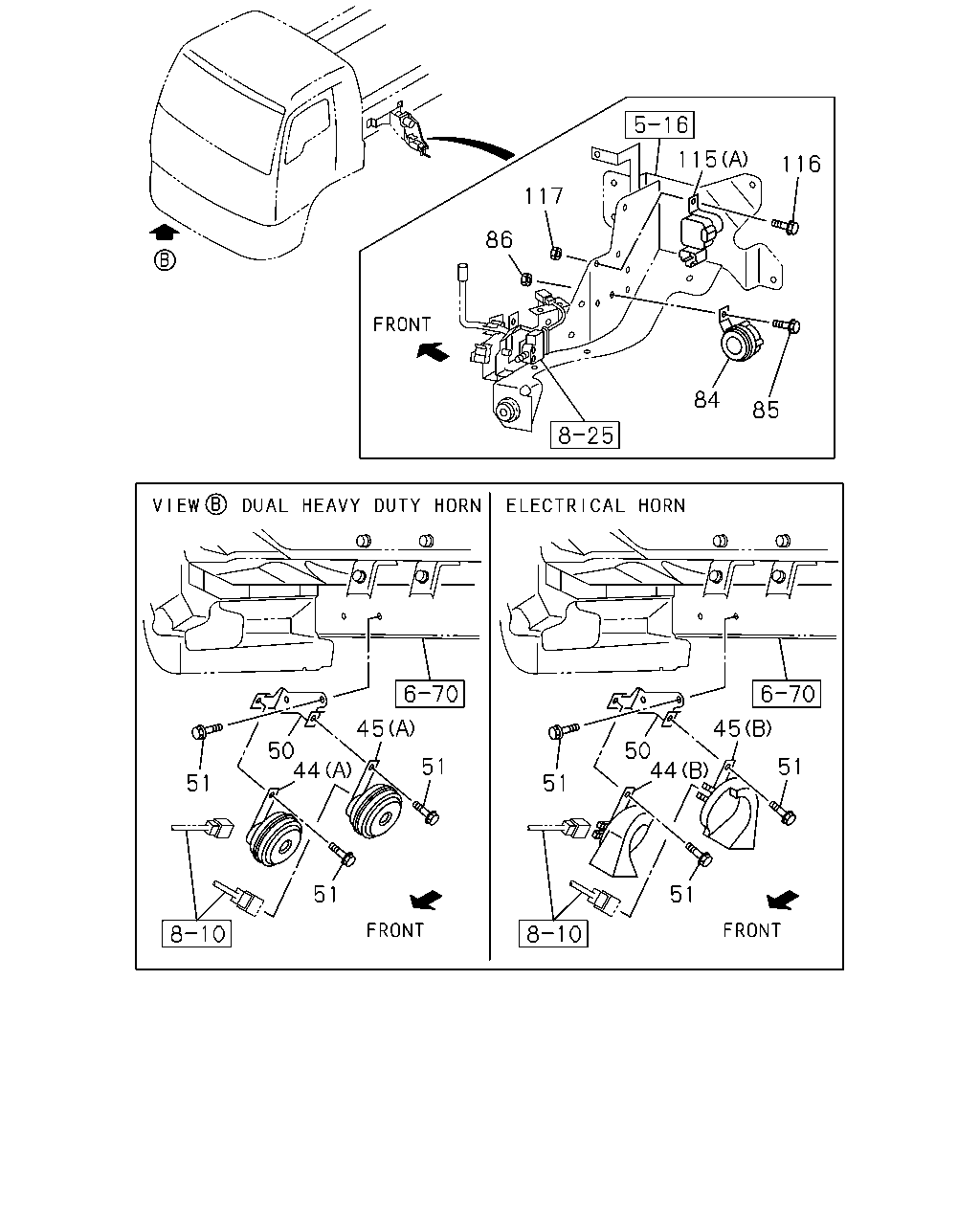

çizim 381979
117 86 115 116 84 85 50 51 44 51 45 51 51 45 44 50 51 51
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE
ELECTRICAL HORN<WB7> (B) 		8-97611-677-2 01 1 1411-
44 HORN; HIGH NOTE
(A) 		8-98022-022-0 01 1 1310-1410
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> (A) 		8-98022-022-0 01 1 1411-
45 HORN; LOW NOTE
ELECTRICAL HORN<WB7> (B) 		8-97611-676-2 01 1 1411-
45 HORN; LOW NOTE
(A) 		8-98022-023-0 01 1 1310-1410
45 HORN; LOW NOTE
DUAL HEAVY DUTY HORN<6KK> (A) 		8-98022-023-0 01 1 1411-
50 BRACKET; HORN 8-97613-300-2 01 1 1310-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 1310-
84 BUZZER; POWER CAB TILT
AUTO CAB TILT<WV2> METRO DENSO 		8-98069-860-0 01 1 1411-
85 BOLT; BUZZER,POWER CAB TILT
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28650-820-0 01 1 1411-
86 NUT; BUZZER
AUTO CAB TILT<WV2> M8 FLANGE 		0-91180-108-0 01 1 1411-
115 RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1411-
115 RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> (A) 24V NIKKO 		8-98005-631-1 01 1 1411-
116 BOLT; RELAY FIX
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28650-820-0 02 1 1411-
117 NUT; RELAY FIX
AUTO CAB TILT<WV2> M8 FLANGE 		0-91180-108-0 02 1 1411-

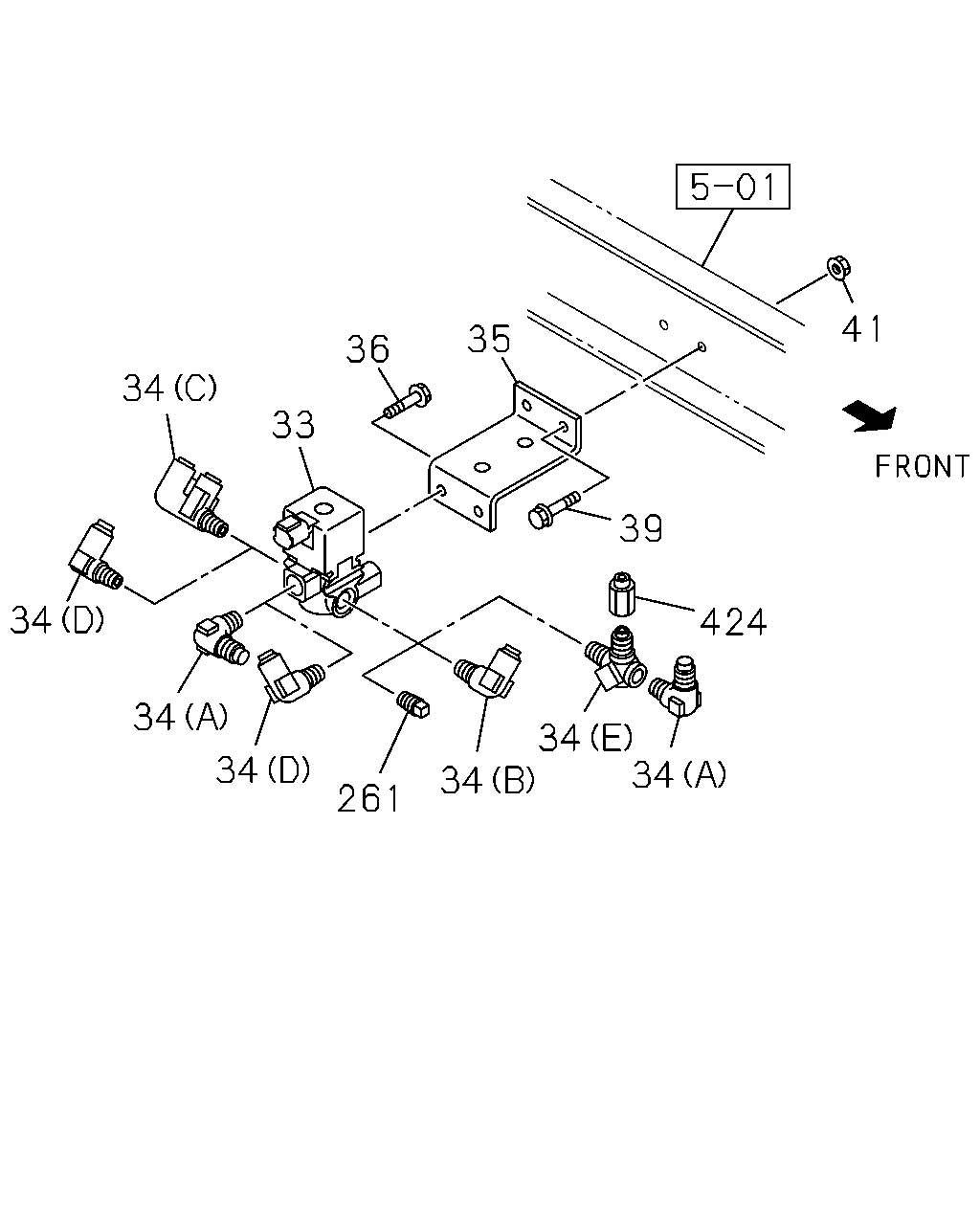

çizim 382078
39 424 34 34 34 261 34 34 34 34 33 36 35 41
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> 		1-82563-871-2 01 1 1310-
34 CONNECTOR; MAG VLV,INL PORT
H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1411-
34 CONNECTOR; MAG VLV,INL PORT
AIR SUSP DRIVER SEAT<A56> PTO ZF TRANS RR(BDM) EXC. H.S.A SYSTEM<6EP> (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1411-
34 CONNECTOR; MAG VLV,INL PORT
PTO ZF TRANS RR(BDM) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1411-
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) AIR SUSP DRIVER SEAT<A56> TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1310-1410
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> AIR SUSP DRIVER SEAT<A56> TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1310-1410
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1310-1410
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) AIR SUSP DRIVER SEAT<A56> TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1411-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> AIR SUSP DRIVER SEAT<A56> TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1411-
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1411-
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1310-1410
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1411-
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1310-1410
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1310-1410
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1310-1410
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1411-
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1411-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1411-
34 CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1310-
35 BRACKET; MAG VLV,PTO CONT
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> 		8-98154-633-0 01 1 1310-
36 BOLT; MAG VLV,PTO CONT
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 1310-
39 BOLT; BRKT,MAG VLV
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> M8X35 FLANGE 		0-28650-835-0 02 1 1310-1410
39 BOLT; BRKT,MAG VLV
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 02 1 1411-
39 BOLT; BRKT,MAG VLV
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> M8X35 FLANGE 		0-28650-835-0 02 1 1411-
39 BOLT; BRKT,MAG VLV
PTO ZF TRANS RR(BDM) M8X35 FLANGE 		0-28650-835-0 02 1 1411-
41 NUT; BRKT,MAG VLV
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1310-1410
41 NUT; BRKT,MAG VLV
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1411-
41 NUT; BRKT,MAG VLV
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1411-
41 NUT; BRKT,MAG VLV
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 02 1 1411-
261 PLUG; MAG VLV
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1310-1410
261 PLUG; MAG VLV
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/4 		9-99204-513-0 01 1 1310-1410
261 PLUG; MAG VLV
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1411-
261 PLUG; MAG VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> PT1/4 		9-99204-513-0 01 1 1411-
424 ADAPTER
H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1411-
424 ADAPTER
AIR SUSP DRIVER SEAT<A56> PTO ZF TRANS RR(BDM) EXC. H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1411-

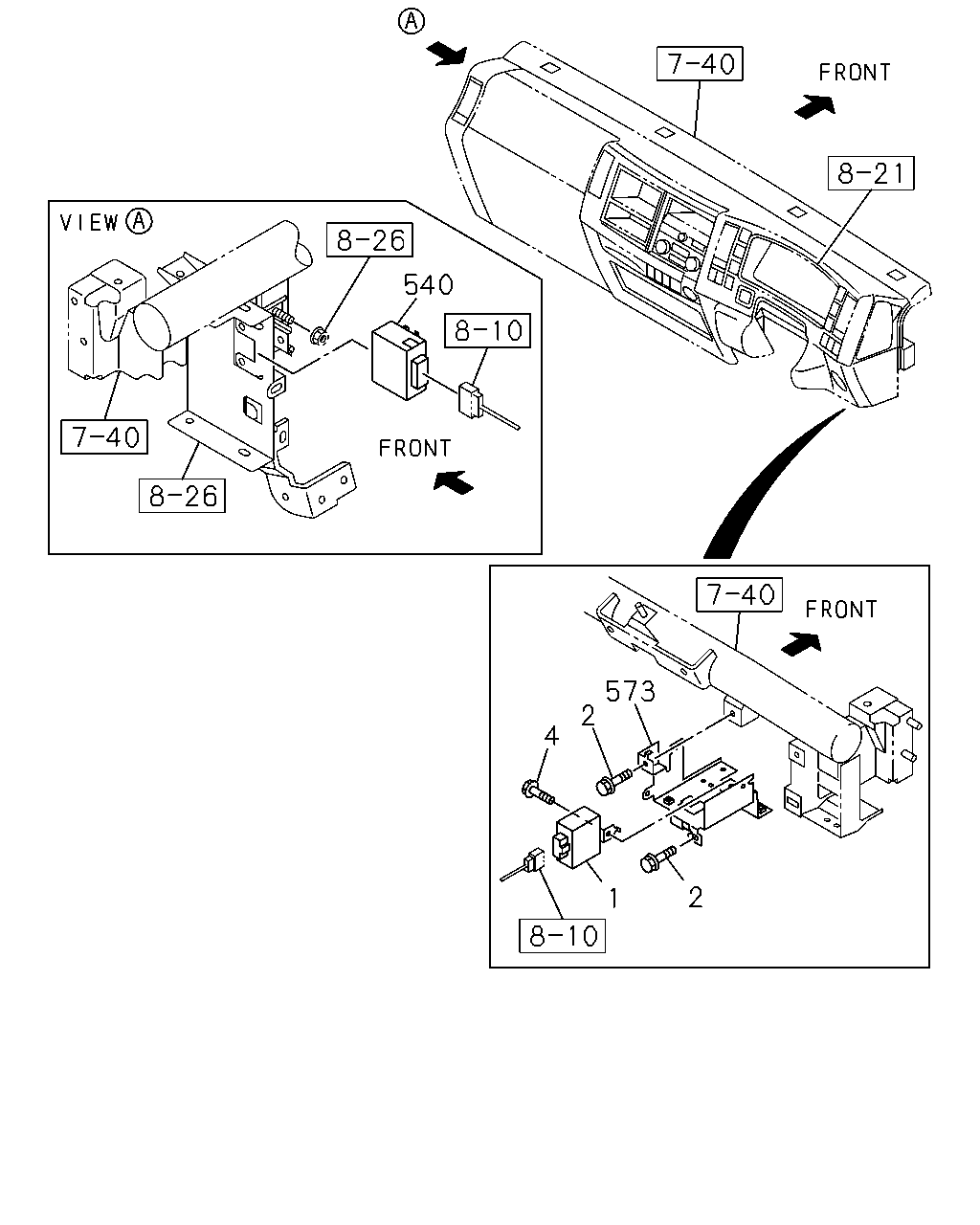

çizim 382264
540 573 2 4 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-98025-533-1 01 1 1310-
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1310-
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1310-
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1310-1410
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98233-976-0 01 1 1411-
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 1310-

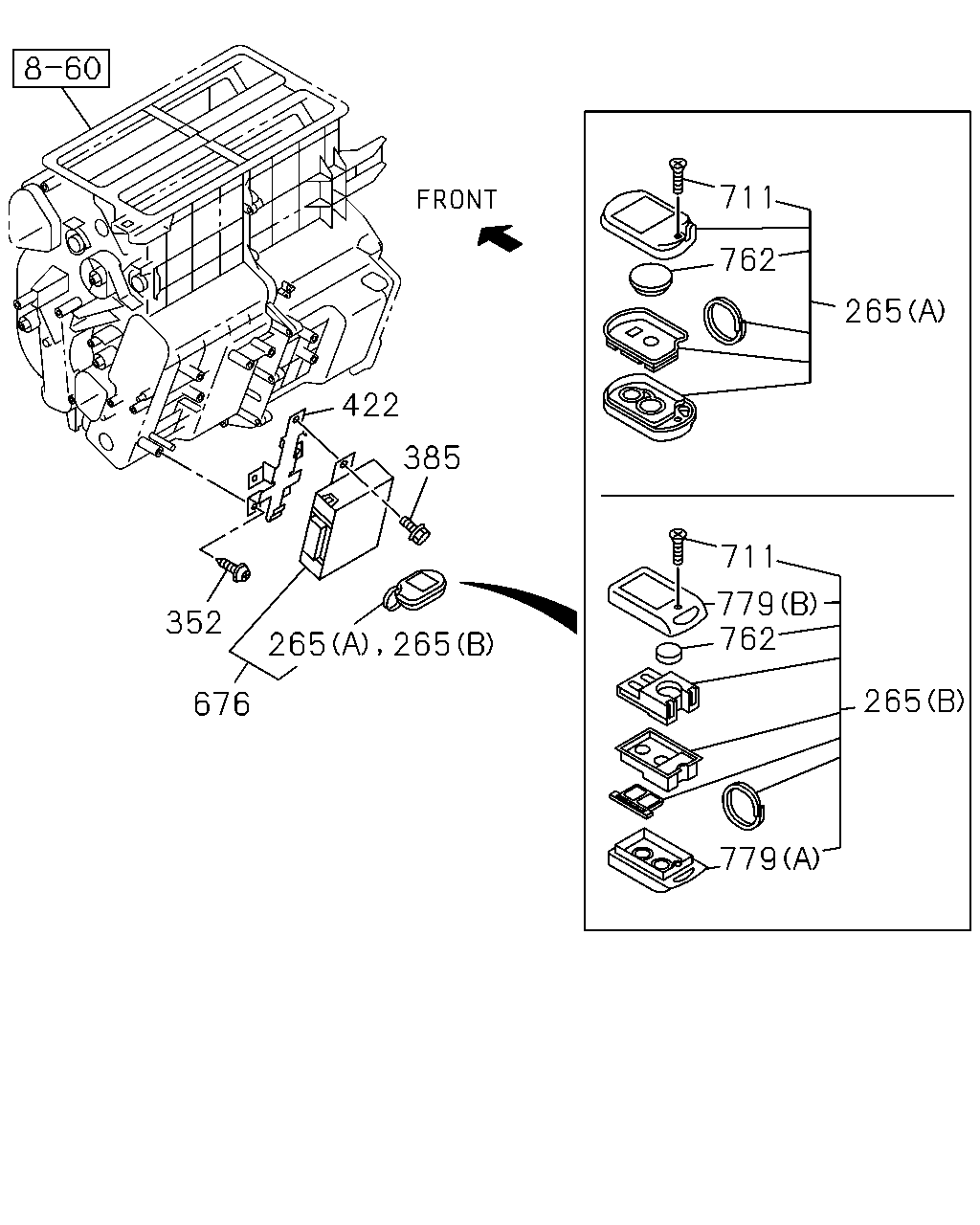

çizim 382359
711 762 265 711 779 762 265 779 676 265 265 352 422 385
BalonParca AdiParca NoAdetTipApplied Date
265 TRANSMITTER ASM; AUTO DOOR LOCK
HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF> (B) 		8-98249-522-0 02 1 1411-
265 TRANSMITTER ASM; AUTO DOOR LOCK
(A) 		8-98218-236-0 02 1 1310-1410
265 TRANSMITTER ASM; AUTO DOOR LOCK
SINGAPORE EQUIPMENT(2G0) REMOTE CONT DOOR LOCK<6NF> (A) 		8-98218-236-0 02 1 1411-
352 SCREW; BRKT
REMOTE CONT DOOR LOCK<6NF> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1310-
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1310-
422 BRACKET; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 		8-98055-281-1 01 1 1310-
676 CONTROL UNIT; KEYLESS ENTRY
HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF> 		8-98249-782-0 01 1 1411-
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1310-1410
676 CONTROL UNIT; KEYLESS ENTRY
SINGAPORE EQUIPMENT(2G0) REMOTE CONT DOOR LOCK<6NF> 		8-98218-231-0 01 1 1411-
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1310-1410
711 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98218-239-0 02 1 1411-
762 BATTERY 8-98078-061-0 02 1 1310-1410
762 BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-061-0 02 1 1411-
779 COVER; TRANSMITTER
(A) 		8-98218-240-0 02 1 1310-1410
779 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> (A) 		8-98218-240-0 02 1 1411-
779 COVER; TRANSMITTER
(B) 		8-98218-243-0 02 1 1310-1410
779 COVER; TRANSMITTER
SINGAPORE EQUIPMENT(2G0) REMOTE CONT DOOR LOCK<6NF> (B) 		8-98218-243-0 02 1 1411-
779 COVER; TRANSMITTER
HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF> (B) 		8-98250-559-0 02 1 1411-
çizim 455560
531
BalonParca AdiParca NoAdetTipApplied Date
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1310-1402
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403-

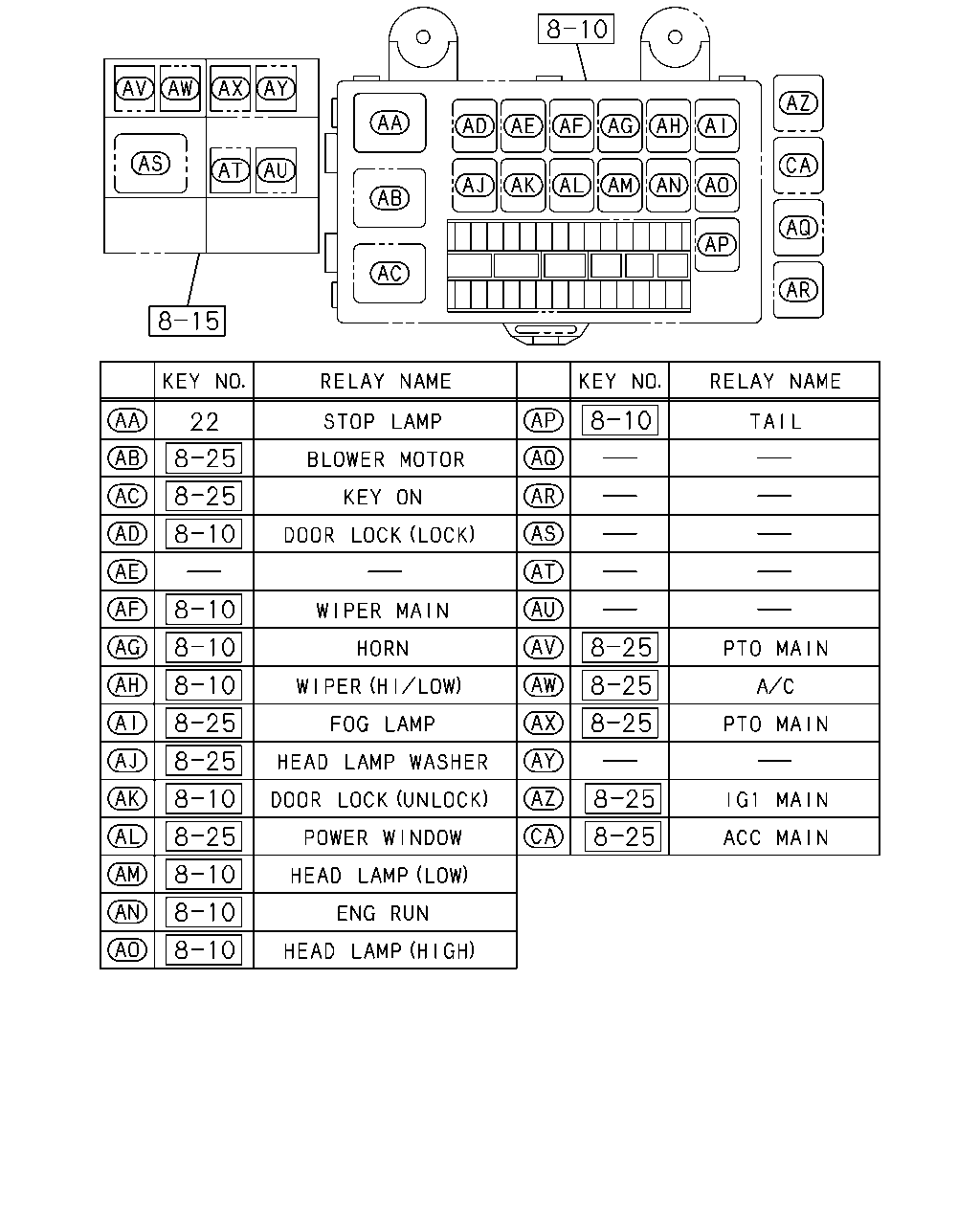

çizim 455613
22
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1310-
