◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#129196) — 105 parça
çizim 381158
744 491 373 448 766
BalonParca AdiParca NoAdetTipApplied Date
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) 		8-98053-829-3 01 1 1411-
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-419-2 01 1 1310-
448 BOLT; SENSOR
HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> (B) M6X16 FLANGE 		0-28050-616-0 02 1 1411-
448 BOLT; SENSOR
HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> (C) M12X40 FLANGE 		0-28651-240-0 02 1 1411-
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1310-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1310-
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3) 		8-97386-841-2 01 1 1310-
766 BAND; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1310-

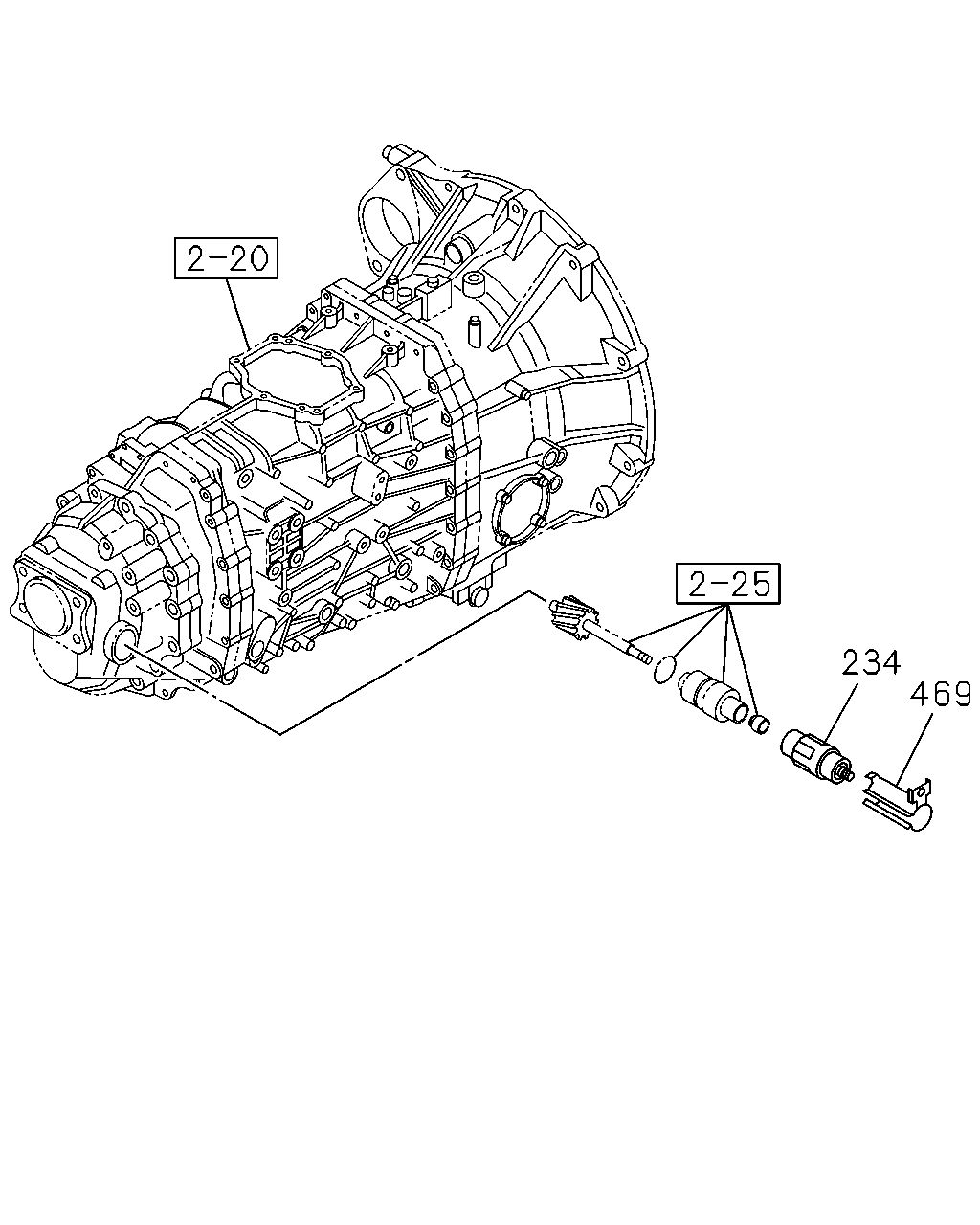

çizim 381738
234 469
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1310-
469 PROTECTOR; SPEED SENSOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 		8-98119-901-0 01 1 1310-

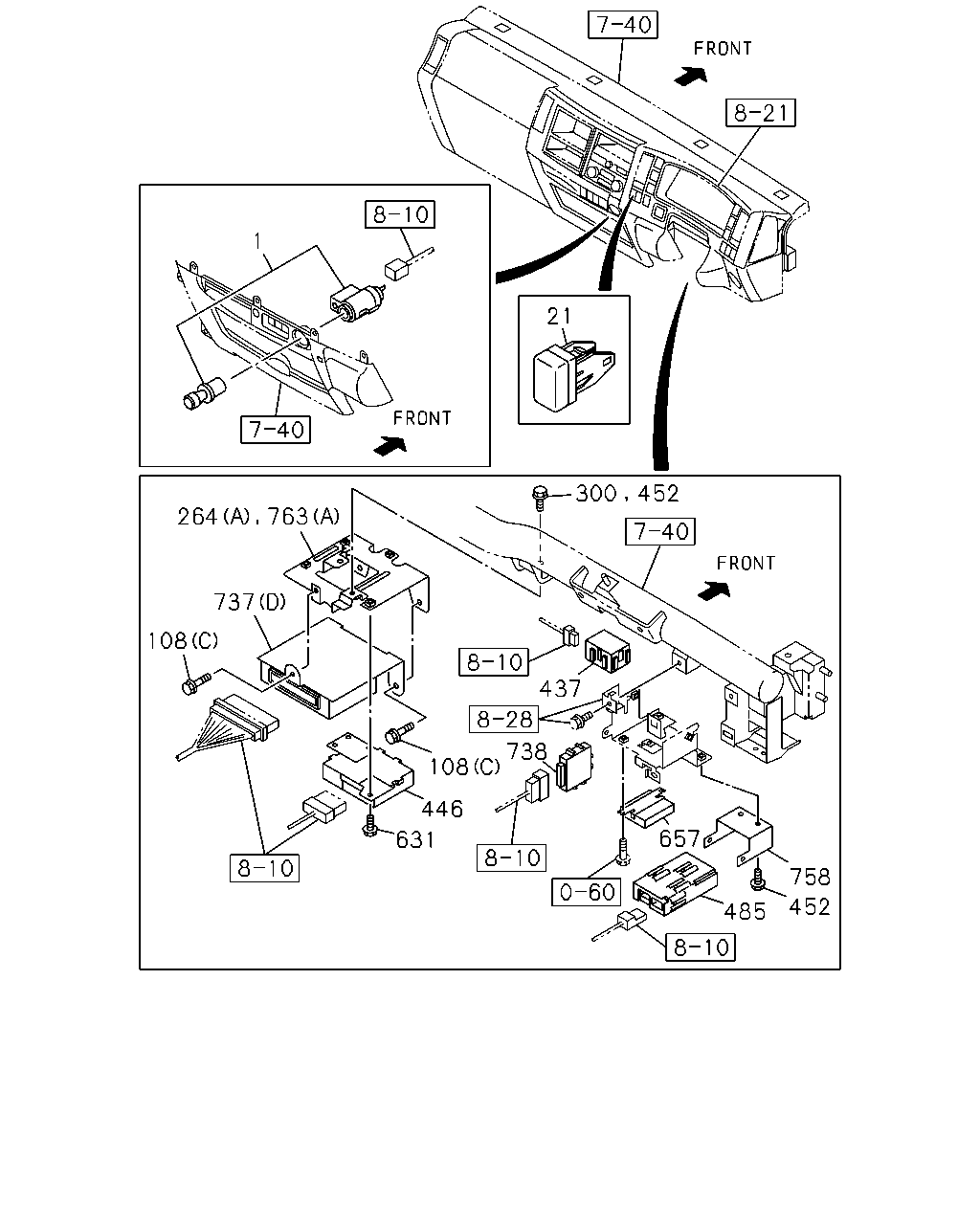

çizim 381855
21 763 264 737 108 631 108 446 657 485 452 758 452 300 738 437 1
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1310-
21 COVER; HOLE
MIRROR O/S RR VIEW<D37>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98025-954-1 01 1 1310-1507
21 COVER; HOLE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98025-954-1 01 1 1508-
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1411-
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) SCREW M4X25 TAPPING 		0-74160-425-0 02 1 1411-
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X16 FLANGE 		0-28650-616-0 03 1 1310-
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1310-
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1310-
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 04 1 1411-
300 BOLT; CONT UNIT BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1310-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1310-1410
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> KOITO 		8-97359-129-0 01 1 1411-
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98136-318-1 01 1 1310-
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1310-1410
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1411-
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 1411-
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		1-80190-063-0 01 1 1411-
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1310-
657 CONTROL UNIT; MIMAMORI
6HK1-TCN ENG(82L) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 1310-1401
657 CONTROL UNIT; MIMAMORI
6HK1-TCN ENG(82L) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98260-912-1 01 1 1402-1410
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98260-912-1 01 1 1411-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (A) 		1-80111-271-0 01 1 1411-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (B) 		8-98095-040-0 01 1 1411-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (C) 		8-98095-041-0 01 1 1411-
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98273-240-0 01 1 1411-1411
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98282-918-0 01 1 1412-
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98252-968-0 01 1 1310-1404
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98273-241-0 01 1 1405-1411
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98282-919-0 01 1 1412-
738 CONTROL UNIT; AUTO LEVELING
WHEEL BASE 4600MM(46W) HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> 		8-98135-294-0 01 1 1411-
738 CONTROL UNIT; AUTO LEVELING
WHEEL BASE 5500MM(55W) HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> 		8-98135-295-0 01 1 1411-
738 CONTROL UNIT; AUTO LEVELING
WHEEL BASE 6000MM(60W) HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> 		8-98135-296-0 01 1 1411-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 1411-
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) 		8-98085-587-0 01 1 1411-
763 BRACKET; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1310-

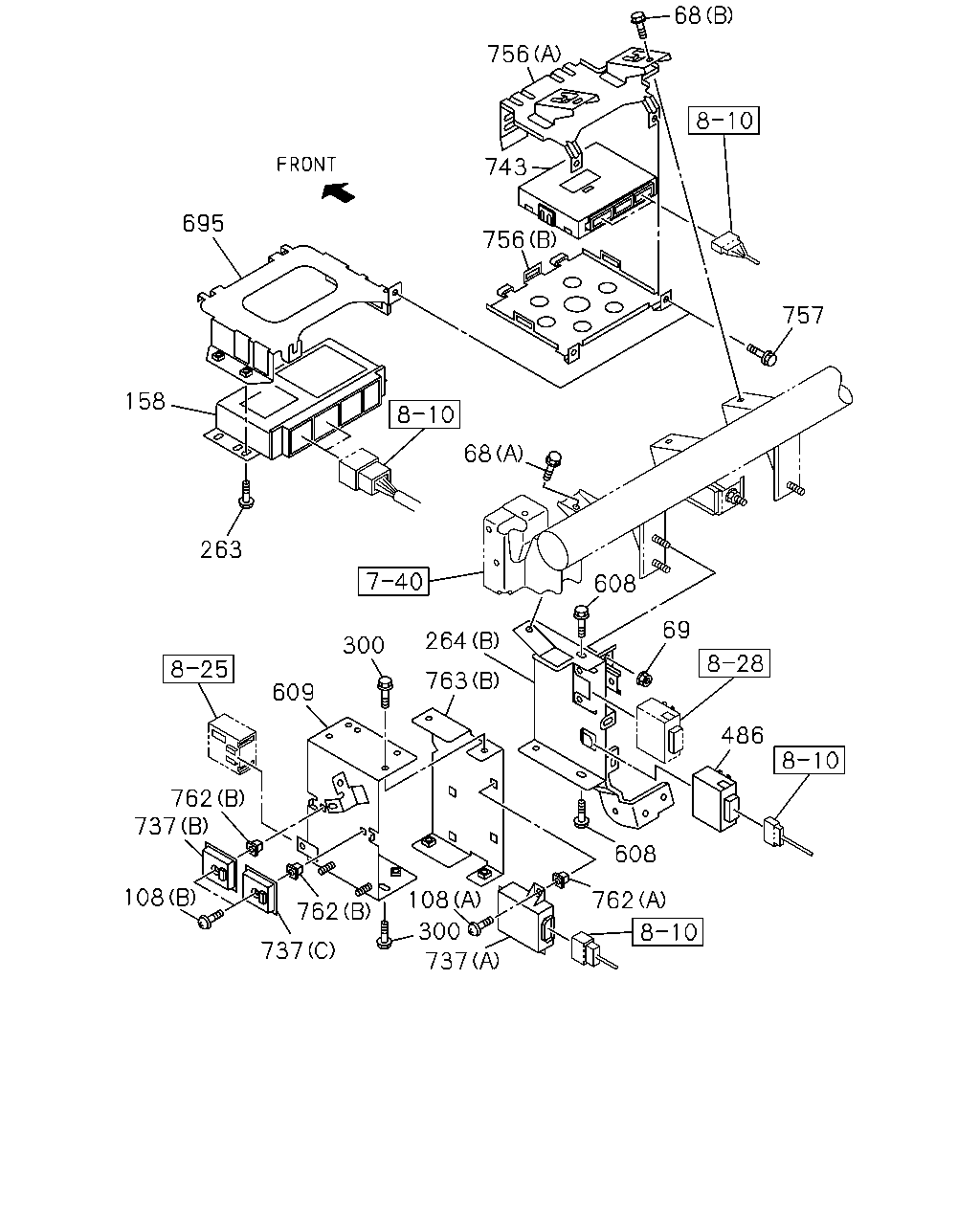

çizim 381966
695 158 263 609 300 264 763 608 69 486 608 762 108 300 762 737 108 737 762 756 743 756 757 68 68 737
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1310-
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1310-1410
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1411-
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1411-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1310-
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1411-
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) SCREW M4X25 TAPPING 		0-74160-425-0 02 1 1411-
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X16 FLANGE 		0-28650-616-0 03 1 1310-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R-22.5-16 RIB(55N) 		8-98232-609-0 01 1 1411-
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 04 1 1411-
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1310-
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1310-
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 04 1 1411-
300 BOLT; CONT UNIT BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1310-
486 CONTROL UNIT; MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-97610-202-1 01 1 1411-
608 BOLT; CONT UNIT,AIR SUS
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 1411-
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER WINDOW FRT DOOR<A32>,REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 1411-
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 1411-
609 BRACKET ASM; ELEC UNIT,AIR SUS
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98169-737-1 01 1 1411-
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER WINDOW FRT DOOR<A32>,REMOTE CONT DOOR LOCK<6NF> 		8-98169-737-1 01 1 1411-
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> 		8-98169-737-1 01 1 1411-
695 BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98045-016-1 01 1 1411-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (A) 		1-80111-271-0 01 1 1411-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (B) 		8-98095-040-0 01 1 1411-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (C) 		8-98095-041-0 01 1 1411-
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98273-240-0 01 1 1411-1411
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98282-918-0 01 1 1412-
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98252-968-0 01 1 1310-1404
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98273-241-0 01 1 1405-1411
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98282-919-0 01 1 1412-
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1310-
756 BRACKET; ECU,BCM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1310-1410
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> (A) 		8-98056-411-3 01 1 1411-
756 BRACKET; ECU,BCM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1411-
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1310-
757 BOLT; BRKT,BCM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 1310-1410
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 02 1 1411-
757 BOLT; BRKT,BCM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 1411-
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1411-
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1411-
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) 		8-98085-587-0 01 1 1411-
763 BRACKET; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1310-

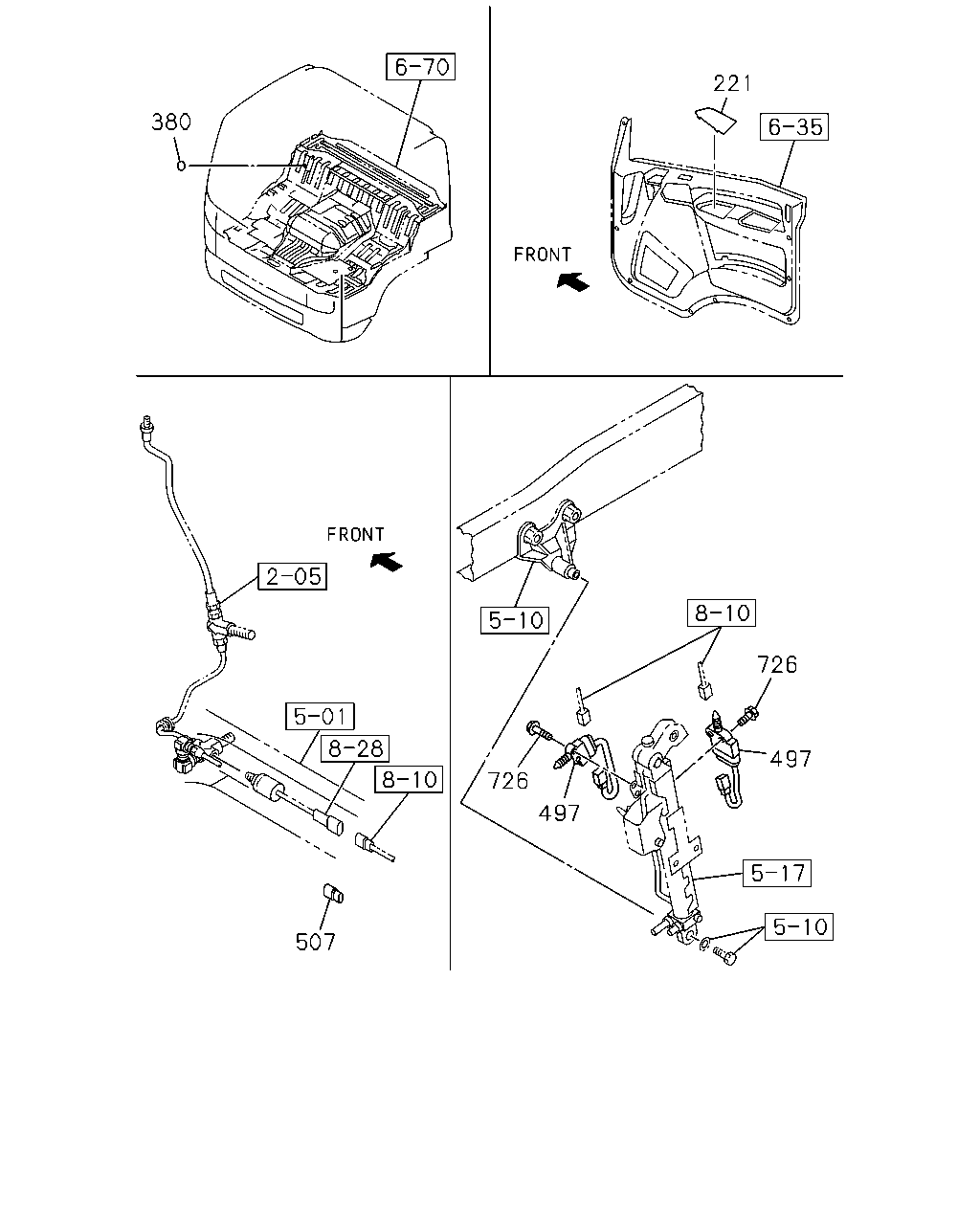

çizim 381978
380 221 726 497 726 497 507
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1411-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1411-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1310-
497 SWITCH; CAB TILT
AUTO CAB TILT<WV2> STAMP NO 		1-82380-172-1 02 1 1411-
507 CONNECTOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1310-1410
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1411-
726 BOLT; SW,CAB TILT
AUTO CAB TILT<WV2> M6X25 FLANGE 		0-28050-625-0 04 1 1411-
çizim 455819
448 448 451 458 329 728 727 120 458 329 729 730 730 729
BalonParca AdiParca NoAdetTipApplied Date
120 NUT; SENSOR
HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> M6 FLANGE 		0-91180-106-0 02 1 1411-
329 WASHER
HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> ID=8.2 		8-98019-967-0 02 1 1411-
448 BOLT; SENSOR
HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> (B) M6X16 FLANGE 		0-28050-616-0 02 1 1411-
448 BOLT; SENSOR
HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> (C) M12X40 FLANGE 		0-28651-240-0 02 1 1411-
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1310-
451 BRACKET; HEIGHT SENSOR
HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> 		8-98126-217-0 01 1 1411-
458 NUT; ROD
HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> M8 FLANGE 		0-91180-108-0 02 1 1411-
727 SENSOR; HEIGHT,DISCHARGE LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> 		8-98126-219-0 01 1 1411-
728 ROD; LINK,HEIGHT SENSOR
HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> L=210 		9-08400-821-0 01 1 1411-
729 NUT; LINK ROD
HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> M8 		0-91111-508-0 02 1 1411-
730 JOINT; BALL,LINK ROD
HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> L=45.5 		1-09760-118-1 02 1 1411-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
