◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#129194) — 23 parça

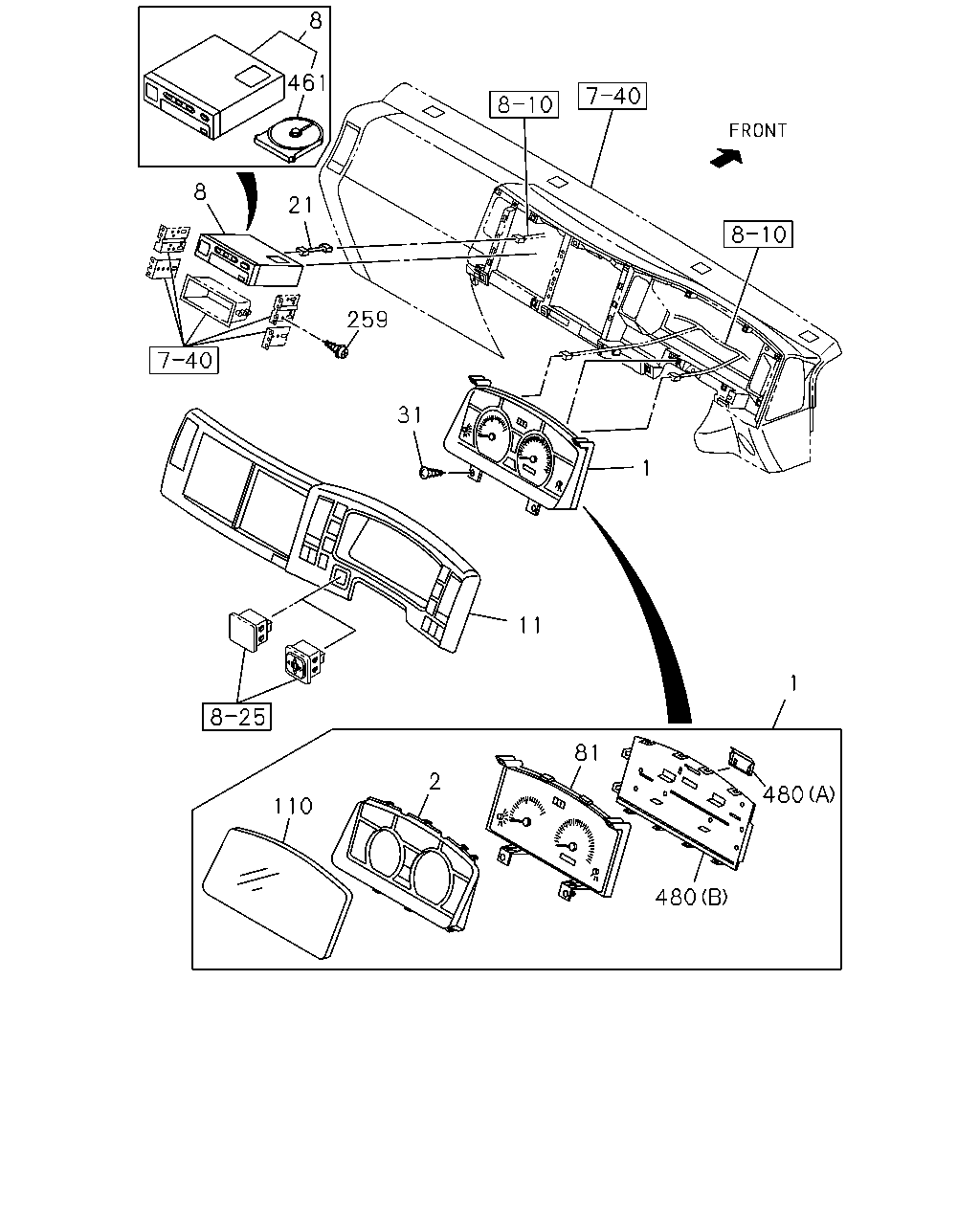

çizim 381852
8 461 21 8 259 31 1 11 1 480 480 81 2 110
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98306-664-0 01 1 1411-
1 METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98195-692-0 01 1 1310-
1 METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98161-851-1 01 1 1310-
1 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98195-693-0 01 1 1310-1501
1 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> 		8-98195-693-0 01 1 1411-
1 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98095-682-3 01 1 1310-
2 PANEL; CLUSTER 8-98054-432-0 01 1 1310-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1310-
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1310-
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 1310-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1310-
81 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98306-666-0 01 1 1502-
81 METER SUB ASM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98195-695-0 01 1 1310-
81 METER SUB ASM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98162-024-0 01 1 1310-
81 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98195-696-0 01 1 1310-1501
81 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> 		8-98195-696-0 01 1 1502-
81 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98149-098-0 01 1 1310-
110 GLASS; CLUSTER METER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-642-0 01 1 1310-
110 GLASS; CLUSTER METER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-431-0 01 1 1310-
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1310-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1310-
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 1310-
480 COVER; METER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1310-
