8-15 — FIXING PARTS; WIRING HARNESS (#129193) — 142 parça

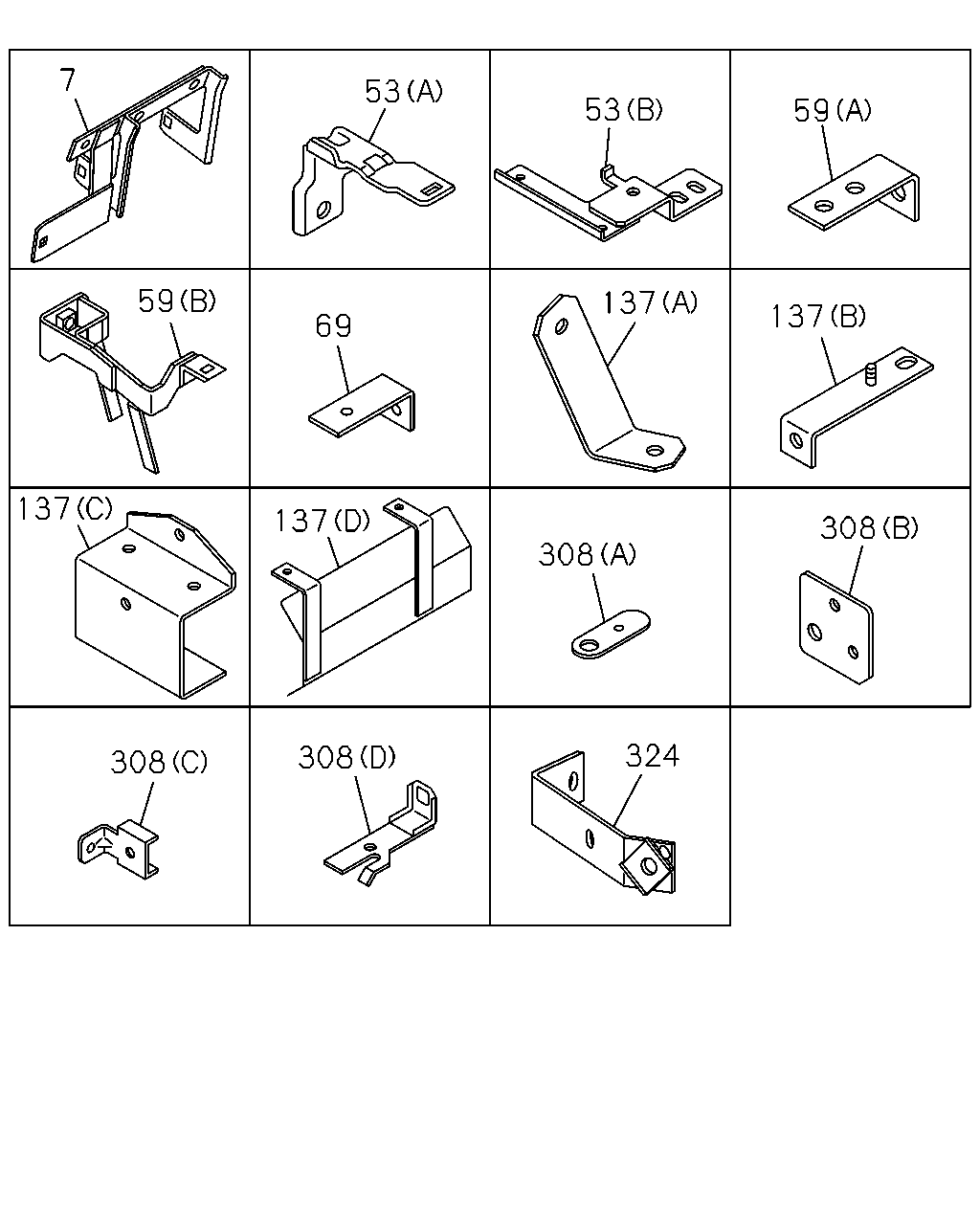

çizim 382000
7 53 53 59 137 137 69 59 137 137 308 308 324 308 308
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1310-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1310-
53 BRACKET; HARNESS
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W) (B) 		8-97620-485-0 01 1 1310-1310
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 1310-
59 BRACKET; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=62 		1-21464-170-2 01 1 1310-
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=55 		1-47475-304-0 01 1 1310-
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (C) 		8-97609-797-1 02 1 1411-
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (D) 		8-98255-001-0 01 1 1411-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1310-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1310-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1310-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-97614-078-0 01 1 1310-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-291-2 01 1 1310-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98021-692-1 01 1 1310-
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		8-98210-921-1 01 1 1411-
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		8-98210-922-1 01 1 1411-

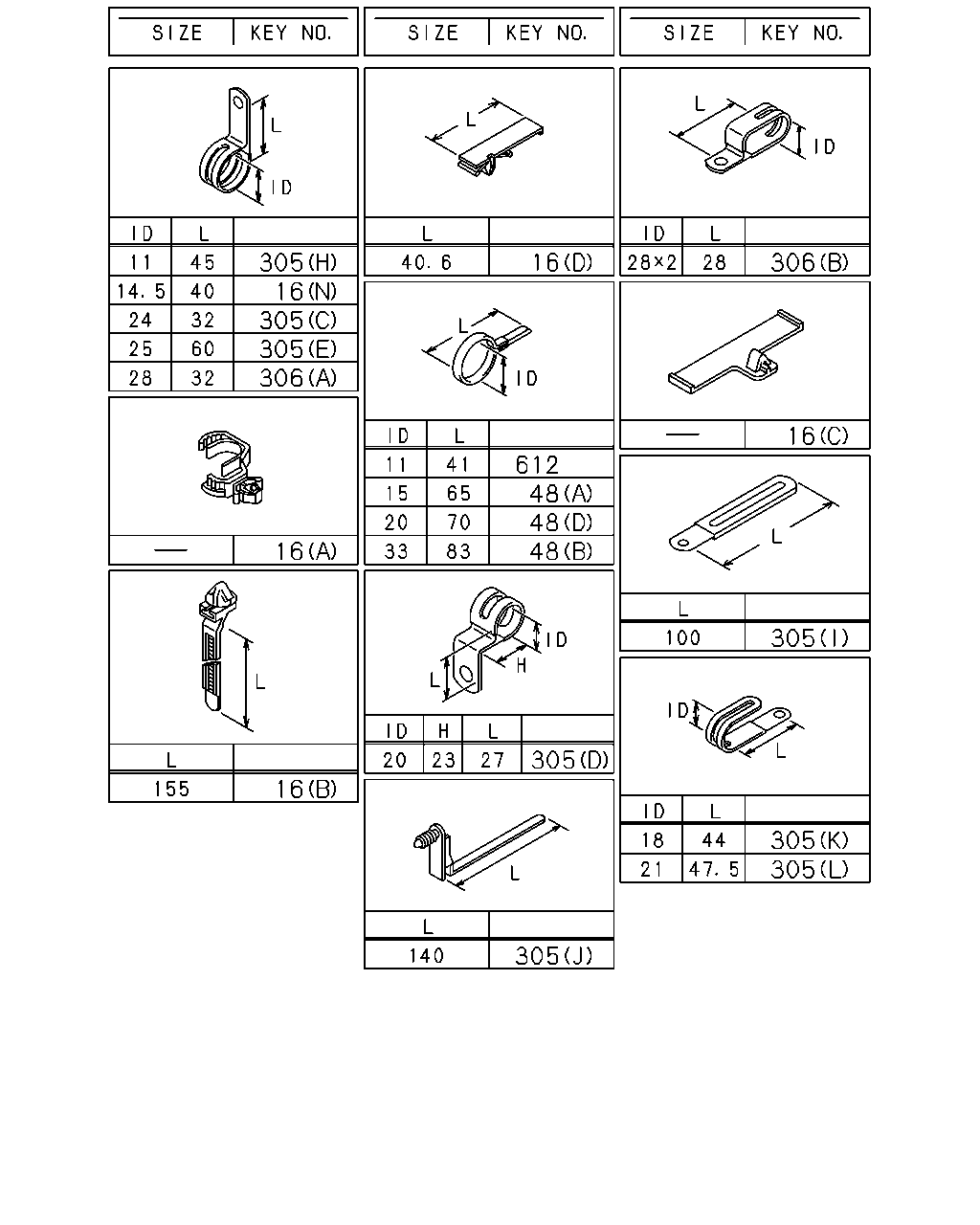

çizim 382037
305 305 16 305 306 16 16 16 612 48 48 48 305 305 306 16 305 305 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (I) ID=11 L=16 		0-95235-025-0 02 1 1411-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (J) ID=11X2 L=16 		0-95325-025-0 02 1 1411-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) ID=5-12 L=14.5 		1-09987-221-0 02 1 1411-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (L) L=140 		5-09707-031-1 01 1 1411-
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (M) ID=16X2 L=50 		0-95325-586-0 01 1 1411-
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (N) ID=14.5 L=40 		1-09701-014-0 01 1 1411-
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1310-
16 CLIP; HARNESS
(H) ID=15 H=30 L=30 		1-09700-832-0 02 1 1310-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1310-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1310-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1310-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1310-
16 CLIP; HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) ID=16 L=40 		0-95235-576-0 03 1 1310-
16 CLIP; HARNESS
FULLER FSO5206B OD M/T(Y4V) (F) OD=9 H=6 		1-09709-178-0 01 1 1310-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=20 L=70 		1-09700-485-0 01 1 1310-
48 CLIP; FRAME HARNESS
(A) ID=15 L=65 		1-09700-466-0 01 1 1310-1310
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15 L=65 		1-09700-466-0 01 1 1310-
48 CLIP; FRAME HARNESS
(B) ID=33 L=83 		1-09701-291-0 01 1 1310-
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 02 1 1310-
305 CLIP; ENG HARNESS
(A) ID=16 L=28 		0-95235-556-0 02 1 1310-
305 CLIP; ENG HARNESS
(B) ID=16 L=40 		0-95235-576-0 01 1 1310-
305 CLIP; ENG HARNESS
(C) ID=24 L=32 		1-09700-766-1 01 1 1310-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1310-
305 CLIP; ENG HARNESS
(E) ID=25 L=60 		1-09701-041-1 01 1 1310-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1310-
305 CLIP; ENG HARNESS
(G) OD=9 H=6 		1-09709-178-0 01 1 1310-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 1310-
305 CLIP; ENG HARNESS
(I) L=100 		8-94443-021-1 01 1 1310-
305 CLIP; ENG HARNESS
(J) L=140 		8-97122-360-0 01 1 1310-
305 CLIP; ENG HARNESS
(K) ID=18 L=44 		8-97367-985-1 01 1 1310-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (L) ID=21 L=47.5 		8-94178-108-0 01 1 1310-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1310-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1310-
612 CLIP; HARNESS DPD
WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 L=41 		1-09700-403-0 01 1 1310-1310
çizim 382285
304 304 139 38 139 304 304 516 377 127 38 38 139 150 38 139 139 139 38 386 524 219 294 525 47 184
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (E) M8X20 FLANGE 		0-28650-820-0 02 1 1411-
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (E) M8X20 FLANGE 		0-28650-820-0 02 1 1411-
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1411-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1310-
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1310-1410
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1411-
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X30 FLANGE 		0-28650-830-0 02 1 1411-
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1310-
38 BOLT; CLIP,HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) M8X16 FLANGE 		0-28050-816-0 03 1 1310-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1310-
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1411-
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1411-
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 1411-
139 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) M8X35 FLANGE 		0-28650-835-0 01 1 1310-
139 BOLT; BRKT
(C) M8X12 FLANGE 		0-28050-812-0 01 1 1310-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1310-
139 BOLT; BRKT
(D) M10X35 FLANGE 		0-28651-035-0 01 1 1310-
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1310-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1310-
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 01 1 1411-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1310-1410
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1411-
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1411-
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1411-
294 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1411-
294 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 04 1 1411-
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 01 1 1310-1410
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 01 1 1411-
304 BOLT; ENG HARNESS CLIP
(A) M6X12 FLANGE 		0-28050-612-0 01 1 1310-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1310-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1310-
304 BOLT; ENG HARNESS CLIP
(D) M8X20 FLANGE 		0-28050-820-0 01 1 1310-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1310-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1310-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1310-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1310-
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 1310-
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 1310-

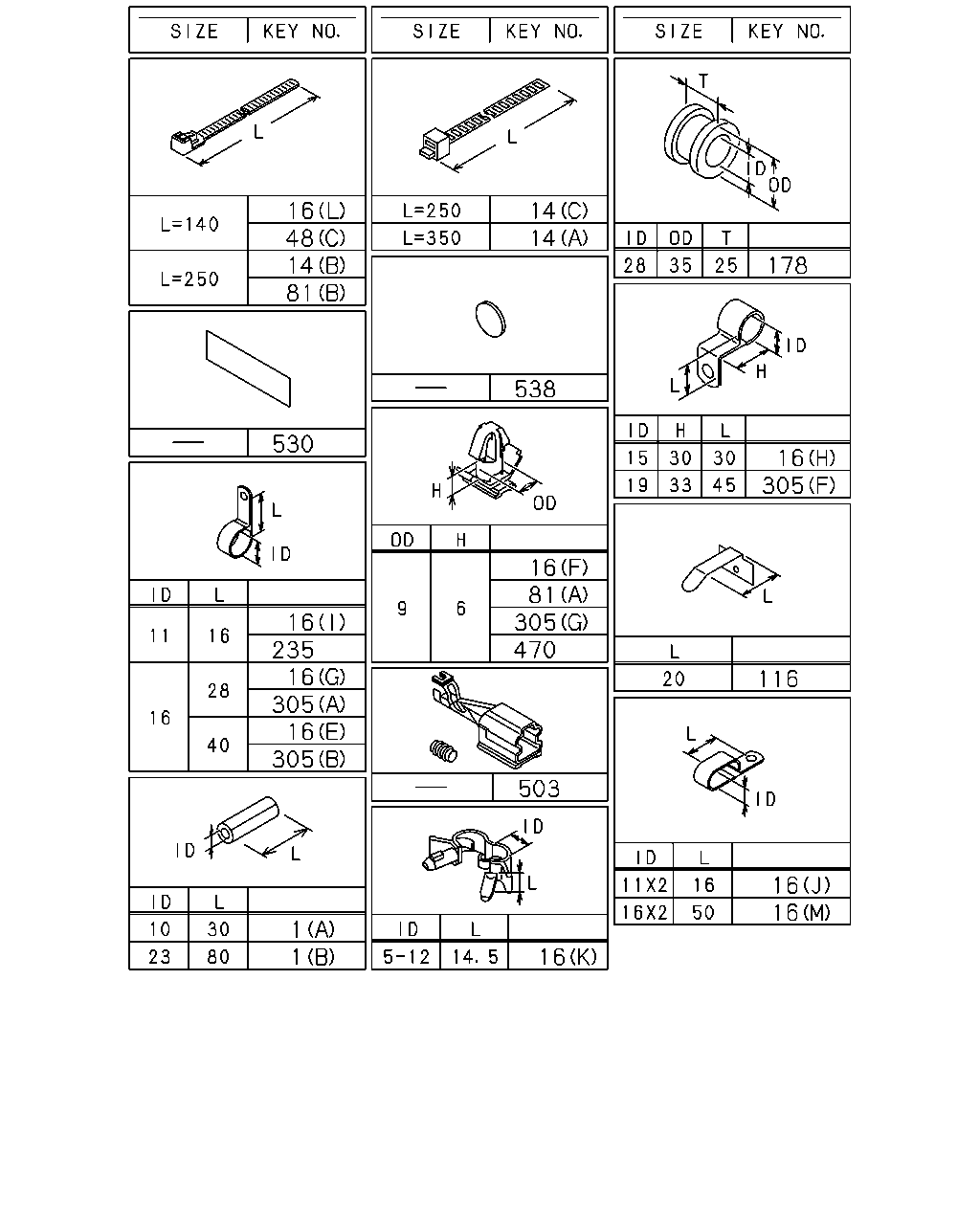

çizim 382318
16 48 14 81 530 16 235 16 305 16 305 1 1 14 14 538 16 81 305 470 503 16 178 16 305 116 16 16
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1310-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1310-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (C) L=250 		1-09707-126-0 02 1 1411-
14 CLIP; BAND,HARNESS
(A) L=350 		1-09707-183-0 01 1 1310-
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 14 1 1310-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (I) ID=11 L=16 		0-95235-025-0 02 1 1411-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (J) ID=11X2 L=16 		0-95325-025-0 02 1 1411-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) ID=5-12 L=14.5 		1-09987-221-0 02 1 1411-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (L) L=140 		5-09707-031-1 01 1 1411-
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (M) ID=16X2 L=50 		0-95325-586-0 01 1 1411-
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (N) ID=14.5 L=40 		1-09701-014-0 01 1 1411-
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1310-
16 CLIP; HARNESS
(H) ID=15 H=30 L=30 		1-09700-832-0 02 1 1310-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1310-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1310-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1310-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1310-
16 CLIP; HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) ID=16 L=40 		0-95235-576-0 03 1 1310-
16 CLIP; HARNESS
FULLER FSO5206B OD M/T(Y4V) (F) OD=9 H=6 		1-09709-178-0 01 1 1310-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=20 L=70 		1-09700-485-0 01 1 1310-
48 CLIP; FRAME HARNESS
(A) ID=15 L=65 		1-09700-466-0 01 1 1310-1310
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15 L=65 		1-09700-466-0 01 1 1310-
48 CLIP; FRAME HARNESS
(B) ID=33 L=83 		1-09701-291-0 01 1 1310-
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 02 1 1310-
81 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 1310-
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1310-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1310-
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1310-
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1310-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> ID=11 L=16 		0-95235-025-0 02 1 1411-
305 CLIP; ENG HARNESS
(A) ID=16 L=28 		0-95235-556-0 02 1 1310-
305 CLIP; ENG HARNESS
(B) ID=16 L=40 		0-95235-576-0 01 1 1310-
305 CLIP; ENG HARNESS
(C) ID=24 L=32 		1-09700-766-1 01 1 1310-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1310-
305 CLIP; ENG HARNESS
(E) ID=25 L=60 		1-09701-041-1 01 1 1310-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1310-
305 CLIP; ENG HARNESS
(G) OD=9 H=6 		1-09709-178-0 01 1 1310-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 1310-
305 CLIP; ENG HARNESS
(I) L=100 		8-94443-021-1 01 1 1310-
305 CLIP; ENG HARNESS
(J) L=140 		8-97122-360-0 01 1 1310-
305 CLIP; ENG HARNESS
(K) ID=18 L=44 		8-97367-985-1 01 1 1310-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (L) ID=21 L=47.5 		8-94178-108-0 01 1 1310-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1310-1410
470 CLIP; HARNESS,LICENSE LAMP
SINGAPORE EQUIPMENT(2G0) OD=9 H=6 		1-09709-178-0 01 1 1411-
503 CONNECTOR 1-82690-668-0 01 1 1310-
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82690-668-0 01 1 1310-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1310-
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1310-1410
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 180X40 		1-72498-019-1 01 1 1411-
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1411-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1310-
