3-75 — BRAKE PIPING; AIR,FRONT (#12919) — 98 parça

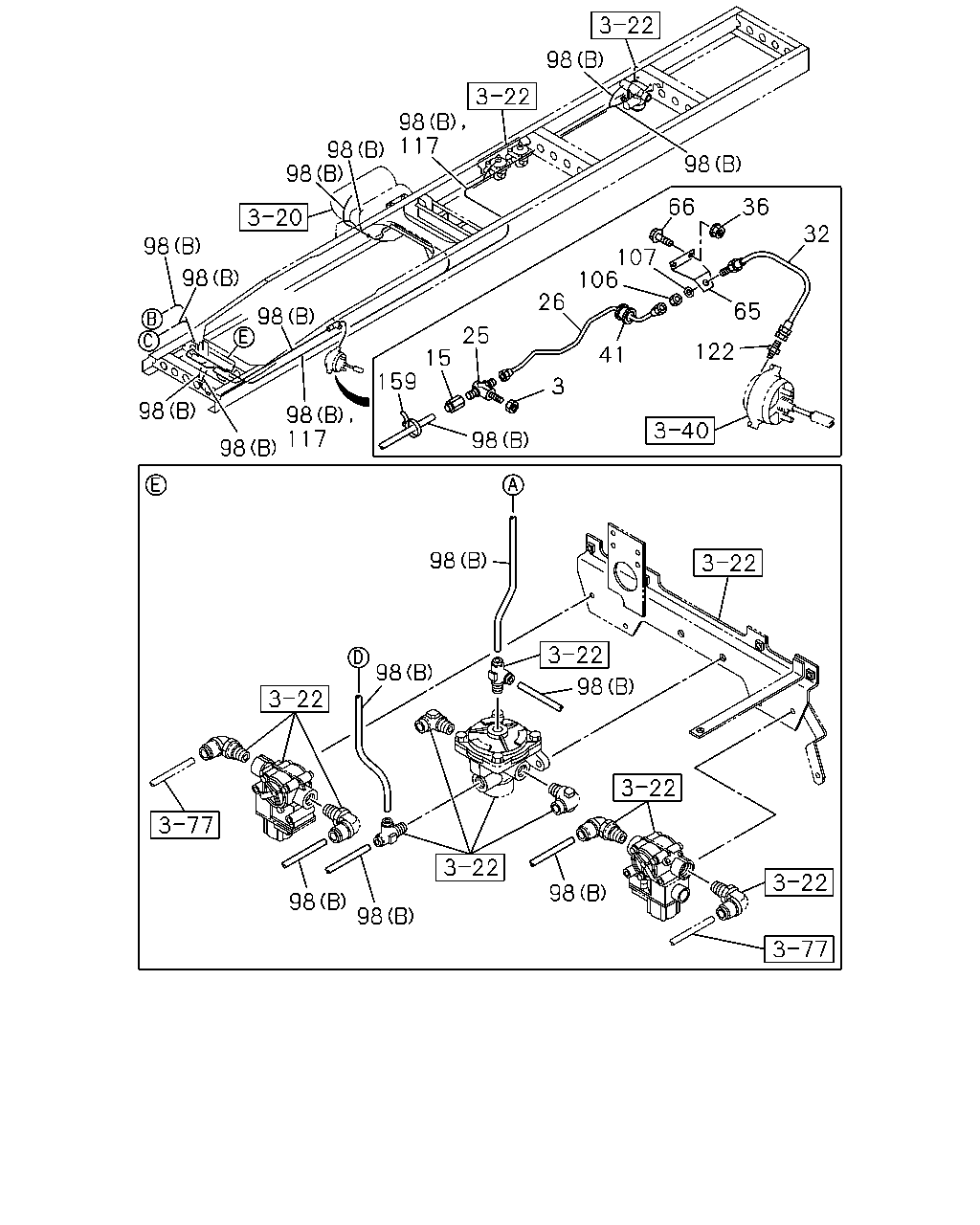

çizim 98276
98 98 117 98 98 98 66 36 32 98 107 106 98 26 65 98 25 122 98 41 15 159 3 98 117 98 98 98 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date
3 NUT; PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 01 1 1108-
3 NUT; PIPE UNION
M12 		0-91111-512-0 02 1 0807-1107
3 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M12 		0-91111-512-0 02 1 1108-
15 CONNECTOR; AIR PIPE
DIN12 & M16 STRAIGHT THA 		1-09660-876-0 02 1 0807-1107
15 CONNECTOR; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> DIN12 & M16 STRAIGHT THA 		1-09660-876-0 02 1 1108-
25 UNION; AIR PIPE
M16 		1-09654-148-1 02 1 0807-1107
25 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M16 		1-09654-148-1 02 1 1108-
26 PIPE; AIR,UNION TO FLEX HOSE
L=500 THA 		8-98047-734-0 01 1 0807-1107
26 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=500 THA 		8-98047-734-0 01 1 1108-
26 PIPE; AIR,UNION TO FLEX HOSE
L=661 THA 		8-98085-122-0 01 1 0807-1107
26 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=661 THA 		8-98085-122-0 01 1 1108-
32 HOSE; FLEX,FRT 1-09363-892-1 02 1 0807-1107
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		1-09363-892-1 02 1 1108-
36 NUT; HOSE BRKT
M8 FLANGE THA 		0-91180-108-0 04 1 0807-1107
36 NUT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA 		0-91180-108-0 04 1 1108-
41 GROMMET; AIR PIPE
ID=28 OD=35 T=17 		9-09956-256-2 02 1 0807-1107
41 GROMMET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=28 OD=35 T=17 		9-09956-256-2 02 1 1108-
65 BRACKET; FLEX HOSE 1-47476-210-0 01 1 0807-1107
65 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		1-47476-210-0 01 1 1108-
65 BRACKET; FLEX HOSE 1-47476-211-0 01 1 0807-1107
65 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		1-47476-211-0 01 1 1108-
66 BOLT; HOSE BRKT
M8X30 FLANGE THA 		0-28650-830-0 04 1 0807-1107
66 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA 		0-28650-830-0 04 1 1108-
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA 		8-97625-675-0 01 1 1108-
98 TUBE; NYLON
(A) THA 		8-98091-308-0 01 1 0807-1107
98 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		8-98091-308-0 01 1 1108-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 THA 		1-87411-014-0 AR 1 0807-
106 NUT; FLEX HOSE
M16 THA 		0-91111-516-0 02 1 0807-1107
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M16 THA 		0-91111-516-0 02 1 1108-
107 WASHER; LK,FLEX HOSE
ID=16.2 THA 		0-91510-516-0 02 1 0807-1107
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=16.2 THA 		0-91510-516-0 02 1 1108-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 0807-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 THA 		1-87411-025-0 AR 1 0807-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 THA 		1-87411-029-0 AR 1 0807-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 0807-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA 		1-87411-033-0 AR 1 0807-
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 THA 		1-87411-034-0 AR 1 1103-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1103-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 THA 		1-87411-035-0 AR 1 1106-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 THA 		1-87411-027-0 AR 1 0807-
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 STRAIGHT 		1-09650-179-1 02 1 0807-1107
122 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M16 & PT3/8 STRAIGHT 		1-09650-179-1 02 1 1108-
159 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 0807-0812
159 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0901-1107
159 CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350 		1-09707-183-0 01 1 1108-

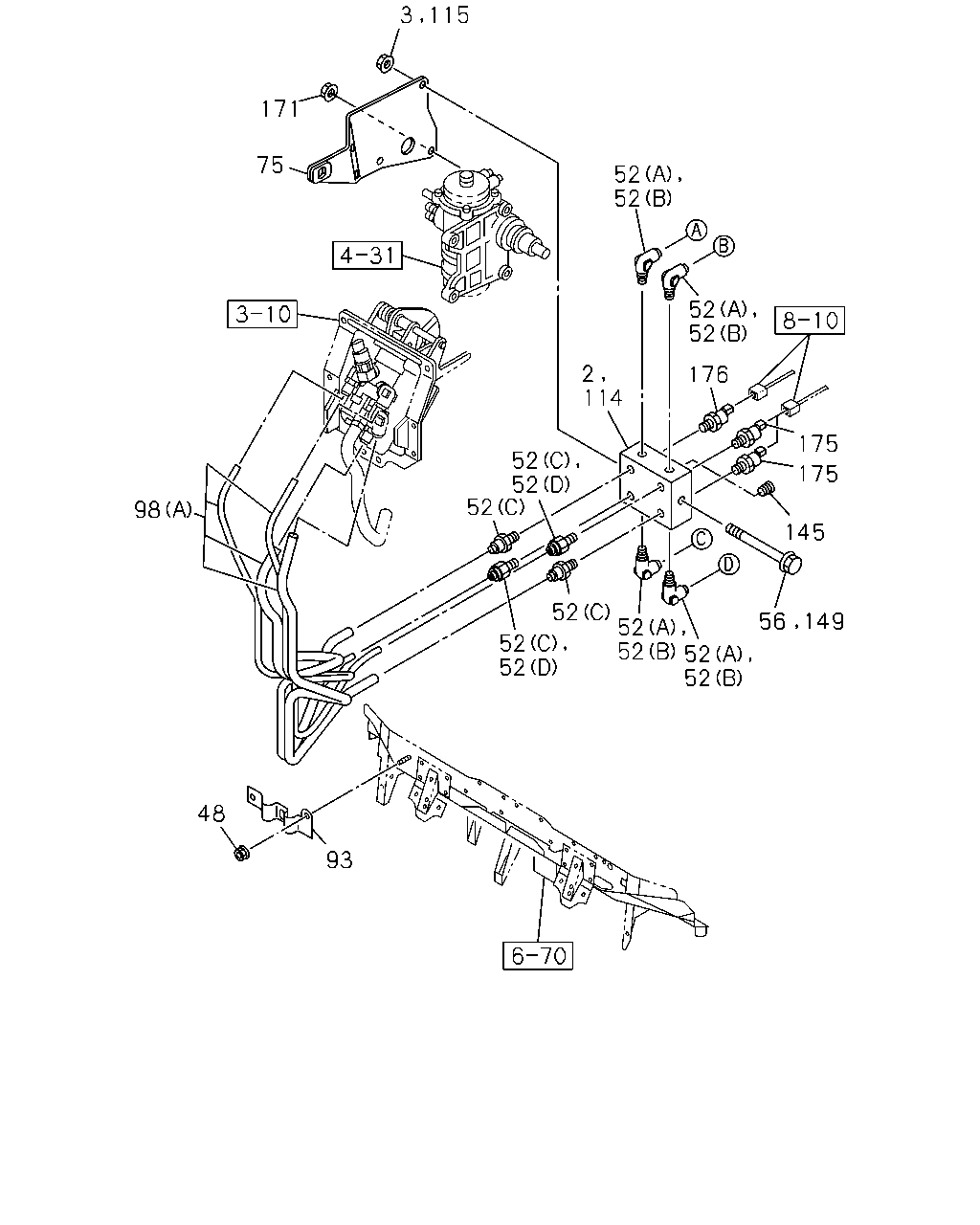

çizim 98291
171 75 52 52 52 52 2 114 176 175 52 52 52 175 98 145 52 52 52 52 52 52 52 48 93 3 115 56 149
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98057-394-1 01 1 1108-
3 NUT; PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 01 1 1108-
3 NUT; PIPE UNION
M12 		0-91111-512-0 02 1 0807-1107
3 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M12 		0-91111-512-0 02 1 1108-
48 NUT; UNION BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 0807-1107
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M6 FLANGE THA 		0-91180-106-0 02 1 1108-
52 CONNECTOR; NYLON TUBE
EXC. ANTI LOCK BRAKE<JE5> (A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 02 1 1103-1107
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 02 1 1108-
52 CONNECTOR; NYLON TUBE
EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 1103-1107
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 1108-
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) DIN12 & R1/4 ELBOW 		1-09660-958-0 04 1 1108-
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1108-
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 02 1 0807-0809
52 CONNECTOR; NYLON TUBE
ANTI LOCK BRAKE<JE5> (A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 04 1 0810-1102
52 CONNECTOR; NYLON TUBE
ANTI LOCK BRAKE<JE5> (A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 04 1 1103-1107
52 CONNECTOR; NYLON TUBE
ANTI LOCK BRAKE<JE5> (A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 04 1 1108-
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 0807-0809
52 CONNECTOR; NYLON TUBE
EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 0810-1102
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 0807-1107
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1108-
52 CONNECTOR; NYLON TUBE
EXC. ANTI LOCK BRAKE<JE5> (A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 02 1 0810-1102
52 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 02 1 0807-1107
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 02 1 1108-
56 BOLT; UNION BRKT
M8X100 FLANGE THA 		0-28050-800-0 01 1 0807-1107
56 BOLT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X100 FLANGE THA 		0-28050-800-0 01 1 1108-
75 BRACKET; UNION 8-98099-485-1 01 1 0807-
93 BRACKET; UNION,TUBE 8-98044-013-0 01 1 0807-1107
93 BRACKET; UNION,TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		8-98044-013-0 01 1 1108-
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA 		8-97625-675-0 01 1 1108-
98 TUBE; NYLON
(A) THA 		8-98091-308-0 01 1 0807-1107
98 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		8-98091-308-0 01 1 1108-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 THA 		1-87411-014-0 AR 1 0807-
114 UNION; NYLON TUBE
THA 		8-98057-394-1 01 1 0807-1107
114 UNION; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98057-394-1 01 1 1108-
115 NUT; TUBE UNION
M8 FLANGE THA 		0-91180-108-0 01 1 0807-1107
115 NUT; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA 		0-91180-108-0 01 1 1108-
145 PLUG
PT1/4 THA 		9-99204-513-0 01 1 0807-
149 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X100 FLANGE THA 		0-28050-800-0 01 1 1108-
171 NUT; BRACKET
M10 FLANGE THA 		0-91180-210-0 02 1 0807-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0807-
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 0807-
