◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#129189) — 82 parça
çizim 381657
67 305 60 75 68 439 68 438 304
BalonParca AdiParca NoAdetTipApplied Date
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-631-0 01 1 1310-
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-630-0 01 1 1310-
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-633-0 01 1 1310-
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-632-0 01 1 1310-
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1310-
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 1310-
68 BULB; FRT COMB LAMP
FOG LAMP<T96> (A) 24V 70W 		1-82194-106-0 02 1 1310-
75 SCREW; FRT COMB LAMP
(B) BOLT M6X16 FLANGE 		0-28650-616-0 04 1 1310-
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1310-
75 SCREW; FRT COMB LAMP
FOG LAMP<T96> (A) 		8-98074-439-0 02 1 1310-
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 1310-
305 COVER; FRT COMB LAMP
FOG LAMP<T96> 		8-98240-559-0 02 1 1310-
305 COVER; FRT COMB LAMP
EXC. FOG LAMP<T96> 		8-98240-560-0 02 1 1310-
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1310-
439 SPRING SET; COMB LAMP
FOG LAMP<T96> 		8-98075-644-0 02 1 1310-

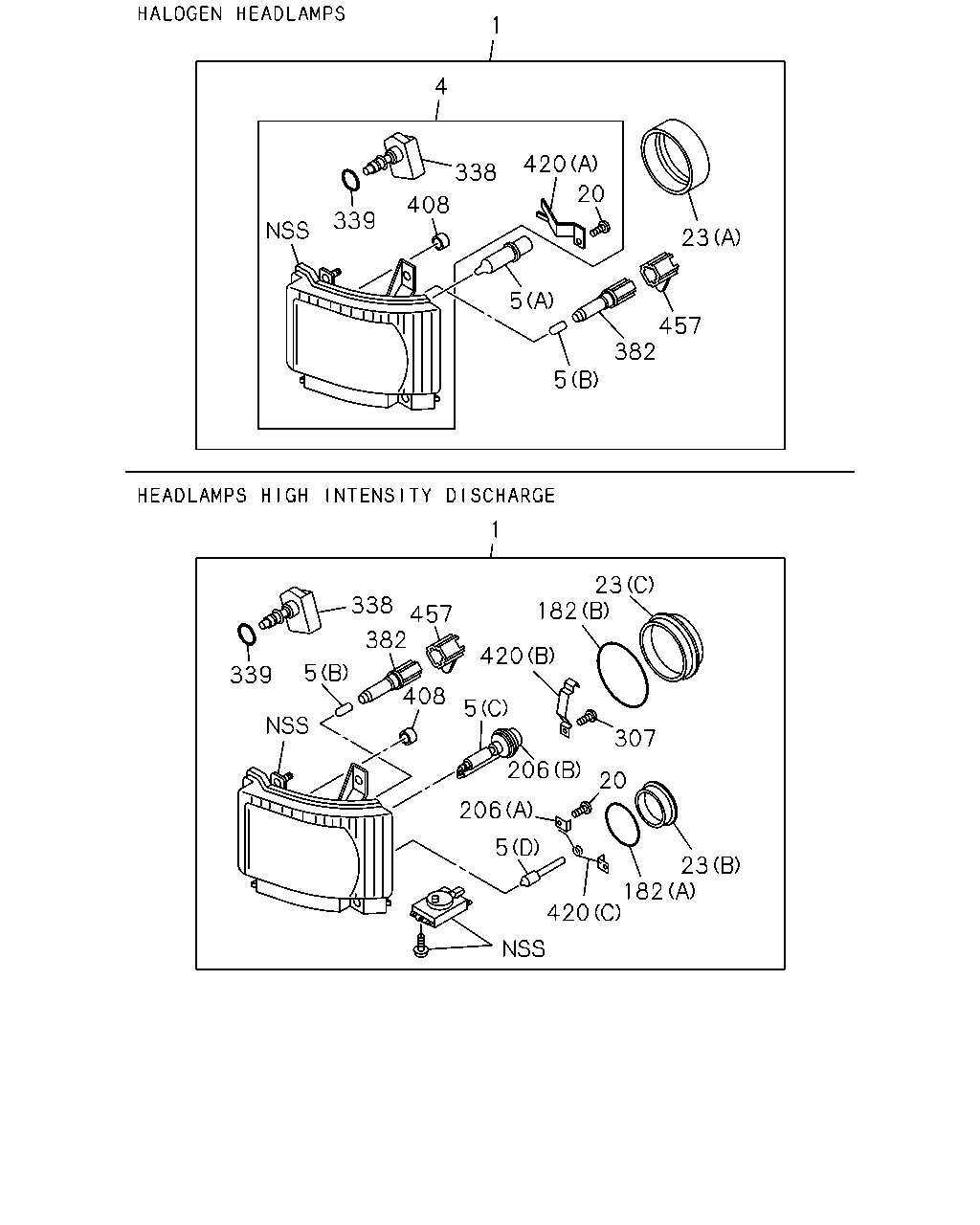

çizim 381947
457 382 5 5 408 339 338 4 1 420 20 23 182 23 420 457 338 5 382 408 5 1 339 307 20 206 206 5 420 23 182
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98241-345-0 01 1 1411-
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98241-346-0 01 1 1411-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1310-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1310-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-313-0 01 1 1310-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-312-0 01 1 1310-
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-565-0 01 1 1310-
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-564-0 01 1 1310-
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-567-0 01 1 1310-
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-566-0 01 1 1310-
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (C) 85V 35W 		1-82194-092-0 02 1 1411-
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (D) 24V 70W 		8-94405-658-0 02 1 1411-
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1310-
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1310-1410
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 24V 75/70W 		1-82194-063-0 02 1 1411-
20 SCREW; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-97378-871-0 04 1 1411-
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1310-1410
20 SCREW; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97378-871-0 06 1 1411-
23 COVER; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 		8-98051-392-0 02 1 1411-
23 COVER; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (C) 		8-98051-393-0 02 1 1411-
23 COVER; BULB,HEADLAMP
(A) 		8-97232-491-0 02 1 1310-1410
23 COVER; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 		8-97232-491-0 02 1 1411-
182 GASKET; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A) 		8-98051-391-0 02 1 1411-
182 GASKET; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 		8-98051-394-0 02 1 1411-
206 HOLDER; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 		8-97378-878-0 02 1 1411-
206 HOLDER; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A) 		8-97378-879-0 02 1 1411-
307 SCREW; TAPPING,HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-97378-871-0 06 1 1411-
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1310-1410
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> 		8-98010-256-0 02 1 1411-
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1310-1410
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, HEADLAMPS CONTROL LEVELING SYSTEM AUTOMATIC<TR7> 		1-86830-158-0 02 1 1411-
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1310-
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1310-
420 SPRING; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 		8-97378-876-0 02 1 1411-
420 SPRING; BULB,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (C) 		8-97378-877-0 02 1 1411-
420 SPRING; BULB,HEADLAMP
(A) 		8-98218-601-0 02 1 1310-1410
420 SPRING; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 		8-98218-601-0 02 1 1411-
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1310-
çizim 382310
28 272 175 75 162 175 75 162 7 272 60 140 175 175 16 1
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98241-345-0 01 1 1411-
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> 		8-98241-346-0 01 1 1411-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1310-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1310-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-313-0 01 1 1310-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-312-0 01 1 1310-
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 1310-
16 BRACKET; HEADLAMP 8-98013-015-2 01 1 1310-
16 BRACKET; HEADLAMP 8-98013-016-2 01 1 1310-
28 BOLT; HEADLAMP
M10X25 FLANGE 		0-28651-025-0 04 1 1310-
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-631-0 01 1 1310-
60 LAMP ASM; FRT COMB
FOG LAMP<T96> 		8-98238-630-0 01 1 1310-
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-633-0 01 1 1310-
60 LAMP ASM; FRT COMB
EXC. FOG LAMP<T96> 		8-98238-632-0 01 1 1310-
75 SCREW; FRT COMB LAMP
(B) BOLT M6X16 FLANGE 		0-28650-616-0 04 1 1310-
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1310-
75 SCREW; FRT COMB LAMP
FOG LAMP<T96> (A) 		8-98074-439-0 02 1 1310-
140 NUT
M10 FLANGE 		0-91180-210-0 04 1 1310-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1310-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1310-
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 1310-
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 1310-
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 1310-
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 1310-
çizim 455773
327 427 437 91
BalonParca AdiParca NoAdetTipApplied Date
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1310-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1310-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1310-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1310-
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1310-
