Sayfa 7-70 - Isuzu EPC

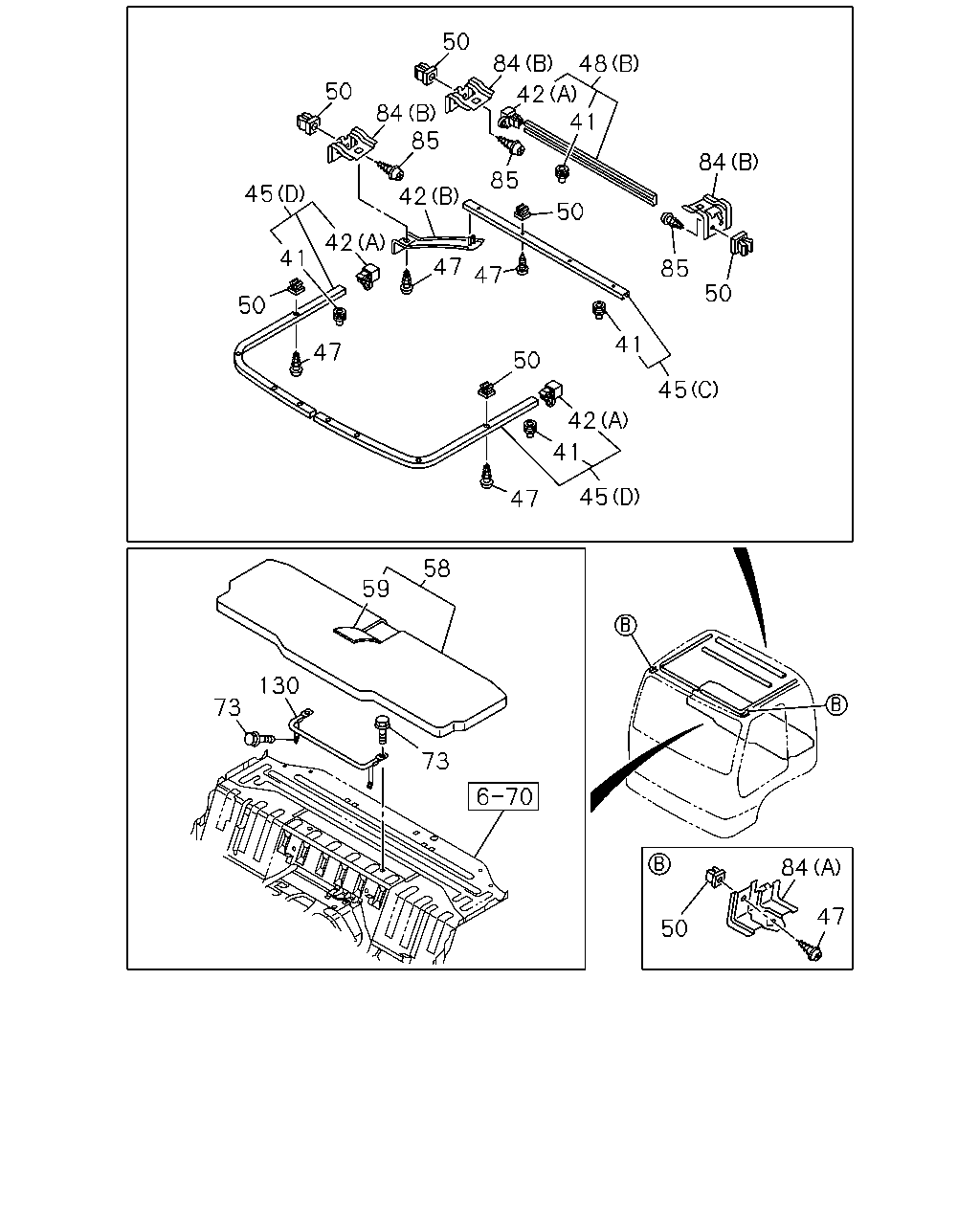

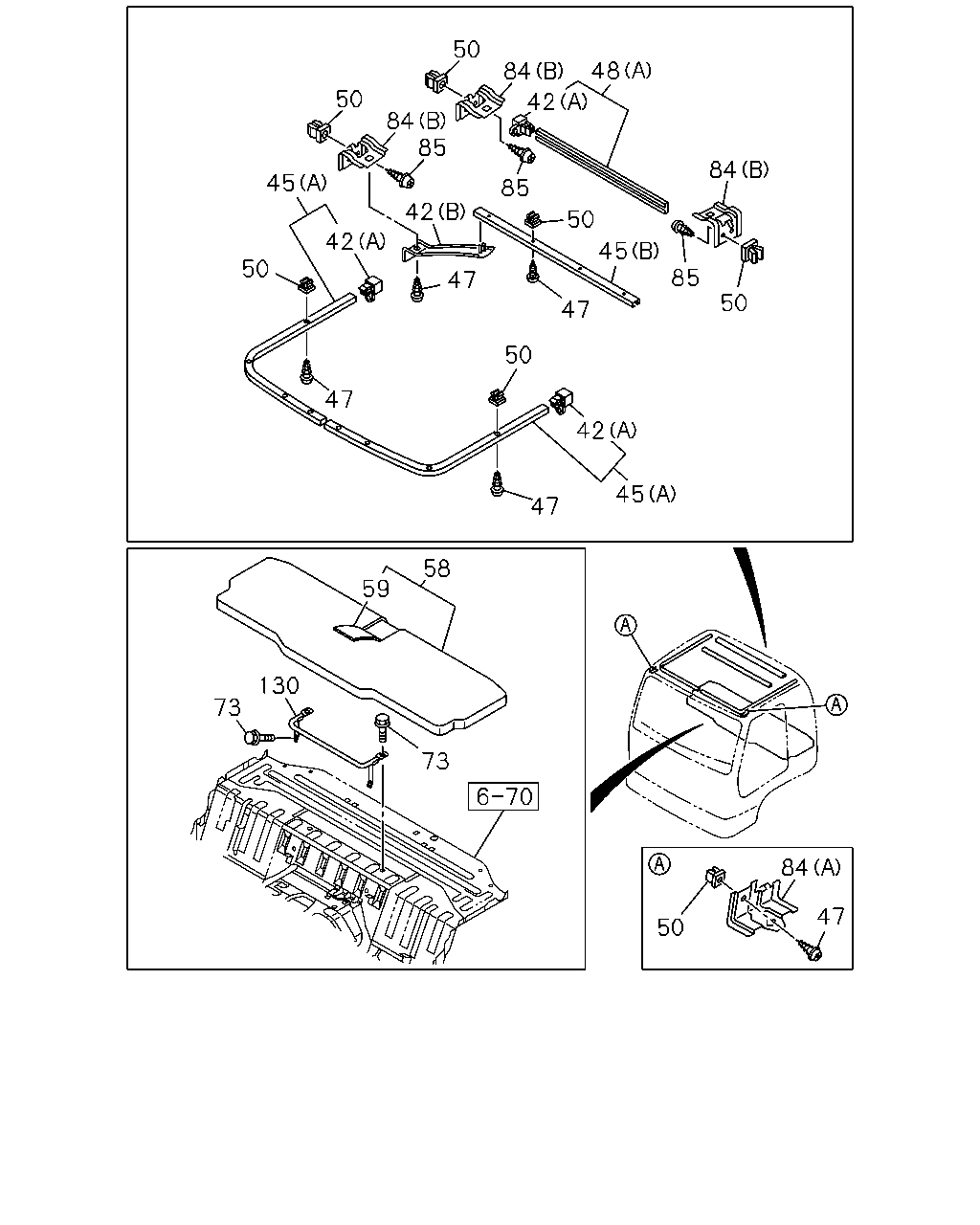

7-70 — SEPARATER AND BED (#129188) — 77 parça

50 50 84 45 42 50 42 85 42 84 48 84 50 85 47 50 47 45 50 85 47 47 42 45 58 59 130 73 73 50 84 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	1310-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	1310-
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	03	1	1310-
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) DARK GRAY	8-97407-488-1	01	1	1411-
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) ROUND CURTAIN RAIL<EDH> (D) LIGHT GRAY	8-97415-679-0	01	1	1411-
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) ROUND CURTAIN RAIL<EDH> (D) LIGHT GRAY	8-97415-680-0	01	1	1411-
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-486-0	01	1	1310-1410
45	RAIL; CURTAIN,FRT SINGAPORE EQUIPMENT(2G0) (B) DARK GRAY	8-97407-486-0	01	1	1411-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-676-0	01	1	1310-1410
45	RAIL; CURTAIN,FRT SINGAPORE EQUIPMENT(2G0) ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-676-0	01	1	1411-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-675-0	01	1	1310-1410
45	RAIL; CURTAIN,FRT SINGAPORE EQUIPMENT(2G0) ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-675-0	01	1	1411-
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1310-
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	14	1	1310-
48	RAIL; CURTAIN,BACK HONG KONG EQUIPMENT(B14) ROUND CURTAIN RAIL<EDH> (B) DARK GRAY	8-97407-490-2	01	1	1411-
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> (A) DARK GRAY	8-97407-866-2	01	1	1310-1410
48	RAIL; CURTAIN,BACK SINGAPORE EQUIPMENT(2G0) ROUND CURTAIN RAIL<EDH> (A) DARK GRAY	8-97407-866-2	01	1	1411-
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1310-
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	20	1	1310-
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1310-1405
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1406-
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-384-2	01	1	1310-
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	1310-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-043-1	01	1	1310-
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	1310-
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1310-
84	BRACKET; CURTAIN RAIL (A)	8-98028-326-1	02	1	1310-1405
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A)	8-98028-326-1	02	1	1406-
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (B)	8-98042-152-0	04	1	1310-
84	BRACKET; CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> (B)	8-98042-152-0	02	1	1310-
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	1310-
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	04	1	1310-1405
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	02	1	1406-
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1310-

85 42 42 41 41 42 84 48 84 85 45 42 41 47 45 41 50 47 47 47 85 84 50 45 50 50 50 50 58 59 130 73 73 50 84 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	HOOK; CURTAIN RAIL HONG KONG EQUIPMENT(B14) H=14.5 WHITE	1-73996-398-0	14	1	1411-
41	HOOK; CURTAIN RAIL HONG KONG EQUIPMENT(B14) ROUND CURTAIN RAIL<EDH> H=14.5 WHITE	1-73996-398-0	42	1	1411-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	1310-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	1310-
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	03	1	1310-
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) DARK GRAY	8-97407-488-1	01	1	1411-
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) ROUND CURTAIN RAIL<EDH> (D) LIGHT GRAY	8-97415-679-0	01	1	1411-
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) ROUND CURTAIN RAIL<EDH> (D) LIGHT GRAY	8-97415-680-0	01	1	1411-
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-486-0	01	1	1310-1410
45	RAIL; CURTAIN,FRT SINGAPORE EQUIPMENT(2G0) (B) DARK GRAY	8-97407-486-0	01	1	1411-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-676-0	01	1	1310-1410
45	RAIL; CURTAIN,FRT SINGAPORE EQUIPMENT(2G0) ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-676-0	01	1	1411-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-675-0	01	1	1310-1410
45	RAIL; CURTAIN,FRT SINGAPORE EQUIPMENT(2G0) ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-675-0	01	1	1411-
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1310-
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	14	1	1310-
48	RAIL; CURTAIN,BACK HONG KONG EQUIPMENT(B14) ROUND CURTAIN RAIL<EDH> (B) DARK GRAY	8-97407-490-2	01	1	1411-
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> (A) DARK GRAY	8-97407-866-2	01	1	1310-1410
48	RAIL; CURTAIN,BACK SINGAPORE EQUIPMENT(2G0) ROUND CURTAIN RAIL<EDH> (A) DARK GRAY	8-97407-866-2	01	1	1411-
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1310-
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	20	1	1310-
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1310-1405
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1406-
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-384-2	01	1	1310-
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	1310-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-043-1	01	1	1310-
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	1310-
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1310-
84	BRACKET; CURTAIN RAIL (A)	8-98028-326-1	02	1	1310-1405
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A)	8-98028-326-1	02	1	1406-
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (B)	8-98042-152-0	04	1	1310-
84	BRACKET; CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> (B)	8-98042-152-0	02	1	1310-
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	1310-
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	04	1	1310-1405
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	02	1	1406-
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1310-

64 92 44 44 92 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER HONG KONG EQUIPMENT(B14) (A) BLUE	8-97407-947-1	01	1	1411-
44	CURTAIN ASM; CABIN CENTER HONG KONG EQUIPMENT(B14) (B) BLUE	8-97407-948-1	01	1	1411-
51	CURTAIN; BACK HONG KONG EQUIPMENT(B14) (A) BLUE	8-97407-758-1	01	1	1411-
51	CURTAIN; BACK HONG KONG EQUIPMENT(B14) (B) BLUE	8-97407-759-1	01	1	1411-
64	CURTAIN KIT HONG KONG EQUIPMENT(B14)	8-97415-695-0	01	1	1411-
92	CURTAIN ASM; ROUND HONG KONG EQUIPMENT(B14) (A) BLUE	8-97415-698-0	01	1	1411-
92	CURTAIN ASM; ROUND HONG KONG EQUIPMENT(B14) (B) BLUE	8-97415-701-0	01	1	1411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
