7-40 — INSTRUMENT PANEL AND BOX (#129182) — 140 parça

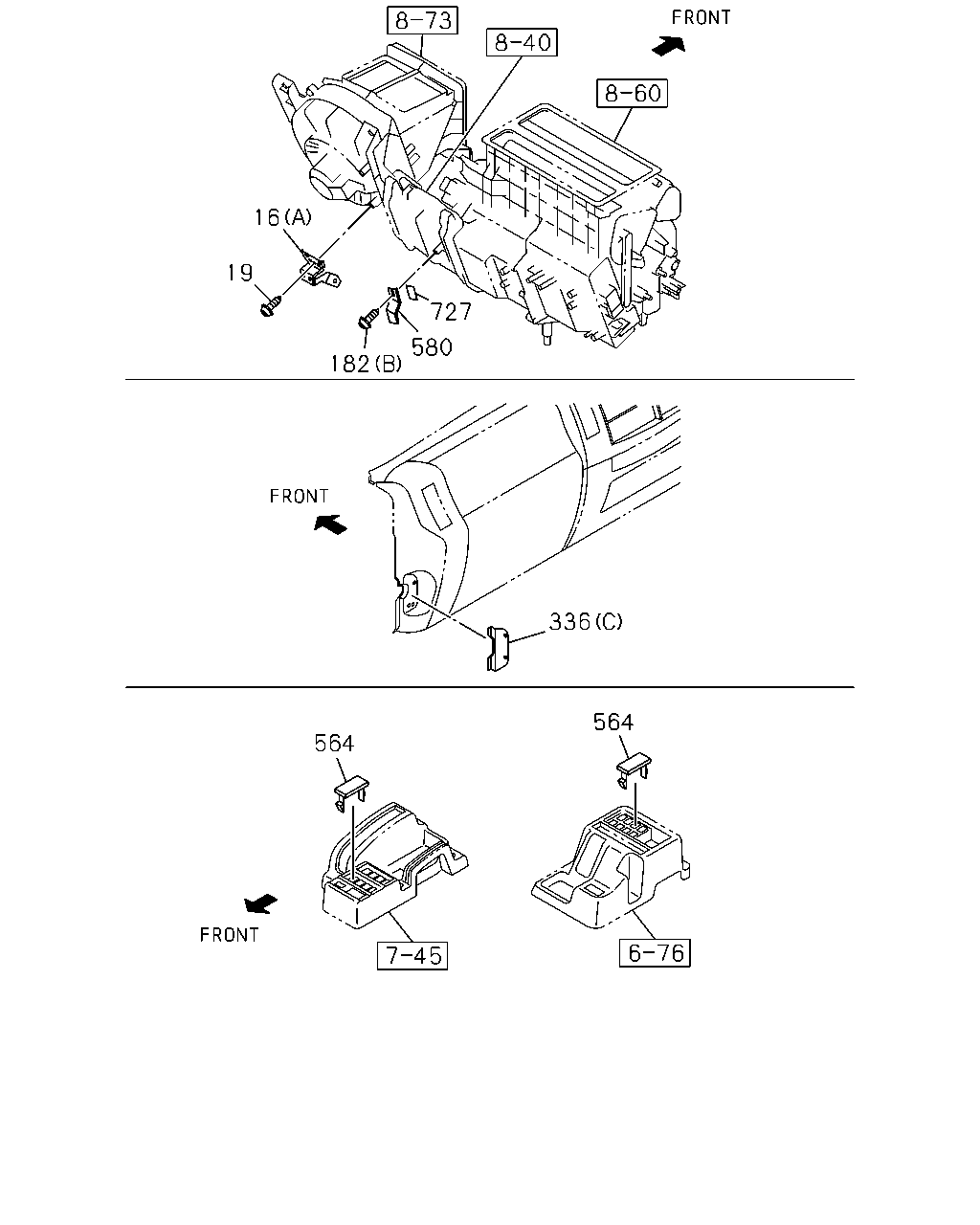

çizim 379744
16 19 727 182 580 564 336 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1310-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1310-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1310-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1310-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1310-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1310-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1310-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1310-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1310-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1310-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1310-
564 COVER; SW 8-97043-732-1 06 1 1310-
580 BRACKET; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-528-1 01 1 1310-
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98186-934-0 01 1 1310-

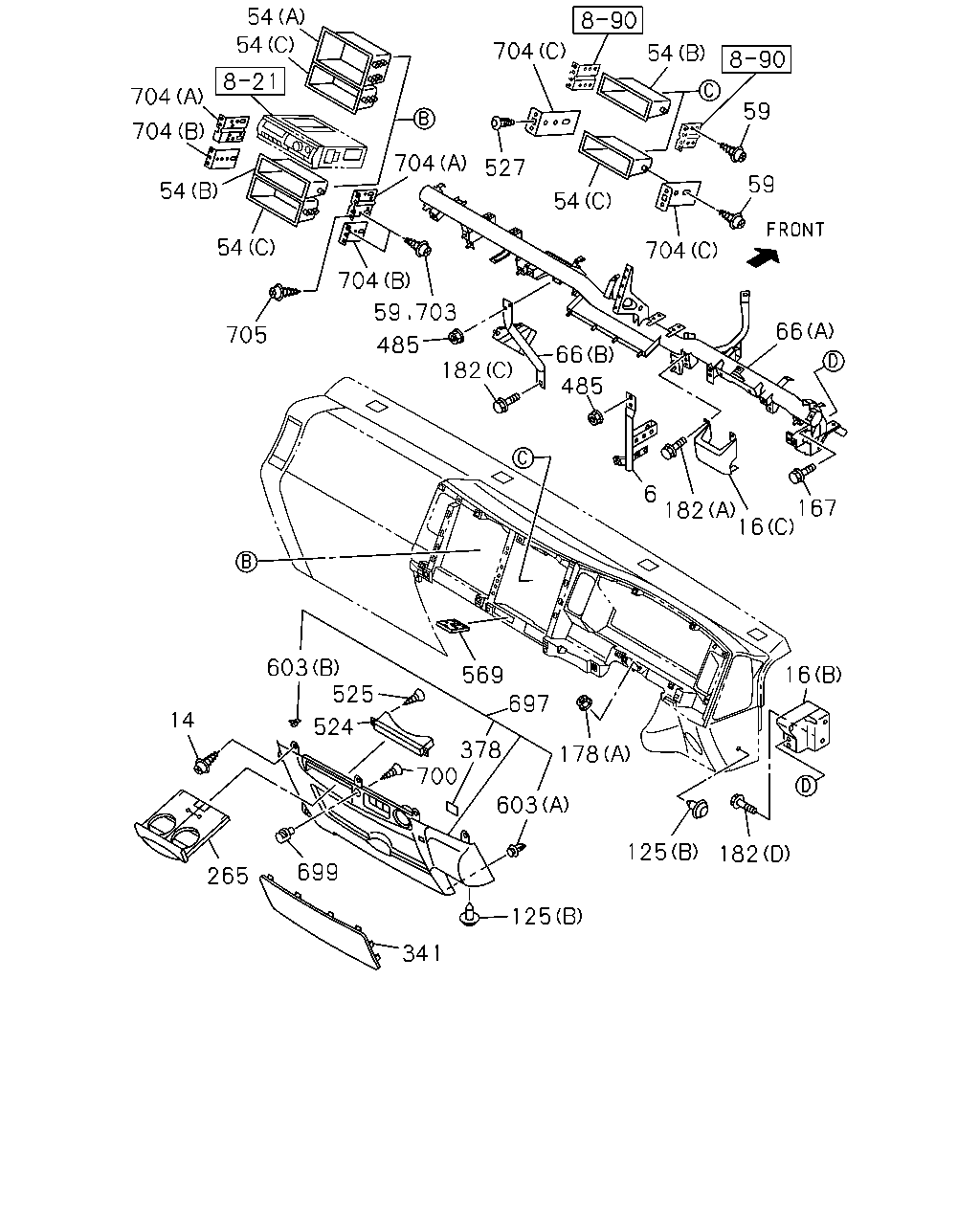

çizim 381803
54 54 704 704 54 54 705 704 59 703 485 182 66 485 6 182 16 167 66 704 59 59 54 704 527 704 54 16 182 125 178 697 569 378 603 125 341 699 700 524 525 603 14 265
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1310-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1310-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1310-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1310-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1310-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1310-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1310-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1310-
54 POCKET; CENTER CLUSTER
EXC. FUEL TANK CAP KEY LOCK<N05> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1310-1410
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1411-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1411-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1310-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1310-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1310-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1310-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1310-
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1310-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (B) 		8-97585-580-2 01 1 1310-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3) (B) 		8-98151-167-0 01 1 1310-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1310-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1310-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1310-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1310-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1310-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1310-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1310-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1310-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1310-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1310-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1310-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1310-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1310-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1310-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1310-
569 HOLDER; CARD 8-97410-276-1 01 1 1310-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1310-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1310-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1310-
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1310-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1310-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1310-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1310-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1310-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 1310-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1310-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1310-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1310-

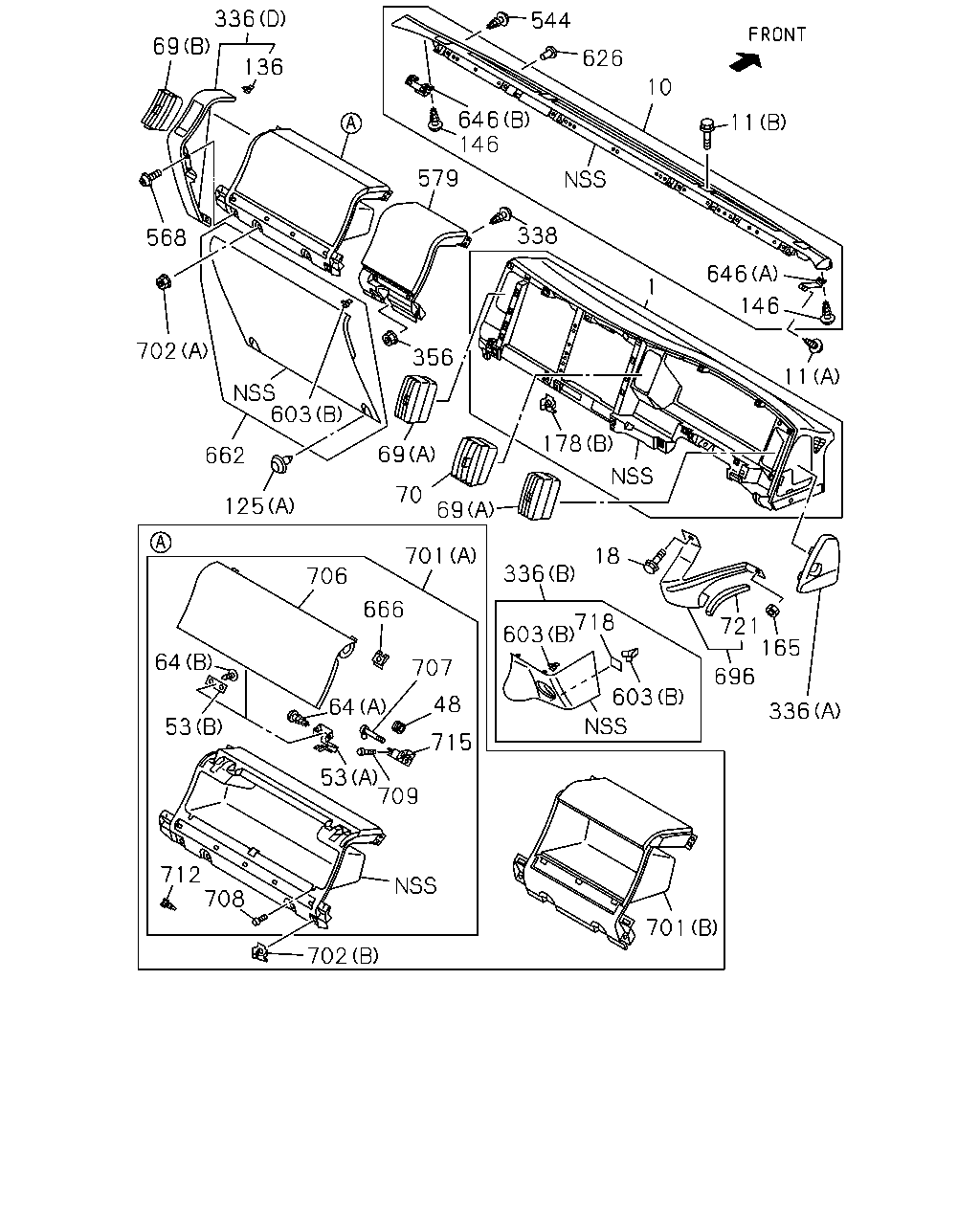

çizim 381809
336 69 136 568 702 603 662 125 69 70 69 356 579 646 146 338 544 626 10 11 646 146 11 1 178 18 336 603 603 718 336 165 721 696 701 706 666 707 48 715 64 53 709 53 64 712 708 701 702
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1310-
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1310-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1310-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1310-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1310-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1310-1311
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406-1410
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1411-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1310-1311
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406-1410
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1411-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1310-1405
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406-1410
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1411-
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1310-1405
64 SCREW; STRIKER
(B) M4X85 		8-97926-404-0 02 1 1406-1410
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1411-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1310-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1310-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1310-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1310-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1310-
136 CLIP; INST COVER 8-98076-254-0 02 1 1310-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1310-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1310-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1310-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1310-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1310-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1310-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1310-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1310-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1310-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1310-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1310-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1310-
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1310-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1310-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1310-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1310-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1310-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1310-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1310-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1310-
666 INSERT; INST PANEL 8-98038-450-0 04 1 1310-1311
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1312-1410
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1411-
696 BRACKET; KNEE 8-98066-085-1 01 1 1310-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1411-
701 TRAY; INST
(A) GRAY 		8-97415-540-6 01 1 1310-1405
701 TRAY; INST
(A) GRAY 		8-97429-703-1 01 1 1406-1410
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1411-
702 NUT; TRAY
(A) M6 FLANGE 		0-91180-106-0 02 1 1310-
702 NUT; TRAY
(B) 		8-98037-629-0 01 1 1310-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1310-1405
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406-1410
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1411-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1310-1311
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312-1410
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1411-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1310-1410
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1411-
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1310-1410
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1411-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1310-1410
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1411-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1310-1311
715 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312-1410
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1411-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1310-1311
715 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312-1410
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1411-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1310-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1310-
