◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#129179) — 11 parça
çizim 380770
160 49 35 35
BalonParca AdiParca NoAdetTipApplied Date
35 PLATE; CAUTION,CAB
AUTO CAB TILT<WV2> (B) 		8-98017-667-1 01 1 1411-
35 PLATE; CAUTION,CAB
(A) 		8-98065-363-0 01 1 1310-1410
35 PLATE; CAUTION,CAB
EXC. AUTO CAB TILT<WV2> (A) 		8-98065-363-0 01 1 1411-
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 1310-
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) 		1-85888-737-1 01 1 1411-

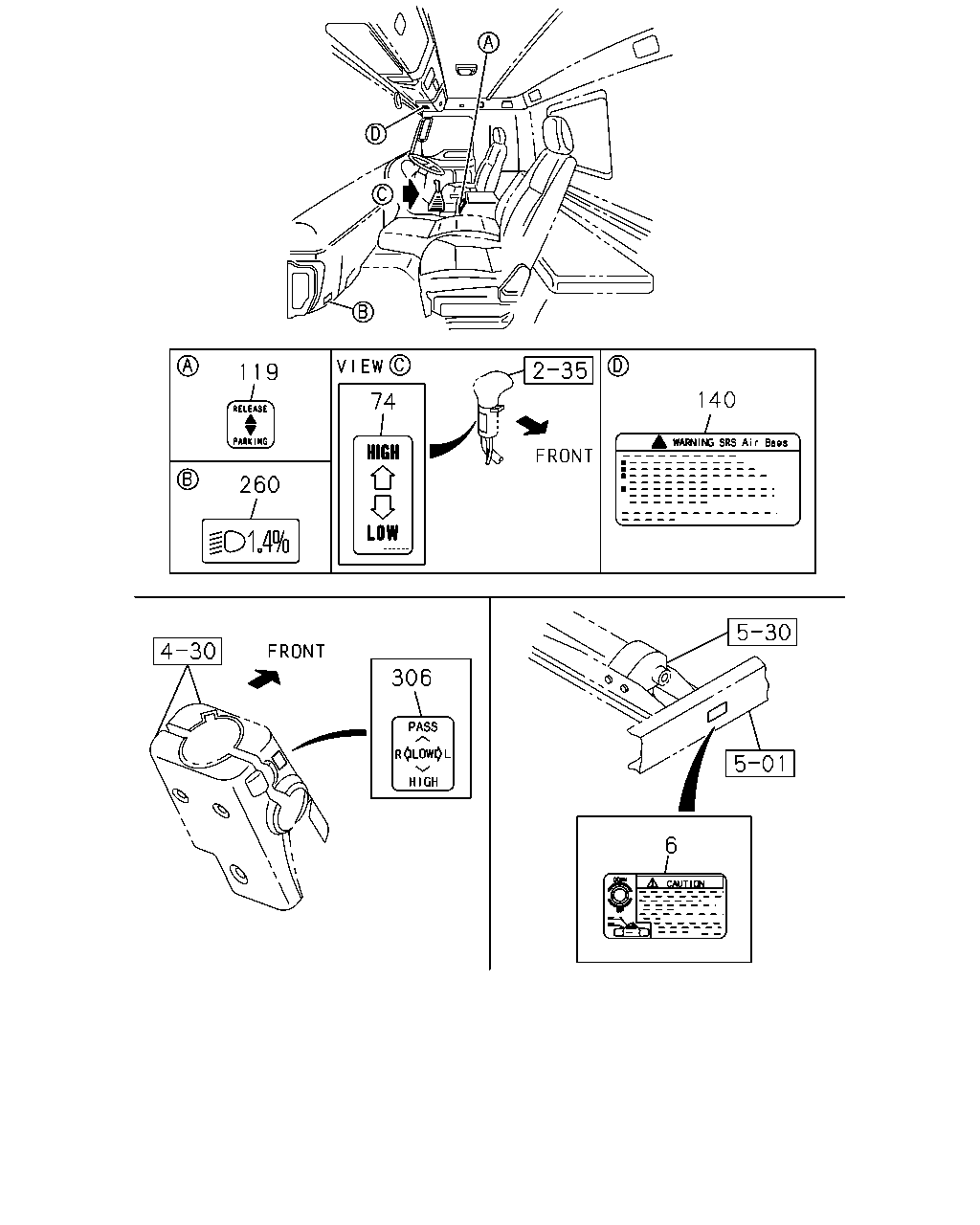

çizim 381016
119 74 140 6 306 260
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE 8-98082-437-0 01 1 1310-
74 PLATE; CAUTION,CHANGE LEV
ZF9S1110 M/T(Y5E) 		8-98118-493-0 01 1 1411-
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 1310-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-964-0 01 1 1310-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1310-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
