◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#129177) — 12 parça

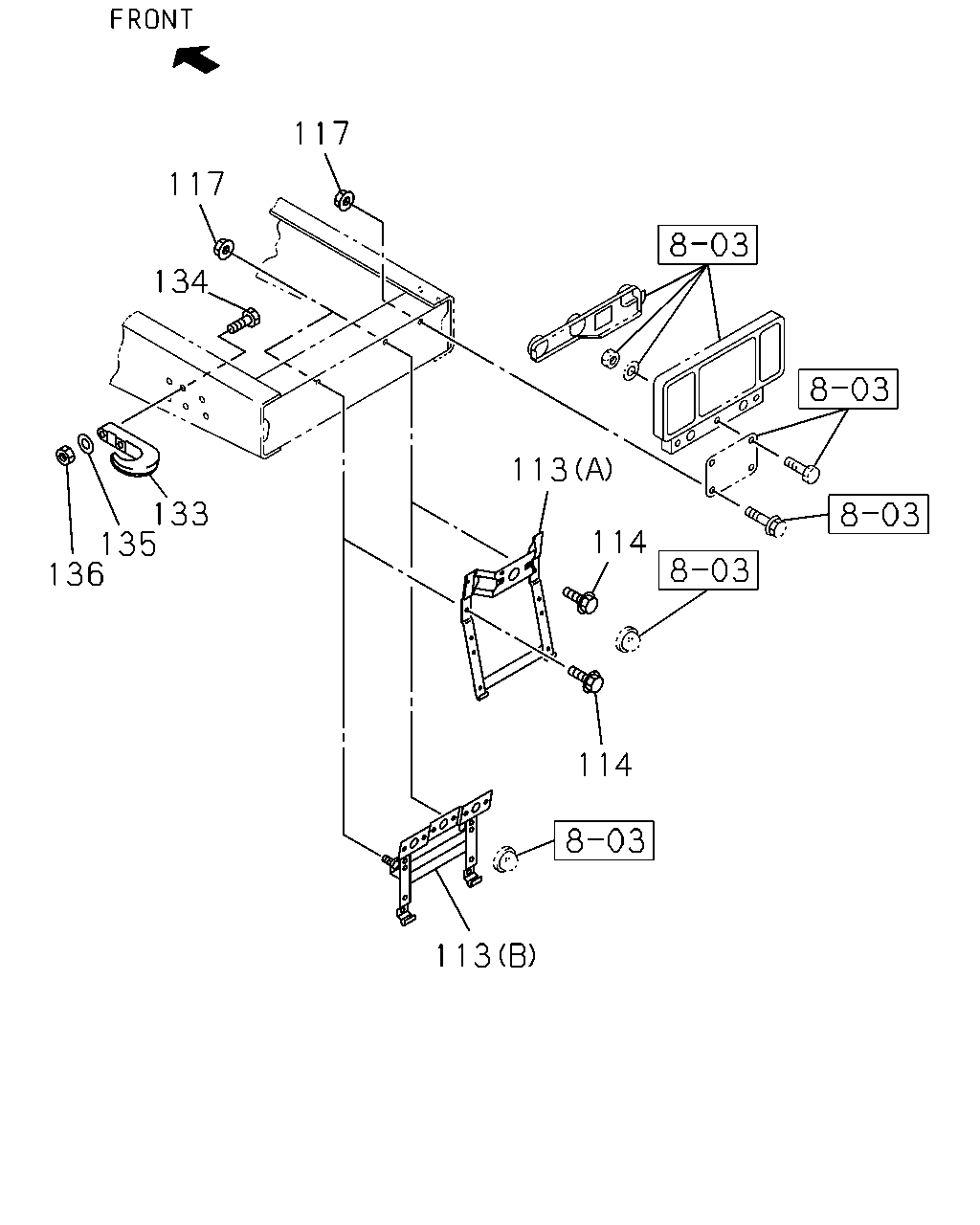

çizim 381285
117 117 134 133 135 136 113 114 114 113
BalonParca AdiParca NoAdetTipApplied Date
113 BRACKET; LICENSE PLATE
HONG KONG EQUIPMENT(B14) (B) 		8-98146-990-0 01 1 1411-
113 BRACKET; LICENSE PLATE
(A) 		1-53485-074-0 01 1 1310-1410
113 BRACKET; LICENSE PLATE
SINGAPORE EQUIPMENT(2G0) (A) 		1-53485-074-0 01 1 1411-
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 1310-1410
114 BOLT; BRKT,LICENSE PLATE
SINGAPORE EQUIPMENT(2G0) M8X25 FLANGE 		0-28650-825-0 02 1 1411-
117 NUT; BRKT
REVERSING WARNING BUZZER<YM9> M8 FLANGE 		0-91180-108-0 02 1 1310-
117 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1310-
133 HOOK
TOW HOOK<V76> 		1-57181-027-1 01 1 1310-
134 BOLT; HOOK
TOW HOOK<V76> M16X50 		0-20851-650-0 01 1 1310-
134 BOLT; HOOK
TOW HOOK<V76> M16X60 		0-20851-660-0 01 1 1310-
135 WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2 		0-91510-816-0 02 1 1310-
136 NUT; HOOK
TOW HOOK<V76> M16 		0-91110-516-0 02 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
