Isuzu WW
▶
TRUCKS
▶
FVR
▶
11556 - FVR-RHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

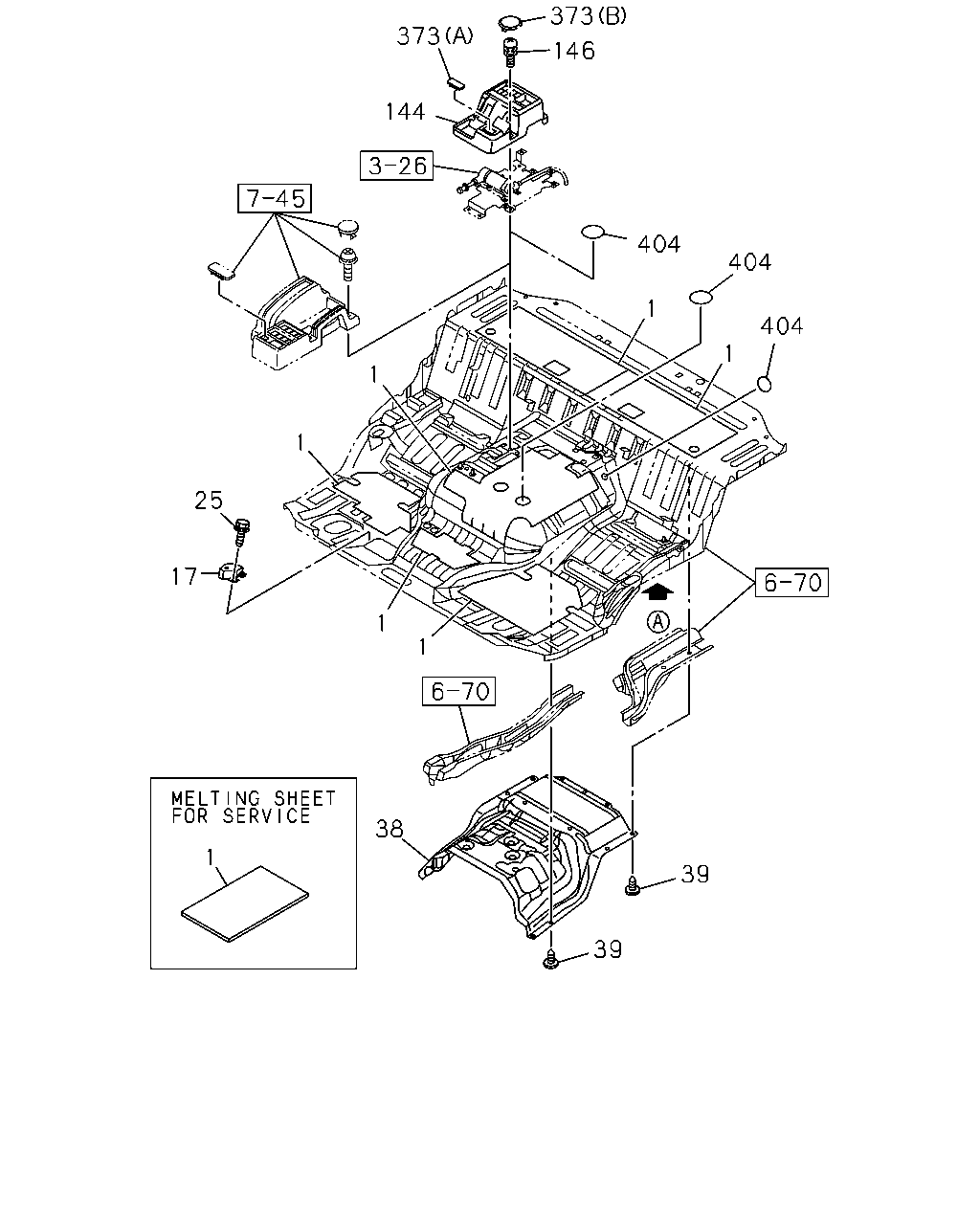

6-76 — FLOOR EQUIPMENT AND SEALING
(#129172) — 19 parça
◀
[676A] NO.1 (18 parça)
[676A] NO.2 (1 parça)
▶
144
373
373
146
404
1
404
404
1
39
39
1
1
38
1
17
25
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
1310-
17
REST; FOOT,DRIVER
8-98076-322-1
01
1
1310-
25
SCREW; FOOT REST
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
1310-
38
INSULATOR; ENG COVER
8-97586-180-6
01
1
1310-1310
38
INSULATOR; ENG COVER
8-98240-137-1
01
1
1311-
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4
8-97808-623-0
24
1
1310-
144
COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY
8-97407-974-0
01
1
1310-1410
144
COVER; HAND BRK VLV
SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY
8-97407-974-0
01
1
1411-
144
COVER; HAND BRK VLV
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY
8-97407-974-0
01
1
1411-
146
BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16
0-38050-616-0
04
1
1310-1410
146
BOLT; COVER BRKT
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> M6X16
0-38050-616-0
04
1
1411-
146
BOLT; COVER BRKT
SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> M6X16
0-38050-616-0
04
1
1411-
373
COVER; HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) GRAY
8-97407-951-0
04
1
1310-
373
COVER; HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY
8-97409-339-0
01
1
1310-1410
373
COVER; HOLE
SINGAPORE EQUIPMENT(2G0) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) GRAY
8-97409-339-0
01
1
1411-
373
COVER; HOLE
HONG KONG EQUIPMENT(B14) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) GRAY
8-97409-339-0
01
1
1411-
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
12
1
1310-
404
SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK
1-76798-019-0
02
1
1310-
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1310-
