◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#129161) — 89 parça

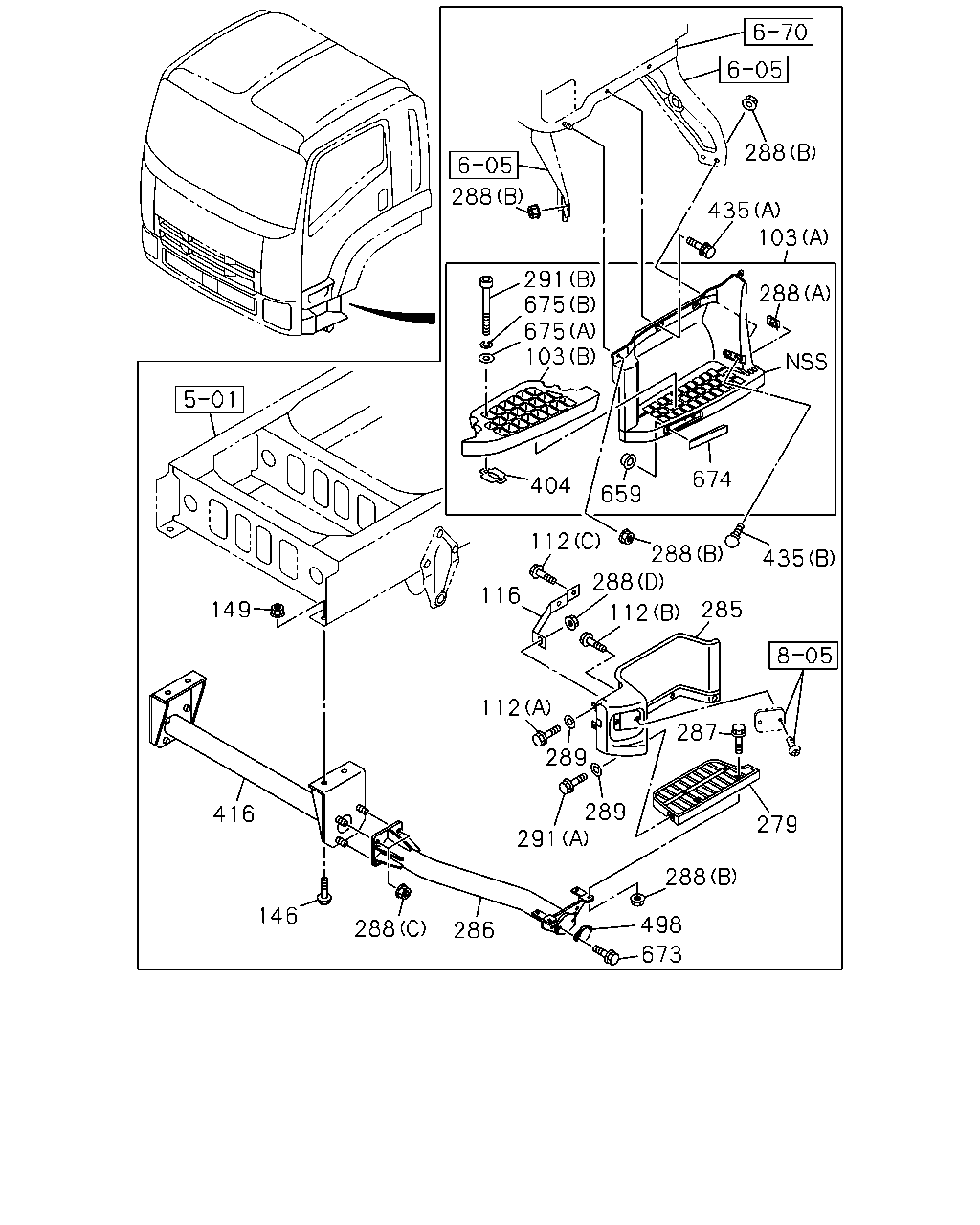

çizim 379766
288 288 435 103 288 674 659 404 103 675 675 291 149 416 146 288 286 291 288 498 673 279 287 285 435 112 288 112 116 288 112 289 289
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP
HONG KONG EQUIPMENT(B14) (A) 		8-98080-624-2 01 1 1411-
103 PLATE; STEP
HONG KONG EQUIPMENT(B14) (A) 		8-98080-625-2 01 1 1411-
103 PLATE; STEP
HONG KONG EQUIPMENT(B14) (B) 		8-98080-630-0 01 1 1411-
103 PLATE; STEP
HONG KONG EQUIPMENT(B14) (B) 		8-98080-631-0 01 1 1411-
103 PLATE; STEP
(A) 		8-98069-977-2 01 1 1310-1410
103 PLATE; STEP
SINGAPORE EQUIPMENT(2G0) (A) 		8-98069-977-2 01 1 1411-
103 PLATE; STEP
(A) 		8-98069-976-2 01 1 1310-1410
103 PLATE; STEP
SINGAPORE EQUIPMENT(2G0) (A) 		8-98069-976-2 01 1 1411-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1310-
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1310-
112 BOLT; 1ST STEP
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1310-
116 STAY; 1ST STEP,FRT 8-98196-756-0 02 1 1310-
146 BOLT; STEP BRKT
M14X45 FLANGE 		0-28851-445-0 04 1 1310-
149 NUT; STEP BRKT
M14 FLANGE 		0-91180-214-0 04 1 1310-
279 BOARD; STEP 1ST 1-53414-181-0 01 1 1310-
279 BOARD; STEP 1ST 1-53414-180-0 01 1 1310-
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 1310-
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 1310-
286 STEP ASM; 1ST 8-98082-430-2 01 1 1310-
286 STEP ASM; 1ST 8-98082-431-2 01 1 1310-
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28650-835-0 08 1 1310-
288 NUT; STEP
(D) M6 FLANGE 		0-91180-106-0 02 1 1310-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1310-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1310-
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 1310-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1310-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1310-
291 BOLT; STEP PLATE
HONG KONG EQUIPMENT(B14) (B) 		8-98165-009-0 08 1 1411-
291 BOLT; STEP PLATE
(A) M6X12 FLANGE 		0-28050-612-0 06 1 1310-
404 BRACKET
HONG KONG EQUIPMENT(B14) 		8-98080-646-1 04 1 1411-
416 BRACKET; ASSIST STEP 8-98053-542-4 01 1 1310-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1310-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1310-
498 REFLECTOR 1-82290-011-1 02 1 1310-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1310-
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1310-
674 COVER; REFLECTOR 8-98092-734-0 01 1 1310-
674 COVER; REFLECTOR 8-98092-733-0 01 1 1310-
675 WASHER; STEP PLATE
HONG KONG EQUIPMENT(B14) (A) 		8-98112-672-1 08 1 1411-
675 WASHER; STEP PLATE
HONG KONG EQUIPMENT(B14) (B) 		8-98112-673-1 08 1 1411-

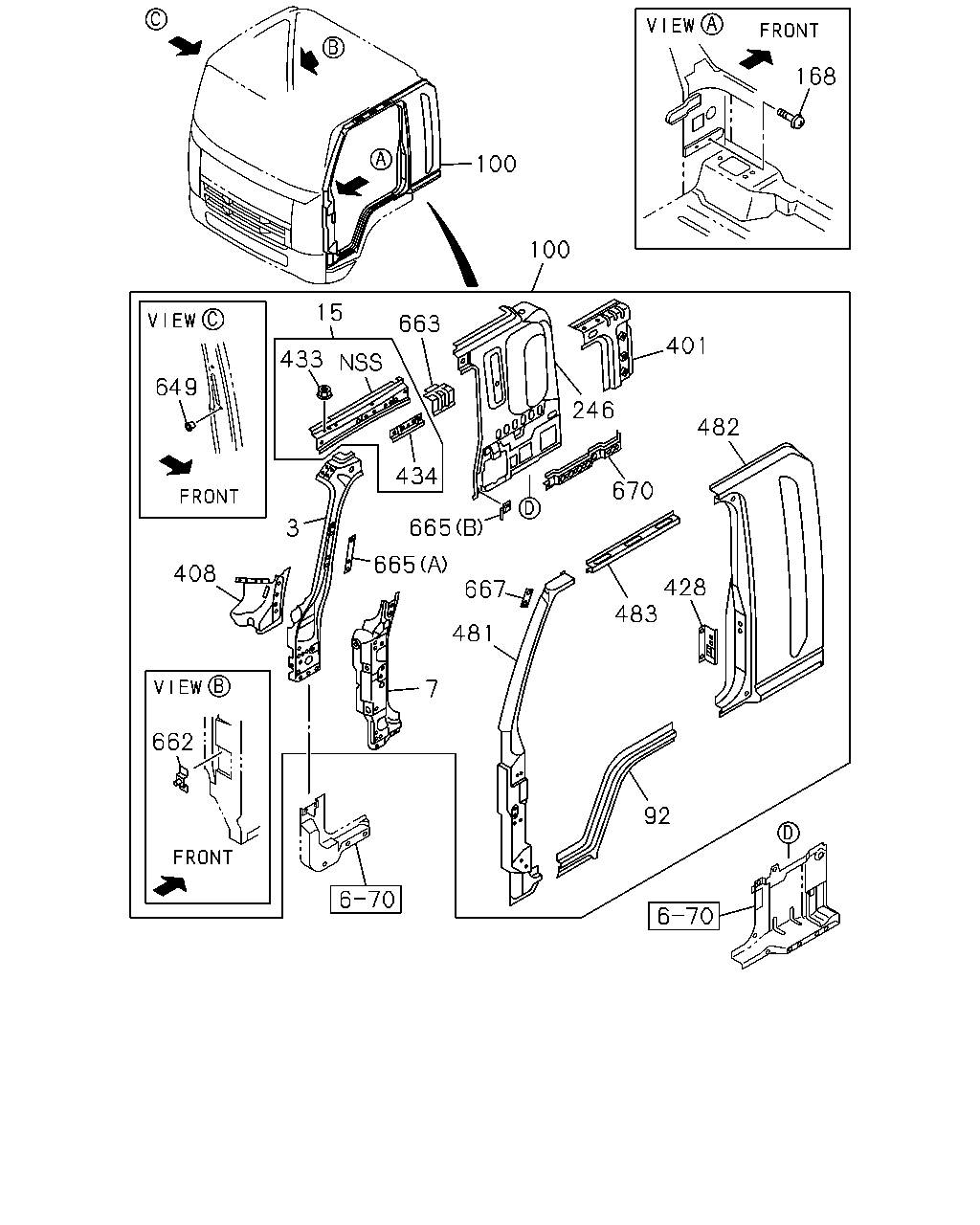

çizim 380005
100 100 168 401 482 670 428 483 92 246 667 481 7 665 665 434 663 15 433 3 649 408 662
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1310-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1310-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1310-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1310-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1310-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1310-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1310-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1310-
100 PANEL ASM; BODY SIDE 8-97586-073-9 01 1 1310-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-065-6 01 1 1310-
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98044-544-5 01 1 1310-
168 BOLT; BODY SIDE PANEL
SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1310-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1310-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1310-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1310-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1310-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1310-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1310-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1310-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1310-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1310-1410
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1411-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1411-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1310-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1310-
481 PANEL; SIDE FRT PILLAR 8-98055-453-0 01 1 1310-1410
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98055-453-0 01 1 1411-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98055-453-0 01 1 1411-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-471-0 01 1 1310-
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-470-0 01 1 1310-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1310-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1310-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1310-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1310-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1310-
662 BRACKET; DUCT 8-97584-611-1 01 1 1310-
663 BRACKET; AIR 8-97585-208-2 01 1 1310-
663 BRACKET; AIR 8-97585-207-2 01 1 1310-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1310-1410
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1411-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1411-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1310-1410
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1411-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1411-
667 BRACKET; MIRROR 8-98109-948-0 01 1 1310-
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 02 1 1310-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 1310-1410
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1411-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1411-
