Sayfa 6-04 - Isuzu EPC

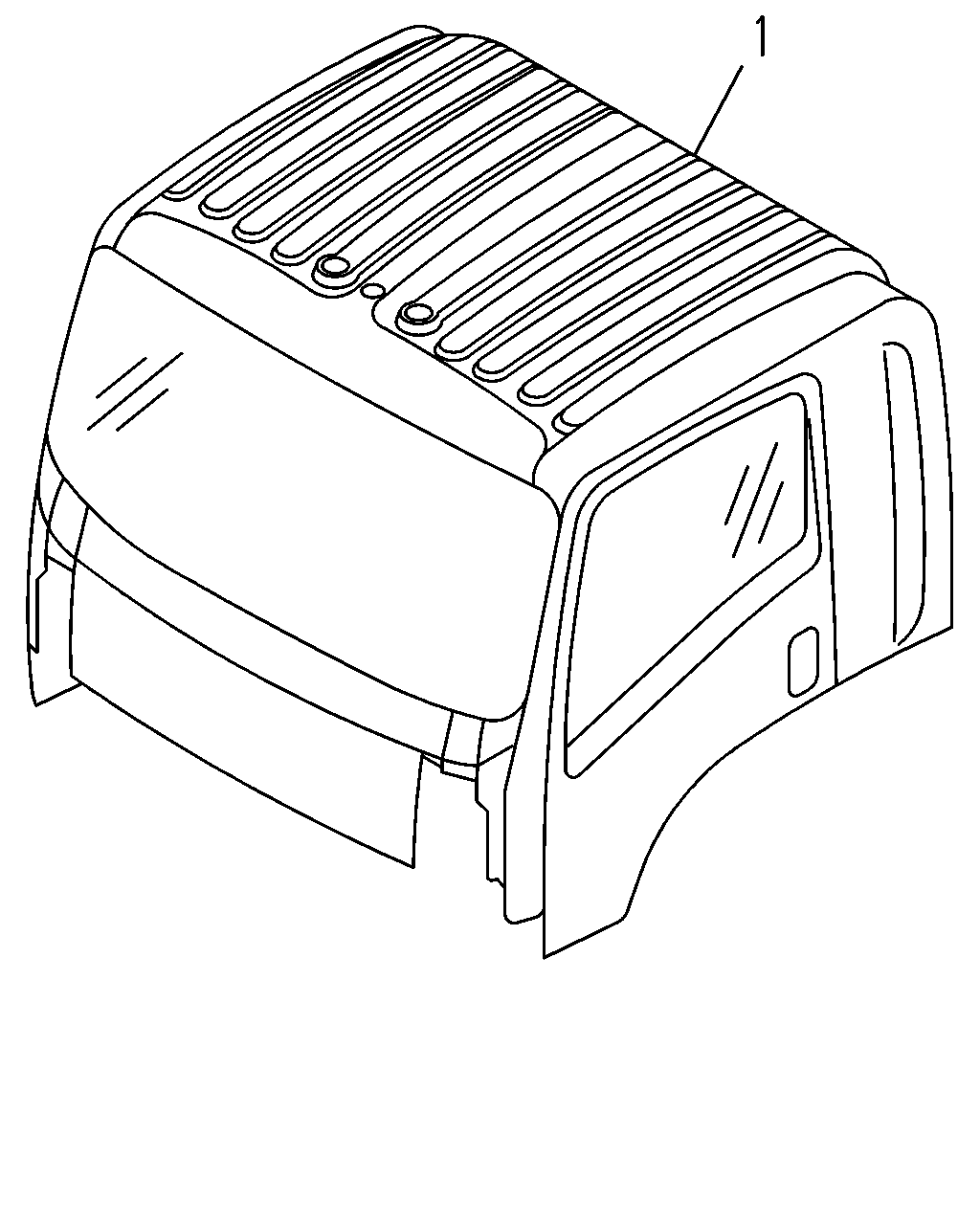

6-04 — CAB ASM (#129158) — 3 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) SINGAPORE EQUIPMENT(2G0) STANDARD CAB(SAY) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) POWER WINDOW FRT DOOR<A32> FUEL TANK 200L FRAME SIDE<N20> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,2-S PEAKER SYSTEM BASE<U95>,ASH TRAY PASSENGER DOOR<8LX>	1-61860-244-0	01	1	1310-
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) SINGAPORE EQUIPMENT(2G0) DELUXE CAB(W14) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) POWER WINDOW FRT DOOR<A32> FUEL TANK 200L FRAME SIDE<N20> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,2-S PEAKER SYSTEM BASE<U95>,FLUORESCENT LAMP<6UC>,ASH TRAY PASSENGER DOOR<8LX>	1-61860-245-0	01	1	1310-
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) HONG KONG EQUIPMENT(B14) DELUXE CAB(W14) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) POWER WINDOW FRT DOOR<A32> FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S UNDER & SIDE UNDER VIEW<TAF> ROUND CURTAIN RAIL<EDH> EXC. FUEL TANK CAP KEY LOCK<N05>,2-SPEAKER SYSTEM BASE<U95>,FLUORESCENT LAMP<6UC>,ASH TRAY PASSENGER DOOR<8LX>	1-61860-243-0	01	1	1411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
